24100-4631A Turbocharger for Kobelco SK200-8 SK210-8

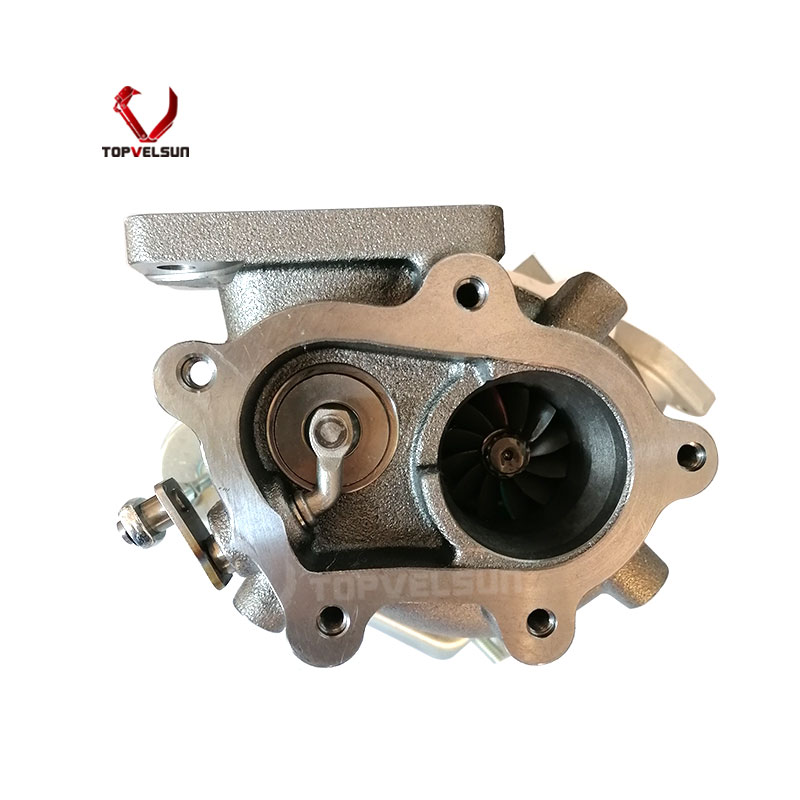

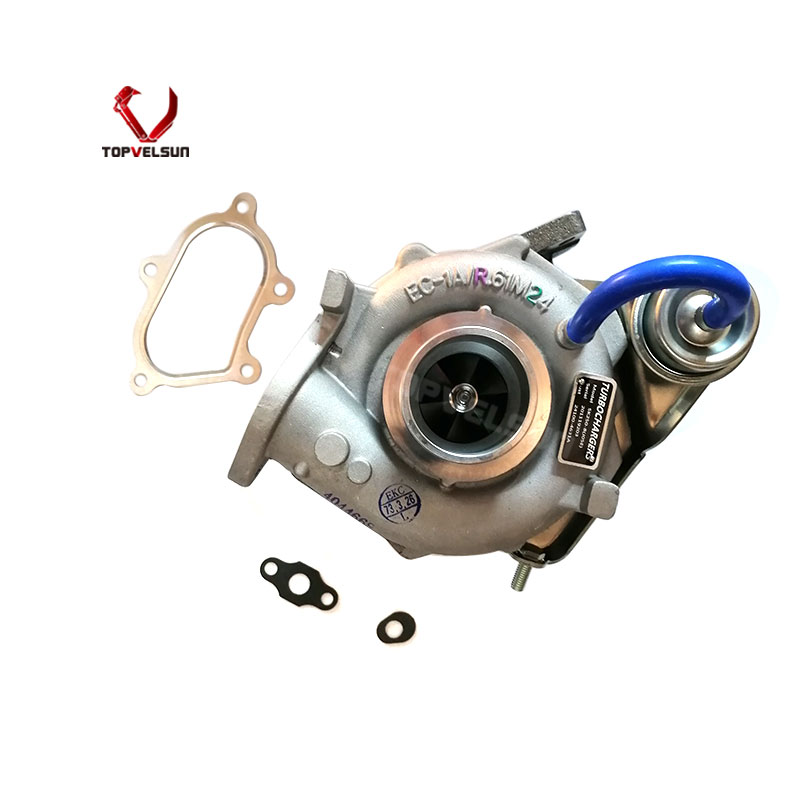

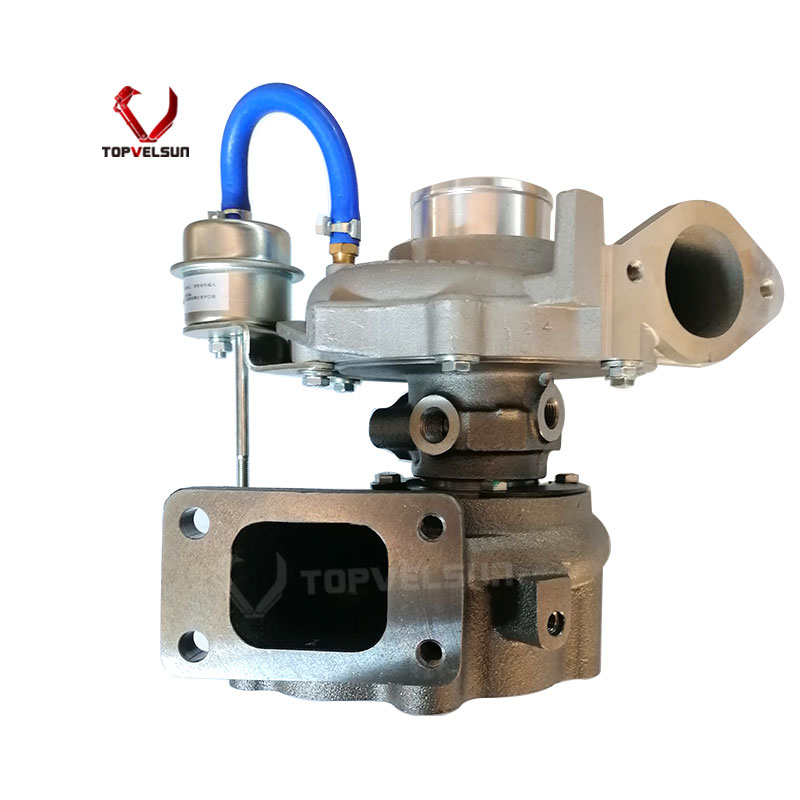

24100-4631A GT2259LS Turbocharger for Hino J05E Engine

The 24100-4631A GT2259LS turbocharger is supplied for Hino J05E, JO5E, J05E-TA and J05ETB diesel engine applications. It is commonly checked for Kobelco SK200-8, SK210-8, SK250-8 and related excavator repair.

This replacement turbocharger is used when the old unit has weak boost, black smoke, oil leakage, abnormal noise, damaged compressor wheel or excessive shaft play. Before ordering, confirm the old turbocharger tag, engine plate and removed sample photos to avoid mismatch in housing, actuator, flange or oil line position.

Part Number and Application

Part Number: 24100-4631A

Ref Cross: 24100-4631 / 241004631A / S1760-E0010 / S1760E0010 / 761916-0006 / 7619165006S / 787873-5001S / 787873-0001 / 17201-E0520

Turbo Model: GT2259LS series turbocharger

Engine Model: Hino J05E / JO5E / J05E-TA / J05ETB diesel engine

Machine Application: Kobelco SK200-8, SK210-8, SK250-8 and related Hino J05E engine applications

Fitment Check Before Order

For Kobelco SK200-8, SK210-8 and SK250-8 applications, do not confirm the turbocharger by machine model alone. The old turbocharger number should be checked first, then the Hino J05E engine model and physical turbocharger layout should be compared.

Turbo Tag: Check for 24100-4631A, 24100-4631, S1760-E0010, 761916-0006, 787873-5001S, 787873-0001 or GT2259LS on the old turbocharger.

Engine Plate: Confirm Hino J05E, JO5E, J05E-TA, J05ETB or the actual engine model from the machine record.

Machine Model: Confirm Kobelco SK200-8, SK210-8, SK250-8 or the actual equipment model.

Sample Photos: Compare compressor housing, turbine housing, actuator position, outlet direction, mounting flange, oil inlet and oil return position.

Common Replacement Signs

A worn 24100-4631A turbocharger can reduce engine response and cause unstable boost pressure. Before replacing the turbocharger, the intake, exhaust and lubrication systems should be checked to reduce the risk of repeat failure.

Low Power or Black Smoke: Check the air filter, intake pipe, boost hose, intercooler pipe and compressor wheel condition.

Oil Leakage: Check the oil feed line, oil return line, crankcase ventilation and turbo bearing clearance before installing a replacement turbocharger.

Abnormal Noise: Check shaft play, compressor wheel contact, turbine wheel damage and signs of foreign object impact.

Repeat Failure Risk: Check dirty engine oil, blocked oil return, poor air filter sealing, exhaust leakage and remaining debris inside the intake pipe.

Information Needed for Quotation

Part Number: 24100-4631A / 24100-4631

Ref Cross: S1760-E0010 / 761916-0006 / 787873-5001S / 17201-E0520 if shown on the old turbo tag or purchase record

Engine Model: Hino J05E, JO5E, J05E-TA, J05ETB or actual engine plate model

Machine Model: Kobelco SK200-8, SK210-8, SK250-8 or actual machine model

Photos: Old turbocharger nameplate and clear sample photos from several angles

FAQ

Is 24100-4631A the main part number for this product?

Yes. 24100-4631A is the main part number for this Hino J05E GT2259LS turbocharger direction. The number 24100-4631 can also be used for inquiry matching.

Can S1760-E0010 be used as Ref Cross?

Yes. S1760-E0010 can be used as a checking reference for this 24100-4631A turbocharger direction. Final confirmation should still be made by old turbo tag and sample photos.

Is this turbocharger for Kobelco SK200-8?

Yes. It can be checked for Kobelco SK200-8 applications when the Hino J05E engine model and old turbocharger number match.

Can this turbocharger be checked for SK210-8 or SK250-8?

Yes. It can be checked for SK210-8 and SK250-8 applications when the old turbo tag, engine model and sample photos match this GT2259LS direction.

What should I provide before ordering?

Please provide the old turbocharger part number, engine model, machine model, turbo nameplate photo and removed sample photos.
