RE528770 DZ115156 Turbocharger for John Deere 6068 6.8L Engine 200DLC 524K 710J

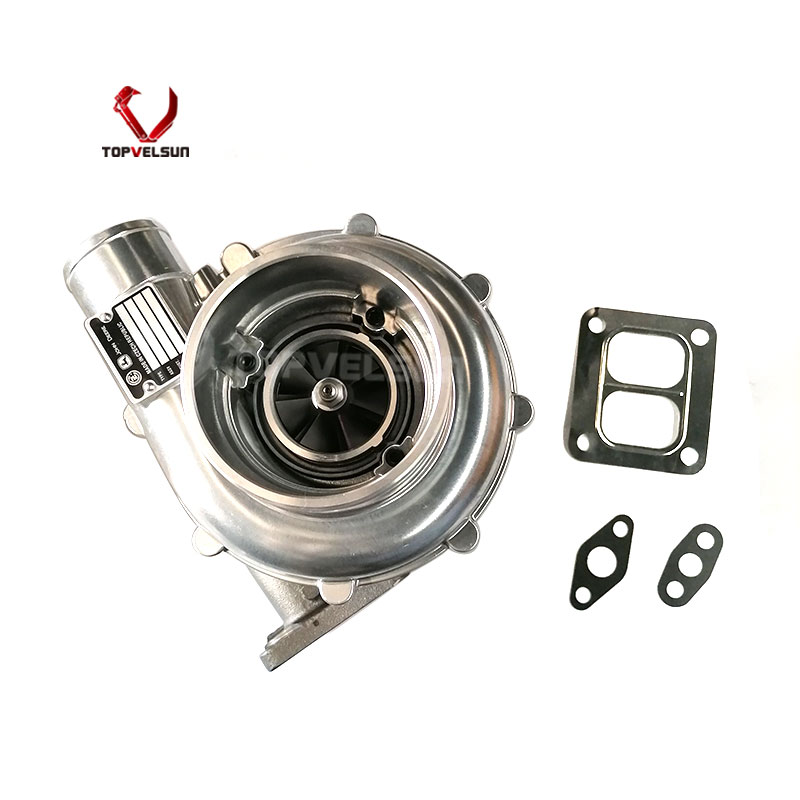

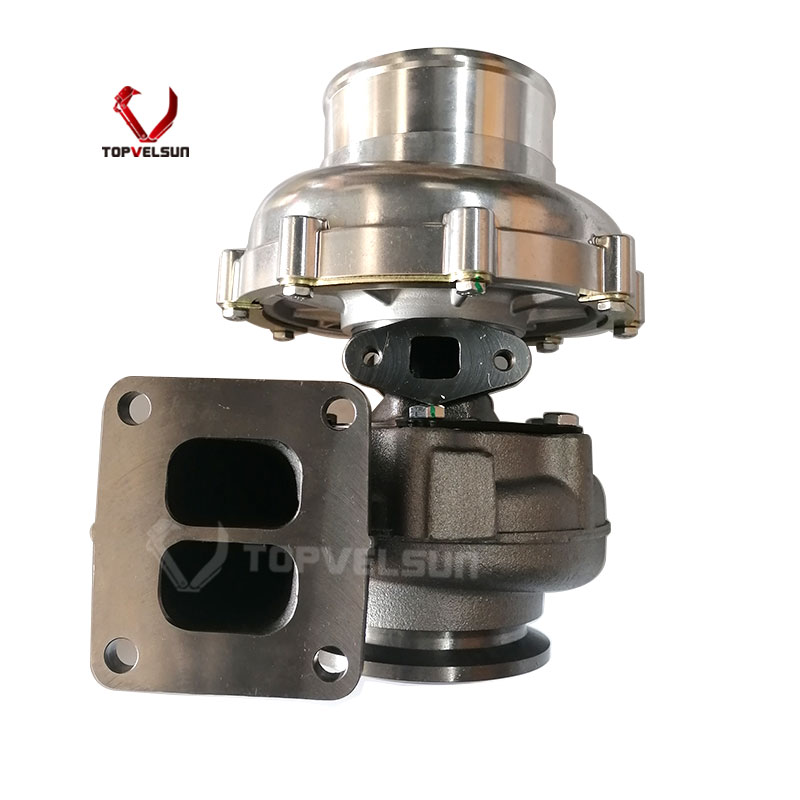

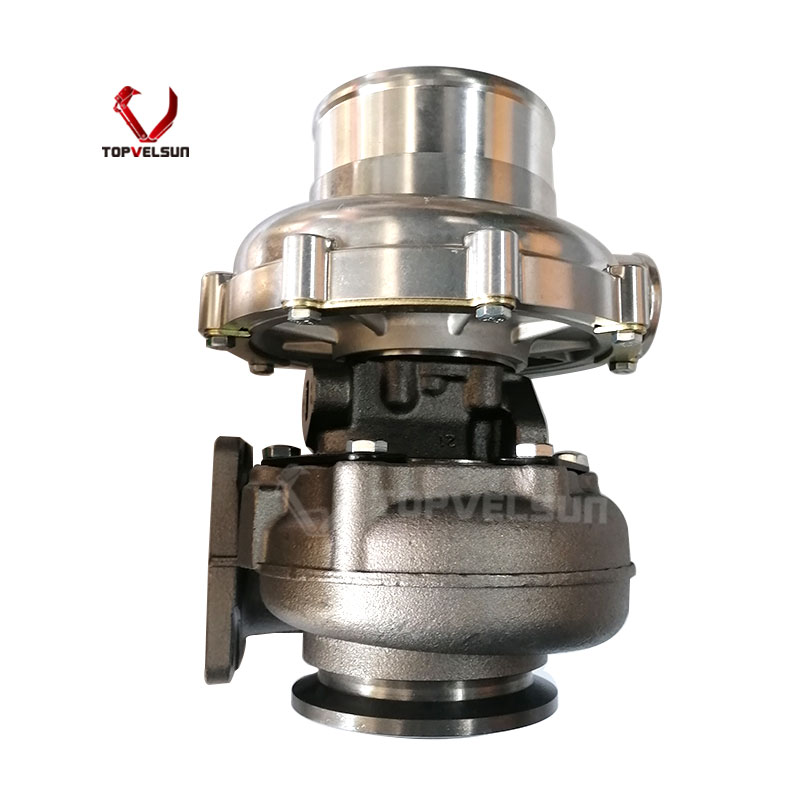

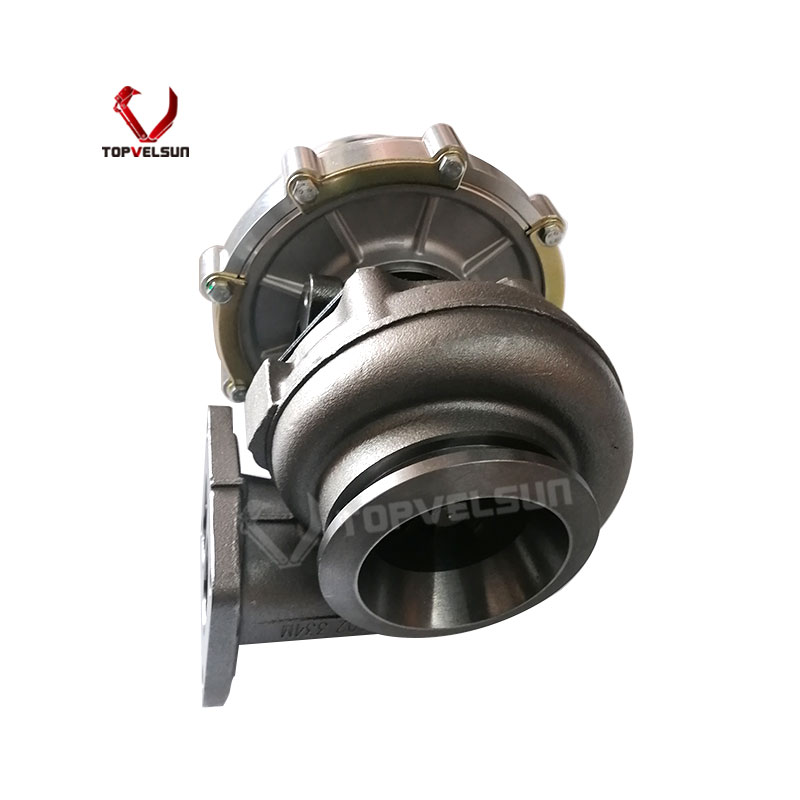

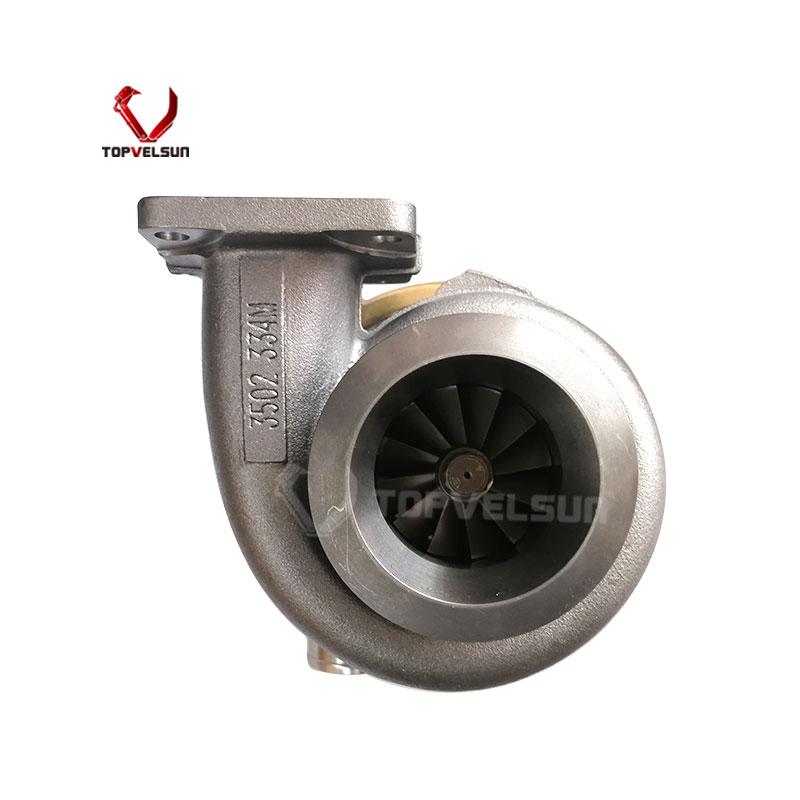

Premium RE528770 / DZ115156 Turbocharger for John Deere 6068 Engine

Restore the lost horsepower and fuel efficiency of your heavy machinery with our top-tier aftermarket Turbocharger Assembly (Part Numbers: RE528770, DZ115156, RE550941). Engineered explicitly for the legendary John Deere 6068 (6.8L PowerTech) Tier 3 diesel engine, this wastegate-controlled turbo delivers OEM-level boost pressure and unparalleled durability.

Accurate Equipment Compatibility

This turbocharger is a direct drop-in replacement for a wide range of John Deere construction and forestry equipment, including:

• Track Excavators: 200DLC, 210G, 2154D

• Wheel Loaders: 524K, 544K

• Backhoe Loaders: 710J, 710K

• Crawler Dozers: 750J

Technical Specifications & Material

• Boost Pressure: Rated for standard 140–150 kPa (1.4–1.5 bar) with a peak safety limit of ≤180 kPa.

• Compressor Wheel: High-density cast aluminum alloy for rapid air intake compression with minimal turbo lag.

• Turbine Wheel: Premium nickel-based superalloy engineered to withstand extreme exhaust gas temperatures up to 900℃.

• Installation: 1:1 OEM flange design ensures perfect alignment with the exhaust manifold and oil feed/drain lines.

Official Troubleshooting & Maintenance Guide

Turbocharger failures are often symptoms of underlying engine issues. Before installing your new RE528770 turbo, follow these diagnostic steps to prevent premature failure:

1. Low Engine Power & Black Exhaust Smoke

Cause: Compressor wheel wear, a stuck wastegate actuator, or severe boost leaks in the intercooler piping preventing the system from reaching the 140-150 kPa standard pressure.

Solution: Check for restricted air filters and boost leaks. Test the wastegate actuator linkage for free movement. If the turbine blades are chipped or rubbing against the housing (wheel sweep), the entire turbocharger must be replaced.

2. Oil Leakage / Blue Exhaust Smoke

Cause: Ruptured internal turbo seals, excessive engine crankcase pressure, or a restricted oil drain line causing oil to back up into the turbine/compressor housings.

Solution: Ensure the turbo oil drain tube is completely free of sludge or kinks. Measure engine oil pressure to ensure it is within limits. Always use new mounting gaskets and oil line seals when installing the replacement turbo.

3. Loud Whining / Screeching Noise

Cause: Severe floating bearing wear due to oil starvation or oil contamination, causing the turbine wheel to scrape the housing.

Solution: Spin the wheel manually on a cold engine; it should spin freely without touching the housing. If there is excessive radial/axial play or rubbing, replace the unit. Change the engine oil and filter prior to firing up the new turbo.

4. Overboost & Engine Knocking

Cause: A ruptured wastegate diaphragm or broken internal spring preventing the exhaust gas from bypassing the turbine, leading to dangerous pressure spikes.

Solution: Inspect the wastegate control line and diaphragm. If the wastegate mechanism is seized due to heavy exhaust carbon buildup, replacing the complete turbo assembly is the safest protocol.

Crucial Installation Specs

Clean all intake and exhaust manifolds thoroughly. Pre-lube the new turbocharger's oil inlet port with clean engine oil before starting. Torque the exhaust manifold flange bolts to 55±5 N·m and intake connections to 45±5 N·m. Let the engine idle for 5-10 minutes after initial startup to ensure proper bearing lubrication.
