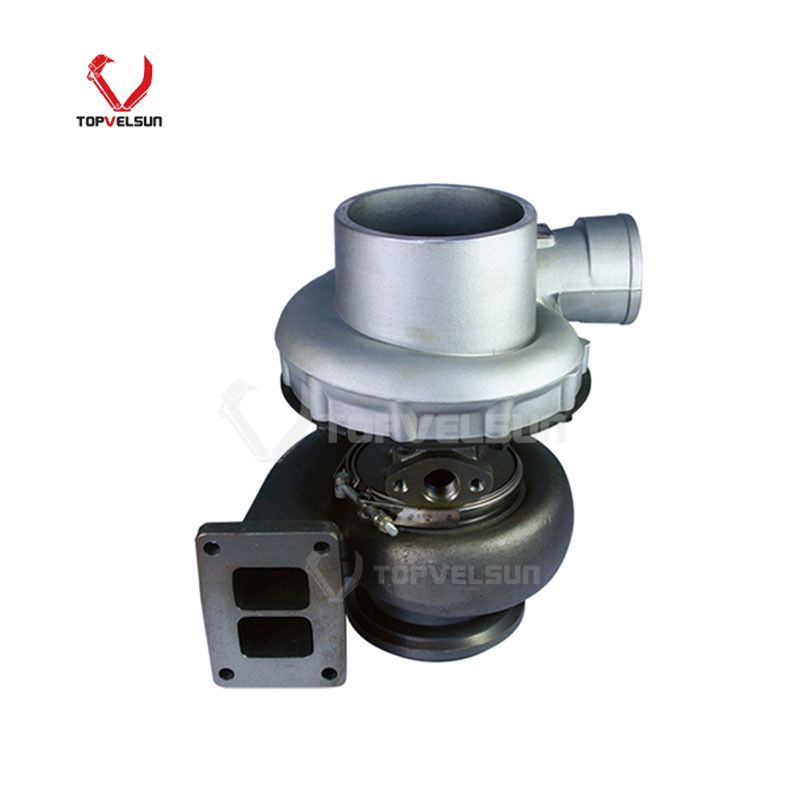

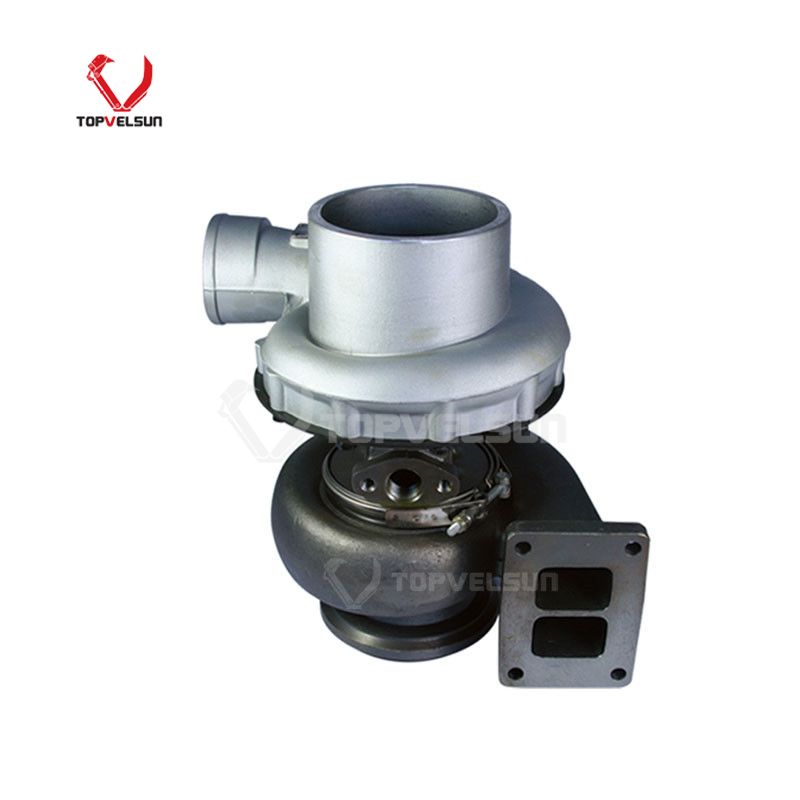

3529032 HT3B Turbocharger for Cummins NT855 / NTA855 Engine

3529032 HT3B Turbocharger for Cummins NT855 NTA855 Engine

The 3529032 turbocharger is used for Cummins NT855 and NTA855 engine applications. It is commonly searched as an HT3B turbocharger, BHT3B turbocharger, Cummins 855 turbo or NT855 engine turbocharger for diesel engine repair and replacement.

This page focuses on 3529032 as the main part number. Before ordering, the removed turbocharger should be checked by turbo tag number, turbo model, engine model, engine serial number, compressor housing, turbine housing, oil inlet position, oil return position and exhaust connection.

Cummins 855 Engine Application Notes

The main engine references for this turbocharger are Cummins NT855, NTA855 and related 855 engine family applications. These engines may appear in heavy-duty trucks, generators, construction equipment, industrial equipment and off-highway machinery.

Because turbocharger configuration can vary by engine CPL, build year, market version and equipment installation, the engine model alone is not enough for final confirmation. The old turbo nameplate and physical connection points should be checked before quotation.

HT3B BHT3B Turbocharger Identification

3529032 is commonly associated with HT3B and BHT3B turbocharger references for Cummins NT855 / NTA855 related applications. Catalogs may also list 3803108 and 4033815 in the same checking group.

Other catalog checking references may include 3803108RX, 4033815H, 167713, 3527046, 2839432, 3525299, 3530048 and 4049440. These numbers should be used for identification support only, not as automatic interchange confirmation.

For final confirmation, compare the old turbo tag, turbo model, compressor housing, turbine housing, CHRA structure, oil inlet position, oil return position, exhaust flange and air outlet direction. If any connection position is different, the turbo should be checked again before ordering.

How to Identify the Correct 3529032 Turbocharger

• Check whether the old turbo tag shows 3529032 or another related HT3B / BHT3B reference.

• Confirm the engine model, especially Cummins NT855, NTA855 or related 855 engine references.

• Compare compressor housing direction and air outlet position.

• Check turbine housing shape, exhaust flange and mounting orientation.

• Compare oil inlet and oil return position with the removed turbocharger.

• Check the engine serial number or CPL when the turbo tag is missing or unreadable.

Common Failure Symptoms

• Power loss under load caused by low boost pressure or restricted air flow.

• Excessive black smoke caused by poor air supply, intake restriction, boost leakage or fuel system issues.

• Blue smoke or oil consumption caused by turbo seal wear, high crankcase pressure or oil return restriction.

• Whining, scraping or rattling noise from shaft play, wheel damage or bearing wear.

• Oil leakage around compressor side, turbine side, oil feed line or oil return pipe.

• Repeated turbo failure caused by dirty oil, blocked air filter, exhaust restriction or incorrect installation.

Troubleshooting Before Replacement

Before replacing the 3529032 turbocharger, inspect the complete air intake, exhaust and lubrication system. Turbocharger failure may be caused by problems outside the turbo itself.

• Check engine oil level, oil quality and oil change history.

• Inspect the oil feed line and oil return pipe for blockage, carbon build-up or leakage.

• Check the air filter, intake hose and compressor inlet for dust entry or restriction.

• Inspect exhaust manifold, gasket surface and turbine housing connection for leakage.

• Check for foreign object damage on compressor wheel and turbine wheel.

• Confirm whether low power or smoke is caused by turbocharger failure, fuel injection issues, air restriction, boost leakage or engine wear.

Installation and Maintenance Notes

• Clean the oil feed line, oil return line and mounting surfaces before installation.

• Replace damaged gaskets, seals or oil line fittings during turbocharger replacement.

• Pre-lubricate the turbocharger with clean engine oil before first startup.

• Do not start the engine with blocked oil supply or dry turbo bearings.

• Check air intake hose, exhaust flange and clamp connections after installation.

• Let the engine idle and check oil leakage, abnormal noise and smoke before heavy load operation.

• Maintain clean oil, clean air filtration and correct shutdown practice to reduce early turbocharger failure.

Fitment Check Before Ordering

To reduce wrong orders, please send the old turbo tag photo, engine model, engine serial number, engine CPL if available, compressor housing photo, turbine housing photo, oil inlet photo, oil return photo and exhaust connection photo before quotation.

FAQ

Q: What is 3529032?

3529032 is a turbocharger reference commonly associated with HT3B / BHT3B turbocharger applications for Cummins NT855 and NTA855 engine references.

Q: Is 3529032 used for Cummins NT855 and NTA855?

Yes. Public turbocharger catalogs commonly associate 3529032 with Cummins NT855 and NTA855 related applications. Final confirmation should still be made by turbo tag, engine serial number and physical housing configuration.

Q: What are the common reference numbers for this turbocharger?

Common checking references may include 3803108, 4033815, 3803108RX, 4033815H, 167713, 3527046, 2839432 and 4049440. These should be verified by turbo tag and physical configuration before use.

Q: Can I order only by engine model?

Engine model is useful for initial checking, but turbocharger configuration may vary by engine CPL, build year, installation layout and market version. Old turbo tag and clear photos are recommended.

Q: What should be checked before ordering?

Check the turbo tag, engine model, engine serial number, compressor housing, turbine housing, oil inlet outlet position, exhaust flange and air outlet direction. Clear photos of the removed turbocharger are recommended.
