Kobelco SK200-5 SK200-6 Turbocharger ME088840

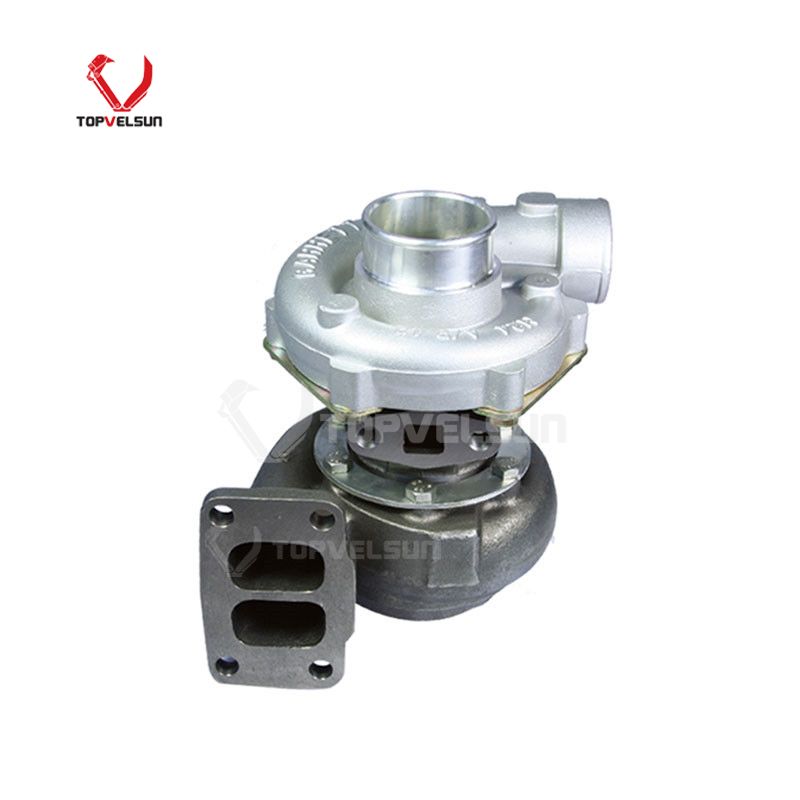

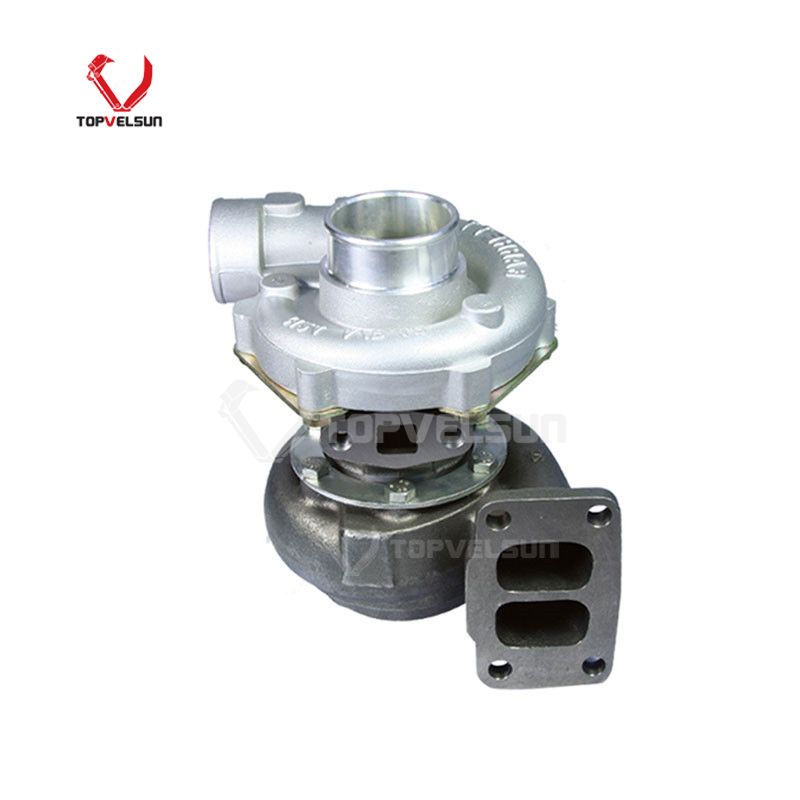

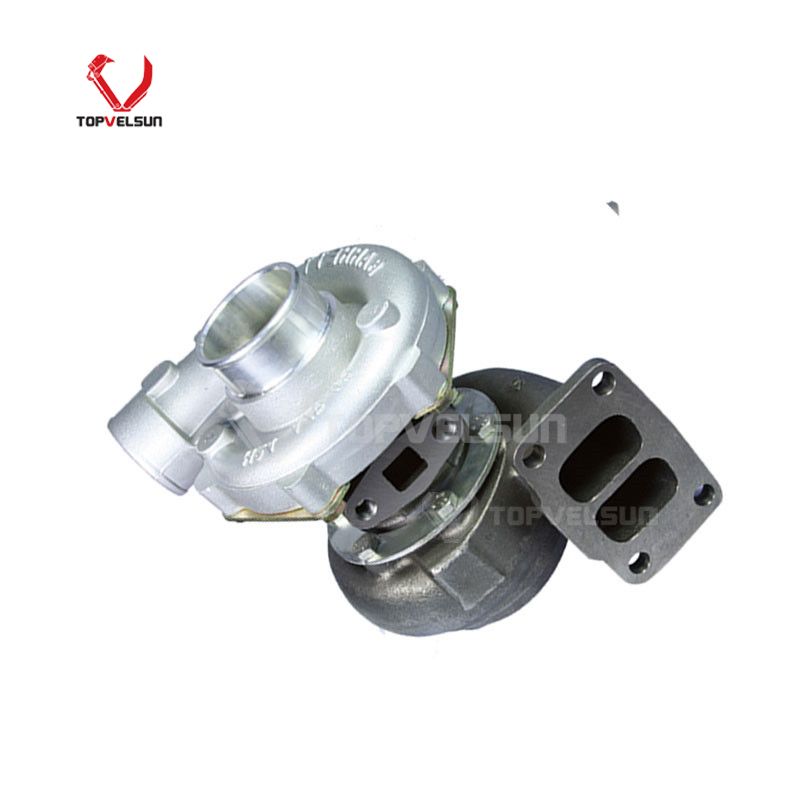

ME088840 TE06H Turbocharger for Kobelco SK200-5 Mitsubishi 6D34T Engine

The ME088840 TE06H turbocharger is supplied for Mitsubishi 6D34T and 6D34TL diesel engine applications. It is commonly checked for Kobelco SK200-5, SK200-6, SK100W-2, SK200LC-6 and related excavator models. This turbocharger is used to restore boost pressure, reduce black smoke caused by insufficient air intake and support stable engine output when the original turbocharger becomes worn, leaking oil or damaged.

This replacement turbocharger should be matched by the old turbocharger number, turbo model, engine model and removed sample. Since turbocharger housing, flange, outlet direction and oil pipe positions can vary by engine version and previous repair history, the old turbocharger tag and sample photos should be checked before order confirmation.

Main Part Number and Ref Cross

The main part number is ME088840. The key Ref Cross number is 49185-01020. The same number may also appear as 4918501020 or VAME088840 in buyer records and supplier listings. Final matching should still be confirmed by the old turbocharger nameplate, engine model and removed sample photos before shipment.

Part Number: ME088840

Ref Cross: 49185-01020 / 4918501020 / VAME088840

Turbo Model: TE06H / TE06H-16M series turbocharger

Engine Model: Mitsubishi 6D34T / 6D34TL diesel engine

Main Application: Kobelco SK200-5 / SK200-6 / SK100W-2 excavator

Product Type: Engine Turbocharger

Application Matching Notes

For Kobelco SK200-5, SK200-6, SK100W-2 and SK200LC-6 applications, the safest confirmation method is to check the Mitsubishi 6D34T or 6D34TL engine model together with the old turbocharger number. Machine model alone is not enough for final matching because turbocharger arrangement may vary by production year, engine version and previous replacement history.

Machine Check: Confirm SK200-5, SK200-6, SK100W-2, SK200LC-6 or the actual machine model from the buyer.

Engine Check: Confirm Mitsubishi 6D34T or 6D34TL from the engine plate.

Turbo Tag Check: Confirm ME088840, 49185-01020 or TE06H-16M on the old turbocharger tag.

Sample Check: Compare compressor housing, turbine housing, outlet direction, flange shape and oil pipe position.

Photo Check: Provide clear photos of the nameplate side, compressor side, turbine side and mounting side before quotation.

Common Replacement Conditions

A worn ME088840 turbocharger can cause low boost pressure, black smoke, slow acceleration, abnormal turbo noise, oil leakage or excessive shaft play. Before replacing the turbocharger, the air intake, exhaust and lubrication systems should be checked to reduce the risk of repeat turbo failure.

Low Boost or Black Smoke: Check the air filter, intake pipe, intercooler pipe and compressor wheel for blockage, leakage or foreign object damage.

Oil Leakage: Check the oil feed line, oil return line and crankcase ventilation. A blocked oil return line can cause oil leakage at the turbocharger seal area.

Abnormal Turbo Noise: Check shaft clearance, bearing wear, wheel contact marks and signs of contaminated oil before installing the replacement turbocharger.

Inspection Before Installation

Before replacing the ME088840 turbocharger, check the air filter, intake pipe, exhaust manifold, oil feed line and oil return line. Turbocharger failure can be caused by dirty oil, blocked oil return, air restriction, exhaust leakage or foreign object damage from the intake side.

During installation, clean the oil line and add clean engine oil into the turbocharger oil inlet before the first start. After the engine starts, check for oil leakage, air leakage, abnormal smoke and unusual turbo sound during low-speed and working-speed testing.

FAQ

Can 49185-01020 be used as Ref Cross?

Yes. 49185-01020 can be used as the main Ref Cross number for ME088840. Final matching should still be confirmed by the old turbocharger nameplate and sample photos.

Is this turbocharger for Kobelco SK200-5 and SK200-6?

It can be checked for Kobelco SK200-5 and SK200-6 applications using Mitsubishi 6D34T or 6D34TL engine references. The old turbocharger tag should be checked before shipment.

Can this turbocharger be checked for SK100W-2?

Yes. It can be checked for SK100W-2 when the engine model, old turbocharger number and sample photos match this ME088840 / 49185-01020 direction.

What should I provide before ordering?

Please provide the old turbocharger part number, turbo nameplate photo, engine model, equipment model and clear photos of the removed turbocharger.
