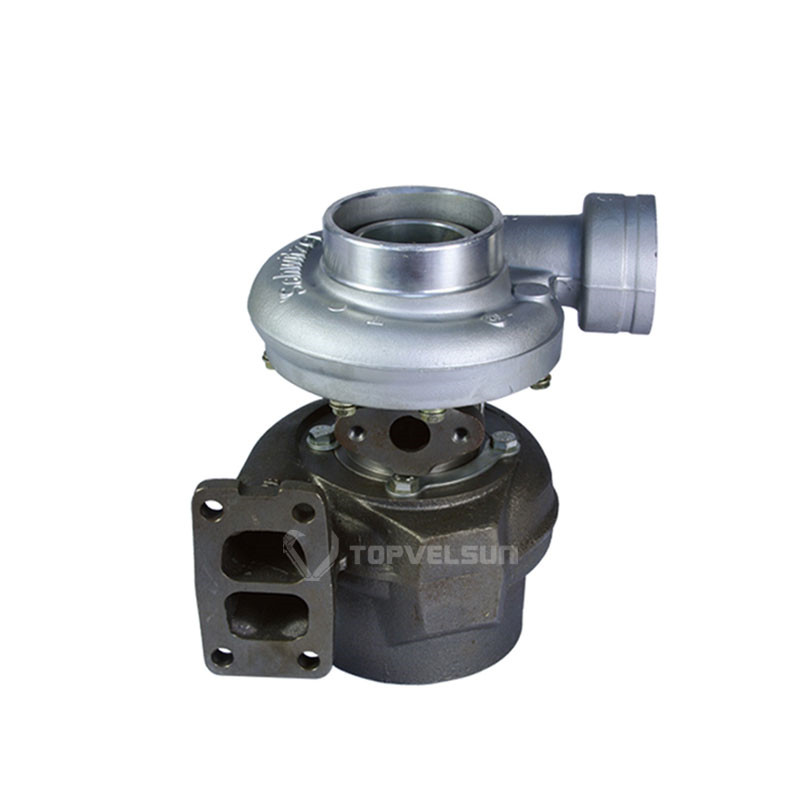

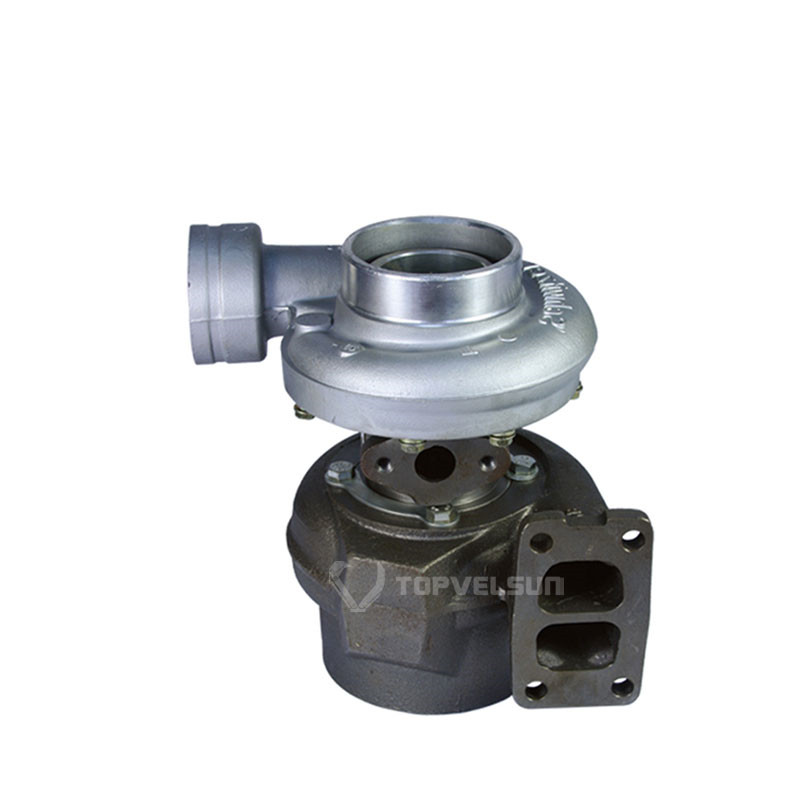

VOE20459239 Turbocharger for Volvo EC210B EC210BLC Excavator

VOE20459239 Turbocharger for Volvo D6D Engine

The VOE20459239 / 20459239 turbocharger is supplied for Volvo D6D and BF6M2012C diesel engine applications. It is commonly checked for Volvo EC210B, EC210BLC and related excavator repair when the old turbocharger tag shows VOE20459239, 20459239 or a matching reference number.

This replacement turbocharger is used when the old unit has weak boost, black smoke, oil leakage, abnormal noise, damaged compressor wheel or excessive shaft play. Before ordering, confirm the old turbocharger tag, engine plate and removed sample photos to avoid mismatch in housing, flange, outlet direction or oil line position.

Part Number and Application

Part Number: VOE20459239 / 20459239

Ref Cross: 318674 / 04294752KZ / 04252662KZ / 04293053KZ

Product Type: Engine Turbocharger / Turbocharger Assembly

Engine Model: Volvo D6D / BF6M2012C diesel engine

Machine Application: Volvo EC210B, EC210BLC and related D6D engine applications

Fitment Check Before Order

For Volvo EC210B and EC210BLC applications, do not confirm the turbocharger by machine model alone. The old turbocharger number should be checked first, then the engine model and physical turbocharger layout should be compared.

Turbo Tag: Check for VOE20459239, 20459239, 318674, 04294752KZ, 04252662KZ or 04293053KZ on the old turbocharger.

Engine Plate: Confirm Volvo D6D, BF6M2012C or the actual engine model from the machine record.

Machine Model: Confirm EC210B, EC210BLC or the actual Volvo excavator model.

Sample Photos: Compare compressor housing, turbine housing, outlet direction, mounting flange, oil inlet and oil return position.

Common Replacement Signs

A worn VOE20459239 turbocharger can reduce engine response and cause unstable boost pressure. Before replacing the turbocharger, the intake, exhaust and lubrication systems should be checked to reduce the risk of repeat failure.

Low Power or Black Smoke: Check the air filter, intake pipe, boost hose, intercooler pipe and compressor wheel condition.

Oil Leakage: Check the oil feed line, oil return line, crankcase ventilation and turbo bearing clearance before installing a replacement turbocharger.

Abnormal Noise: Check shaft play, compressor wheel contact, turbine wheel damage and signs of foreign object impact.

Repeat Failure Risk: Check dirty engine oil, blocked oil return, poor air filter sealing, exhaust leakage and remaining debris inside the intake pipe.

Installation Notes

Before installation, clean the intake pipe, exhaust connection and oil line area. Remove old gasket material, carbon deposits and loose debris that may enter the turbocharger. Replace damaged gaskets and inspect the air filter, oil filter and engine oil condition during turbocharger replacement.

Prime the turbocharger with clean engine oil before first startup. After installation, let the engine idle briefly and check for oil leakage, exhaust leakage, abnormal turbo sound, smoke and boost response before working under load.

FAQ

Is VOE20459239 the main part number for this product?

Yes. VOE20459239 is the main part number for this Volvo D6D turbocharger direction. The number 20459239 can also be used for inquiry matching.

Can 318674 be used as Ref Cross?

Yes. 318674 can be used as a checking reference for this VOE20459239 turbocharger direction. Final confirmation should still be made by old turbo tag and sample photos.

Is this turbocharger for Volvo EC210B?

Yes. It can be checked for Volvo EC210B and EC210BLC applications when the D6D engine model and old turbocharger number match.

Can this turbocharger be checked for EC290B?

It can be checked only when the old turbocharger tag and removed sample match VOE20459239 / 20459239. Do not confirm EC290B by machine model alone.

What should I provide before ordering?

Please provide the old turbocharger part number, engine model, machine model, turbo nameplate photo and removed sample photos.
