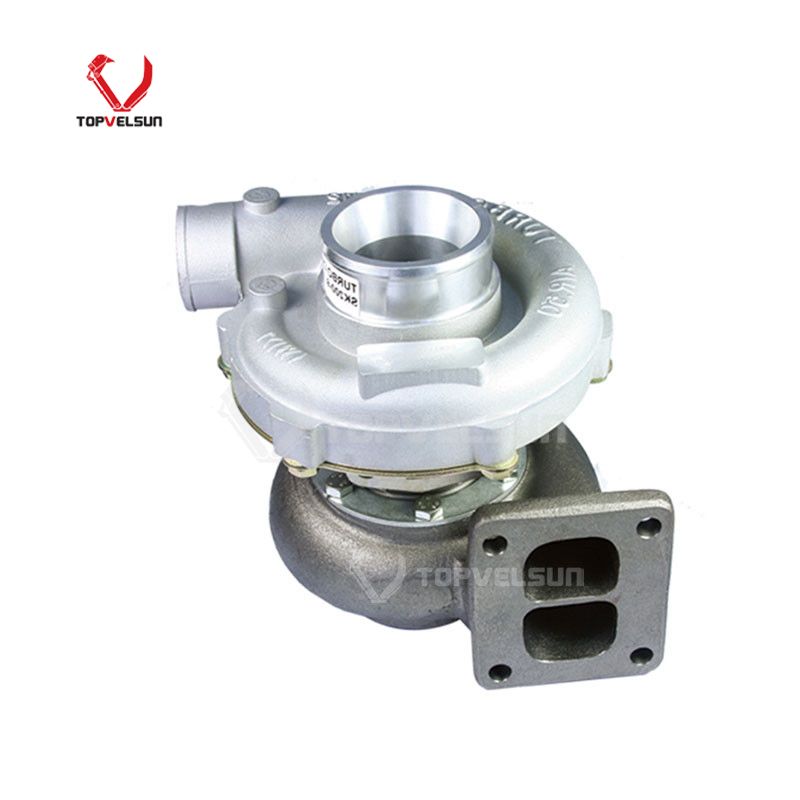

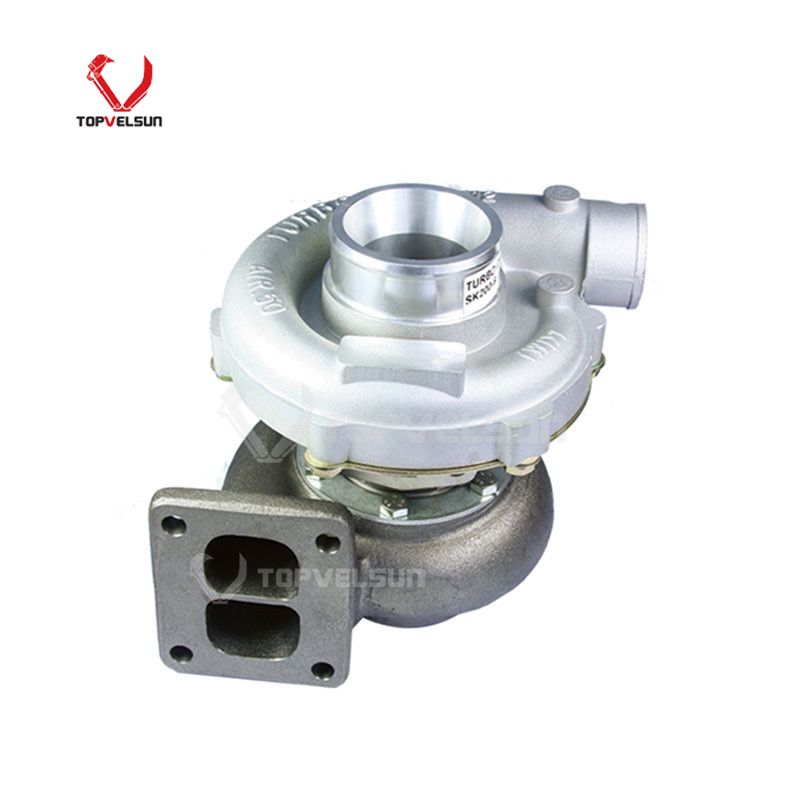

Kobelco SK230-6 SK250LC Turbocharger ME088865

ME088865 TF07 Turbocharger for Kobelco SK230-6 Mitsubishi 6D34 Engine

The ME088865 turbocharger is supplied for Mitsubishi 6D34 and 6D34T diesel engine repair, especially for Kobelco SK230-6 and SK250LC excavator applications. It is used when the old turbocharger has oil leakage, abnormal noise, low boost pressure, worn bearing parts or damaged compressor and turbine components.

This page was previously titled around SK200-6 and ME088865, but the stronger part-number match for ME088865 is the 49186-00360 / TF07 turbocharger direction for Mitsubishi 6D34 applications. To avoid wrong fitment signals, SK200-6 should not be used as the only main machine model unless the old turbocharger nameplate confirms the same ME088865 / 49186-00360 reference.

Nameplate and Sample Confirmation

Turbocharger matching should be based on the old turbocharger nameplate, engine plate and sample shape, not only the excavator model. The same Kobelco machine family may use different turbochargers depending on engine version, production batch, repair history and previous replacement parts.

Turbo Tag: Check for ME088865, 49186-00360 or related TF07 reference on the old turbocharger.

Engine Plate: Confirm Mitsubishi 6D34 or 6D34T before quotation.

Machine Model: Confirm Kobelco SK230-6, SK250LC or another related Kobelco model.

Housing Check: Compare compressor housing, turbine housing, flange type, air outlet direction and oil line position.

Photo Check: Provide compressor side, turbine side, mounting side and nameplate side photos before order.

Replacement and Installation Notes

Before replacing the ME088865 turbocharger, check the air filter, intake pipe, exhaust manifold, oil feed line and oil return line. Turbocharger damage can be caused by dirty oil, low oil supply, air restriction, exhaust leakage or foreign object damage inside the intake system.

During installation, the turbocharger should be pre-lubricated and the oil line should be cleaned. After installation, check for oil leakage, abnormal smoke, slow boost response, air leakage and unusual turbo noise during machine testing.

FAQ

Is ME088865 used for Mitsubishi 6D34 engine?

Yes. This page is focused on ME088865 turbocharger replacement for Mitsubishi 6D34 / 6D34T engine applications.

Can 49186-00360 be used as a Ref Cross?

Yes. 49186-00360 is an important matching number for this ME088865 / TF07 turbocharger direction. Final confirmation should still be based on the old turbocharger nameplate.

What should I provide before ordering?

Please provide the old turbocharger part number, turbo nameplate photo, engine model, machine model and clear photos of the removed turbocharger.
