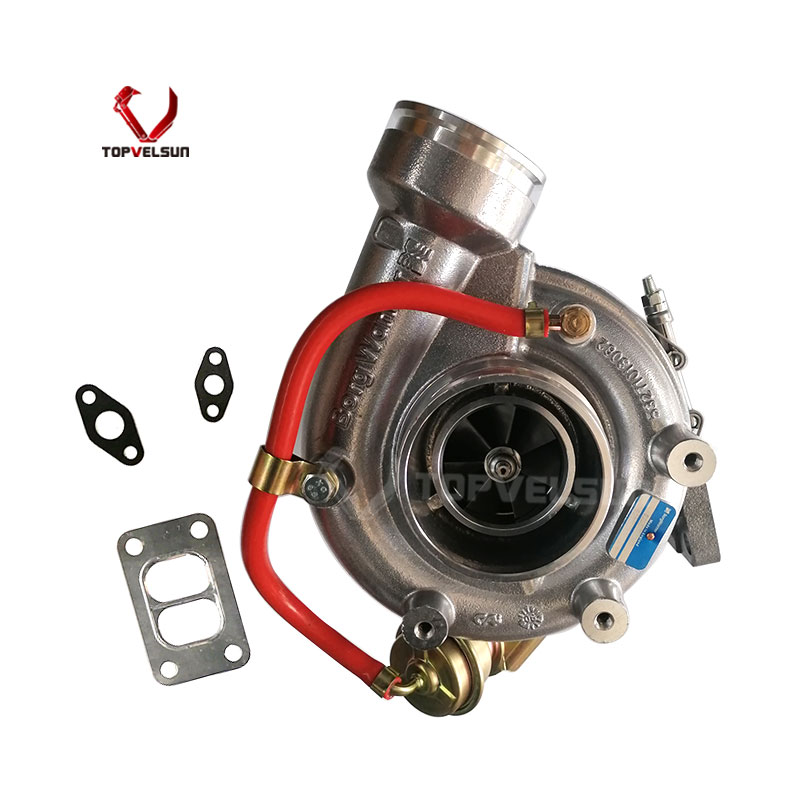

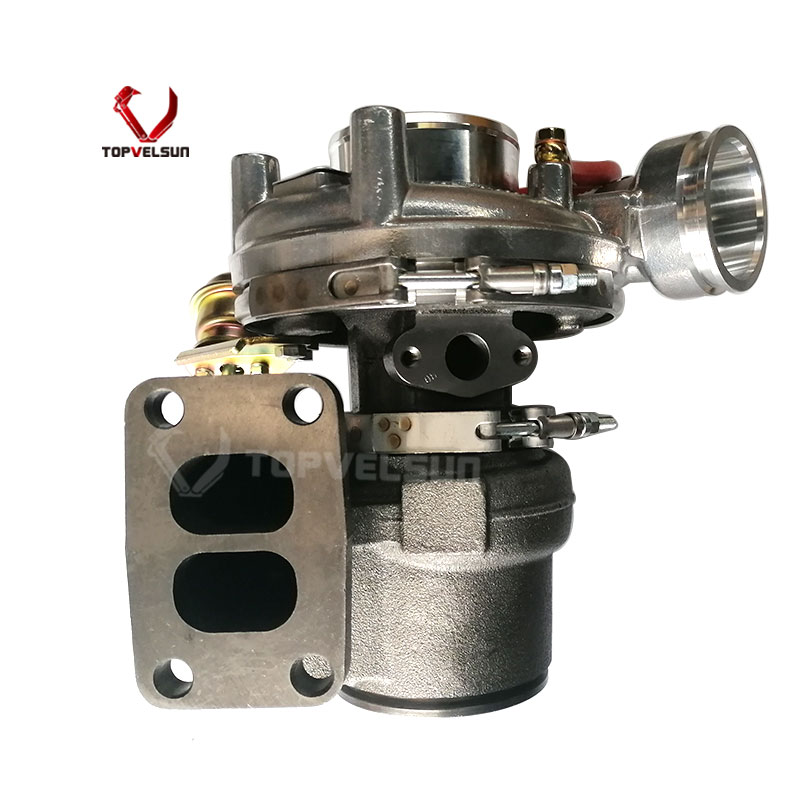

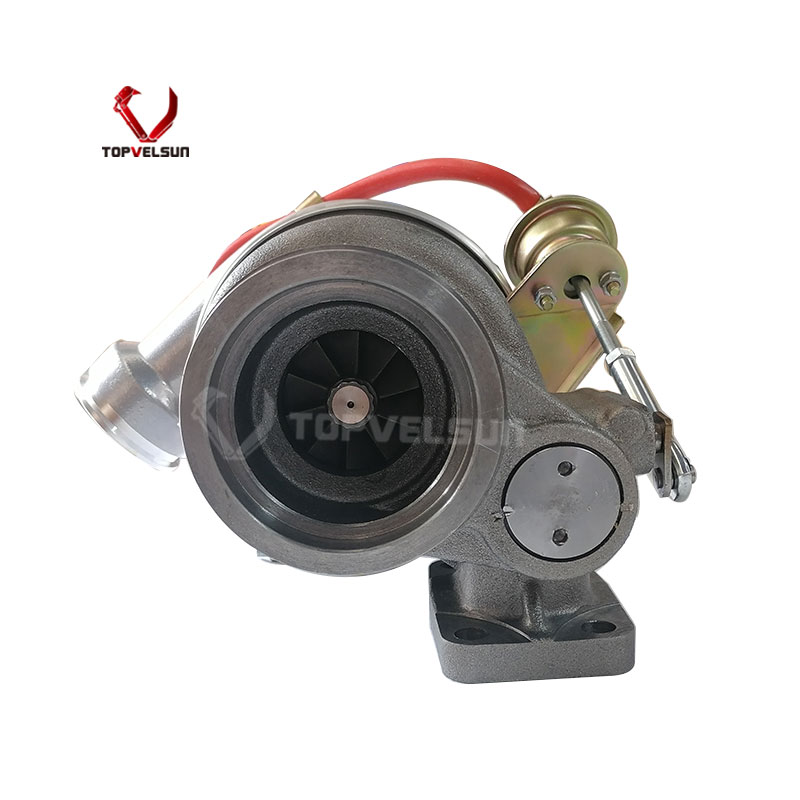

VOE22329371 Turbocharger for Volvo Excavator EC350D EC300E

VOE22329371 B2G Turbocharger for Volvo EC350D D8K Engine

The VOE22329371 / 22329371 B2G turbocharger is supplied for Volvo D8K diesel engine applications. It is commonly checked for Volvo EC350D, EC300E, EC250E, L110H, L120H, P7110B, P7170B and PL3005E equipment repair. This page focuses on the VOE22329371 turbocharger direction and should not be mixed with the older Volvo EC210 D6D turbocharger direction.

This replacement turbocharger is used to restore boost pressure, improve air intake volume and support stable engine output when the old turbocharger has weak boost, oil leakage, abnormal turbo noise, black smoke, damaged wheel blades or excessive shaft play. Because Volvo D8K applications can use different turbocharger layouts by machine model and serial range, the old turbocharger tag and removed sample photos should be checked before order confirmation.

Main Part Number and Ref Cross

The main part number is VOE22329371. The number 22329371 may also appear without the VOE prefix in buyer searches, old purchase records or supplier listings. Ref Cross numbers such as 17J13-0975, 17J130975, VOE21979610, 21979610, 04911207, 04911207KZ, 1270-988-0053, 1270-970-0053, 12709880053, 12709700053 and 491-1207 can be used for inquiry matching. Final confirmation should still be based on the old turbocharger nameplate, Volvo D8K engine model and physical housing comparison before shipment.

Part Number: VOE22329371 / 22329371

Ref Cross: 17J13-0975 / 17J130975 / VOE21979610 / 21979610 / 04911207 / 04911207KZ / 1270-988-0053 / 1270-970-0053 / 12709880053 / 12709700053 / 491-1207

Turbo Model: B2G series turbocharger

Engine Model: Volvo D8K diesel engine

Main Application: Volvo EC350D excavator

Related Application: Volvo EC250E, EC300E, L110H, L120H, P7110B, P7170B, PL3005E and related D8K engine applications, verify by old turbo tag and sample photos

Fitment Confirmation Route

For Volvo EC350D and related D8K applications, do not confirm the turbocharger by machine model alone. The safer route is to confirm the old turbocharger number first, then confirm the engine model, and finally compare the physical turbocharger layout.

Step 1 - Turbo Tag: Check for VOE22329371, 22329371, 17J13-0975, 17J130975, VOE21979610, 21979610, 04911207, 1270-988-0053 or B2G on the old turbocharger tag.

Step 2 - Engine Plate: Confirm Volvo D8K from the engine plate or service record.

Step 3 - Machine Model: Confirm EC350D, EC300E, EC250E, L110H, L120H or the actual Volvo equipment model.

Step 4 - Housing Layout: Compare compressor housing, turbine housing, outlet direction, flange type and actuator position.

Step 5 - Oil Line Position: Confirm oil inlet, oil outlet, return line direction and pipe clearance before shipment.

Repair and Replacement Signs

A worn VOE22329371 turbocharger can reduce engine response and create unstable boost pressure. Before installing a replacement turbocharger, the repair shop should check the intake, exhaust and lubrication systems to avoid repeat failure.

Low Boost: Check intake leakage, compressor wheel damage, actuator movement, boost hose condition and exhaust restriction.

Black Smoke: Check air filter restriction, low boost pressure, intake pipe leakage and fuel injection condition.

Oil Leakage: Check oil feed line, oil return line, crankcase ventilation and bearing clearance before replacing the turbocharger.

Abnormal Noise: Check shaft play, wheel contact marks, foreign object damage and turbine wheel condition.

Repeat Failure Risk: Check dirty oil, blocked oil return, air filter sealing, exhaust leakage and remaining debris inside the intake pipe.

Installation Notes

Before installation, clean the air intake pipe, exhaust connection and oil line area. Remove old gasket material, carbon deposits and loose debris that may enter the turbocharger. Replace damaged gaskets and inspect the air filter, oil filter and engine oil condition during turbocharger replacement.

Prime the turbocharger with clean engine oil before first startup. After installation, let the engine idle briefly and check for oil leakage, exhaust leakage, abnormal turbo sound, smoke, boost response and oil pressure before returning the machine to working load.

FAQ

Can 04911207 or VOE21979610 be used for checking?

Yes. 04911207, 04911207KZ, VOE21979610 and 21979610 can be used as checking references within this B2G / Volvo D8K turbocharger direction. The physical sample and old nameplate should be compared before shipment.

Is this turbocharger for Volvo EC350D?

Yes. This turbocharger can be checked for Volvo EC350D applications when the old turbocharger number, Volvo D8K engine model and removed sample match this product direction.

Can this turbocharger be checked for EC250E or EC300E?

Yes. It can be checked for Volvo EC250E and EC300E applications when the old turbocharger tag and Volvo D8K engine information match this VOE22329371 / B2G direction.

What should I provide before ordering?

Please provide the old turbocharger part number, turbo nameplate photo, engine model, equipment model and clear photos of the removed turbocharger.
