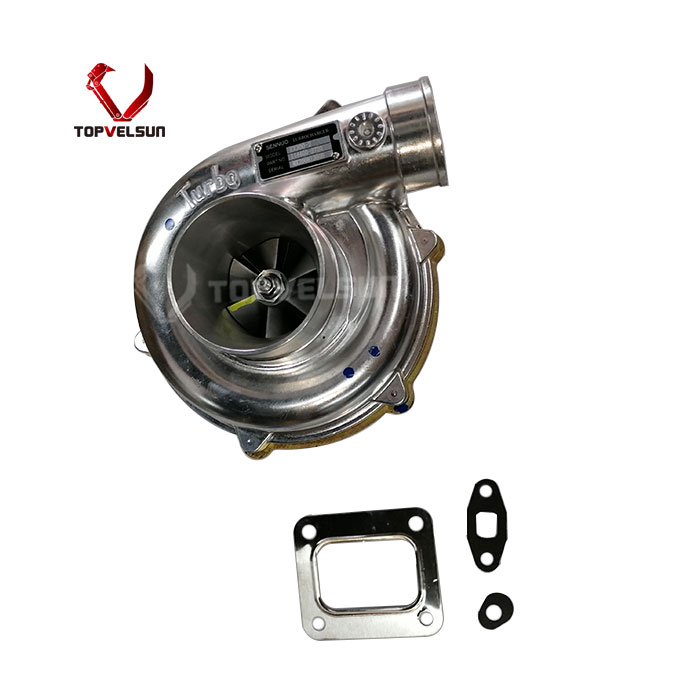

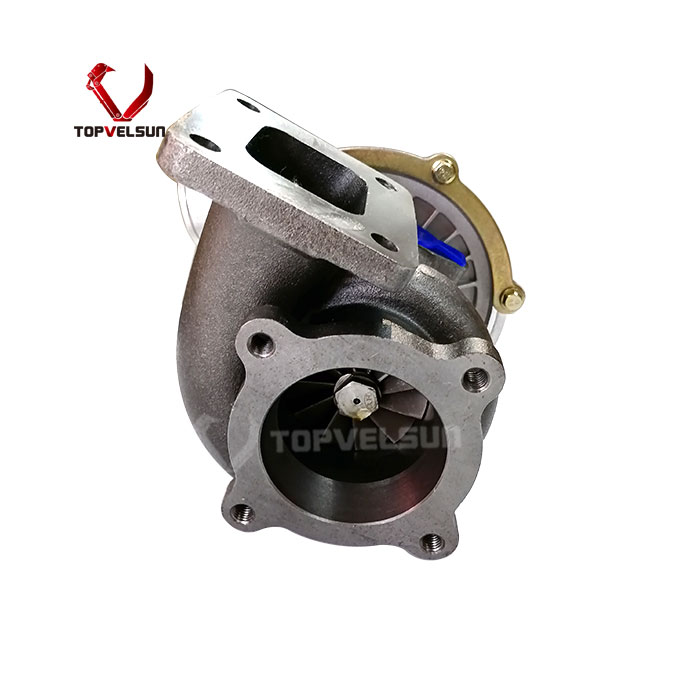

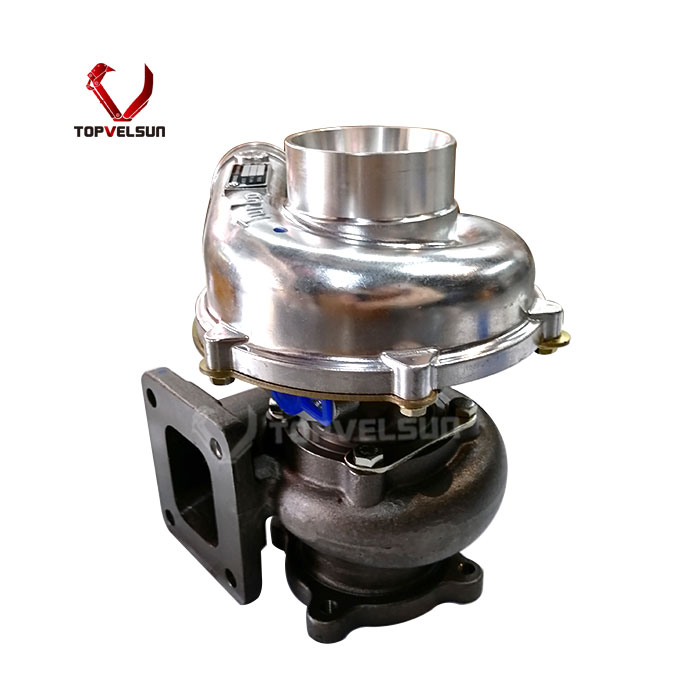

114400-2720 Turbocharger Assy for Hitachi Excavator EX200-2 EX200-3

114400-2720 RHC62C Turbocharger for Hitachi EX200-2 EX200-3 Isuzu 6BD1T

The 114400-2720 RHC62C turbocharger is supplied for Isuzu 6BD1 and 6BD1T diesel engine applications. It is commonly checked for Hitachi EX200-2, EX200-3, EX200-3E and related excavator repair. This turbocharger is used to restore boost pressure, improve air intake volume and support stable engine output when the old turbocharger has weak boost, oil leakage, abnormal noise, damaged wheel blades or excessive shaft play.

This replacement turbocharger should be matched by the old turbocharger number, turbo model, engine model and removed sample. Since Hitachi EX200 series machines can use different turbocharger arrangements by engine version and production range, the old turbocharger tag and sample photos should be checked before order confirmation.

Main Part Number and Ref Cross

The main part number is 114400-2720. The no-hyphen format 1144002720 may appear in buyer searches or old purchase records. Ref Cross numbers such as 114400-2710, 317425, 1-14400-2720, VB240044, VA240044 and CI89 can be used for inquiry matching. Final confirmation should still be based on the old turbocharger nameplate, engine model and physical housing comparison before shipment.

Part Number: 114400-2720

Ref Cross: 114400-2710 / 317425 / 1-14400-2720 / 1144002720 / VB240044 / VA240044 / CI89

Turbo Model: RHC62C series turbocharger

Engine Model: Isuzu 6BD1 / 6BD1T diesel engine

Main Application: Hitachi EX200-2 / EX200-3 excavator

Related Application: Hitachi EX200-3E and related 6BD1T engine applications, verify by old turbo tag and sample photos

Application Matching Notes

For Hitachi EX200-2 and EX200-3 applications, the safest confirmation method is to check the Isuzu 6BD1 or 6BD1T engine model together with the old turbocharger number. Machine model alone is not enough for final matching because the same EX200 series can have different turbocharger versions depending on production range, engine configuration and previous replacement history.

Machine Check: Confirm Hitachi EX200-2, EX200-3, EX200-3E or the actual excavator model from the buyer.

Engine Check: Confirm Isuzu 6BD1 or 6BD1T from the engine plate or service record.

Turbo Tag Check: Check for 114400-2720, 1144002720, 114400-2710, 317425, VB240044, VA240044, CI89 or RHC62C on the old turbocharger tag.

Housing Check: Compare compressor housing, turbine housing, outlet direction, flange type and mounting layout.

Oil Line Check: Confirm oil inlet, oil outlet, pipe position and return line direction.

Photo Check: Provide clear photos of the nameplate side, compressor side, turbine side and mounting side before quotation.

Replacement Symptoms and System Check

A worn 114400-2720 turbocharger can cause low boost pressure, black smoke, weak acceleration, oil leakage, abnormal turbo noise, damaged compressor wheel or excessive shaft clearance. Before replacing the turbocharger, the air intake, exhaust and lubrication systems should be checked to reduce the risk of repeat turbo failure.

Low Boost or Black Smoke: Check the air filter, intake pipe, compressor wheel condition and boost leakage.

Weak Engine Power: Inspect the compressor wheel, turbine wheel, exhaust leak, boost hose and fuel injection condition.

Oil Leakage: Check the oil feed line, oil return line and crankcase ventilation. A blocked oil return line can cause oil leakage at the turbocharger seal area.

Abnormal Turbo Noise: Check shaft play, bearing wear, wheel contact marks and signs of contaminated oil or foreign object damage.

Installation Check Before Startup

Before installing the replacement turbocharger, clean the intake pipe, exhaust connection and oil line area. Remove old gasket material, carbon deposits and loose debris that may enter the turbocharger. Check the air filter, intake hose, oil feed line and oil return line before fitting the new turbocharger.

Prime the turbocharger with clean engine oil before the first startup. After installation, let the engine idle briefly and check for oil leakage, exhaust leakage, abnormal turbo sound, smoke, boost response and oil pressure before returning the machine to working load.

FAQ

Is 114400-2720 the main part number for this product?

Yes. 114400-2720 is the main part number for this RHC62C turbocharger direction. The no-hyphen format 1144002720 can also be used for inquiry matching.

Can 114400-2710 be used as Ref Cross?

Yes. 114400-2710 can be used as a Ref Cross reference for this 114400-2720 turbocharger direction. Final matching should still be confirmed by the old turbocharger tag and sample photos.

Is this turbocharger for Hitachi EX200-2 and EX200-3?

Yes. It can be checked for Hitachi EX200-2, EX200-3 and EX200-3E applications when the engine model, old turbocharger number and sample photos match this 114400-2720 / RHC62C direction.

Should 114400-2100 be added to this page?

No. 114400-2100 belongs to another EX200 / EX200-1 turbocharger direction and should not be mixed into this 114400-2720 product page.

What should I provide before ordering?

Please provide the old turbocharger part number, turbo nameplate photo, engine model, equipment model and clear photos of the removed turbocharger.
