114400-2100 Turbocharger for Isuzu 6BD1T Engine

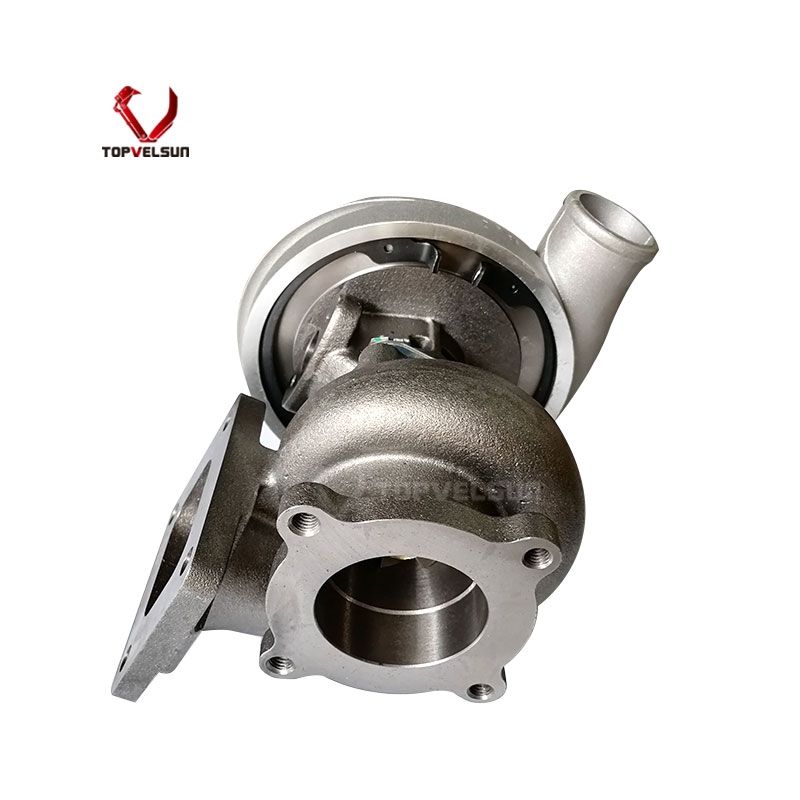

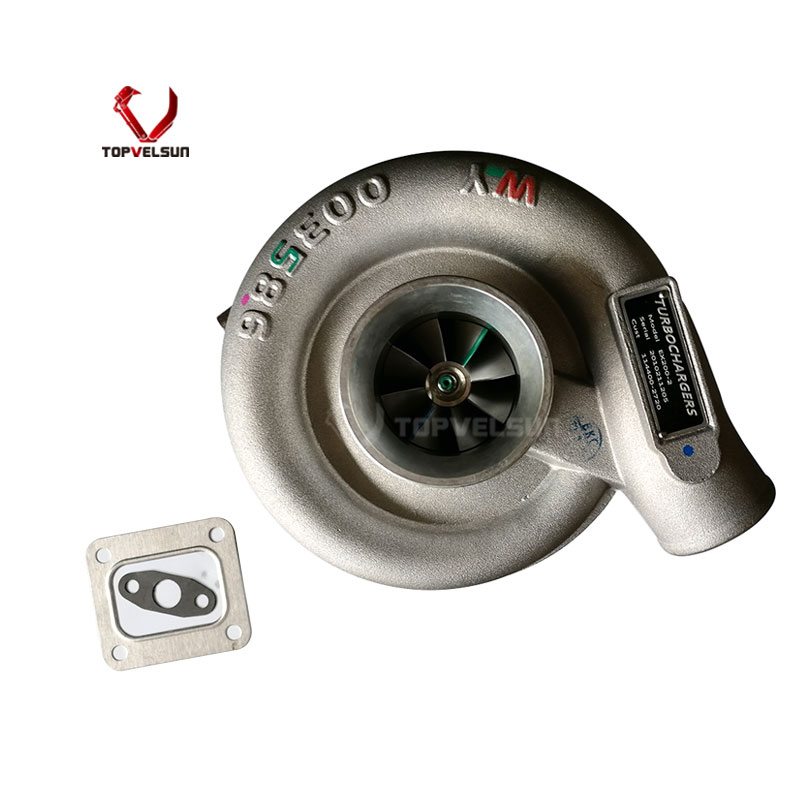

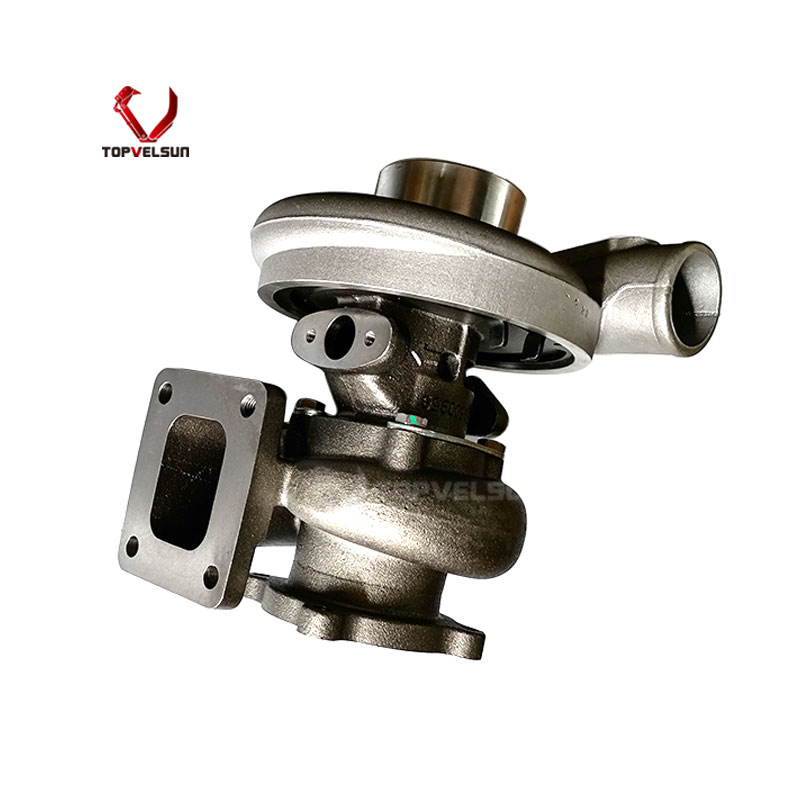

114400-2100 RHC7 Turbocharger for Hitachi EX200 Isuzu 6BD1T

The 114400-2100 RHC7 turbocharger is supplied for Hitachi excavator engine air intake and boost pressure system repair. It is commonly searched as 114400-2100, 1144002100, 1-14400-210-0, RHC7 turbocharger, CI56 turbo, turbocharger assembly or excavator turbo for Hitachi EX200 and Isuzu 6BD1T engine references.

This page focuses on 114400-2100 as the main part number. 1144002100 is the no-hyphen search format, and 1-14400-210-0 is a useful reference format for checking. Final fitment should be confirmed by the old turbo number, turbo model, engine model, compressor housing, turbine housing, mounting flange, oil inlet, oil outlet and machine information before ordering.

Engine and Machine Reference

Common engine references for this turbocharger include Isuzu 6BD1T and 6BD1. Common machine references include Hitachi EX200, EX200-1 and EX200LC excavator applications.

Some market references may mention EX200-2 or EX200-3 together with 114400-2100, but those applications should be confirmed carefully. For EX200-2 and EX200-3 machines, the old turbocharger number, turbo model and physical structure are more reliable than the machine model alone.

For accurate ordering, compare the removed turbocharger with the replacement unit before shipment. Photos of the old turbo nameplate, compressor side, turbine side, mounting flange, oil line ports, actuator area and engine nameplate are useful for confirmation.

Part Number and Reference Notes

114400-2100 is the main part number of this product page. It should stay visible in the SEO Title, H1, top parameters, first paragraph, product body and image ALT text.

1144002100 is the no-hyphen writing format of 114400-2100. 1-14400-210-0 can be used as a reference writing format for checking. RHC7 and CI56 can be kept as turbo model references when confirming the old turbocharger.

Related market references may mention 703724-0001, 703724-5001S, NH170048, VA290063, C72CND-S0063B or C72CND-S0063G. These numbers should be treated as checking references only unless the old turbo label and physical structure confirm interchange.

How to Confirm the Correct Turbocharger

Turbochargers can look similar in product photos, but small differences in turbo model, compressor housing, turbine housing, flange angle, oil port position and actuator configuration may affect installation. Please compare the removed turbo before ordering.

• Confirm whether the old turbo number is 114400-2100, 1144002100 or 1-14400-210-0.

• Check whether the turbo model is RHC7 / CI56.

• Confirm whether the engine reference is Isuzu 6BD1T or 6BD1.

• Compare the compressor housing, turbine housing and mounting flange.

• Check the oil inlet, oil outlet, exhaust flange and air pipe connection direction.

• Send photos of the old turbo nameplate, compressor side, turbine side, flange side, oil ports and engine nameplate before quotation if you are not sure.

Common Turbocharger Failure Symptoms

A turbocharger may need inspection or replacement when the engine has low boost pressure, black smoke, abnormal turbo noise, oil leakage, weak acceleration, excessive exhaust temperature, damaged compressor wheel, shaft play or oil entering the intake or exhaust side.

Before replacing the turbocharger, check the air filter, intake pipe, exhaust pipe, oil supply line, oil return line, engine oil quality and crankcase ventilation. Some turbocharger failures may be caused by blocked oil lines, dirty air intake, poor lubrication or foreign object damage.

If the old turbo failed because of oil starvation, contaminated oil, blocked air filter, exhaust restriction or foreign object damage, the root cause should be corrected before installing the replacement turbocharger. Otherwise, the new turbo may fail again.

Installation and Testing Notes

Before installation, clean the air intake and exhaust connection area. Replace or clean the oil feed line and oil return line when necessary. Do not install a new turbocharger into a system with contaminated oil or blocked oil passages.

Before starting the engine, pre-lubricate the turbocharger according to the repair procedure. After installation, start the engine at idle first and check oil leakage, air leakage, abnormal noise and exhaust smoke before full-load operation.

If boost pressure remains low after replacement, inspect the intake hose, intercooler, exhaust restriction, fuel system, engine compression and air filter before assuming the new turbocharger is defective.

Buying Notes for Repair Shops and Parts Distributors

For repair shops, this 114400-2100 / 1144002100 RHC7 turbocharger is suitable for Hitachi EX200 and Isuzu 6BD1T engine repair when the old turbo is worn, leaking oil, noisy or unable to provide stable boost pressure.

For parts distributors, it can be supplied as a Hitachi EX200 / Isuzu 6BD1T turbocharger reference for repair demand. Topvelsun supports small repair orders and bulk inquiries. Please send the required quantity, old turbo number, turbo model, engine model and photos of the old turbocharger from multiple angles.

FAQ

What is the main product on this page?

This page is for the 114400-2100 / 1144002100 RHC7 turbocharger used for Hitachi EX200 and Isuzu 6BD1T engine repair references.

Is 1144002100 the same search format as 114400-2100?

1144002100 is the no-hyphen writing format of 114400-2100. Buyers may search either format, so both formats can be kept on the page.

What turbo model should be checked?

RHC7 / CI56 is the main turbo model reference for this 114400-2100 turbocharger direction. The old turbo nameplate and physical structure should still be checked before ordering.

Can this turbocharger fit EX200-2 or EX200-3?

EX200-2 or EX200-3 should not be confirmed by model name alone. Please check the old turbo number, turbo model, engine model, flange and oil port layout before ordering.

Can 703724-0001 or NH170048 be used as reference numbers?

They may appear as market checking references for this turbocharger direction, but they should not be treated as automatic replacements without checking the old turbo label and physical configuration.

What photos should I send before ordering?

Please send photos of the old turbo nameplate, compressor housing, turbine housing, mounting flange, oil inlet, oil outlet, actuator area and engine nameplate. These photos help confirm whether 114400-2100 is the correct turbocharger.
