49185-01031 Turbocharger for Kobelco Excavator SK200-6E SK210LC-6E

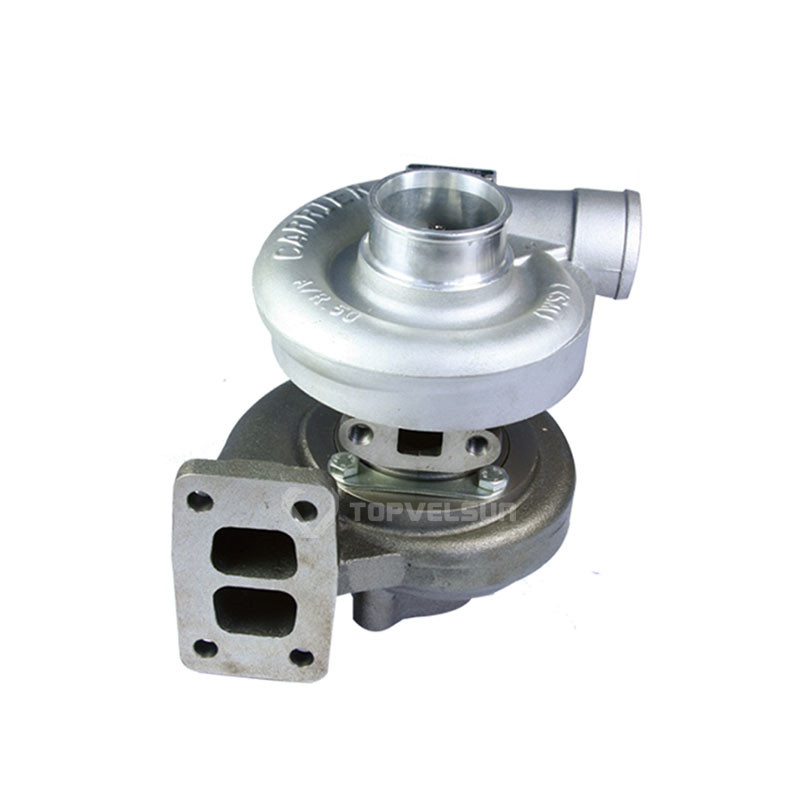

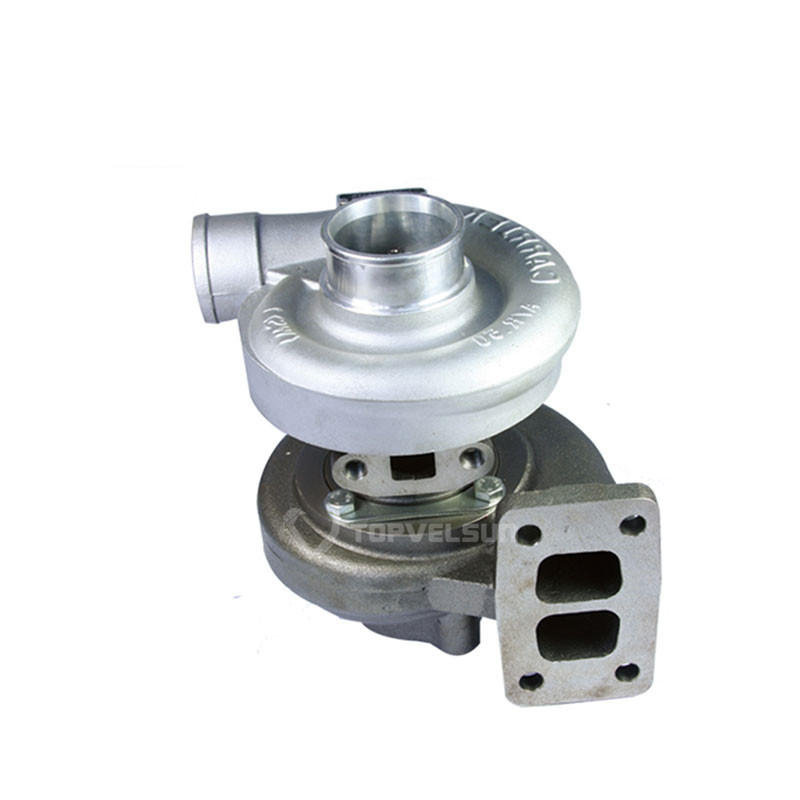

49185-01031 TE06H Turbocharger for Kobelco SK200-6E Mitsubishi 6D34 Engine

The 49185-01031 TE06H turbocharger is supplied for Mitsubishi 6D34, 6D34T and 6D34TL diesel engine applications. It is commonly checked for Kobelco SK200-6E, SK200LC-6E, SK210LC-6E and related excavator models. This turbocharger is used to restore boost pressure, improve air intake volume and support stable engine output when the old turbocharger has weak boost, oil leakage, abnormal noise, damaged wheel blades or excessive shaft play.

This replacement turbocharger should be matched by the old turbocharger number, turbo model, engine model and removed sample. Since turbocharger housing, flange, compressor outlet direction and oil pipe positions can vary by equipment version and previous repair history, the old turbocharger tag and sample photos should be checked before order confirmation.

Main Part Number and Ref Cross

The main part number is 49185-01031. The no-hyphen format 4918501031 may appear in buyer searches or old purchase records. Ref Cross numbers such as 49185-01030, 4918501030, ME440895 and VAME440895 can be used for inquiry matching. Final confirmation should still be based on the old turbocharger nameplate, engine model and physical housing comparison before shipment.

Part Number: 49185-01031

Ref Cross: 4918501031 / 49185-01030 / 4918501030 / ME440895 / VAME440895

Turbo Model: TE06H / TE06H-16M series turbocharger

Engine Model: Mitsubishi 6D34 / 6D34T / 6D34TL diesel engine

Main Application: Kobelco SK200-6E / SK200LC-6E / SK210LC-6E excavator

Product Type: Engine Turbocharger

Application Matching Notes

For Kobelco SK200-6E, SK200LC-6E and SK210LC-6E applications, the safest confirmation method is to check the Mitsubishi 6D34, 6D34T or 6D34TL engine model together with the old turbocharger number. Machine model alone is not enough for final matching because the same machine family can use different turbocharger arrangements depending on engine version, production year and previous replacement history.

Machine Check: Confirm Kobelco SK200-6E, SK200LC-6E, SK210LC-6E or the actual equipment model from the buyer.

Engine Check: Confirm Mitsubishi 6D34, 6D34T or 6D34TL from the engine plate or service record.

Turbo Tag Check: Check for 49185-01031, 4918501031, 49185-01030, ME440895, VAME440895 or TE06H on the old turbocharger tag.

Housing Check: Compare compressor housing, turbine housing, outlet direction, flange type and mounting layout.

Oil Line Check: Confirm oil inlet, oil outlet, pipe position and return line direction.

Photo Check: Provide clear photos of the nameplate side, compressor side, turbine side and mounting side before quotation.

Common Replacement Conditions

A worn 49185-01031 turbocharger can cause low boost pressure, black smoke, weak acceleration, oil leakage, abnormal turbo noise, damaged compressor wheel or excessive shaft clearance. Before replacing the turbocharger, the air intake, exhaust and lubrication systems should be checked to reduce the risk of repeat turbo failure.

Low Boost or Black Smoke: Check the air filter, intake pipe, intercooler pipe, compressor wheel condition and boost leakage.

Weak Engine Power: Inspect the compressor wheel, turbine wheel, exhaust leak, boost hose and fuel injection condition.

Oil Leakage: Check the oil feed line, oil return line and crankcase ventilation. A blocked oil return line can cause oil leakage at the turbocharger seal area.

Abnormal Turbo Noise: Check shaft play, bearing wear, wheel contact marks and signs of contaminated oil or foreign object damage.

Inspection Before Installation

Before replacing the 49185-01031 turbocharger, inspect the air filter, air intake pipe, exhaust manifold, oil feed line and oil return line. Turbocharger damage is often caused by dirty oil, blocked oil return, air restriction, exhaust leakage or foreign object damage from the intake side.

During installation, add clean engine oil into the turbocharger oil inlet and rotate the compressor wheel by hand before the first engine start. After installation, check for oil leakage, abnormal turbo noise, black smoke, blue smoke, weak boost and unstable engine response during low-speed and working-speed testing.

FAQ

Is 49185-01031 the main part number for this product?

Yes. 49185-01031 is the main part number for this TE06H turbocharger direction. The no-hyphen format 4918501031 can also be used for inquiry matching.

Can ME440895 be used as Ref Cross?

Yes. ME440895 can be used as a Ref Cross reference for this 49185-01031 turbocharger direction. Final matching should still be confirmed by the old turbocharger tag and sample photos.

Is this turbocharger for Mitsubishi 6D34 engine?

Yes. This turbocharger is commonly checked for Mitsubishi 6D34, 6D34T and 6D34TL engine applications. Please confirm the old turbocharger number and engine plate before ordering.

Can this turbocharger be checked for Kobelco SK200-6E or SK210LC-6E?

Yes. It can be checked for Kobelco SK200-6E, SK200LC-6E and SK210LC-6E applications when the engine model, old turbocharger number and sample photos match this 49185-01031 / ME440895 direction.

What should I provide before ordering?

Please provide the old turbocharger part number, turbo nameplate photo, engine model, equipment model and clear photos of the removed turbocharger.
