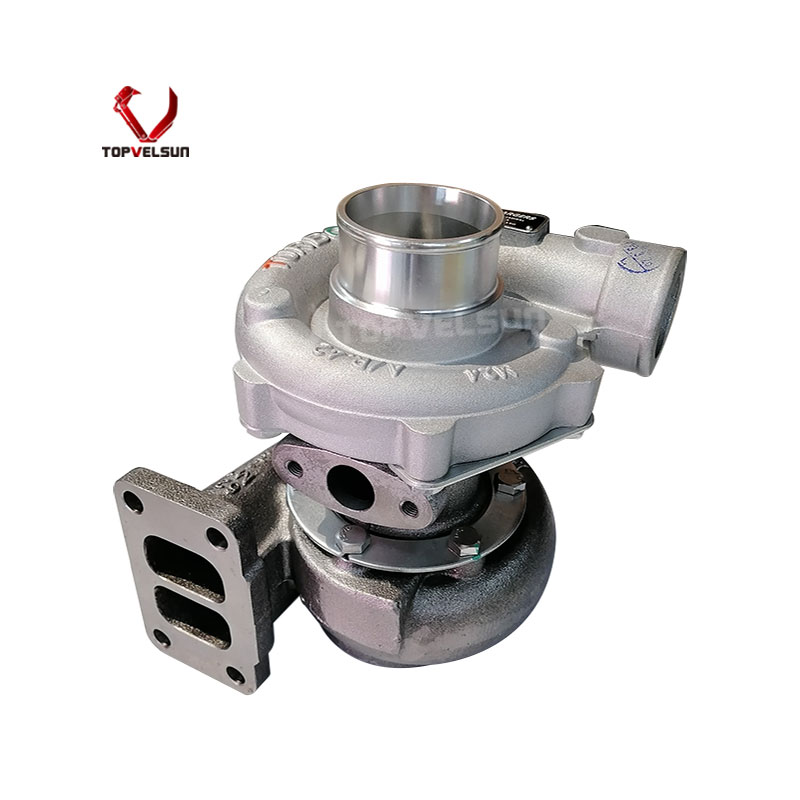

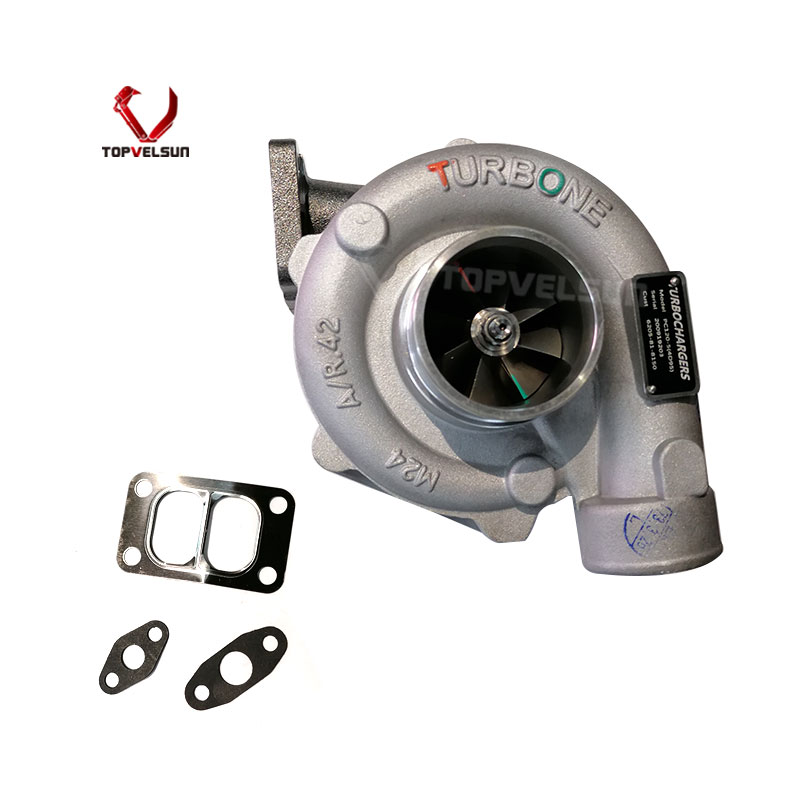

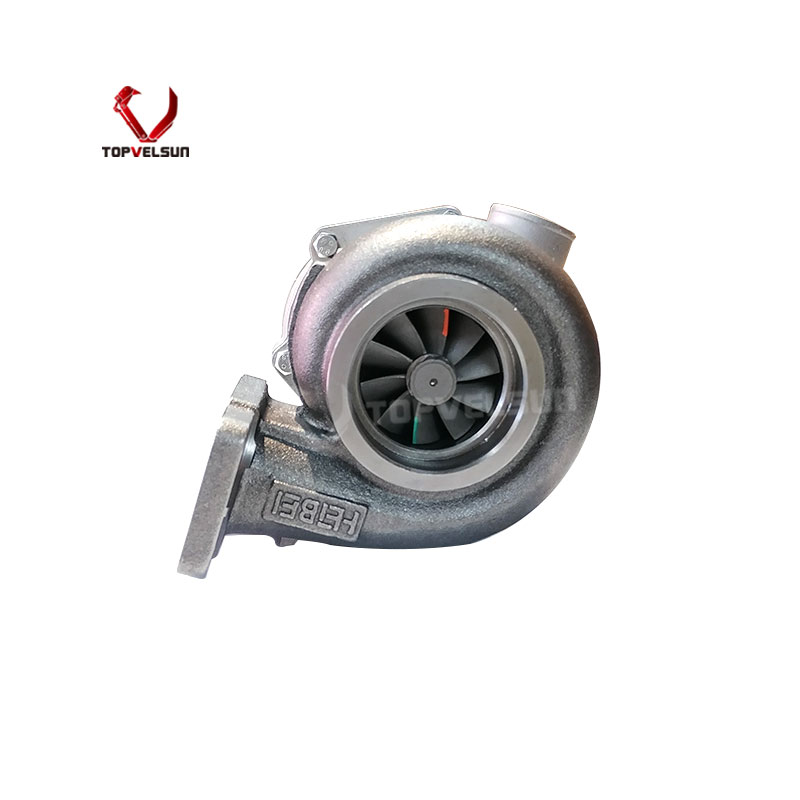

6205-81-8150 TA3103 Turbocharger for Komatsu PC100-6 PC120-6

6205-81-8150 TA3103 Turbocharger for Komatsu S4D95L-1 Engine

The 6205-81-8150 TA3103 turbocharger is supplied for Komatsu S4D95L-1 diesel engine applications. It is commonly checked for Komatsu PC100-6, PC120-6, PC128UU-1, PC130-6, PW130-6 and related compact excavator or power shovel repair.

This turbocharger is used when the old unit has weak boost, black smoke, oil leakage, abnormal noise, damaged wheel blades or excessive shaft play. Before ordering, confirm the old turbocharger tag, engine plate and removed sample photos to avoid mismatch in housing, flange or oil line position.

Part Number and Application

Part Number: 6205-81-8150

Ref Cross: 6205818150 / 465636-0116

Turbo Model: TA3103 series turbocharger

Engine Model: Komatsu S4D95L-1 diesel engine

Machine Application: Komatsu PC100-6, PC120-6, PC128UU-1, PC130-6, PW130-6 and related S4D95L-1 engine applications

Fitment Check Before Order

For Komatsu PC100-6, PC120-6 and PC130-6 applications, do not confirm by machine model alone. The old turbocharger number and engine model should be checked first, then the physical turbocharger layout should be compared.

Turbo Tag: Check for 6205-81-8150, 6205818150, 465636-0116 or TA3103 on the old turbocharger.

Engine Plate: Confirm Komatsu S4D95L-1 or the actual engine model from the machine record.

Machine Model: Confirm PC100-6, PC120-6, PC128UU-1, PC130-6, PW130-6 or the actual equipment model.

Sample Photos: Compare compressor housing, turbine housing, outlet direction, mounting flange, oil inlet and oil return position.

Installation Notes

Before installation, clean the intake pipe, exhaust connection and oil line area. Replace damaged gaskets and check the air filter, engine oil and oil filter condition. A blocked oil return line, dirty engine oil or loose intake debris can cause repeat turbocharger failure.

Prime the turbocharger with clean engine oil before first startup. After installation, let the engine idle briefly and check oil leakage, exhaust leakage, abnormal turbo sound, smoke and boost response before working under load.

FAQ

Is 6205-81-8150 the main part number for this product?

Yes. 6205-81-8150 is the main part number for this Komatsu S4D95L-1 TA3103 turbocharger. The no-hyphen format 6205818150 can also be used for inquiry matching.

Can 465636-0116 be used as Ref Cross?

Yes. 465636-0116 can be used as a checking reference for this 6205-81-8150 turbocharger direction. Final confirmation should still be made by old turbo tag and sample photos.

Is this turbocharger for Komatsu PC100-6 and PC120-6?

Yes. It can be checked for Komatsu PC100-6 and PC120-6 applications when the S4D95L-1 engine model and old turbocharger number match.

What should I provide before ordering?

Please provide the old turbocharger part number, engine model, machine model, turbo nameplate photo and removed sample photos.
