Caterpillar 3116 Engine Turbocharger 115-5853

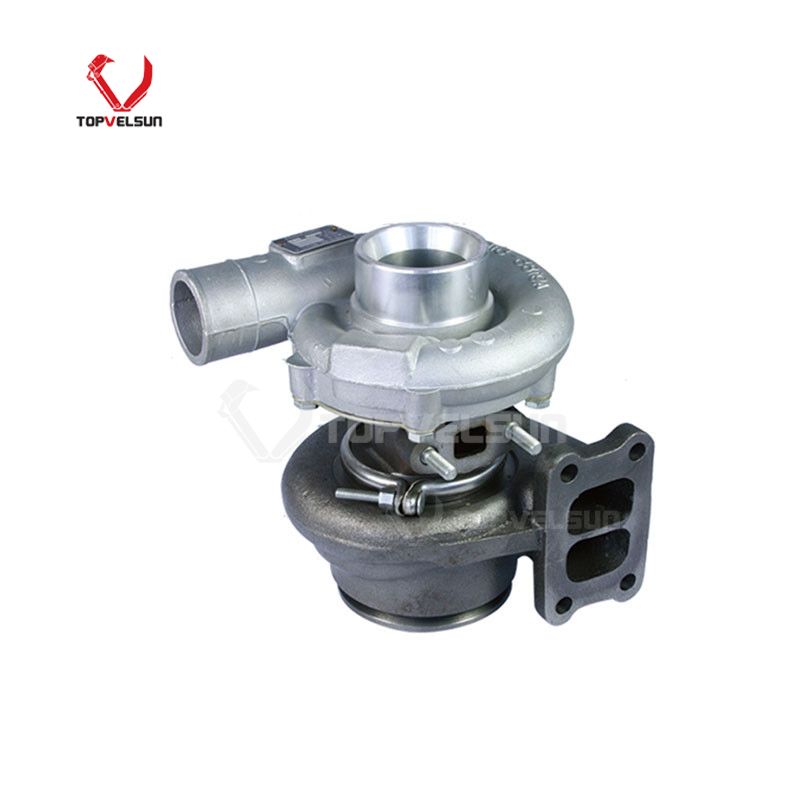

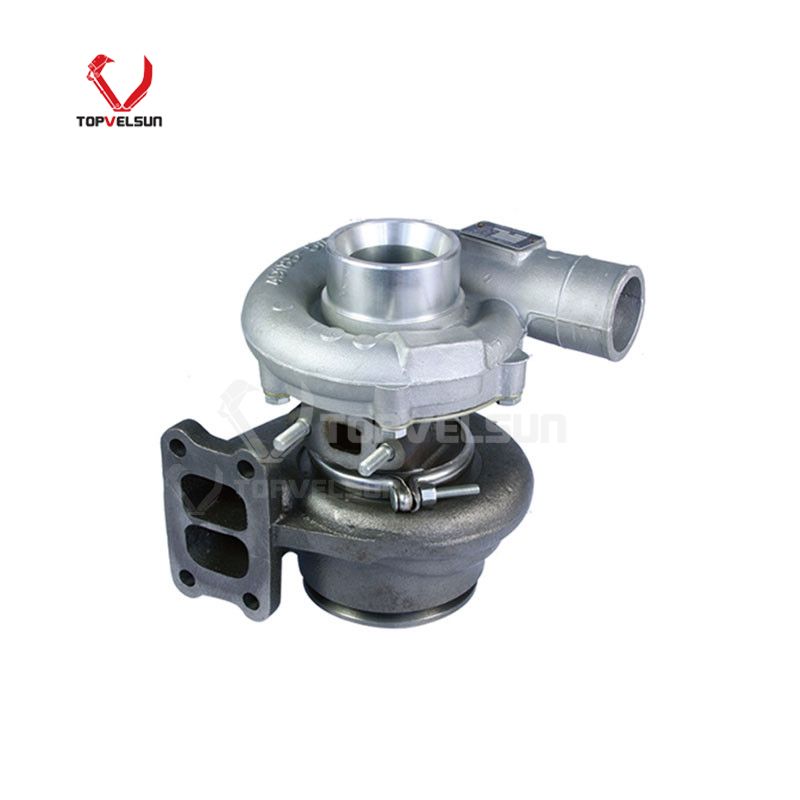

115-5853 Turbocharger for Caterpillar 3116 / 3126 Engine

The 115-5853 turbocharger is supplied for Caterpillar 3116 and 3126 diesel engine repair. It is used to restore engine boost pressure, air intake performance and stable combustion when the original turbocharger is worn, leaking oil, damaged or no longer providing normal boost response.

This page should focus on the Caterpillar 3116 / 3126 turbocharger application. The old product title and description mixed Komatsu, E320 and a generic VLS turbocharger list into the page, which should be removed to keep the 115-5853, 0R-6906, CAT 3116 and CAT 325B product signals clear.

Part Number and Engine Application

The main part number for this page is 115-5853. The number 0R-6906 is used as a matching reference for this Caterpillar 3116 / 3126 turbocharger application. The number 167604 can also be checked when a buyer provides it, but final matching should be confirmed by turbocharger nameplate, engine model and removed sample before shipment.

Part Number: 115-5853

Ref Cross: 0R-6906 / 167604

Turbo Model: S2ESL094 series turbocharger

Engine Model: Caterpillar 3116 / 3126

Machine Application: CAT 322B / 325B excavator and related 120H / 135H grader applications

Product Type: Engine Turbocharger

Application Notes for CAT 3116 and 3126 Engine

This turbocharger should be checked for Caterpillar machines using 3116 or 3126 engine references. Common inquiry references may include CAT 322B, 325B, 325B L, 120H and 135H applications, but the correct turbocharger must still be confirmed by the old turbo nameplate and engine model.

Main Search Signal: 115-5853 turbocharger

Matching Number: 0R-6906

Engine Signal: Caterpillar 3116 / 3126

Machine Signal: CAT 322B / 325B excavator applications

Confirmation Method: Turbo nameplate, old part number, engine model and removed turbo photos

Key Checking Points Before Order

Turbochargers should not be confirmed only by excavator model. The same machine model may use different engine versions or turbocharger specifications, so the old turbocharger plate number and engine model should be checked before quotation.

Part Number Check: Confirm 115-5853 from the old turbocharger plate, supplier record or removed sample.

Cross Number Check: If the buyer provides 0R-6906 or 167604, confirm it together with engine model and turbo photos.

Engine Check: Confirm whether the engine is Caterpillar 3116 or 3126.

Machine Check: Confirm CAT 322B / 325B / 120H / 135H application if the turbo is ordered by machine model.

Sample Check: Provide photos of the old turbocharger from the compressor side, turbine side, actuator side and nameplate side.

Turbocharger Replacement Notes

Before replacing the 115-5853 turbocharger, the engine air intake system, exhaust manifold, oil feed line, oil return line and air filter condition should be checked. Turbocharger failure can be caused by oil starvation, dirty oil, air restriction, exhaust leakage or foreign object damage.

After installation, the lubrication system should be primed before engine start. The oil line should be clean, the air intake pipe should be free from debris, and the engine should be checked for abnormal smoke, oil leakage, boost pressure loss or unusual noise during testing.

Recommended Information for Quotation

Part Number: 115-5853

Matching Number: 0R-6906 or 167604 if available

Engine Model: Caterpillar 3116 / 3126

Machine Model: CAT 322B / 325B / 120H / 135H if available

Old Sample: Turbocharger photos from multiple angles

Nameplate: Clear photo of the turbocharger tag or stamped number

Order Details: Required quantity and destination country

FAQ

Is 115-5853 used for Caterpillar 3116 engine?

Yes. This page is for 115-5853 turbocharger replacement used with Caterpillar 3116 and related 3126 diesel engine applications. Please confirm the old turbocharger plate before ordering.

Can 0R-6906 be used as a matching number?

Yes. 0R-6906 can be used as a matching reference for this turbocharger page. Final confirmation should still be based on old turbo photos, nameplate and engine model.

Is this turbocharger for Komatsu excavator?

No. The Komatsu information from the old page should be removed. This page should focus on 115-5853 for Caterpillar 3116 / 3126 engine applications.

What should I provide before ordering?

Please provide the old turbocharger part number, turbo nameplate photo, engine model, machine model and clear photos of the removed turbocharger.

Do I need to check oil lines before replacing the turbo?

Yes. Oil feed and oil return lines should be checked and cleaned before installation. Poor lubrication can damage a replacement turbocharger quickly.
