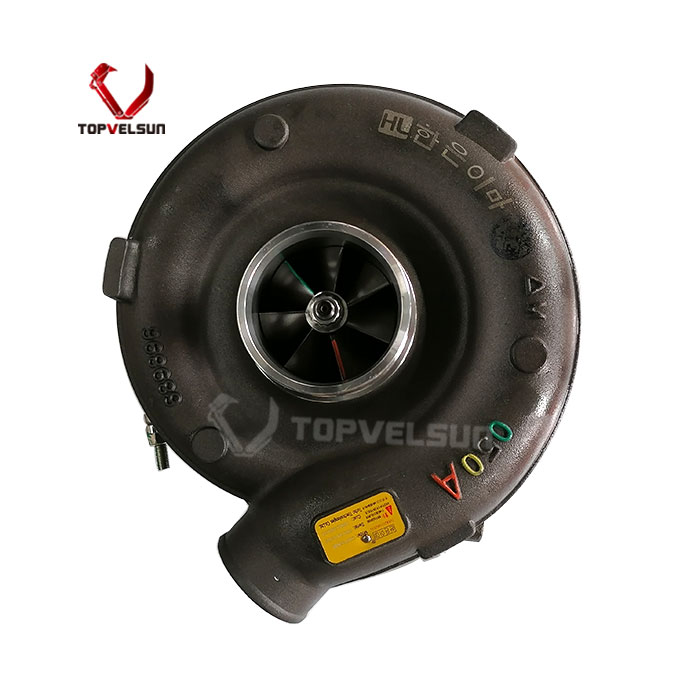

178-0389 S3BSL160 Turbocharger for Caterpillar CAT 330B Excavator

178-0389 S3BSL160 Turbocharger for Caterpillar CAT 330B Excavator

The 178-0389 turbocharger is supplied for Caterpillar CAT 330B excavator applications. It is commonly matched with S3BSL160 and S3BSL166 turbocharger references. The no-hyphen format 1780389 and CA1780389 can also be used for inquiry matching.

This replacement turbocharger is used when the old unit has weak boost, black smoke, oil leakage, abnormal noise, damaged compressor wheel or excessive shaft play. Before ordering, confirm the old turbocharger tag, machine model and removed sample photos to avoid mismatch in housing, flange or oil line position.

Part Number and Application

Part Number: 178-0389

Ref Cross: 1780389 / CA1780389

Turbo Model: S3BSL160 / S3BSL166 series turbocharger

Machine Application: Caterpillar CAT 330B excavator and related matching applications, verify by old turbo tag and sample photos

Fitment Check Before Order

For Caterpillar 330B applications, do not confirm the turbocharger by machine model alone. The old turbocharger number should be checked first, then the physical turbocharger layout should be compared.

Turbo Tag: Check for 178-0389, 1780389, CA1780389, S3BSL160 or S3BSL166 on the old turbocharger.

Machine Model: Confirm Caterpillar CAT 330B or the actual equipment model from the buyer record.

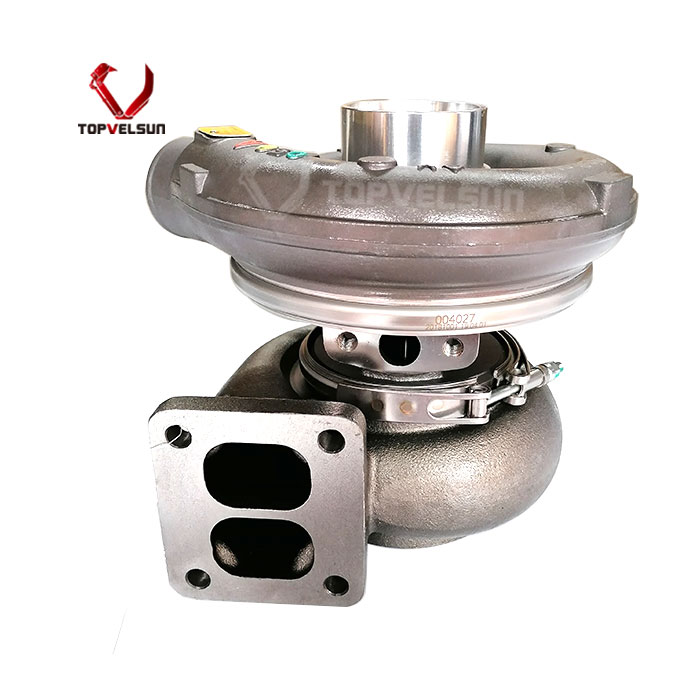

Sample Photos: Compare compressor housing, turbine housing, outlet direction, mounting flange, oil inlet and oil return position.

Common Replacement Signs

A worn 178-0389 turbocharger can reduce engine response and cause unstable boost pressure. Before replacing the turbocharger, the intake, exhaust and lubrication systems should be checked to reduce the risk of repeat failure.

Low Power or Black Smoke: Check the air filter, intake pipe, boost hose and compressor wheel condition.

Oil Leakage: Check the oil feed line, oil return line, crankcase ventilation and turbo bearing clearance before installing a replacement turbocharger.

Abnormal Noise: Check shaft play, compressor wheel contact, turbine wheel damage and signs of foreign object impact.

Repeat Failure Risk: Check dirty engine oil, blocked oil return, poor air filter sealing, exhaust leakage and remaining debris inside the intake pipe.

Information Needed for Quotation

Part Number: 178-0389 / 1780389

Ref Cross: CA1780389 if shown on the old turbo tag or purchase record

Turbo Model: S3BSL160 / S3BSL166 if shown on the old nameplate

Machine Model: Caterpillar CAT 330B or actual equipment model

Photos: Old turbocharger nameplate and clear sample photos from several angles

FAQ

Is 178-0389 the main part number for this product?

Yes. 178-0389 is the main part number for this CAT 330B S3BSL160 / S3BSL166 turbocharger direction. The no-hyphen format 1780389 can also be used for inquiry matching.

Can CA1780389 be used as Ref Cross?

Yes. CA1780389 can be used as a checking reference for this 178-0389 turbocharger direction. Final confirmation should still be made by old turbo tag and sample photos.

Is this turbocharger for Caterpillar CAT 330B?

Yes. It can be checked for Caterpillar CAT 330B applications when the old turbocharger number and physical sample match this S3BSL160 / S3BSL166 direction.

What should I provide before ordering?

Please provide the old turbocharger part number, machine model, turbo nameplate photo and removed sample photos.
