Kobelco SK200-8 Solenoid Valve Block: Fault Codes, Symptoms & Fixes

The operator's complaint when I initially arrived on the job site to examine a Kobelco SK200-8 excavator was straightforward: "It won't move properly, and some functions feel sluggish." The entire eight-solenoid valve assembly, referred to as the SK200-8 8-Solenoid Valve Block Assembly, was what initially drew our attention when we examined the Kobelco SK200-8 excavator.It is.

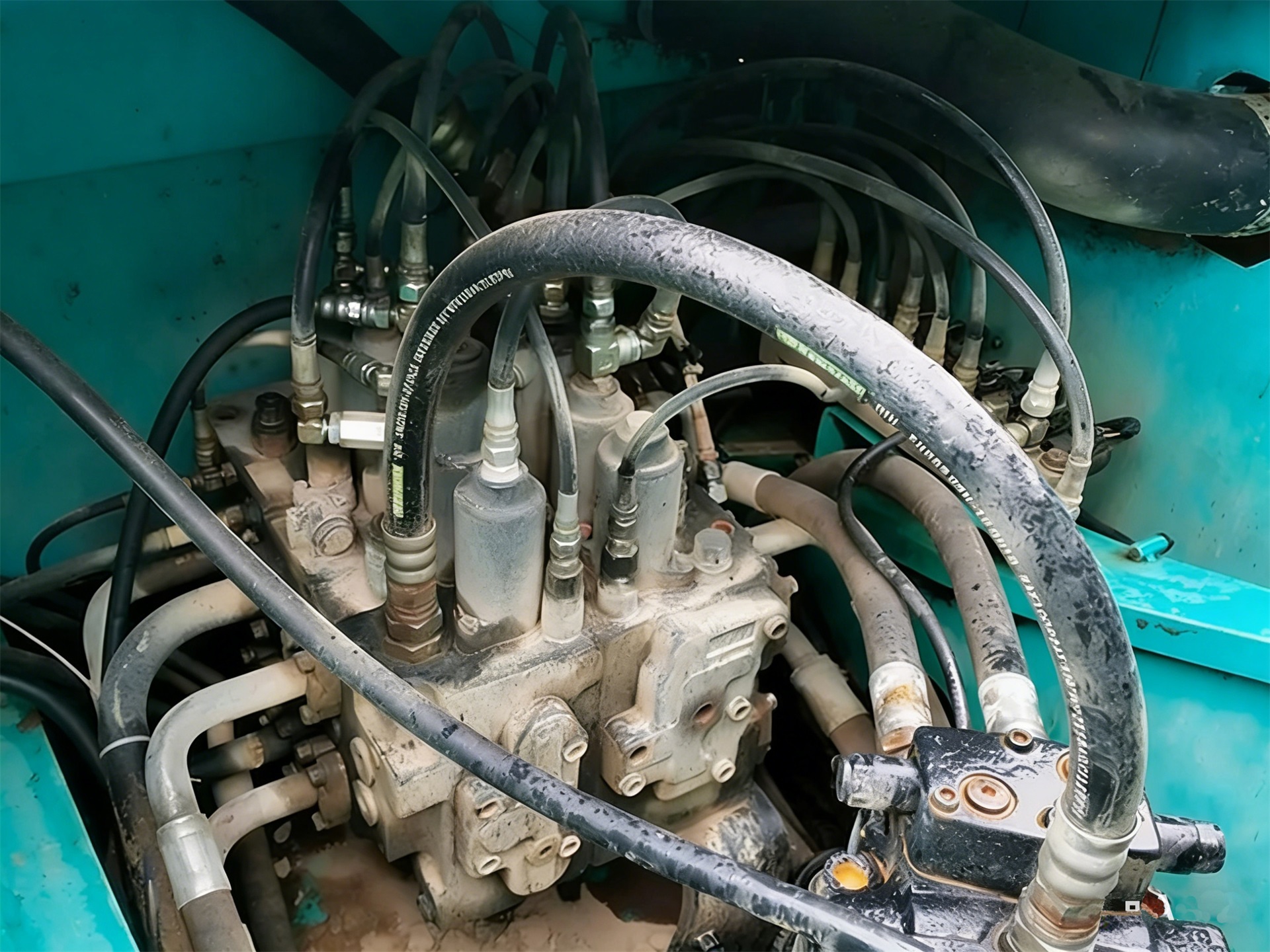

The SK200-8 eight-way solenoid valve module is obscured by the hydraulic oil pipe in the photo and is located below the intake pipe.

Introducing the SK200‑8 8-Solenoid Valve Assembly

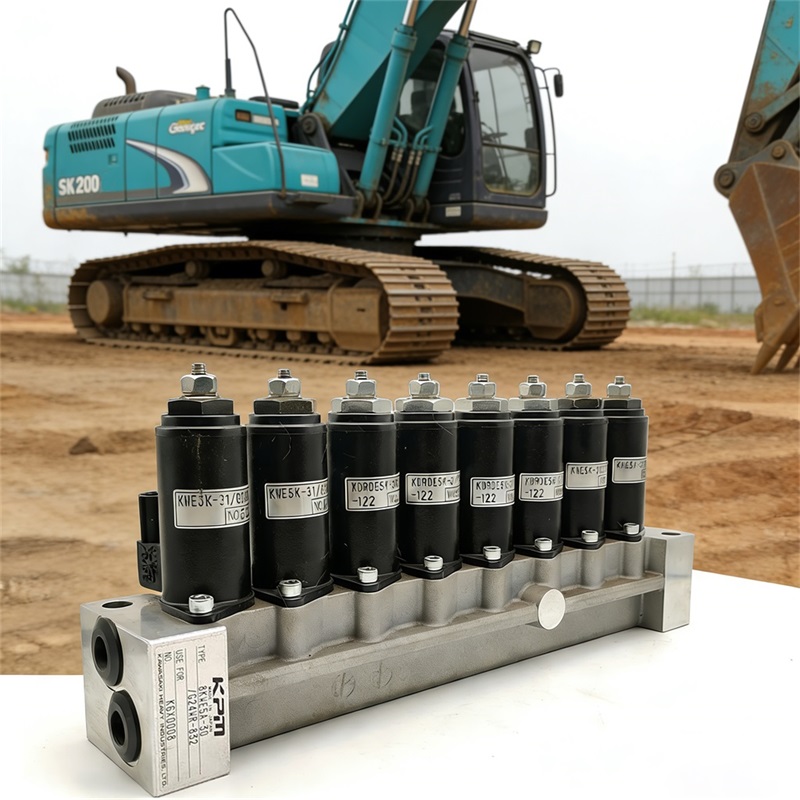

The SK200‑8 8-solenoid valve assembly (OEM number: 8KWE5A-30/G24WR-832, K9Z0052) sits atop the hydraulic pump, directly mounted on the main valve body. To access it, you remove the protective cover above the pump, located beneath the engine hood.

This assembly houses all eight individual solenoids, each controlling a critical hydraulic function:

• Safety Lock

• Swing Brake

• Travel 1/2 Speed

• Work Device Booster

• P1 and P2 Unload Proportional Valves

• Travel Straight

• Small Arm 2-Speed

Understanding the assembly as a whole is essential. While each solenoid can fail independently, issues often appear as systemic or intermittent if you focus only on individual valves. Knowing the assembly layout and OEM number helps technicians access and replace components efficiently, avoiding unnecessary damage and ensuring compatibility.

The Valves in the SK200‑8 Assembly: Functions, Codes, and Symptoms

Here’s a breakdown of the assembly and individual valves we encounter most often in the field:

Real-World Cases: Troubleshooting Each Solenoid

#1 Safety Lock Valve — When the Machine Goes Dead

The safety lock solenoid (#1) rarely triggers a fault code. Its failure usually results in no movement at all, rendering the machine inert. On-site, we measured a coil resistance of 32Ω. Deviations indicated either a burnt coil or a faulty harness. In these cases, testing the assembly as a whole helped confirm that it wasn’t a downstream system failure.

#2 Swing Brake — The Creeping Issue

Machines displaying F023 almost always point to the swing brake solenoid (#2). Symptoms include unintended rotation when the joystick is neutral. Swapping the valve with a neighboring unit confirmed the faulty solenoid. Recognizing that this valve is part of the 8-solenoid assembly helps in locating it quickly without disturbing surrounding components.

#3 Travel 1/2 Speed — Stuck Gear

Travel speed problems often correlate with F033. The SK200‑8 may get stuck in low or high gear. Inspecting solenoid #3 revealed a burnt coil in one instance, which was replaced successfully. Understanding its placement within the assembly allowed rapid access and minimal disruption.

#4 Work Device Booster — Missing Power Under Load

A machine with F013 displayed sluggish action despite pressing the boost switch. The work device booster solenoid (#4) controls additional pump pressure. Once identified, replacement restored full digging power immediately.

#5 & #7 P2 and P1 Unload Valves — Subtle Performance Loss

These proportional valves (#5 D023, #7 D013) often produce slower boom/arm travel or uneven track response rather than total stoppage. Checking both within the assembly context is crucial, as misdiagnosis could lead to replacing pumps unnecessarily. Field experience shows replacing the faulty valve in the assembly restores normal function reliably.

#6 Travel Straight & #8 Small Arm 2-Speed — Precision Matters

Travel straight (#6 D033) ensures balanced track motion; failures often manifest as uneven movement. Small arm 2-speed (#8 D063) affects arm return motion, causing bounce or hesitation. Both demonstrate why understanding the assembly and each valve’s location is key for efficient troubleshooting.

Step-by-Step Field Diagnostics

1. Read the monitor codes first — focus on Fxxx and Dxxx.

2. Visual inspection — check harnesses and connectors.

3. Measure coil resistance — deviations signal burnt coils.

4. Valve swap test — confirms if the fault is isolated to one solenoid.

5. Test all functions after replacement — clear codes and cycle all actuators.

Treat the assembly as a single unit, but replace solenoids individually if needed, ensuring proper alignment and connectivity.

Real-World Lessons

• No code doesn’t mean no problem — especially safety lock solenoid failures.

• Hydraulic cleanliness impacts valve performance.

• Harness wear often shows intermittent symptoms before valves fail.

Conclusion

Working on a Kobelco SK200‑8 excavator 8-solenoid valve assembly requires understanding both the assembly as a whole and the individual solenoids. By combining real-world symptom observation with fault codes and proper diagnostics, technicians can reduce downtime, prevent unnecessary parts replacements, and restore machine performance efficiently.

This approach, combined with linking solenoids to your product pages, helps operators worldwide quickly identify the correct components for repair and maintenance.

FAQ

Q1: What does F023 mean on a SK200-8?
A1: Swing brake solenoid (#2) circuit fault.

Q2: How to confirm which solenoid is faulty?
A2: Measure coil resistance, inspect harness, swap valves — code will follow if faulty.

Q3: Can I replace individual solenoids?
A3: Yes, but ensure correct specifications and clear codes after replacement.

Q4: What information should I provide when ordering?
A4: Machine model, serial number, OEM assembly number (8KWE5A-30/G24WR-832 / K9Z0052), and old solenoid part numbers (YN35V00050F1 etc.).
