YN59S00021F2 YN59S00021F3 YN59S00021F4 Monitor Cluster Gauge for KOBELCO SK200-8 SK300-8 SK330-8

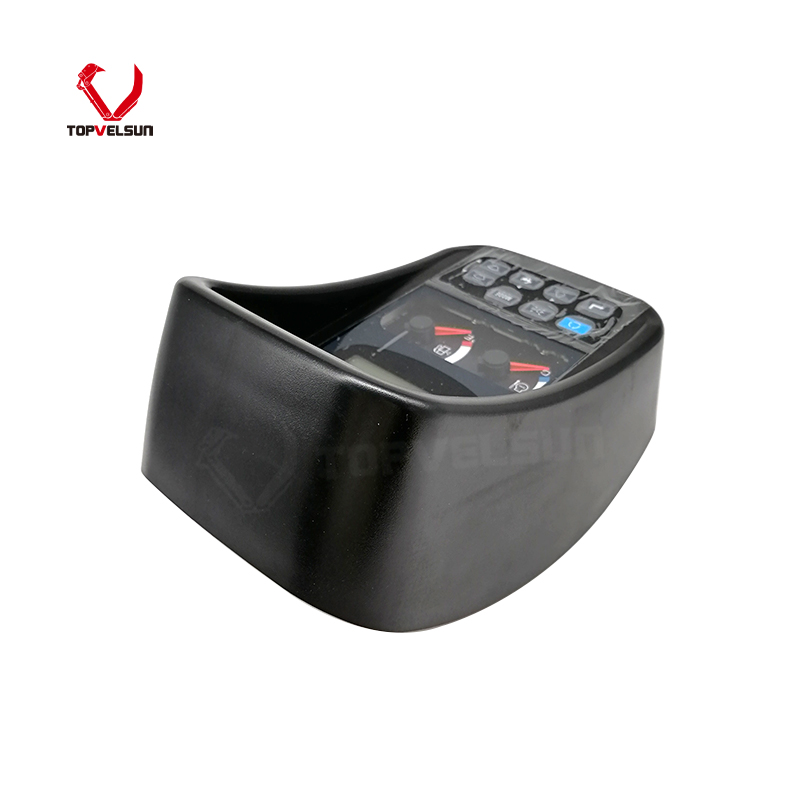

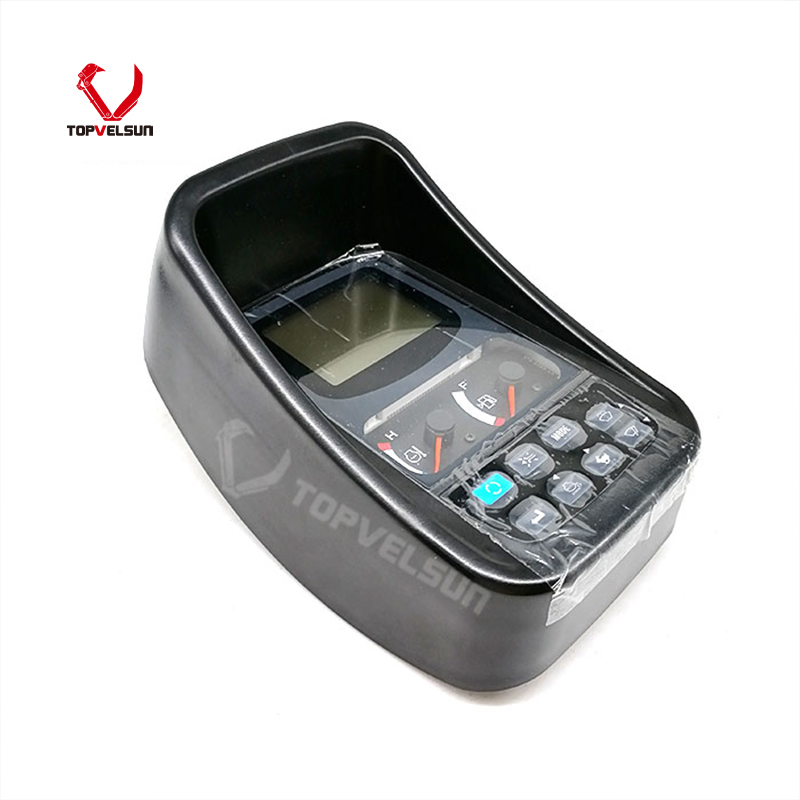

YN59S00021F2 Monitor Cluster Gauge for Kobelco 8-Series Excavator

The YN59S00021F2 monitor cluster gauge is supplied for Kobelco excavator cab electrical system repair. It is commonly searched as YN59S00021F2, YN59S00021F3, YN59S00021F4, monitor cluster gauge, gauge cluster monitor, monitor display panel or excavator cab display panel for Kobelco 8-Series excavators.

This page focuses on YN59S00021F2 as the main part number. YN59S00021F3 and YN59S00021F4 can be used as important reference numbers for checking. Final fitment should be confirmed by the old monitor number, front panel layout, rear connector type, plug position, mounting points and machine information before ordering.

Machine Reference for Kobelco Excavators

Common machine references for this monitor include Kobelco SK130-8, SK170-8, SK200-8, SK210-8, SK250-8, SK260-8, SK300-8, SK350-8 and SK360-8 excavators. The current page also lists SK330-5, which can be kept as a checking reference when the old monitor number and connector layout match.

The SEO Title should focus on stronger search models such as SK200-8, SK210-8 and SK250-8, while the product body can naturally cover SK130-8, SK170-8, SK260-8, SK300-8, SK350-8 and SK360-8. This keeps the title clean and avoids turning it into a long machine list.

Machine model alone is not enough for final confirmation. Kobelco monitor panels may vary by production version, wiring harness, connector layout, software version and cab configuration. The old monitor label and rear connector photos are more reliable than the model name alone.

Part Number and Reference Notes

YN59S00021F2 is the main part number of this product page. It should stay visible in the SEO Title, H1, top parameters, first paragraph, product body and image ALT text.

YN59S00021F3 and YN59S00021F4 are important reference numbers for this Kobelco monitor cluster gauge direction. They should support the main YN59S00021F2 signal rather than replace it as the primary page focus.

Do not add every nearby Kobelco monitor number into the top parameter area unless the old monitor label or supplier data confirms interchange. Similar monitor panels can vary by connector position, screen layout, button design, software version and machine configuration.

How to Confirm the Correct Kobelco Monitor Cluster Gauge

Excavator monitor panels can look similar from the front, but differences in rear connector, plug quantity, screen layout, warning icons and mounting position may affect installation. Before ordering, compare the removed monitor carefully.

• Confirm whether the old monitor number is YN59S00021F2, YN59S00021F3 or YN59S00021F4.

• Check whether the machine is Kobelco SK130-8, SK170-8, SK200-8, SK210-8, SK250-8, SK260-8, SK300-8, SK350-8 or SK360-8.

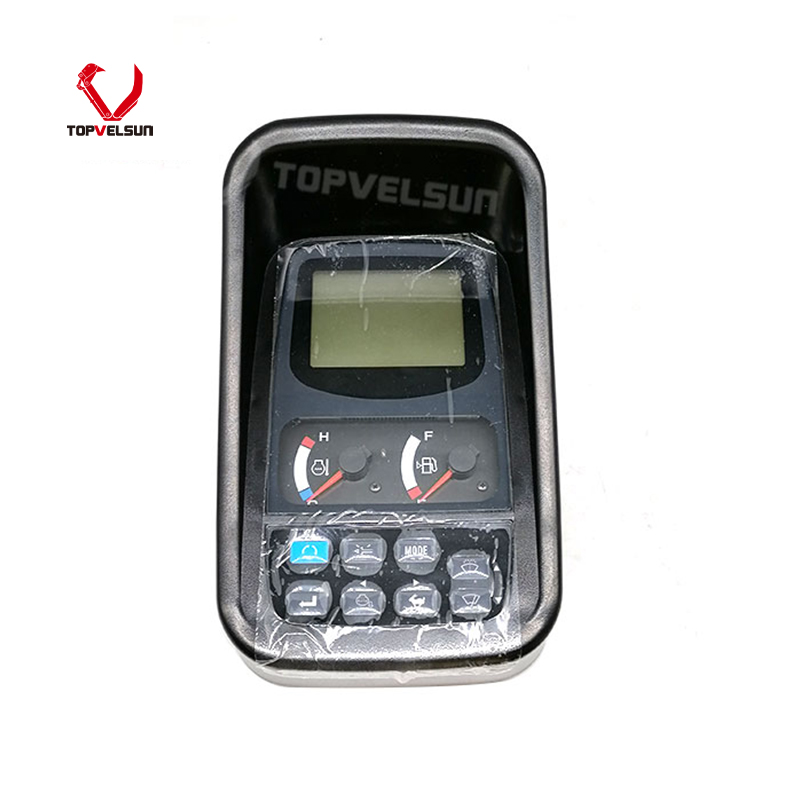

• Compare the front screen layout, button arrangement and warning icons.

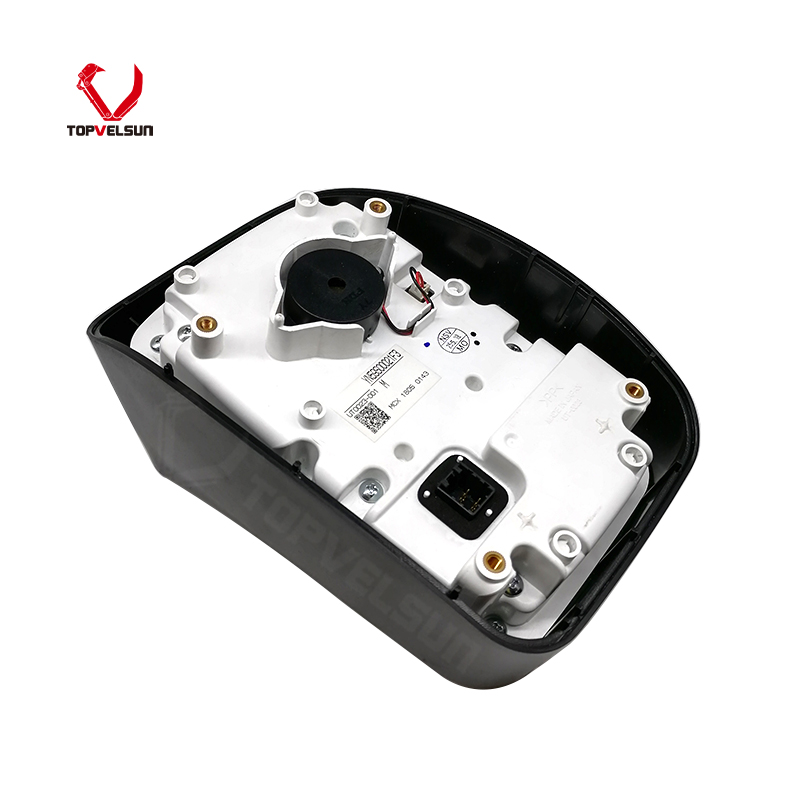

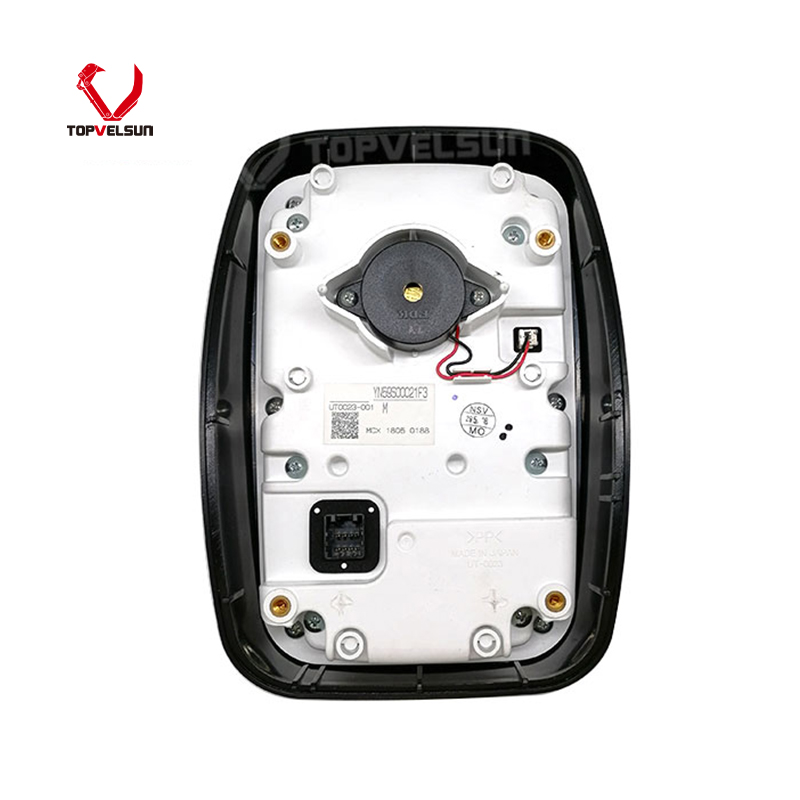

• Check the rear connector type, plug quantity and pin layout.

• Confirm mounting holes, bracket position and installation space.

• Send photos of the old monitor front side, rear label, connector side and machine nameplate before quotation if you are not sure.

Common Monitor Failure Symptoms

A monitor cluster gauge may need replacement when the screen is black, dim, flickering, cracked, unreadable, shows missing display areas, cannot show warning information, has button failure or does not respond normally after power-on.

Before replacing the monitor, check the power supply, fuse, ground wire, connector, harness condition and controller communication. Some display faults may be caused by wiring or power issues rather than the monitor itself.

If the old monitor was damaged by water, corrosion, unstable voltage or short circuit, the root cause should be corrected before installing the replacement monitor. Otherwise, the new display may fail again.

Installation and Testing Notes

Before installation, turn off the machine power and inspect the old connector. Do not force the plug into the new monitor if the connector shape, pin layout or mounting position is different.

After installation, power on the machine and check whether the monitor starts normally, displays machine information, responds to buttons and shows warning indicators correctly.

If the monitor powers on but does not show correct machine data, check the wiring harness, controller communication and machine version before assuming the monitor is defective.

Buying Notes for Repair Shops and Parts Distributors

For repair shops, this YN59S00021F2 / YN59S00021F3 / YN59S00021F4 monitor cluster gauge is suitable for Kobelco excavator cab electrical system repair when the old monitor is damaged, unreadable or unable to display machine status correctly.

For parts distributors, it can be supplied as a Kobelco 8-Series excavator monitor reference for SK130-8, SK170-8, SK200-8, SK210-8, SK250-8, SK260-8, SK300-8, SK350-8 and SK360-8 service demand. Topvelsun supports small repair orders and bulk inquiries. Please send the required quantity, old monitor number, machine model, serial number and photos of the old monitor from multiple angles.

FAQ

What is the main product on this page?

This page is for the YN59S00021F2 / YN59S00021F3 / YN59S00021F4 monitor cluster gauge used for Kobelco excavator cab display system repair.

Can YN59S00021F3 and YN59S00021F4 be used as reference numbers?

Yes. YN59S00021F3 and YN59S00021F4 can be used as important reference numbers for this Kobelco monitor direction. The old monitor label and connector should still be checked before ordering.

Which Kobelco models are the main references?

Common references include Kobelco SK130-8, SK170-8, SK200-8, SK210-8, SK250-8, SK260-8, SK300-8, SK350-8 and SK360-8. SK330-5 may also be used as a checking reference when the old monitor number and connector match.

Can I confirm this monitor by machine model only?

Machine model is useful, but it should not be the only fitment proof. Please also check the old monitor number, front panel layout, rear connector, plug quantity, mounting holes and machine serial number.

What should I send before ordering?

Please send photos of the old monitor front side, rear label, connector side, plug shape, mounting bracket and machine nameplate. These photos help confirm whether YN59S00021F2 / YN59S00021F3 / YN59S00021F4 is the correct monitor.
