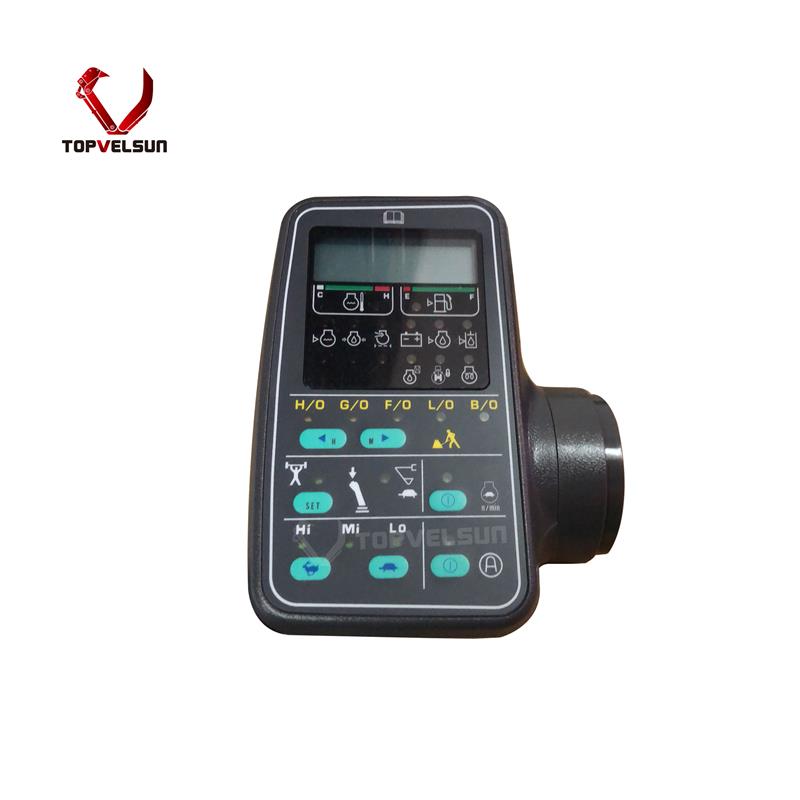

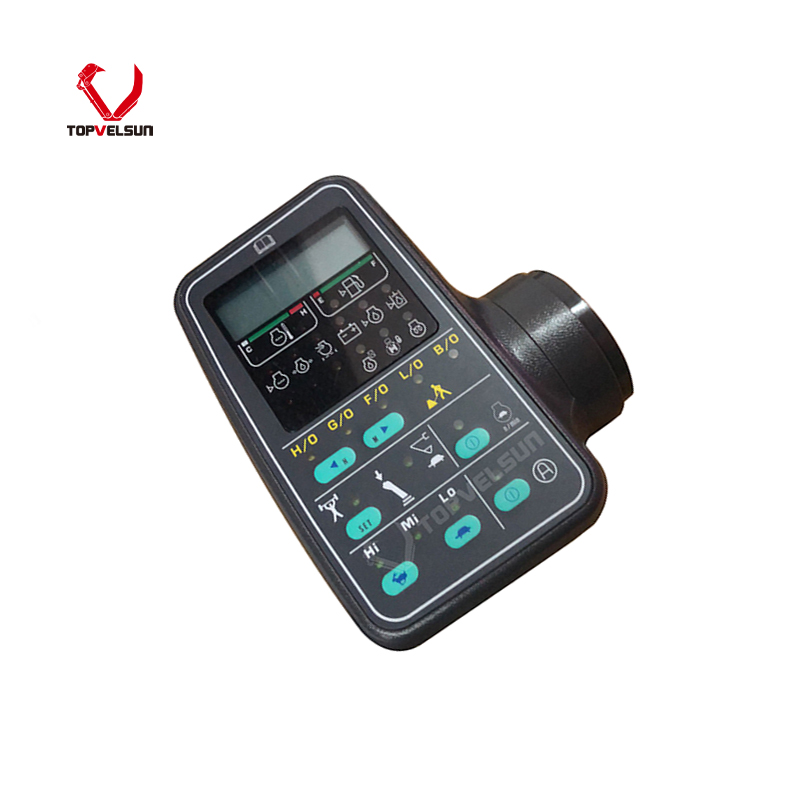

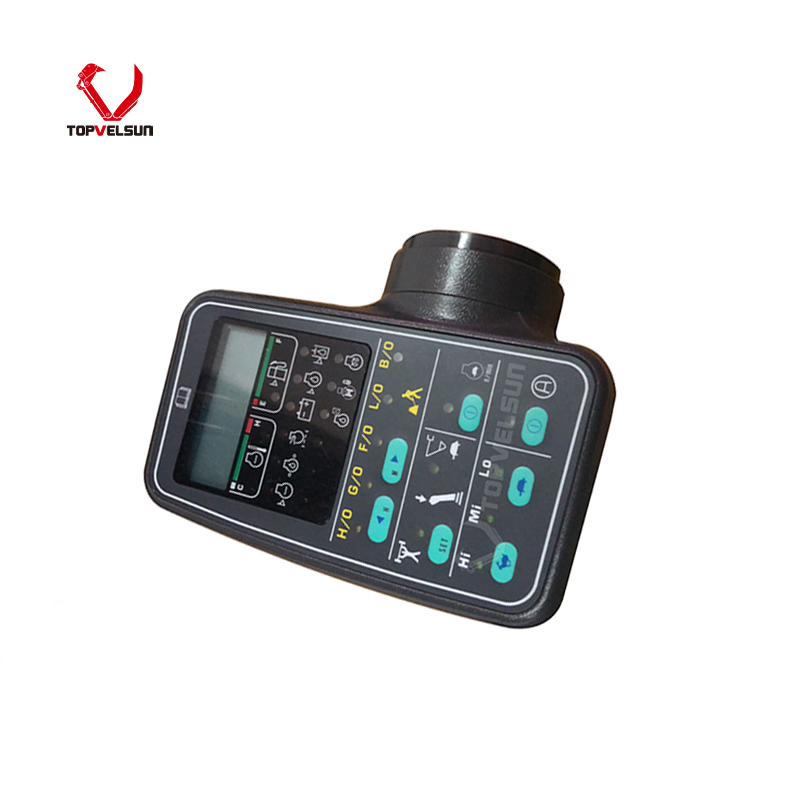

7834-71-6101 LCD Display Panel 6D102 Monitor for KOMATSU PC120-6 PC200-6 PC130LC-6 PC220LC-6

Premium 7834-71-6101 LCD Display Monitor for Komatsu PC-6 Series

Regain full diagnostic control of your excavator with the 7834-71-6101 LCD Display Monitor Panel. Acting as the "brain interface" of your machine, this 24V industrial-grade dashboard provides real-time monitoring of engine RPM, coolant temperature, oil pressure, and fuel levels. Fully compatible with Komatsu's CAN/LIN bus network, it seamlessly communicates with the engine ECU and hydraulic controllers to display critical alarms and maintenance schedules.

Complete Equipment & Engine Compatibility

Engineered as a direct plug-and-play replacement (cross-compatible with part numbers 7834-71-6100, 7834-71-6000, 7834-71-6001, 7834-71-6002). Suitable for the following models:

• Excavator Models: PC100-6, PC120-6, PC130-6, PC200-6, PC200LC-6, PC210-6, PC210LC-6, PC220-6, PC220LC-6, PC230-6, PC230LC-6, PC300-6, PC300LC-6

• Engine Fitment: Komatsu S6D95 & S6D102 series diesel engines.

Technical Specifications & Protection Features

• Industrial LCD Screen: Features high-brightness backlighting for clear visibility under direct job-site sunlight.

• Durability: IP65 rated front panel with waterproof silicone buttons guaranteed for over 1 million presses.

• Vibration Resistance: Meets strict OEM standards, sustaining 5-2000Hz (10g) acceleration to survive severe digging operations.

• Electrical Safety: Built-in reverse polarity, overvoltage, and short-circuit protection safeguards against wiring faults.

Diagnostic Guide: Common Komatsu Alarm Codes

If your old monitor is functioning but throwing codes, or if you are installing this new unit, here are the official fault definitions it displays:

Official Troubleshooting: When to Replace Your Monitor?

1. Black Screen / No Power

Diagnosis: First, check the 10A monitor fuse in the cab. Test the harness plug for a steady DC 24V. If voltage is present but the screen remains dead, the internal power module has failed, requiring a full monitor assembly replacement.

2. Glitching, Scrambled Text, or Freezing

Diagnosis: Usually caused by a damaged LCD driver or corrupted motherboard data. Restart the machine via the battery switch. If the artifacts persist, the hardware is fried and the unit must be replaced.

3. Unresponsive Buttons

Diagnosis: Often the result of oxidized contacts or water/oil ingress shorting the keypad. Our replacement features sealed silicone buttons to prevent this.

4. Dim Screen / Backlight Failure

Diagnosis: If the screen is black but faint images can be seen with a flashlight, the LED backlight circuit has burnt out. Replacement is required.

Installation Warning: Always disconnect the negative battery terminal before plugging or unplugging the monitor to prevent electrical surges that can fry the ECU. Torque mounting screws to 5±1 N·m to avoid cracking the casing.
