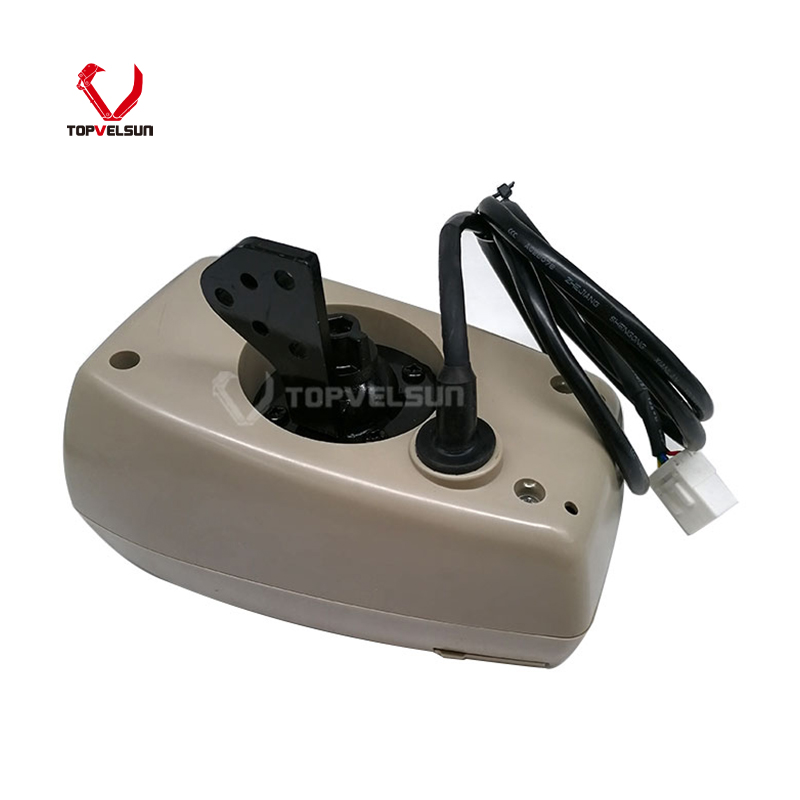

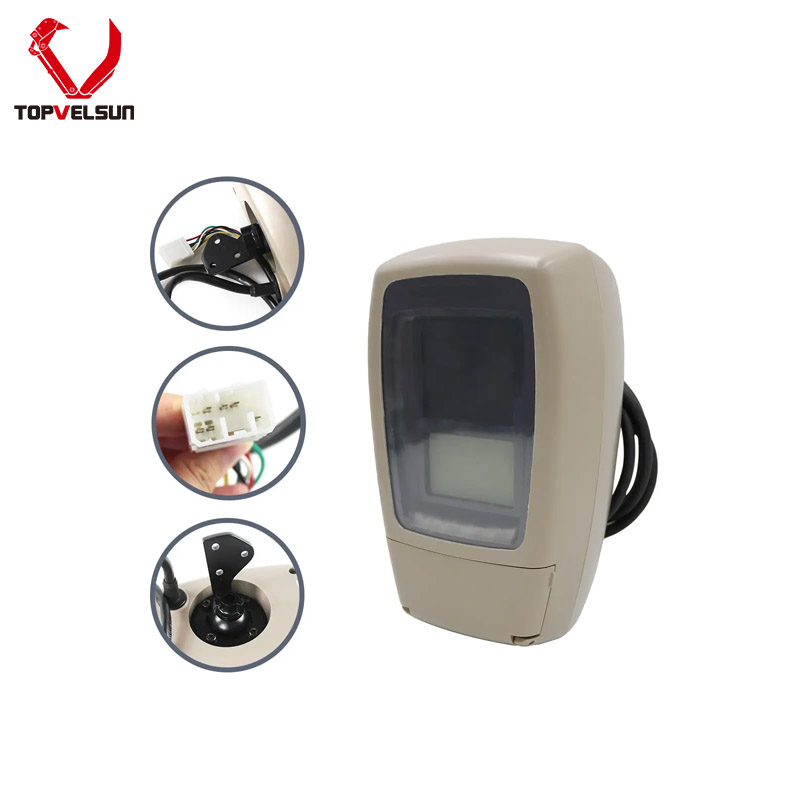

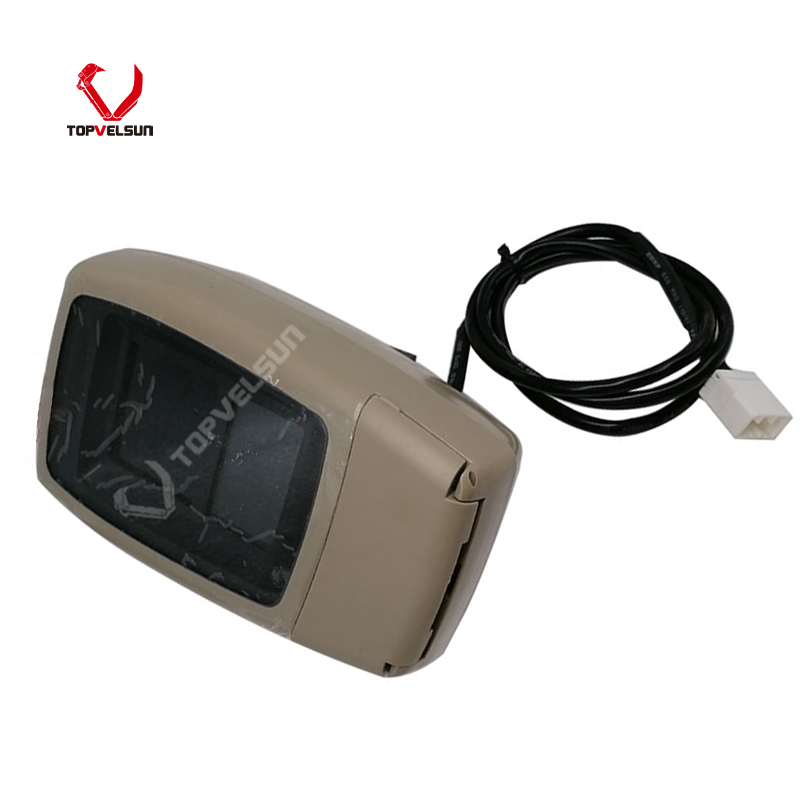

260-2160 157-3198 Operator Monitor Panel for Caterpillar 312C 320C 325C 330C

260-2160 157-3198 Operator Monitor Panel for Caterpillar C Series Excavators

The 260-2160 157-3198 operator monitor panel is used for Caterpillar C Series excavator cabin display applications. It is commonly searched for 312C 315C 318C 319C 320C 322C 325C 330C machines when the original monitor display fails, becomes dim, loses button response or cannot show machine operating information correctly.

This page is focused on the 260-2160 157-3198 monitor group. The no-hyphen search formats 2602160 1573198 can stay on the same page. Final fitment should be verified by old monitor part number, connector layout, button arrangement, machine model and machine serial number before ordering.

Product Identification for 260-2160 157-3198 Monitor Panel

Application Scene: C Series Excavator Cabin Display Replacement

The operator monitor is the main display unit inside the excavator cabin. It helps the operator read machine status, warning signals, operating information and abnormal alerts during daily work. When the monitor fails, the operator may lose visibility of important machine conditions.

For older Caterpillar C Series excavators, display failure is often related to long service hours, cabin vibration, moisture, dust, aging internal components, damaged buttons, loose connectors or previous electrical repair work.

The 260-2160 157-3198 monitor panel should be selected by part number and physical comparison, not only by excavator model. Machines with the same model name may still have different cabin wiring or monitor versions depending on serial number and market configuration.

Compatible Model Reference

Common Failure Symptoms of Excavator Monitor Panels

Connector and Button Layout Must Be Checked

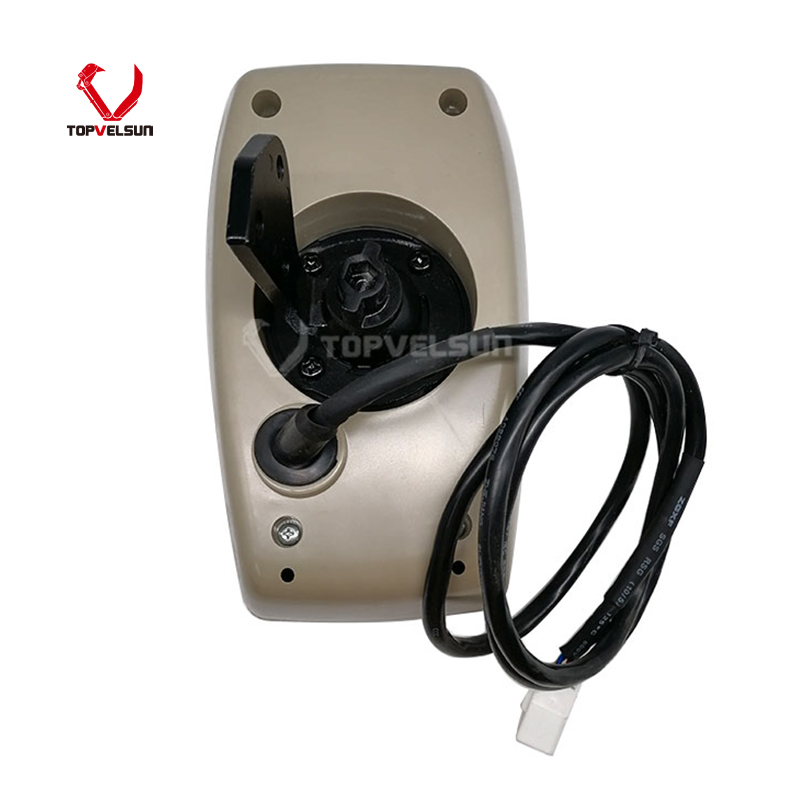

Before ordering 260-2160 157-3198, compare the rear connector shape, pin count, plug position and locking design with the old monitor. A similar-looking monitor may still be different internally or use a different connector layout.

Button layout is also important. Some aftermarket listings may use the same part number group but different face panel markings, language labels or button arrangements. If the buyer needs the same operating interface, clear front and rear photos of the old monitor should be provided.

For remote orders, send photos of the complete monitor front, rear connector, side label, machine nameplate and any visible part number marks before shipment.

Why 260-2160 and 157-3198 Can Stay on the Same Page

Both 260-2160 and 157-3198 are commonly searched together for Caterpillar C Series monitor replacement. Cat parts data identifies 260-2160 as an operator monitor and 157-3198 as a monitor group, while aftermarket sources usually list both numbers on the same display panel page.

This is different from mixing unrelated monitor part numbers. The main title and first heading should stay focused on 260-2160 157-3198, while other monitor numbers should only appear as related products or checking notes.

Do not turn this page into a general Caterpillar monitor directory. Keeping the page focused helps buyers and search engines identify it as the primary landing page for 260-2160 and 157-3198.

Installation and Maintenance Notes

Turn off the machine and isolate electrical power before removing the old monitor. Do not pull the wiring harness directly. Release connector locks before unplugging the monitor panel.

Inspect the rear connector for corrosion, bent pins, loose terminals, water marks or broken locking tabs. If the connector or cabin harness is damaged, replacing only the monitor may not solve the fault.

After installation, check screen startup, button response, warning display, hour meter information, brightness, communication status and any active fault codes.

Keep the cabin display area dry and clean. Long-term moisture, dust, direct impact and wiring strain can shorten monitor service life.

Why Source 260-2160 157-3198 from Topvelsun?

Topvelsun supplies replacement monitor panels and electric system parts for excavators and heavy equipment. For 260-2160 157-3198 orders, we help buyers compare old monitor photos, connector layout, button arrangement, machine model and serial number before shipment.

This product is suitable for repair workshops, fleet maintenance teams, electrical repair technicians, parts distributors and overseas buyers working on Caterpillar C Series excavator monitor replacement.

FAQ

Are 260-2160 and 157-3198 the same monitor panel reference group?

They are commonly listed together for Caterpillar C Series excavator monitor panel replacement. Final fitment should still be verified by old monitor, connector layout, button arrangement and serial number.

What machines can use the 260-2160 157-3198 monitor panel?

Common model references include Caterpillar 312C, 315C, 318C, 319C, 320C, 322C, 325C and 330C excavators. Exact compatibility depends on machine configuration and serial number.

Is 177-7700 the same as 260-2160?

177-7700 appears in some aftermarket monitor listings with 260-2160 and 157-3198, but it should be treated as a checking reference only. Confirm by old monitor part number, connector and button layout before ordering.

What photos should be sent before ordering?

Send photos of the old monitor front panel, rear connector, side label, button layout, machine nameplate and any visible part number. These details help confirm the correct replacement.

Is this monitor an original Caterpillar part?

Unless the actual product source and packaging prove otherwise, this page should describe the item as an aftermarket replacement monitor panel for Caterpillar part number references.
