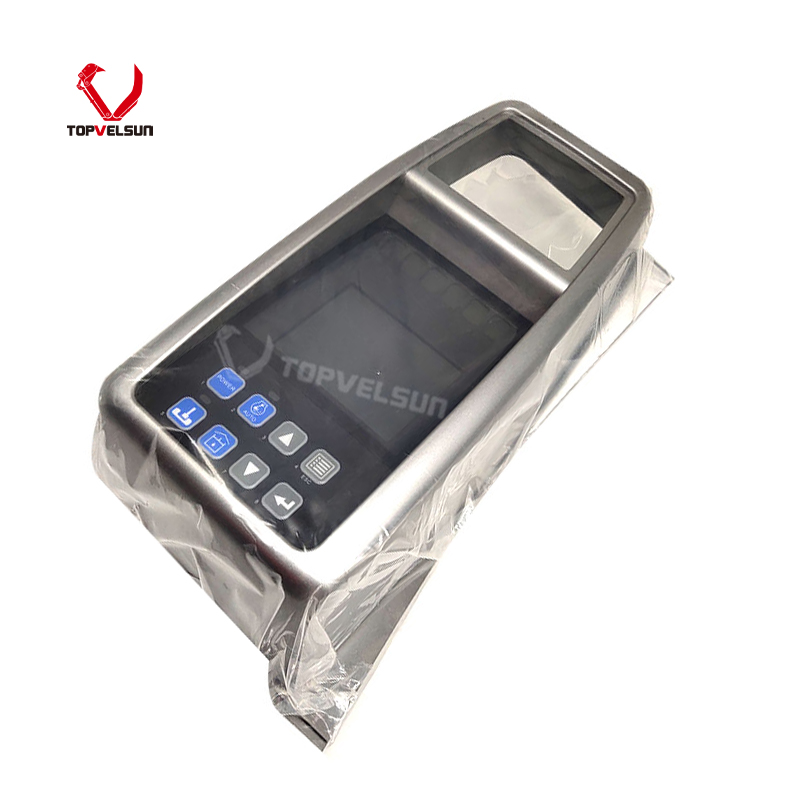

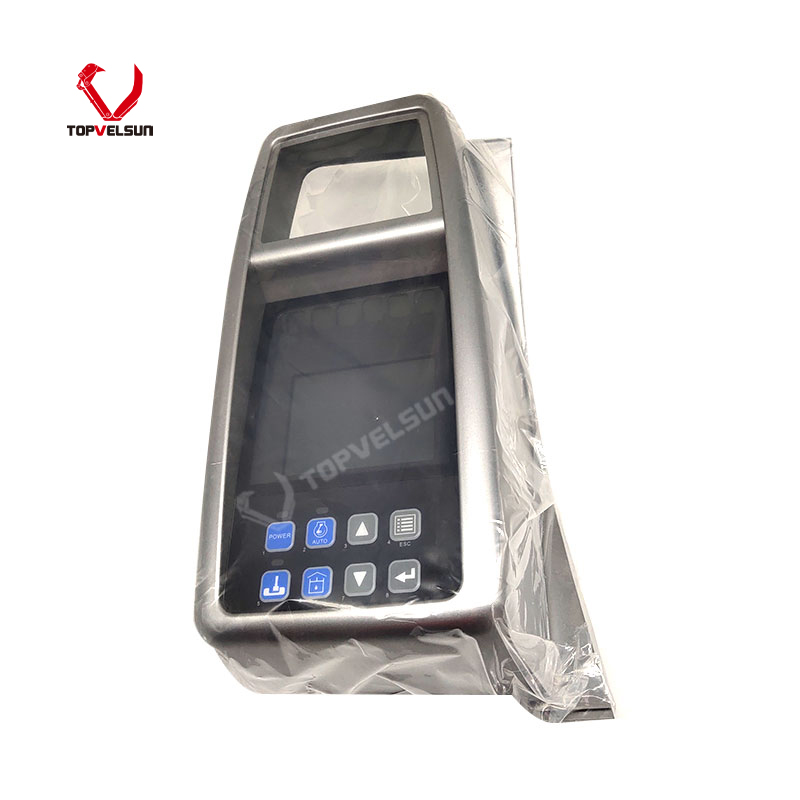

539-00076B Monitor Display Panel for DOOSAN(DEVELON) DX300LC DX340LC DX420LC DX480LC DX520LC

539-00076B Monitor Display Panel for Doosan DX300LC and DX340LC

The 539-00076B monitor display panel is supplied for Doosan and Develon excavator cab electrical system repair. It is commonly searched as 539-00076B, 53900076B, monitor display panel, gauge panel, LCD gauge monitor or cab display monitor for Doosan DX300LC, DX340LC, DX420LC, DX480LC and DX520LC excavator references.

This page focuses on 539-00076B as the main part number. 53900076B is the no-hyphen search format. Final fitment should be confirmed by the old monitor number, front panel layout, rear connector type, plug position, mounting points and machine information before ordering.

Machine Reference for Doosan / Develon Excavators

Common machine references for this monitor display panel include Doosan / Develon DX300LC, DX340LC, DX420LC, DX480LC, DX520LC and TXC480LC-2 excavators. These model references should stay in the page title area, top parameters, first paragraph and image ALT text.

Machine model alone is not enough for final confirmation. Doosan monitor panels may vary by serial number range, wiring harness, connector layout, software version and cab configuration. The old monitor label and rear connector photos are more reliable than the model name alone.

For accurate ordering, compare the removed monitor with the replacement unit before shipment. Photos of the front screen, rear label, connector side, mounting area and machine nameplate are useful for confirmation.

Part Number and Reference Notes

539-00076B is the main part number of this product page. It should stay visible in the SEO Title, H1, top parameters, first paragraph, product body and image ALT text.

Market references may mention related numbers such as 539-00076, 539-00076A, 539-00076C, 539-00076E, 539-00076G and 300426-00007. These numbers should be treated as checking references only unless the old monitor label or supplier data confirms interchange.

Do not add every nearby Doosan monitor number into the top parameter area. Similar monitor panels can vary by connector position, screen layout, button design, software version and machine configuration, and too many part numbers may dilute the 539-00076B page signal.

How to Confirm the Correct Doosan Monitor Display Panel

Excavator monitor panels can look similar from the front, but small differences in rear connector, plug quantity, display layout, warning icons and mounting position may affect installation. Before ordering, compare the removed monitor carefully.

• Confirm whether the old monitor number is 539-00076B or 53900076B.

• Check whether the machine is Doosan / Develon DX300LC, DX340LC, DX420LC, DX480LC, DX520LC or

  TXC480LC-2.

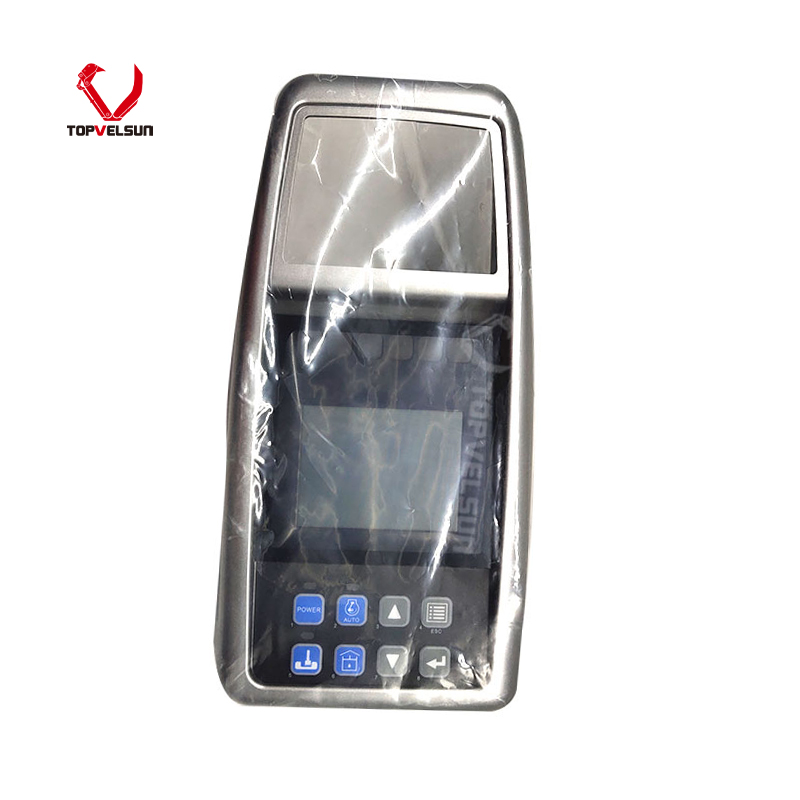

• Compare the front panel layout, screen area and button arrangement.

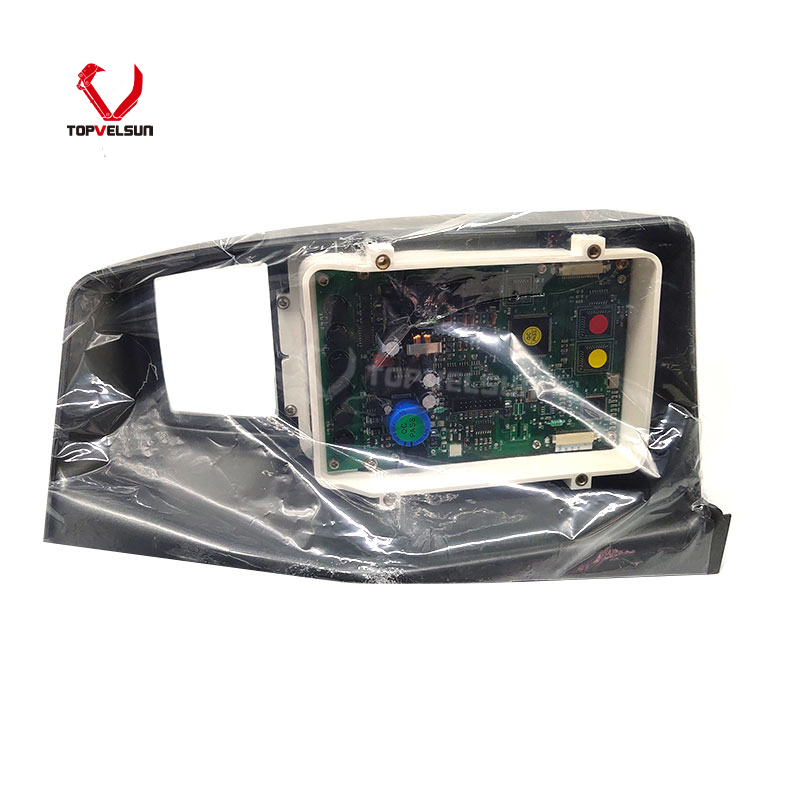

• Check the rear connector type, plug quantity and pin layout.

• Confirm mounting holes, bracket position and installation space.

• Send photos of the old monitor front side, rear label, connector side and machine nameplate before quotation if you are not sure.

Common Monitor Failure Symptoms

A monitor display panel may need replacement when the screen is black, dim, flickering, cracked, unreadable, shows missing display areas, cannot show warning information, has button failure or does not respond normally after power-on.

Before replacing the monitor, check the power supply, fuse, ground wire, connector, harness condition and controller communication. Some display faults may be caused by wiring or power issues rather than the monitor itself.

If the old monitor was damaged by water, corrosion, unstable voltage or short circuit, the root cause should be corrected before installing the replacement monitor. Otherwise, the new display panel may fail again.

Installation and Testing Notes

Before installation, turn off the machine power and inspect the old connector. Do not force the plug into the new monitor if the connector shape, pin layout or mounting position is different.

After installation, power on the machine and check whether the monitor starts normally, displays machine information, responds to buttons and shows warning indicators correctly.

If the monitor powers on but does not show correct machine data, check the wiring harness, controller communication and machine version before assuming the monitor is defective.

Buying Notes for Repair Shops and Parts Distributors

For repair shops, this 539-00076B monitor display panel is suitable for Doosan and Develon excavator cab electrical system repair when the old monitor is damaged, unreadable or unable to display machine status correctly.

For parts distributors, it can be supplied as a Doosan / Develon DX Series excavator monitor reference for DX300LC, DX340LC, DX420LC, DX480LC and DX520LC service demand. Topvelsun supports small repair orders and bulk inquiries. Please send the required quantity, old monitor number, machine model, serial number and photos of the old monitor from multiple angles.

FAQ

What is the main product on this page?

This page is for the 539-00076B monitor display panel used for Doosan / Develon excavator cab display system repair.

Is 53900076B the same search reference as 539-00076B?

53900076B is the no-hyphen writing format of 539-00076B. Buyers may search either format, so both formats can be kept on the page.

Which Doosan models are the main references?

Common references include Doosan / Develon DX300LC, DX340LC, DX420LC, DX480LC and DX520LC excavators. TXC480LC-2 can be kept as a checking reference when the old monitor number and connector match.

Can I use 539-00076E or 539-00076C instead of 539-00076B?

These nearby numbers should not be treated as automatic replacements without checking. Please confirm the old monitor label, connector type, screen layout and machine information before using any related reference number.

Can I confirm this monitor by machine model only?

Machine model is useful, but it should not be the only fitment proof. Please also check the old monitor number, front panel layout, rear connector, plug quantity, mounting holes and machine serial number.

What should I send before ordering?

Please send photos of the old monitor front side, rear label, connector side, plug shape, mounting bracket and machine nameplate. These photos help confirm whether 539-00076B is the correct monitor.
