4652262 monitor display panel for Hitachi ZX200-3 excavator

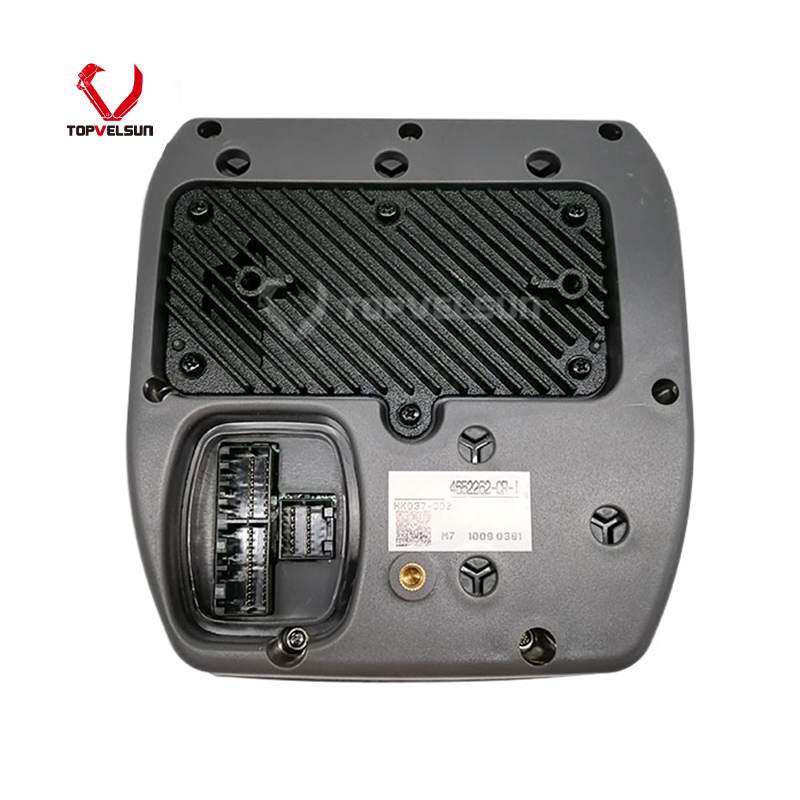

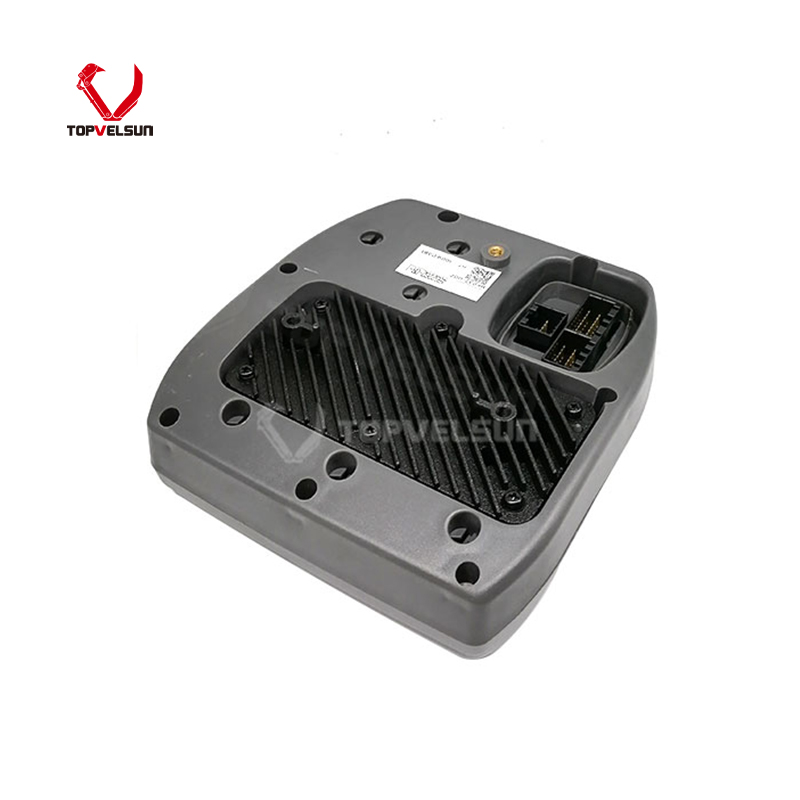

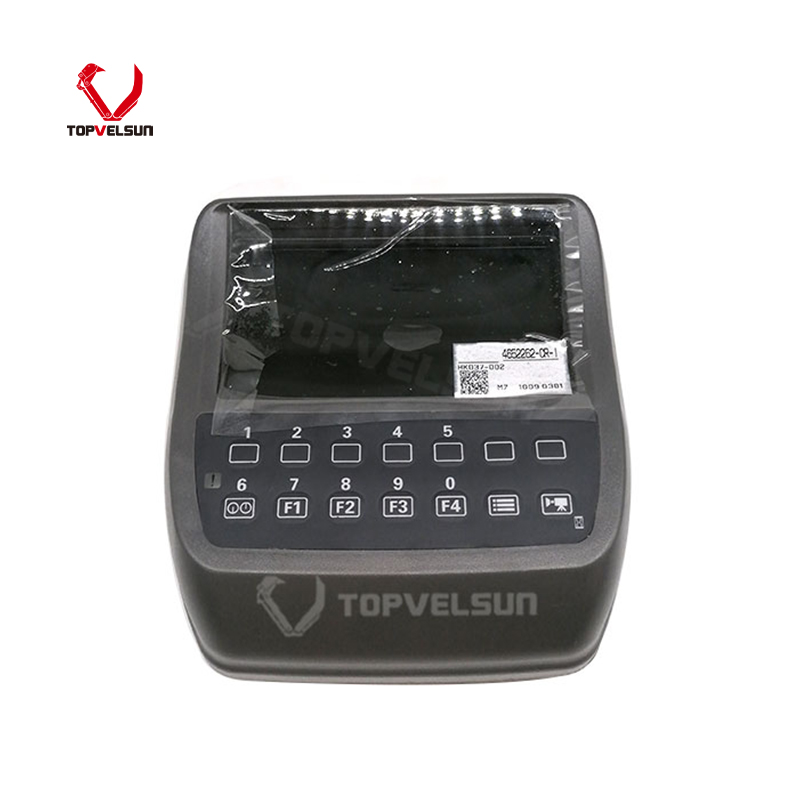

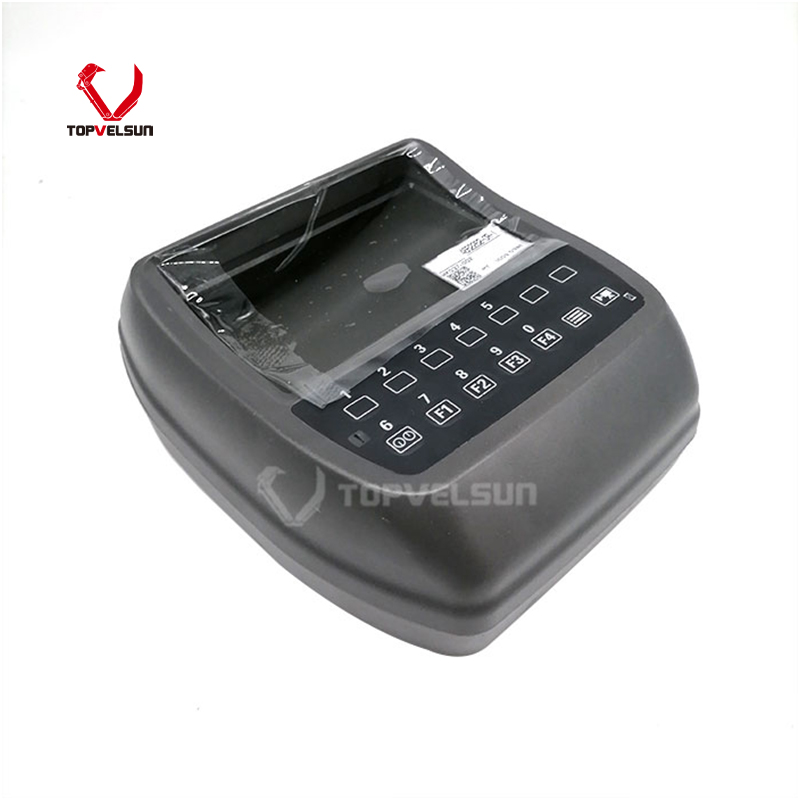

4652262-CR-1 HK037-002 Excavator Monitor for HITACHI ZAX200-3 ZX70-3 ZX110-3

Name: 4652262-CR-1 HK037-002 Excavator Monitor for HITACHI ZAX200-3 ZX70-3 ZX110-3
Brand: Topvelsun
SKU: 4652262-CR
Availability: InStock

Ref Cross: 4652262-CR-1 HK037-002 HK0037-002, verify by old monitor label

MOQ: 1 Piece

Warranty: 6 Months

Lead Time: 7 - 15 Days

Part Name: Monitor Display Panel, Operator Monitor, Gauge Cluster

Application: Hitachi ZAXIS and ZX-3 series excavator cab display applications

Compatible: Hitachi ZX70-3 ZX110-3 ZX200-3 ZX210-3 ZX225US-3 ZX240-3 ZX250-3 ZX330-3 ZX450-3, final fitment should be verified

Next Product

Product Description

4652262 Monitor Display Panel for Hitachi ZX-3 Excavators

The 4652262 monitor display panel is used for Hitachi ZX-3 series excavator cab display applications. It is commonly searched as a monitor panel, operator monitor, display screen, gauge cluster or computer monitor for Hitachi ZX70-3 ZX110-3 ZX200-3 and related ZAXIS machine references.

This page should focus on 4652262 as the main part number. References such as 4652262-CR-1, HK037-002 and HK0037-002 can stay as checking references, but final fitment should be verified by the old monitor label, rear connector, button layout and machine serial number before ordering.

Product Details for 4652262 Monitor Panel

Main Part Number	4652262
Ref Cross	4652262-CR-1 HK037-002 HK0037-002, verify by old monitor label
Part Name	Monitor display panel, operator monitor, gauge cluster, cab display screen
Application	Hitachi ZAXIS and ZX-3 series excavator cab display applications
Compatible	ZX70-3 ZX110-3 ZX160LC-3 ZX200-3 ZX210-3 ZX225US-3 ZX240-3 ZX250-3 ZX330-3 ZX450-3, final fitment should be verified
Function	Displays machine operating information, warning status, system alerts, hour information and operator interface data
Verification Requirement	Confirm old monitor part number, rear connector, pin layout, front panel, button position, mounting points and machine serial number

Hitachi ZX-3 Monitor Replacement Applications

The 4652262 monitor is used in the operator cabin to show machine status and warning information. When the display becomes blank, dim, unstable or unresponsive, the operator may lose access to fault warnings, working status and machine feedback during daily operation.

Hitachi ZX-3 series excavators may use similar-looking monitors with different connectors, panel layouts or software programs. For this reason, the monitor should not be selected by machine model alone. The old monitor label and rear connector should be checked before quotation and shipment.

If the old display has been replaced before, confirm whether the machine wiring harness, controller and display version are still original. Previous repair history may affect final compatibility.

Compatible Model Reference for 4652262

Machine Group	Model Reference
Compact and small ZX-3 excavators	ZX70-3 ZX110-3, verify by old monitor and connector
Medium ZX-3 excavators	ZX160LC-3 ZX200-3 ZX210-3 ZX210H-3 ZX225US-3 ZX240-3 ZX250-3
Large ZX-3 excavators	ZX330-3 ZX350-3 ZX450-3 ZX470H-3 ZX500LC-3 ZX650LC-3, depending on machine configuration
Fitment Note	Model references are for search and pre-check only. Final fitment should be confirmed by old monitor, connector layout and serial number.

Common Monitor Display Failure Symptoms

Failure Symptom	Inspection Point
Blank screen	Check battery voltage, fuse, monitor power supply, ground wire, rear connector and display condition
Dim or faded display	Inspect screen aging, backlight condition, sunlight visibility and internal display damage
Buttons do not respond	Check front panel buttons, membrane wear, dust contamination and internal switch response
Intermittent reset	Inspect connector looseness, vibration-related contact issues, ground stability and cabin harness condition
Wrong warning or missing data	Check monitor compatibility, controller communication, wiring harness condition and sensor input status

Connector and Panel Layout Verification

Before ordering 4652262, compare the rear connector, pin count, plug position, mounting points and front panel layout with the old monitor. A similar display panel may still use a different connector or program.

The markings HK037-002 and HK0037-002 should be checked against the actual old monitor label. If the label is unclear, send clear photos of the front panel, rear side, side label and connector face before shipment.

For remote orders, the safest confirmation method is to provide the machine model, machine serial number, old monitor photos, connector photos, label photos and dashboard installation photos together.

Why Keep This Page Focused on 4652262?

This product page should remain the main landing page for 4652262 monitor display panel searches. Other Hitachi monitor numbers such as 4488903 should stay on their own product pages because they may serve different model ranges or display configurations.

References such as 4652262-CR-1, HK037-002 and HK0037-002 can be included as checking references, but they should not turn the page into a mixed monitor directory.

The target search intent is 4652262 monitor display panel for Hitachi ZX-3 series excavator cab display replacement.

Installation Notes for 4652262 Monitor

Turn off the machine and isolate electrical power before removing the old monitor. Do not pull the cab harness directly. Release connector locks before unplugging the display panel.

Inspect the rear connector for corrosion, bent pins, water marks, loose terminals or broken locking tabs. If the connector or cab wiring is damaged, replacing only the monitor may not solve the display fault.

After installation, check screen startup, button response, brightness, warning display, hour information, communication status and active fault codes.

Keep the cab display area dry and clean. Moisture, dust, vibration, direct impact and wiring strain can shorten monitor service life.

Why Source 4652262 Monitor from Topvelsun?

Topvelsun supplies replacement monitor panels and electric system parts for Hitachi, Komatsu, Caterpillar, Hyundai, Kobelco, Volvo, Doosan and SANY excavators. For 4652262 monitor orders, we help buyers compare old display photos, rear connector layout, panel markings, machine model and serial number before shipment.

This product is suitable for repair workshops, fleet maintenance teams, electrical repair technicians, parts distributors and overseas buyers working on Hitachi ZX-3 series excavator monitor replacement.

FAQ

What is the main part number for this Hitachi monitor?

The recommended main part number is 4652262. References such as 4652262-CR-1, HK037-002 and HK0037-002 can be used for checking against the old monitor label.

Can 4652262 fit Hitachi ZX70-3 and ZX110-3?

Some market listings reference 4652262-CR-1 HK0037-002 for Hitachi ZX70-3 and ZX110-3 monitor applications. Final fitment should be verified by old monitor photos, connector and machine serial number.

Can this monitor fit Hitachi ZX200-3?

Yes, 4652262 is commonly listed for Hitachi ZX200-3 and other ZX-3 series excavator monitor applications. Connector and panel layout should still be checked before ordering.

What photos are needed before ordering?

Send photos of the old monitor front panel, rear connector, label, mounting points, machine nameplate and dashboard installation area. These details help confirm the correct replacement.

Is this an original Hitachi monitor?

Unless the actual product source and packaging prove otherwise, this page should describe the item as an aftermarket replacement monitor display panel for Hitachi 4652262 reference.
