7835-31-1012 monitor display panel for Komatsu PC200-8 excavator

7835-31-1012 Monitor Display Panel for Komatsu PC200-8 PC210-8 PC230-8 PC270-8

Name: 7835-31-1012 Monitor Display Panel for Komatsu PC200-8 PC210-8 PC230-8 PC270-8
Brand: Topvelsun
SKU: 7835-31-1012
Availability: InStock

Part Number: 7835-31-1012

MOQ: 1 Piece

Warranty: 6 Months

Lead Time: 7 - 15 Days

Weight: 2.7 kg

Part Name: Monitor Display Panel, Operator Monitor, Gauge Cluster

Ref Cross: 7835-31-1009 7835-31-1010 7835-31-1011 7835-31-1012

Compatible: Komatsu PC200-8 PC210-8 PC220-8 PC240-8 PC270-8 PC290-8

Next Product

Product Description

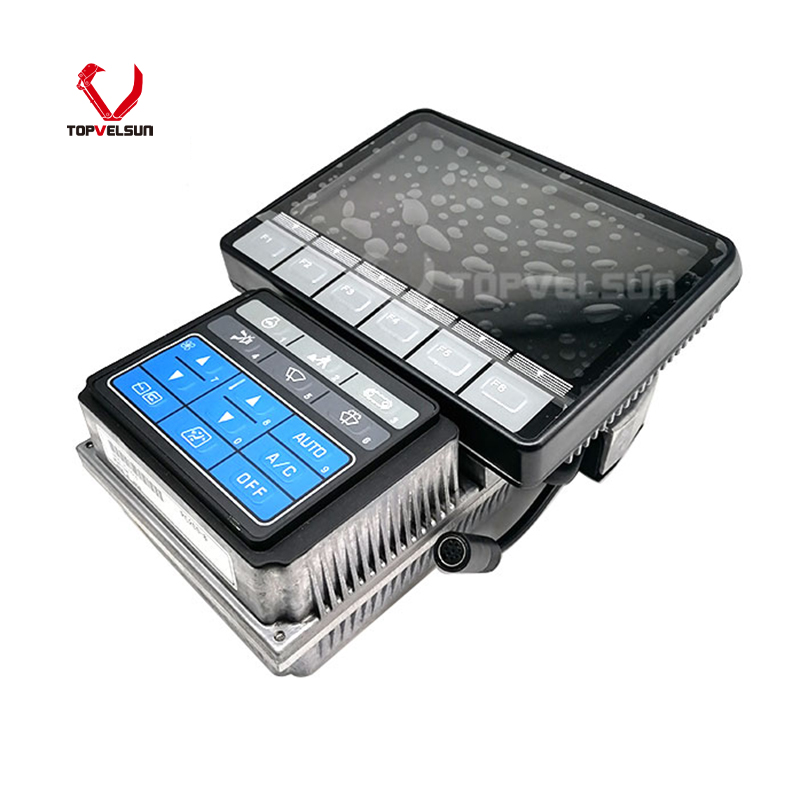

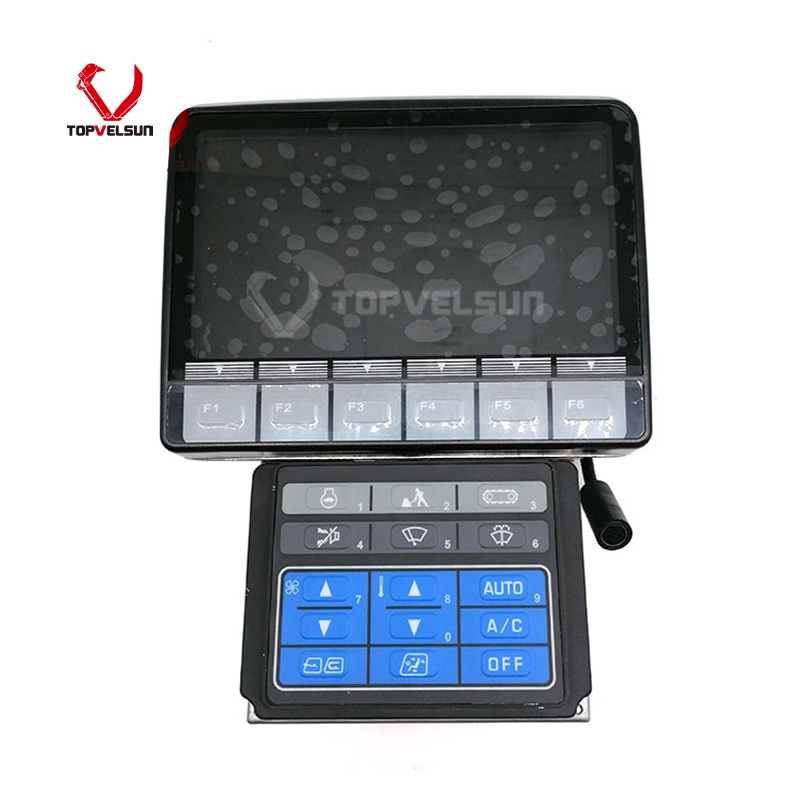

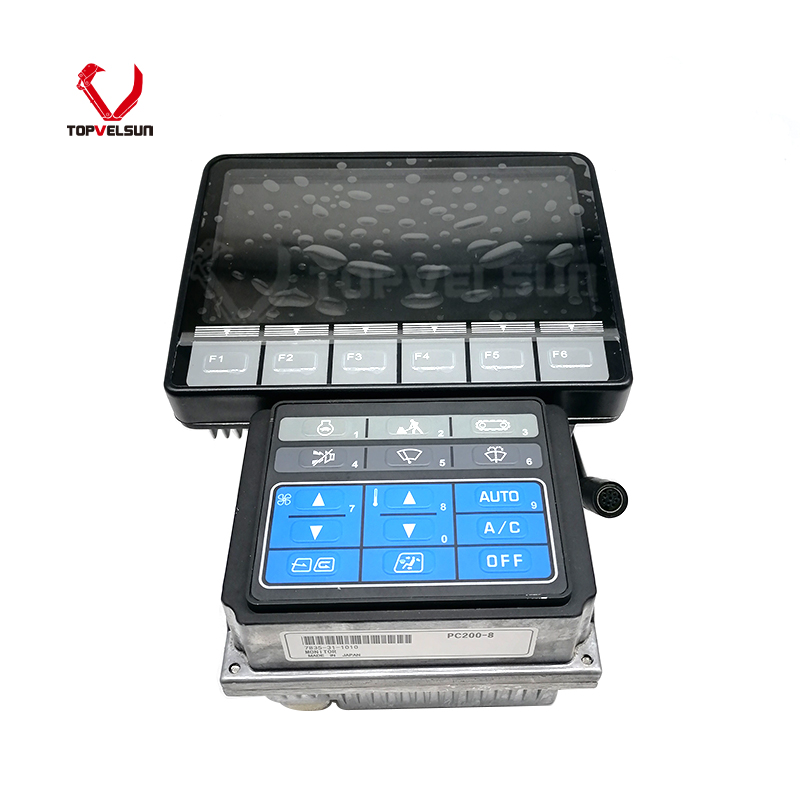

7835-31-1012 Monitor Display for Komatsu PC200-8

The 7835-31-1012 monitor display panel is used for Komatsu PC-8 series excavator cab display applications. It is commonly searched as a monitor panel, operator monitor, display screen or gauge cluster for Komatsu PC200-8 PC210-8 PC220-8 PC240-8 PC270-8 machine references.

This page should focus on 7835-31-1012 as the main search number. References such as 7835-31-1009, 7835-31-1010 and 7835-31-1011 can stay as Ref Cross numbers, but final fitment should be verified by the old monitor label, rear connector, button layout and machine serial number before ordering.

Product Details for 7835-31-1010 Monitor

Main Part Number	7835-31-1010
Ref Cross	7835-31-1009 7835-31-1011 7835-31-1012 7835311009 7835311010 7835311011, verify by old monitor label
Part Name	Monitor display panel, operator monitor, gauge cluster, cab display screen
Application	Komatsu PC-8 series excavator cab display applications
Compatible	PC200-8 PC200LC-8 PC210-8 PC210LC-8 PC220-8 PC220LC-8 PC230NHD-8 PC240-8 PC240LC-8 PC270-8 PC270LC-8 PC290-8 PC290LC-8, final fitment should be verified
Function	Displays machine operating information, warning status, hour data, system alerts and operator interface information
Weight Reference	2.7 kg
Verification Requirement	Confirm old monitor part number, rear connector, front panel, button position, mounting points and machine serial number

Komatsu PC-8 Monitor Replacement Applications

The 7835-31-1010 monitor is installed in the operator cabin to display excavator operating status and warning information. When the monitor becomes blank, dim, unstable or unresponsive, the operator may lose access to machine warnings, working mode information and basic display functions.

Komatsu PC-8 series machines may use similar-looking monitors with different part numbers, connector layouts or program versions. The monitor should not be selected by model name alone. The old monitor label and rear connector should be checked before quotation and shipment.

If the machine has been repaired before, confirm whether the cab harness, controller, monitor and display program are still original. Previous replacement history can affect final compatibility.

Compatible Model Reference for PC-8 Series

Machine Group	Model Reference
PC200 class excavators	PC200-8 PC200LC-8 PC200LL-8, verify by old monitor and serial number
PC210 and PC220 class	PC210-8 PC210LC-8 PC210NLC-8 PC220-8 PC220LC-8 PC220LL-8
PC230 and PC240 class	PC230NHD-8 PC240-8 PC240LC-8 PC240NLC-8
PC270 and PC290 class	PC270-8 PC270LC-8 PC290-8 PC290LC-8, depending on machine configuration
Fitment Note	Model references are for search and pre-check only. Final fitment should be confirmed by old monitor, connector layout and serial number.

Common Monitor Display Failure Symptoms

Failure Symptom	Inspection Point
Blank screen	Check battery voltage, fuse, monitor power supply, ground wire, rear connector and display condition
Dim or faded display	Inspect screen aging, backlight condition, sunlight visibility and internal display damage
Buttons do not respond	Check front panel buttons, membrane wear, dust contamination and internal switch response
Intermittent reset	Inspect connector looseness, vibration-related contact issues, ground stability and cab harness condition
Wrong warning or missing data	Check monitor compatibility, controller communication, wiring harness condition and related sensor input status

Connector and Panel Layout Verification

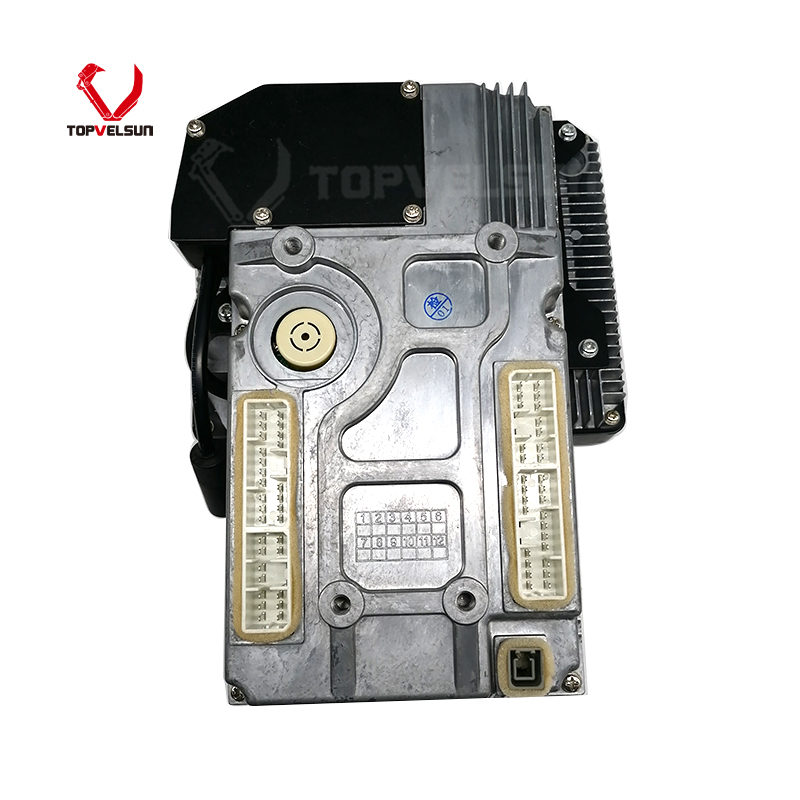

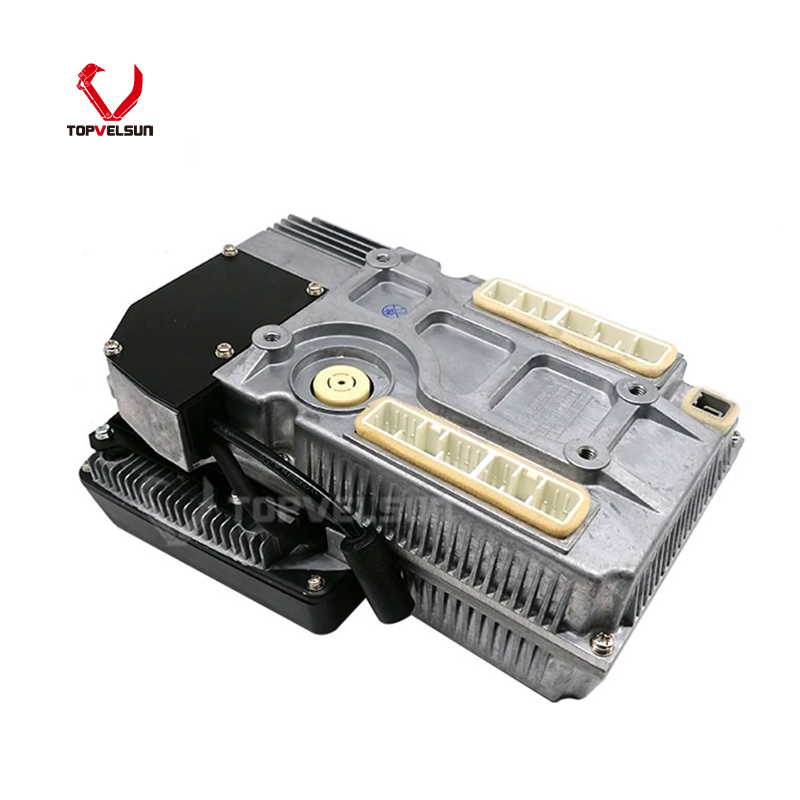

Before ordering 7835-31-1010, compare the rear connector, pin count, plug position, mounting points and front panel layout with the old monitor. A similar-looking display panel may still use a different connector, button layout or internal program.

If the old monitor label shows 7835-31-1009, 7835-31-1011 or another related number, send clear photos before ordering. These numbers are often listed in the same market replacement group, but confirmation by physical layout is still required.

For remote orders, the safest confirmation method is to provide the machine model, machine serial number, old monitor photos, connector photos, label photos and dashboard installation photos together.

Installation Notes for 7835-31-1010 Monitor

Turn off the machine and isolate electrical power before removing the old monitor. Do not pull the cab harness directly. Release connector locks before unplugging the display panel.

Inspect the rear connector for corrosion, bent pins, water marks, loose terminals or broken locking tabs. If the connector or cab wiring is damaged, replacing only the monitor may not solve the display fault.

After installation, check screen startup, button response, brightness, warning display, hour information, communication status and active fault codes.

Keep the cab display area dry and clean. Moisture, dust, vibration, direct impact and wiring strain can shorten monitor service life.

Why Source 7835-31-1010 Monitor from Topvelsun?

Topvelsun supplies replacement monitor panels and electric system parts for Komatsu, Hitachi, Caterpillar, Hyundai, Kobelco, Volvo, Doosan and SANY excavators. For 7835-31-1010 monitor orders, we help buyers compare old display photos, rear connector layout, panel markings, machine model and serial number before shipment.

This product is suitable for repair workshops, fleet maintenance teams, electrical repair technicians, parts distributors and overseas buyers working on Komatsu PC-8 series excavator monitor replacement.

FAQ

What is the main part number for this Komatsu monitor?

The recommended main part number is 7835-31-1010. References such as 7835-31-1009, 7835-31-1011 and 7835-31-1012 can be used for checking against the old monitor label.

Can this monitor fit Komatsu PC200-8 and PC210-8?

Yes, 7835-31-1010 is commonly listed for Komatsu PC200-8 and PC210-8 monitor applications. Connector, button layout and machine serial number should still be checked before ordering.

Can 7835-31-1009 and 7835-31-1011 stay on this page?

Yes. They can stay as Ref Cross numbers because many market listings place them in the same monitor replacement group. They should not replace 7835-31-1010 as the main product signal unless the old monitor label confirms it.

What photos are needed before ordering?

Send photos of the old monitor front panel, rear connector, label, mounting points, machine nameplate and dashboard installation area. These details help confirm the correct replacement.

Is this an original Komatsu monitor?

Unless the actual product source and packaging prove otherwise, this page should describe the item as an aftermarket replacement monitor display panel for Komatsu 7835-31-1010 reference.
