135-215-330 B249900001085 Monitor for SANY SY205-8S SY215-8S SY195-8S SY235-8S SY335 SY485

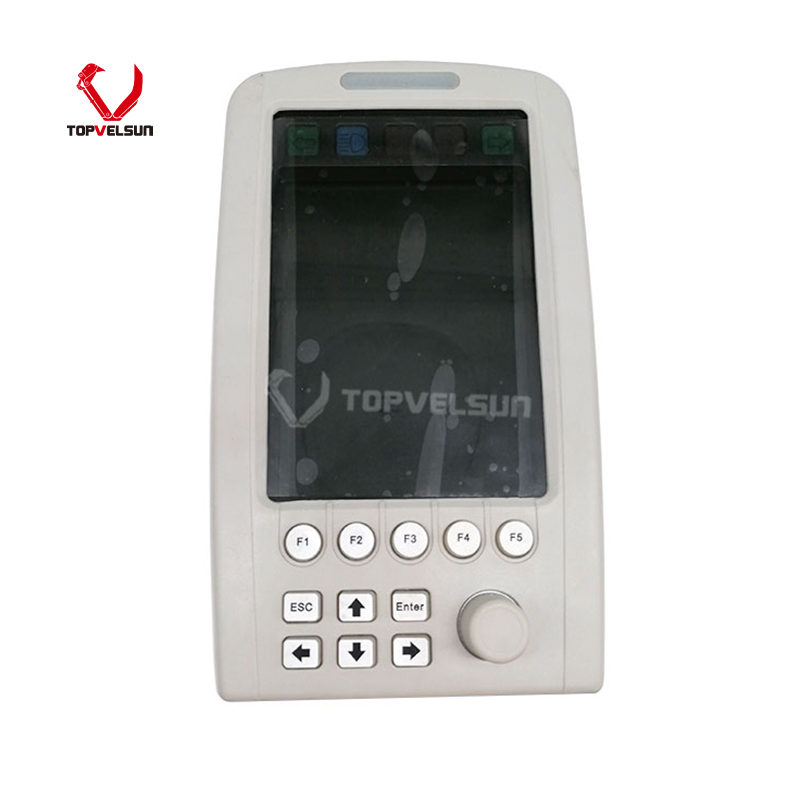

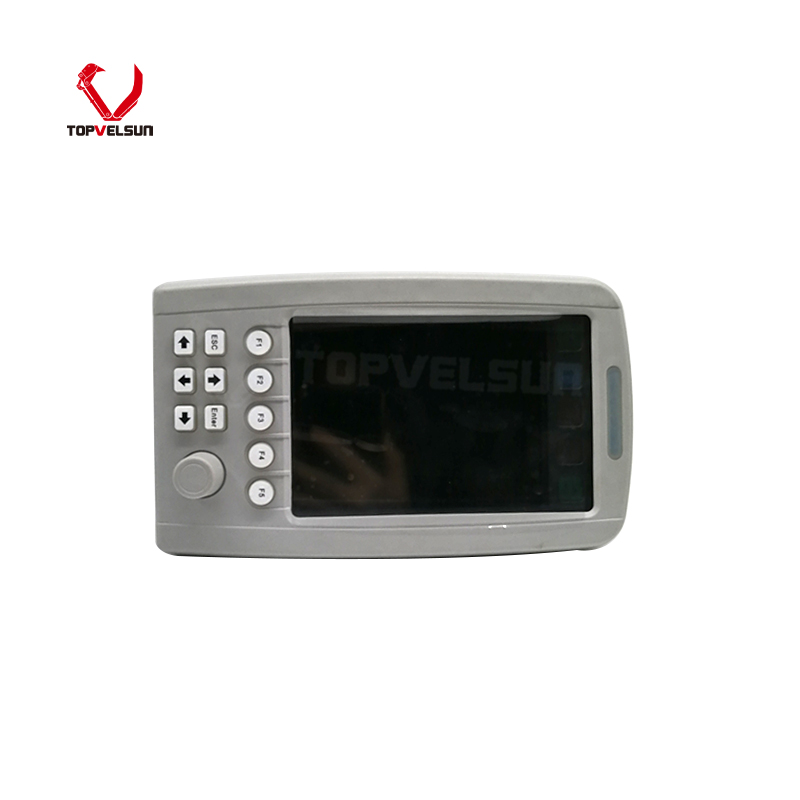

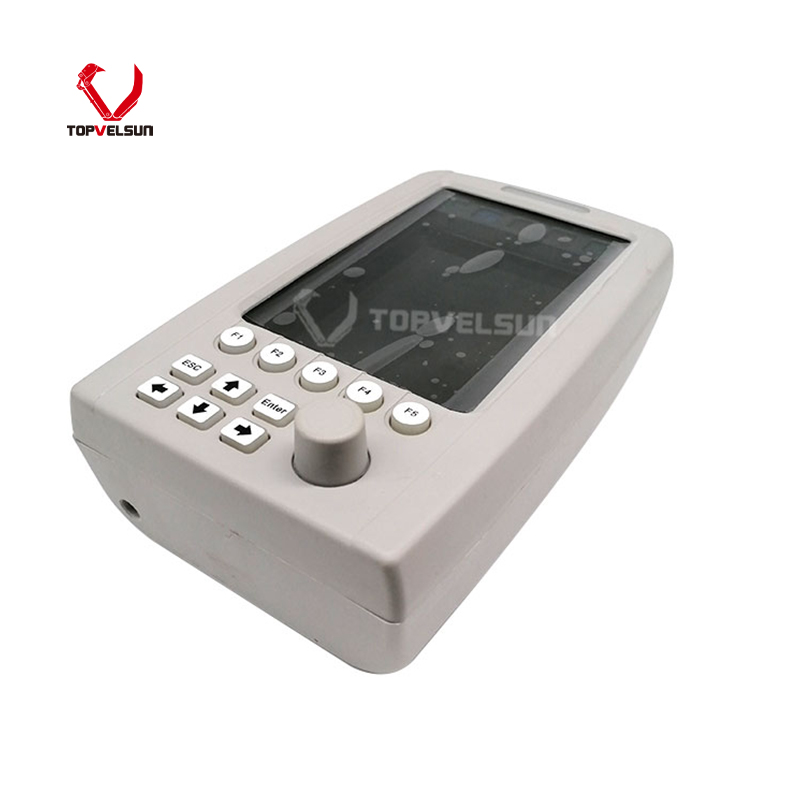

135-215-330 Monitor Display Panel for SANY Excavator

The 135-215-330 monitor display panel is supplied for SANY excavator cab electrical system repair. It is commonly searched as 135-215-330, 135215330, B249900001085, excavator monitor, LCD monitor display, gauge control panel or cab display panel for SANY excavator applications.

This page focuses on 135-215-330 and B249900001085 as the main checking numbers. Final fitment should be confirmed by the old monitor part number, connector type, plug position, screen layout, button layout, mounting points, voltage requirement and machine information before ordering.

Product Function and Application

The excavator monitor is used inside the operator cab to display machine operating information, warning indicators, maintenance reminders and diagnostic information. A failed monitor can affect the operator's ability to check machine status, working mode, fault messages and basic operating data.

For this page, the SEO Title should cover SANY SY215, SY235 and SY335 machine search intent, while the H1 should reinforce the B249900001085 LCD monitor display panel direction. This gives the page broader search coverage without turning the title into a long model list.

Because excavator monitor panels may vary by machine version, production year, controller configuration and wiring harness, the machine model alone should not be used as the only fitment proof. The old monitor photos and connector details are more reliable for confirmation.

Machine Reference for SANY Excavators

Common references for this monitor include SANY SY215C, SY235-9, SY215, SY235, SY335, SY365 and SY425 excavators. The current page also mentions SY205-8S, SY215-8S, SY195-8S, SY235-8S and SY485, which can be kept as extended references when the old monitor number and connector match.

I do not recommend placing every SANY model in the SEO Title. A shorter title focused on the strongest machine models is easier for buyers to understand and less likely to look like keyword stuffing.

For accurate ordering, compare the removed monitor with the replacement unit before shipment. Photos of the front screen, rear label, connector side, mounting bracket and plug layout are useful for confirmation.

Part Number and Reference Notes

135-215-330 is the main part number direction of this product page. The compact format 135215330 should be included for search coverage, but it should not replace the original hyphenated number as the main product signal.

B249900001085 is an important reference number for this SANY excavator monitor direction. It should be included in the top parameters, H1, body content and image ALT text because buyers may search this monitor by either number.

Do not add unrelated SANY electrical part numbers into this page unless the old monitor label or supplier data confirms interchange. Mixing different monitor, controller or harness numbers can dilute the page signal and increase wrong-part inquiries.

How to Confirm the Correct SANY Monitor

Excavator monitor panels can look similar from the front, but differences in rear connector, software version, mounting bracket and button layout may affect installation and operation. Before ordering, compare the removed monitor carefully.

• Confirm whether the old monitor number is 135-215-330, 135215330 or B249900001085.

• Check the machine model, serial number and production version.

• Compare the screen size, front panel shape and button layout.

• Check the rear connector type, plug quantity and pin layout.

• Confirm mounting holes, bracket position and installation space.

• Send photos of the old monitor front, rear label, connector side and machine nameplate before quotation if you are not sure.

Common Monitor Failure Symptoms

A monitor display panel may need replacement when the screen is black, dim, flickering, cracked, unreadable, shows missing pixels, cannot display fault information, has button failure or does not communicate normally after power-on.

Before replacing the monitor, check the power supply, fuse, ground wire, connector, harness condition and controller communication. Some display faults may be caused by wiring or power issues rather than the monitor itself.

If the old monitor was damaged by water, corrosion, short circuit or unstable voltage, those causes should be corrected before installing a new monitor. Otherwise, the replacement display may fail again.

Installation and Testing Notes

Before installation, turn off the machine power and inspect the old connector. Do not force the plug into the new monitor if the connector shape or pin layout is different.

After installation, power on the machine and check whether the monitor starts normally, displays operating information, responds to buttons and shows warning or diagnostic information correctly.

Some monitors may require machine-specific configuration or compatibility confirmation. If the display powers on but does not show correct machine data, check the wiring harness, controller communication and machine version before assuming the monitor is defective.

Buying Notes for Repair Shops and Parts Distributors

For repair shops, this 135-215-330 / B249900001085 monitor display panel is suitable for SANY excavator cab electrical system repair when the old monitor is damaged, unreadable or unable to display machine status correctly.

For parts distributors, it can be supplied as a replacement monitor reference for SANY excavator service demand. Topvelsun supports small repair orders and bulk inquiries. Please send the required quantity, old monitor number, machine model, serial number and photos of the old monitor from multiple angles.

FAQ

What is the main product on this page?

This page is for the 135-215-330 / B249900001085 LCD monitor display panel used for SANY excavator cab display system repair.

Is 135215330 the same search reference as 135-215-330?

135215330 is the no-hyphen writing format of 135-215-330. The page should keep both formats because buyers may search either number.

Can B249900001085 be used as a reference number?

Yes. B249900001085 is an important checking reference for this SANY monitor direction. The old monitor label, connector and machine information should still be verified before shipment.

Which SANY models are the main references?

Common references include SANY SY215C, SY235-9, SY215, SY235, SY335, SY365 and SY425. Other models may apply when the old monitor number and connector match.

Can I confirm this monitor by machine model only?

Machine model is useful, but it should not be the only fitment proof. Please also check the old monitor number, connector type, plug layout, screen style, button layout and machine serial number.

What should I send before ordering?

Please send photos of the old monitor front side, rear label, connector side, plug shape, mounting bracket and machine nameplate. These photos help confirm whether 135-215-330 / B249900001085 is the correct monitor.
