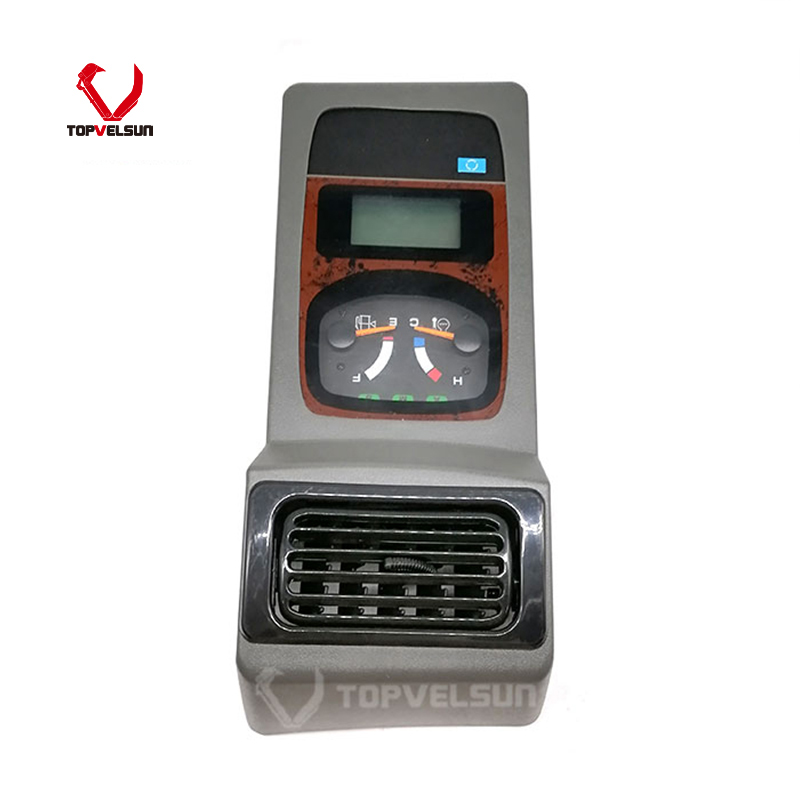

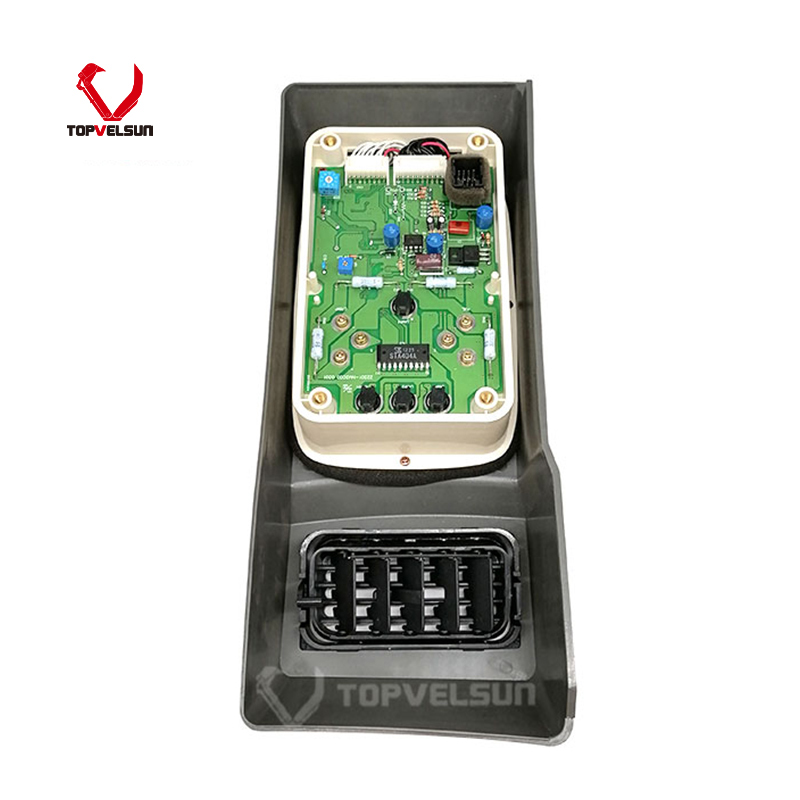

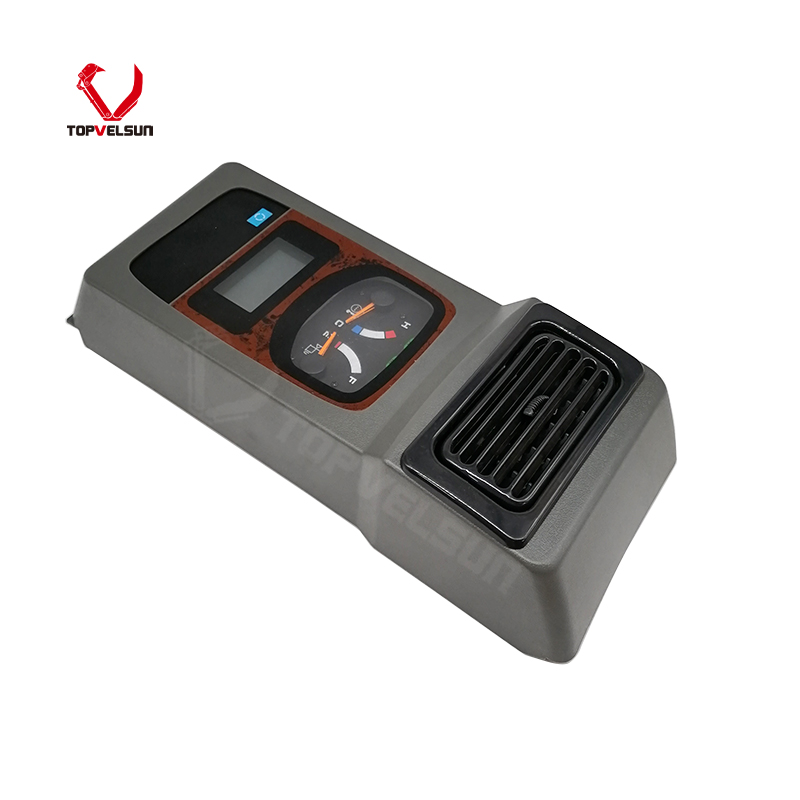

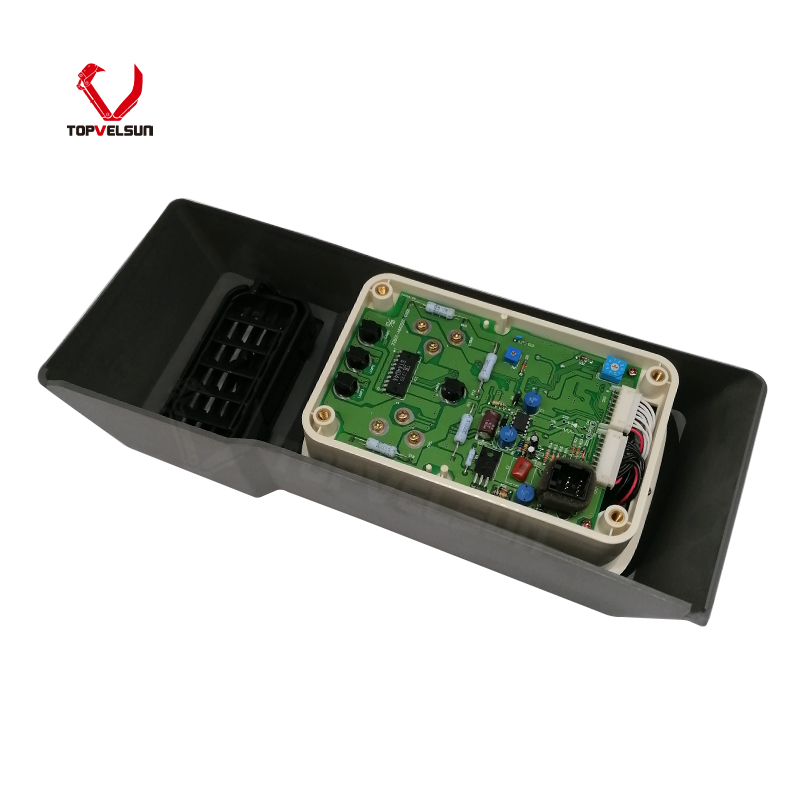

YV59S00003F2 YN59S00012F2 Monitor Display Panel for KOBELCO SK200-6E SK210-6E SK250-6E SK330-6E

YV59S00003F2 Monitor Display Panel for Kobelco SK200-6E and SK210-6E

The YV59S00003F2 monitor display panel is supplied for Kobelco excavator cab electrical system repair. It is commonly searched as YV59S00003F2, YN59S00012F2, monitor display panel, gauge cluster monitor, LCD monitor or excavator cab monitor for Kobelco 6E Series excavators.

This page focuses on YV59S00003F2 as the main part number. YN59S00012F2 can be used as an important reference number for checking. Final fitment should be confirmed by the old monitor number, front panel layout, rear connector type, plug position, mounting points and machine information before ordering.

Machine Reference for Kobelco Excavators

Common machine references for this monitor include Kobelco SK200-6E, SK210-6E, SK220-6E, SK250-6E and SK330-6E excavators. Market references may also mention SK200SR and SK235SR when the old monitor number and connector layout match.

The SEO Title should focus on stronger search models such as SK200-6E and SK210-6E, while the product body can naturally cover SK220-6E, SK250-6E, SK330-6E and related SR references. This keeps the title clean and avoids turning it into a long machine list.

Machine model alone is not enough for final confirmation. Kobelco monitor panels may vary by production version, wiring harness, connector layout, software version and cab configuration. The old monitor label and rear connector photos are more reliable than the model name alone.

Part Number and Reference Notes

YV59S00003F2 is the main part number of this product page. It should stay visible in the SEO Title, H1, top parameters, first paragraph, product body and image ALT text.

YN59S00012F2 is an important reference number for this Kobelco monitor direction. It should support the main YV59S00003F2 signal rather than replace it as the primary page focus.

Do not add every nearby Kobelco monitor number into the top parameter area unless the old monitor label or supplier data confirms interchange. Similar monitor panels can vary by connector position, screen layout, button design, software version and machine configuration.

How to Confirm the Correct Kobelco Monitor

Excavator monitor panels can look similar from the front, but differences in rear connector, plug quantity, screen layout, warning icons and mounting position may affect installation. Before ordering, compare the removed monitor carefully.

• Confirm whether the old monitor number is YV59S00003F2 or YN59S00012F2.

• Check whether the machine is Kobelco SK200-6E, SK210-6E, SK220-6E, SK250-6E, SK330-6E, SK200SR or SK235SR.

• Compare the front screen layout, button arrangement and warning icons.

• Check the rear connector type, plug quantity and pin layout.

• Confirm mounting holes, bracket position and installation space.

• Send photos of the old monitor front side, rear label, connector side and machine nameplate before quotation if you are not sure.

Common Monitor Failure Symptoms

A monitor display panel may need replacement when the screen is black, dim, flickering, cracked, unreadable, shows missing display areas, cannot show warning information, has button failure or does not respond normally after power-on.

Before replacing the monitor, check the power supply, fuse, ground wire, connector, harness condition and controller communication. Some display faults may be caused by wiring or power issues rather than the monitor itself.

If the old monitor was damaged by water, corrosion, unstable voltage or short circuit, the root cause should be corrected before installing the replacement monitor. Otherwise, the new display may fail again.

Installation and Testing Notes

Before installation, turn off the machine power and inspect the old connector. Do not force the plug into the new monitor if the connector shape, pin layout or mounting position is different.

After installation, power on the machine and check whether the monitor starts normally, displays machine information, responds to buttons and shows warning indicators correctly.

If the monitor powers on but does not show correct machine data, check the wiring harness, controller communication and machine version before assuming the monitor is defective.

Buying Notes for Repair Shops and Parts Distributors

For repair shops, this YV59S00003F2 / YN59S00012F2 monitor display panel is suitable for Kobelco excavator cab electrical system repair when the old monitor is damaged, unreadable or unable to display machine status correctly.

For parts distributors, it can be supplied as a Kobelco 6E Series excavator monitor reference for SK200-6E, SK210-6E, SK220-6E, SK250-6E, SK330-6E and related machine service demand. Topvelsun supports small repair orders and bulk inquiries. Please send the required quantity, old monitor number, machine model, serial number and photos of the old monitor from multiple angles.

FAQ

What is the main product on this page?

This page is for the YV59S00003F2 / YN59S00012F2 monitor display panel used for Kobelco excavator cab display system repair.

Can YN59S00012F2 be used as a reference number?

Yes. YN59S00012F2 can be used as an important reference number for this Kobelco monitor direction. The old monitor label and connector should still be checked before ordering.

Which Kobelco models are the main references?

Common references include Kobelco SK200-6E, SK210-6E, SK220-6E, SK250-6E and SK330-6E. SK200SR and SK235SR may also be used as checking references when the old monitor number and connector match.

Can I confirm this monitor by machine model only?

Machine model is useful, but it should not be the only fitment proof. Please also check the old monitor number, front panel layout, rear connector, plug quantity, mounting holes and machine serial number.

What should I send before ordering?

Please send photos of the old monitor front side, rear label, connector side, plug shape, mounting bracket and machine nameplate. These photos help confirm whether YV59S00003F2 / YN59S00012F2 is the correct monitor.
