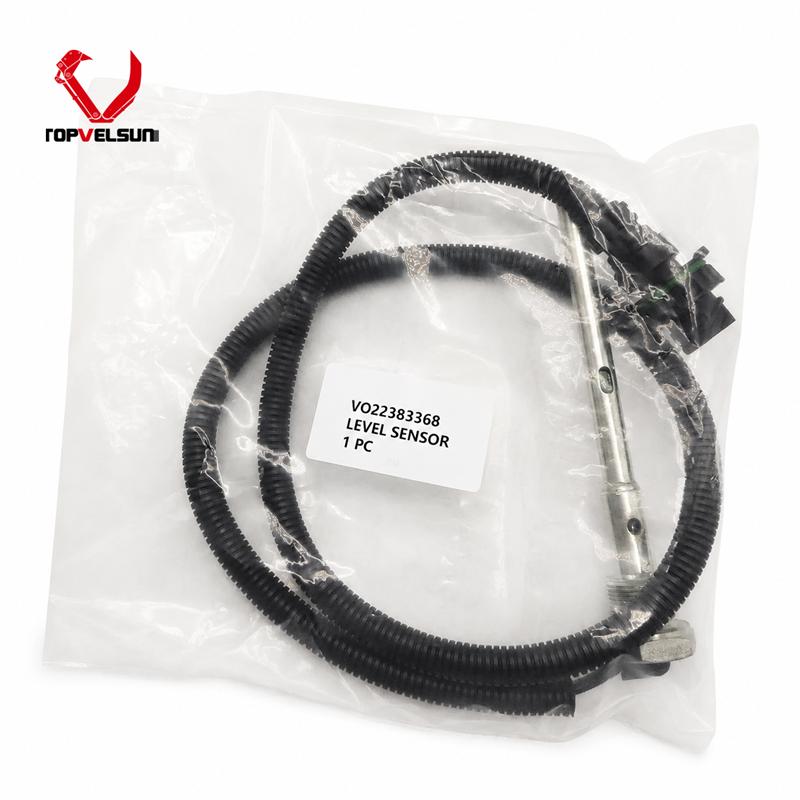

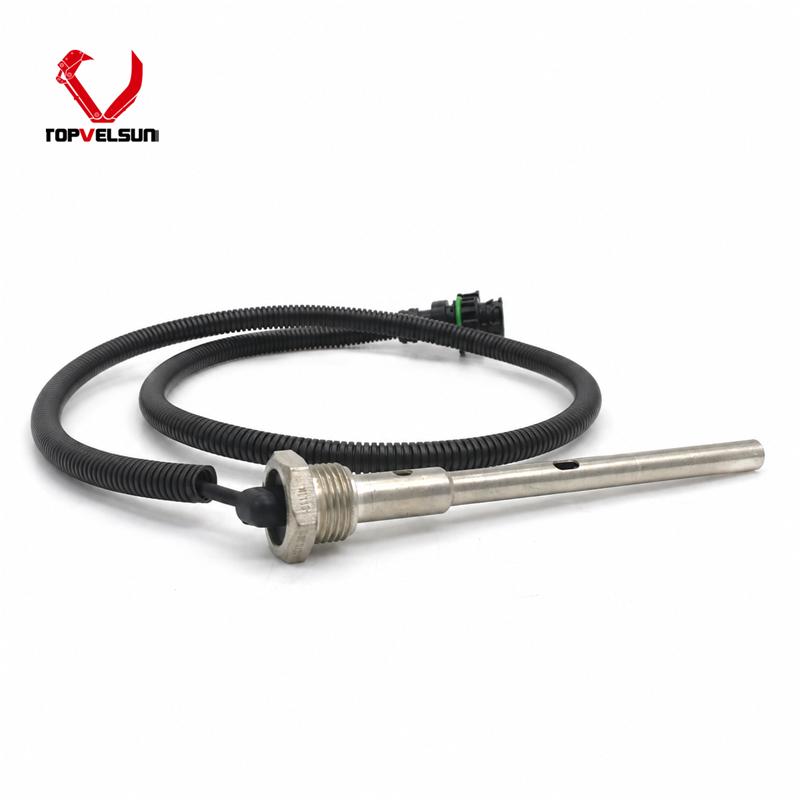

22383368 Oil Level Sensor for Volvo L60F L90F L110F L120F

22383368 Engine Oil Level Sensor for Volvo Wheel Loaders

The VOE22383368 / 22383368 sensor is used to monitor engine oil level in Volvo construction equipment. Catalog references also associate it with the engine oil temperature circuit, allowing the monitoring system to receive oil condition information without using a mechanical dipstick alone.

Common engine references include Volvo D6E, D7D and D7E. A suspected sensor fault may cause an incorrect or missing oil level or temperature indication, but the actual oil level, connector and wiring should also be checked before replacing the sensor.

Volvo Loader and Motor Grader Applications

Main wheel loader references include Volvo L60F, L70F, L90F, L110E, L110F, L120E and L120F. Motor grader references include G930, G930B, G930C, G940, G940B, G940C, G946, G946B, G946C and G960 series.

Some public listings extend the application to later G-series and H-series loaders. These applications should be checked by machine serial number because engine configuration, wiring harness and sensor version may differ between production ranges.

22383368 Part Number Selection Notes

Volvo parts catalog information identifies 20829076 as an earlier reference for 22383368. The number 21391689 is also associated with the same engine oil level sensor in multiple replacement-parts catalogs.

The numbers 21391695 and 22383378 appear together with 22383368 on some marketplace pages, but the published application information is inconsistent. They should not be treated as universal replacements without comparing the old sensor, connector and installation dimensions.

Information Needed for a 22383368 Quotation

• Old sensor number or a clear label photo

• Volvo machine model and serial number

• D6E, D7D or D7E engine information if available

• Connector, sensor body and mounting-position photos

• Required quantity and delivery country
