144-1102 190-0643 Belt Tightener for CAT 325C 330C 336D

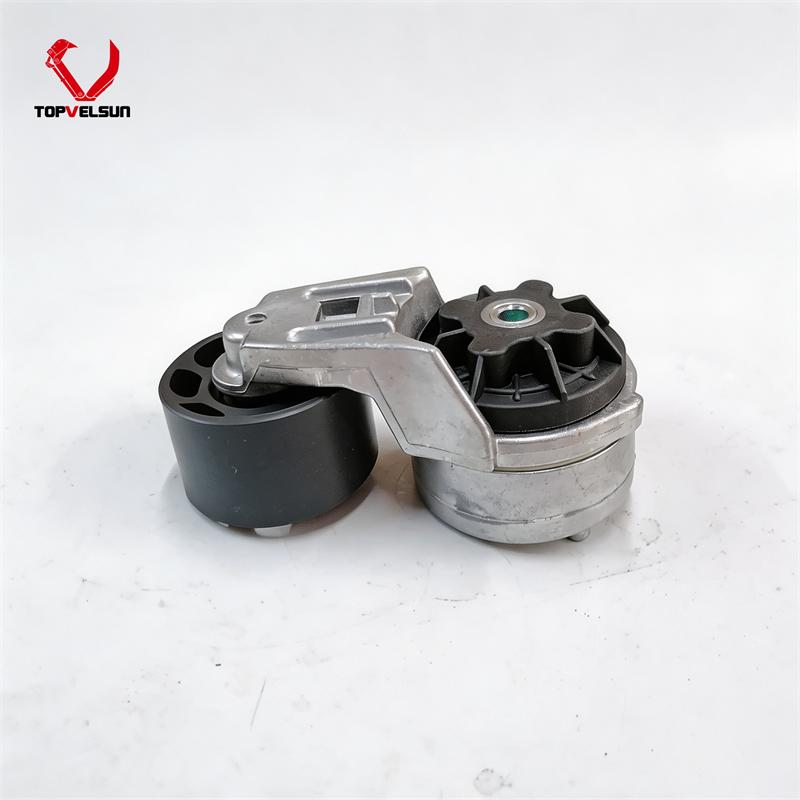

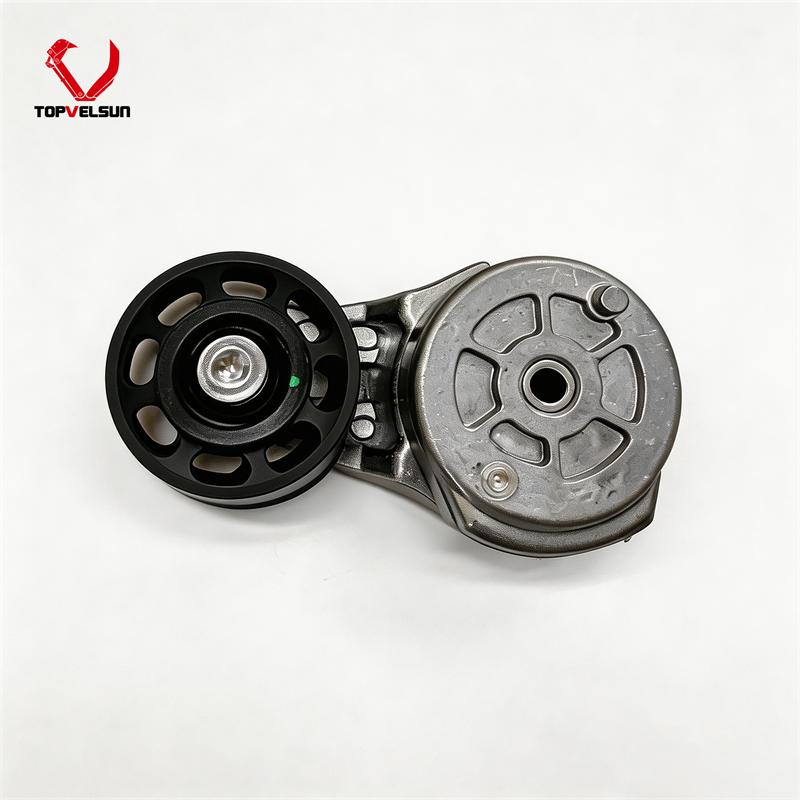

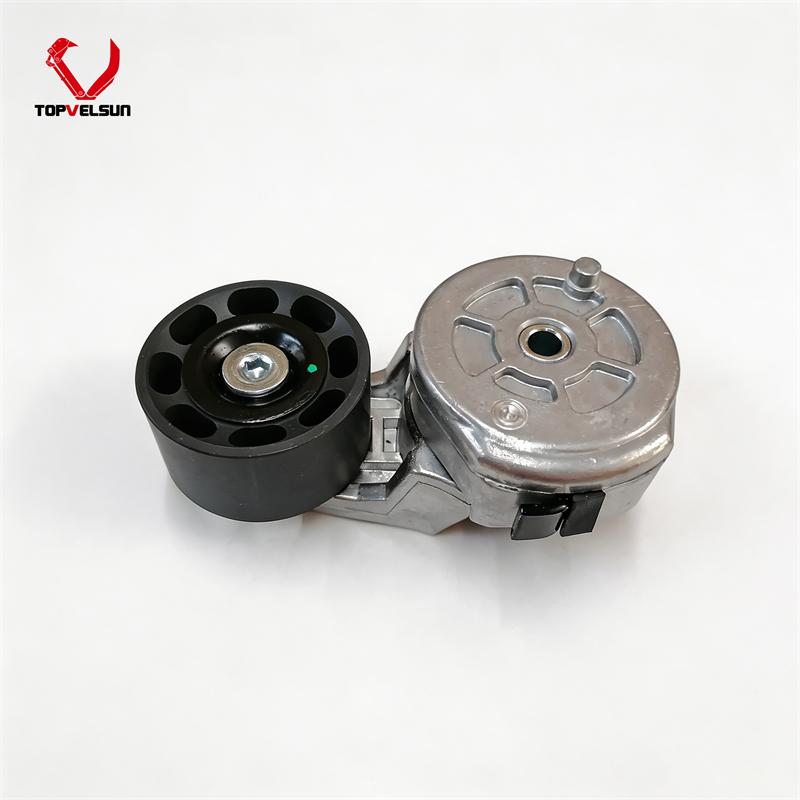

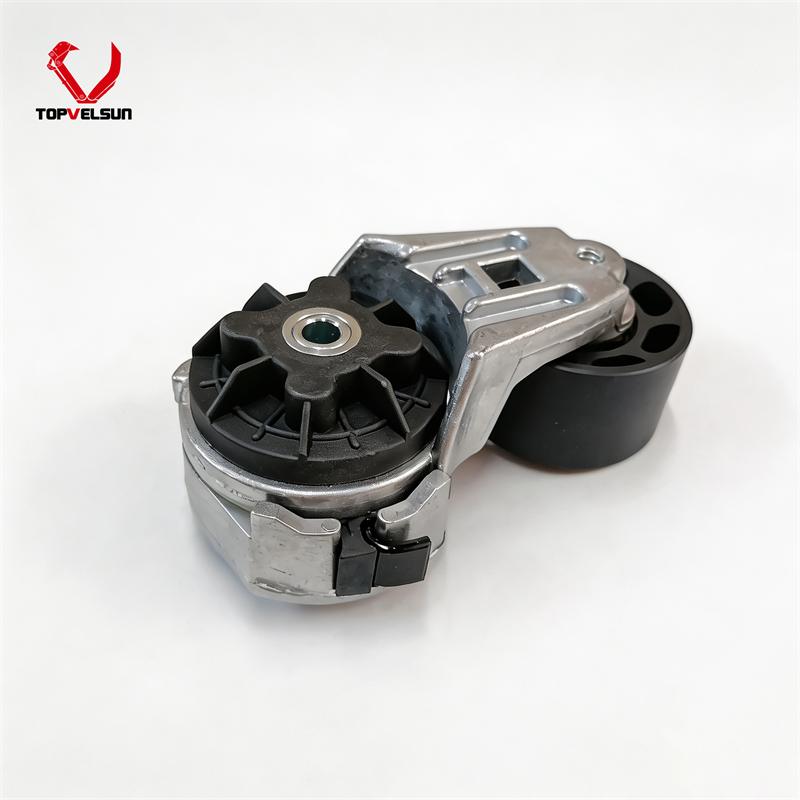

144-1102 / 190-0643 Belt Tensioner for Caterpillar Engine

The 144-1102 / 190-0643 belt tensioner is supplied for Caterpillar engine accessory drive system repair. It is commonly searched as 144-1102, 1441102, 190-0643, 1900643, Caterpillar belt tensioner, CAT belt tightener, C7 belt tensioner, C9 belt tensioner or engine belt tensioner for CAT equipment repair.

This page focuses on 144-1102 as the main part number, with 190-0643 and other confirmed ref cross numbers included for matching. Final fitment should be confirmed by the old part number, engine model, pulley diameter, belt groove type, mounting holes, bracket shape, arm angle and belt path before ordering.

Engine and Machine Reference

Common engine references for this belt tensioner include Caterpillar C7, C9 and 3126B diesel engine applications. Common CAT equipment references may include 325C, 330C, 330D, 336D and related Caterpillar machines.

The belt tensioner works in the engine accessory drive system to help maintain stable belt tension and correct belt alignment. Depending on the engine and equipment arrangement, it may work around the refrigerant compressor drive, fan drive, alternator drive, water pump drive or other belt-driven accessories.

Machine model alone is not enough for final confirmation. Caterpillar machines may use different belt drive layouts depending on engine version, production configuration, accessory arrangement and repair history. The removed tensioner and old part number are more reliable than the machine model alone.

Part Number and Ref Cross Notes

144-1102 is the main identifying number of this product page. 1441102 is the no-hyphen writing format of the same number and can be kept for search matching.

Ref cross numbers for this belt tensioner include 190-0643, 1900643, 180-0643, 1800643, 253-0433, 2530433, 375-8345, 3758345, 310-4027, 3104027, APV2418 and 38620. These numbers are included on this page because they are commonly listed together for the same Caterpillar belt tensioner direction.

Even when part numbers are listed together, final replacement should still be checked by the old tensioner, package label, pulley structure and mounting position. Similar CAT belt tensioners may differ by pulley diameter, belt groove, bracket shape, arm angle, spring tension, mounting hole position and belt alignment.

How to Confirm the Correct Belt Tensioner

Belt tensioners can look similar in product photos, but small structural differences may affect installation and belt operation. Please compare the removed part carefully before ordering.

• Confirm whether the old part number is 144-1102, 190-0643 or one of the listed ref cross numbers.

• Check whether the engine reference is Caterpillar C7, C9 or 3126B.

• Compare the pulley diameter, pulley width and belt groove type.

• Check the mounting hole position, bracket shape and arm angle.

• Confirm whether the tensioner matches the belt path and accessory drive position.

• Send photos of the old tensioner number, front side, rear side, pulley side, mounting bracket and engine nameplate before quotation if you are not sure.

Common Belt Tensioner Failure Symptoms

A belt tensioner may need replacement when the engine has belt noise, belt slipping, unstable belt tension, worn pulley bearing, pulley wobble, belt edge wear, abnormal vibration, weak spring tension or repeated belt damage.

Before replacing the tensioner, check the belt condition, pulley alignment, idler pulley, fan drive, alternator pulley, water pump pulley, refrigerant compressor pulley and mounting bracket. Some belt problems may be caused by misalignment, worn pulleys or damaged accessories rather than the tensioner alone.

If the old tensioner failed because of belt misalignment, pulley seizure, bearing damage or incorrect belt installation, the root cause should be corrected before installing the replacement tensioner. Otherwise, the new tensioner may fail early.

Installation and Testing Notes

Before installation, turn off the engine and inspect the complete belt drive system. Make sure the mounting surface is clean, the belt path is correctly routed and the related pulleys rotate smoothly.

After installation, check belt tension, pulley alignment and pulley rotation. The belt should run smoothly without jumping, abnormal noise, vibration or side wear.

After the first running test, inspect the belt and tensioner again. If the belt moves out of line or the tensioner vibrates abnormally, stop the engine and recheck pulley alignment, bracket position and accessory drive condition.

Buying Notes for Repair Shops and Parts Distributors

For repair shops, this 144-1102 / 190-0643 belt tensioner is suitable for Caterpillar engine accessory drive repair when the old tensioner is worn, noisy, weak, misaligned or unable to maintain stable belt tension.

For parts distributors, it can be supplied as a CAT belt tightener reference for heavy equipment repair demand. Topvelsun supports small repair orders and bulk inquiries. Please send the required quantity, old tensioner number, engine model, machine model and photos of the old tensioner from multiple angles.

FAQ

What is the main product on this page?

This page is for the 144-1102 / 190-0643 belt tensioner used for Caterpillar engine accessory drive system repair.

Are 144-1102 and 190-0643 the same belt tensioner direction?

144-1102 and 190-0643 are commonly listed together for the same Caterpillar belt tensioner direction. Final confirmation should still be based on the old part number, pulley structure, mounting holes and bracket shape.

What are the ref cross numbers for this belt tensioner?

Ref cross numbers include 190-0643, 1900643, 180-0643, 1800643, 253-0433, 2530433, 375-8345, 3758345, 310-4027, 3104027, APV2418 and 38620.

Which Caterpillar engine references should be checked?

Common engine references include Caterpillar C7, C9 and 3126B. Please still check the old tensioner number, pulley size, belt groove type and mounting structure before ordering.

Can I confirm this belt tensioner by machine model only?

No. Machine model is only a reference. Please check the old part number, pulley diameter, groove type, mounting holes, bracket shape, arm angle and belt alignment before ordering.

What photos should I send before ordering?

Please send photos of the old tensioner number, front side, rear side, pulley side, mounting bracket, belt groove, engine nameplate and machine nameplate. These photos help confirm whether 144-1102 / 190-0643 is the correct belt tensioner.
