Caterpillar E200B S6K Engine Turbocharger 49179-00451

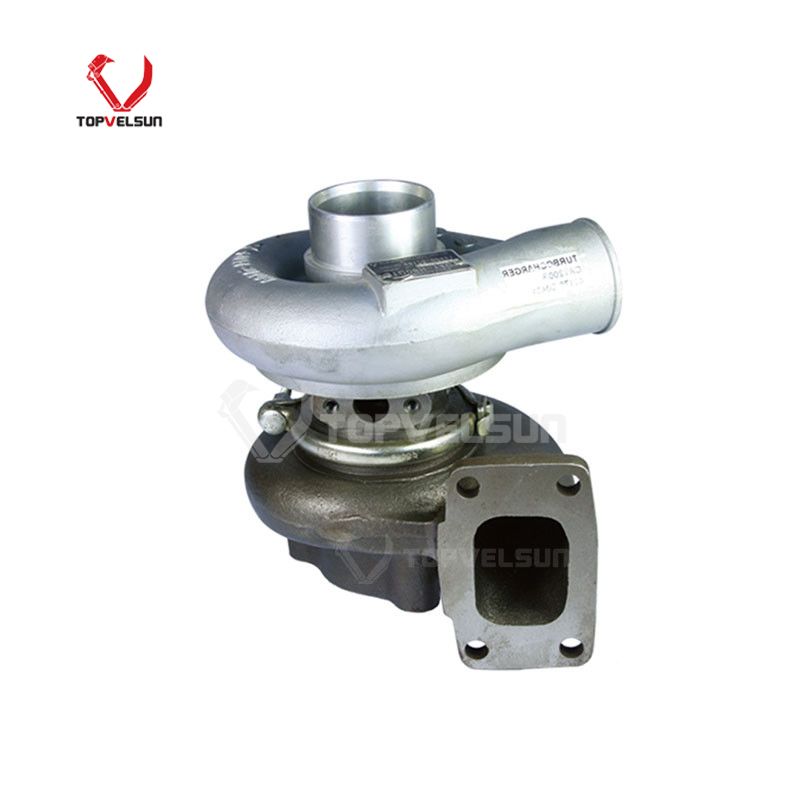

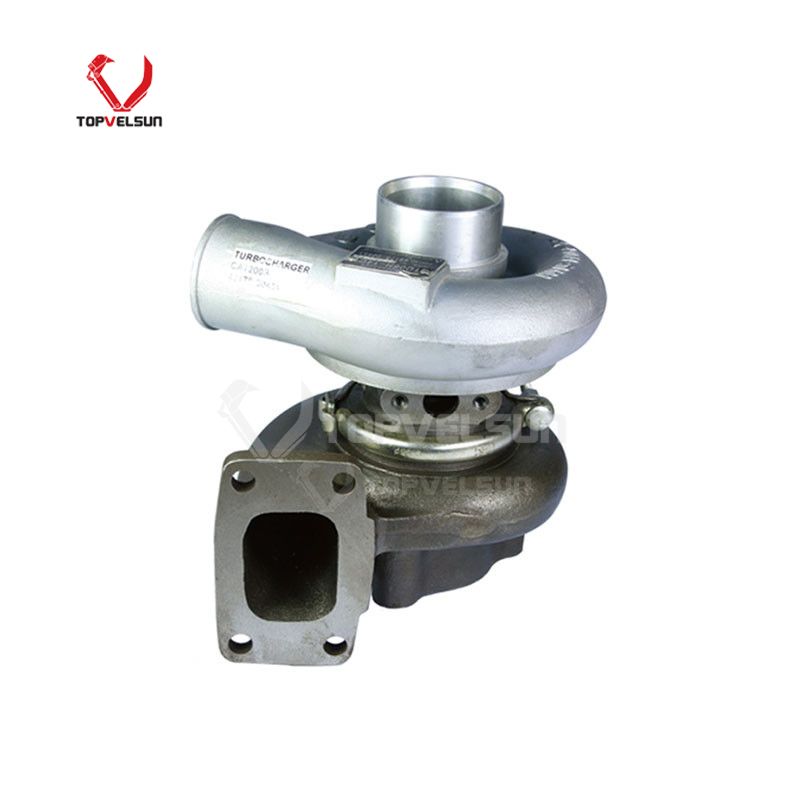

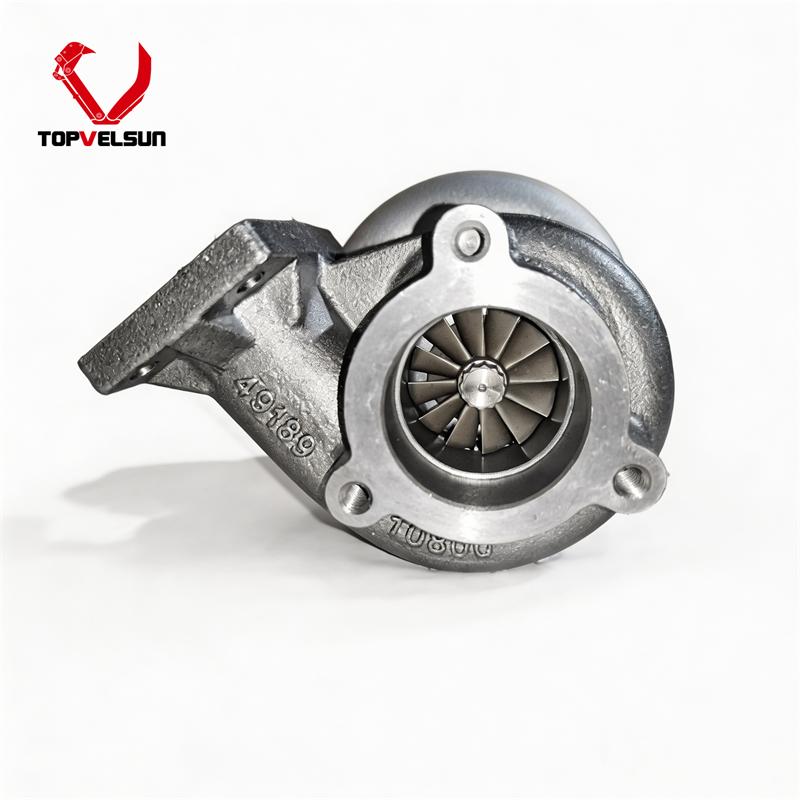

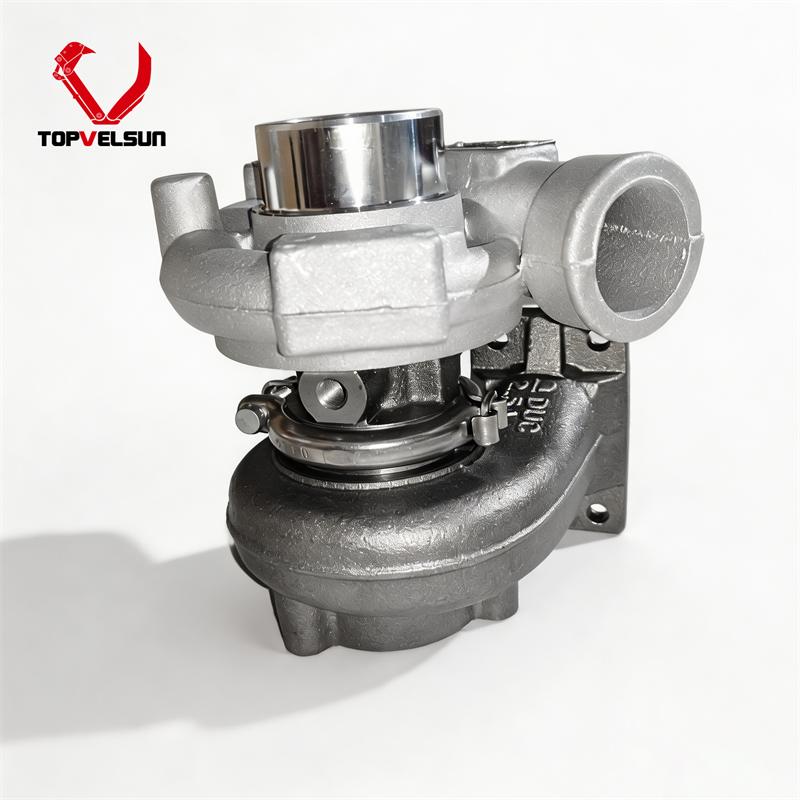

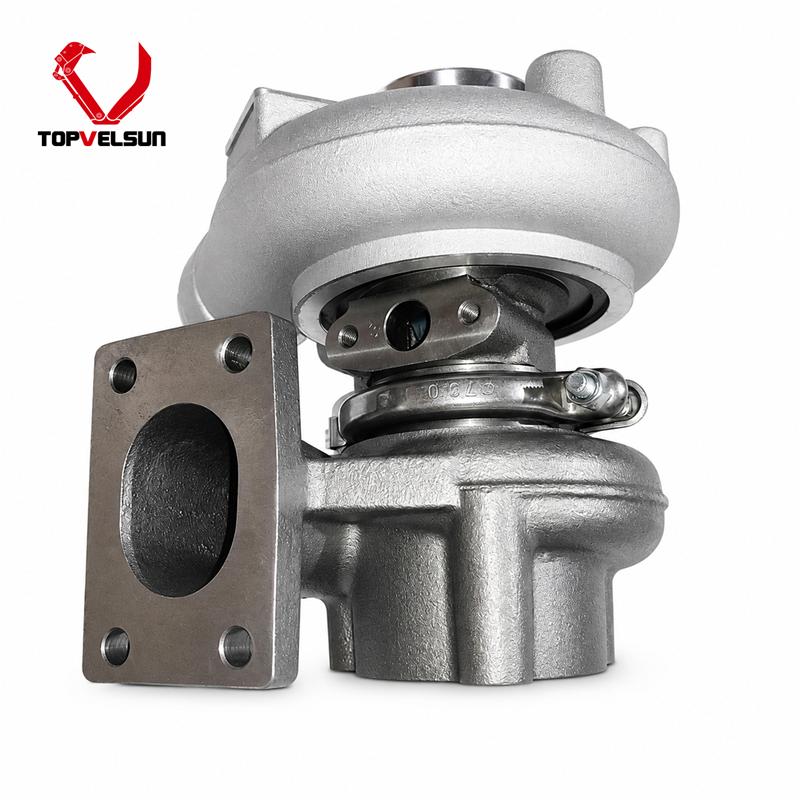

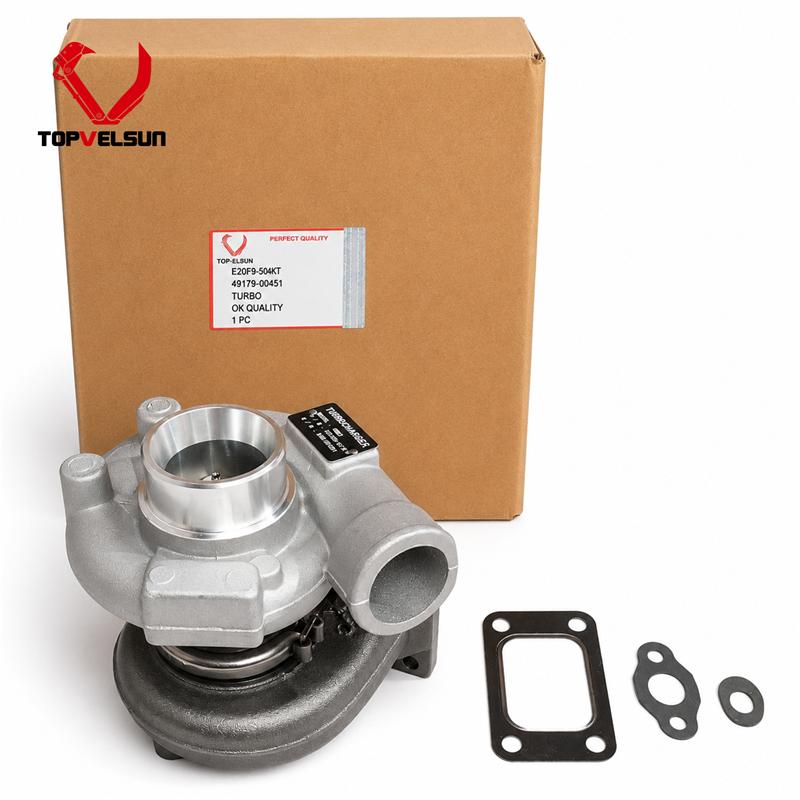

49179-00451 Turbocharger for Caterpillar E200B Mitsubishi S6KT Engine

The 49179-00451 turbocharger is supplied for Caterpillar E200B excavator repair with Mitsubishi S6K / S6KT diesel engine applications. It is used to restore engine boost pressure, air intake performance and stable combustion when the original turbocharger is worn, leaking oil, damaged or no longer providing normal boost response.

This page is focused on the 49179-00451 TD06H turbocharger application. The old product page mixed Komatsu 6D105 and many unrelated turbocharger models into the description, which should be removed to keep the 49179-00451, 5I-5015, E200B and S6KT product signals clear.

Part Number and Engine Application

The main part number for this page is 49179-00451. The number 5I-5015 is used as a matching reference for this E200B / S6KT turbocharger application. The number 49179-00450 can also be checked when a buyer provides it, but final matching should be confirmed by turbocharger nameplate, engine model and removed sample before shipment.

Part Number: 49179-00451

Ref Cross: 5I-5015 / 49179-00450

Turbo Model: TD06H series turbocharger

Engine Model: Mitsubishi S6K / S6KT

Machine Application: Caterpillar E200B excavator

Product Type: Engine Turbocharger

Application Notes for E200B and S6KT Engine

This turbocharger should be checked for Caterpillar E200B excavator applications using Mitsubishi S6K / S6KT engine references. The old page should not list Komatsu 6D105 as the engine model, because that belongs to a different turbocharger direction and can confuse buyers and search engines.

Main Search Signal: 49179-00451 turbocharger

Matching Number: 5I-5015

Engine Signal: Mitsubishi S6K / S6KT

Machine Signal: Caterpillar E200B excavator

Confirmation Method: Turbo nameplate, old part number, engine model and removed turbo photos

Key Checking Points Before Order

Turbochargers should not be confirmed only by excavator model. The same machine model may use different engine versions or turbocharger specifications, so the old turbocharger plate number and engine model should be checked before quotation.

Part Number Check: Confirm 49179-00451 from the old turbocharger plate, supplier record or removed sample.

Cross Number Check: If the buyer provides 5I-5015 or 49179-00450, confirm it together with engine model and turbo photos.

Engine Check: Confirm whether the engine is Mitsubishi S6K or S6KT.

Machine Check: Confirm Caterpillar E200B application if the turbo is ordered by machine model.

Sample Check: Provide photos of the old turbocharger from the compressor side, turbine side, actuator side and nameplate side.

Turbocharger Replacement Notes

Before replacing the 49179-00451 turbocharger, the engine air intake system, exhaust manifold, oil feed line, oil return line and air filter condition should be checked. Turbocharger failure can be caused by oil starvation, dirty oil, air restriction, exhaust leakage or foreign object damage.

After installation, the lubrication system should be primed before engine start. The oil line should be clean, the air intake pipe should be free from debris, and the engine should be checked for abnormal smoke, oil leakage, boost pressure loss or unusual noise during testing.

Recommended Information for Quotation

Part Number: 49179-00451

Matching Number: 5I-5015 or 49179-00450 if available

Engine Model: Mitsubishi S6K / S6KT

Machine Model: Caterpillar E200B excavator

Old Sample: Turbocharger photos from multiple angles

Nameplate: Clear photo of the turbocharger tag or stamped number

Order Details: Required quantity and destination country

FAQ

Is 49179-00451 used for Caterpillar E200B excavator?

Yes. This page is for 49179-00451 turbocharger replacement used with Caterpillar E200B excavator and Mitsubishi S6K / S6KT engine applications. Please confirm the old turbocharger plate before ordering.

Can 5I-5015 be used as a matching number?

Yes. 5I-5015 can be used as a matching reference for this turbocharger page. Final confirmation should still be based on old turbo photos, nameplate and engine model.

Is this turbocharger for Komatsu 6D105 engine?

No. The Komatsu 6D105 information from the old page should be removed. This page should focus on 49179-00451 for E200B / S6K / S6KT application.

What should I provide before ordering?

Please provide the old turbocharger part number, turbo nameplate photo, engine model, machine model and clear photos of the removed turbocharger.

Do I need to check oil lines before replacing the turbo?

Yes. Oil feed and oil return lines should be checked and cleaned before installation. Poor lubrication can damage a replacement turbocharger quickly.
