CAT E312D Turbocharger 2674A209 for T4.40 Engine

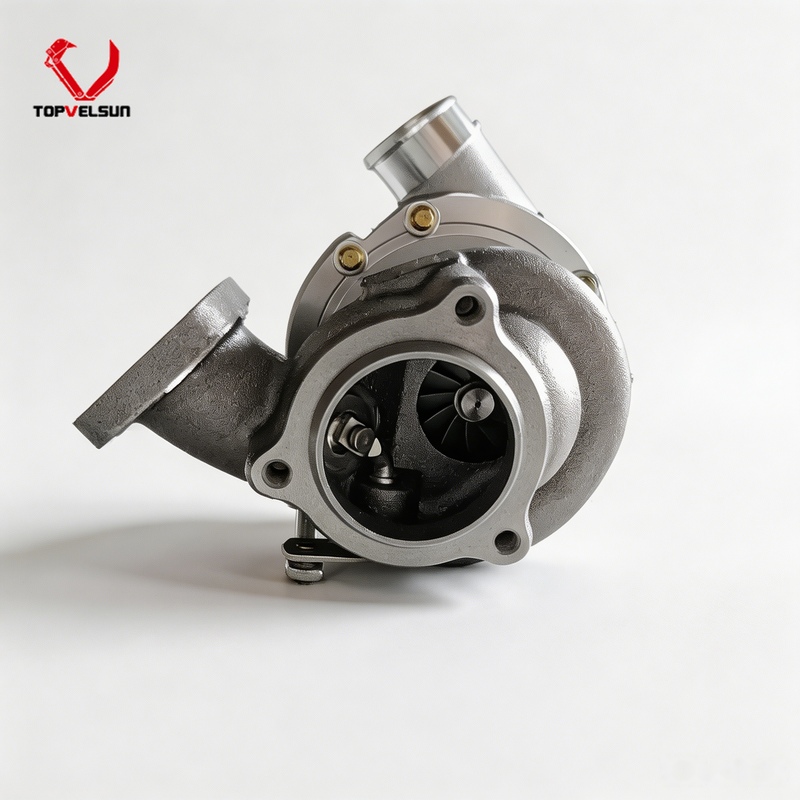

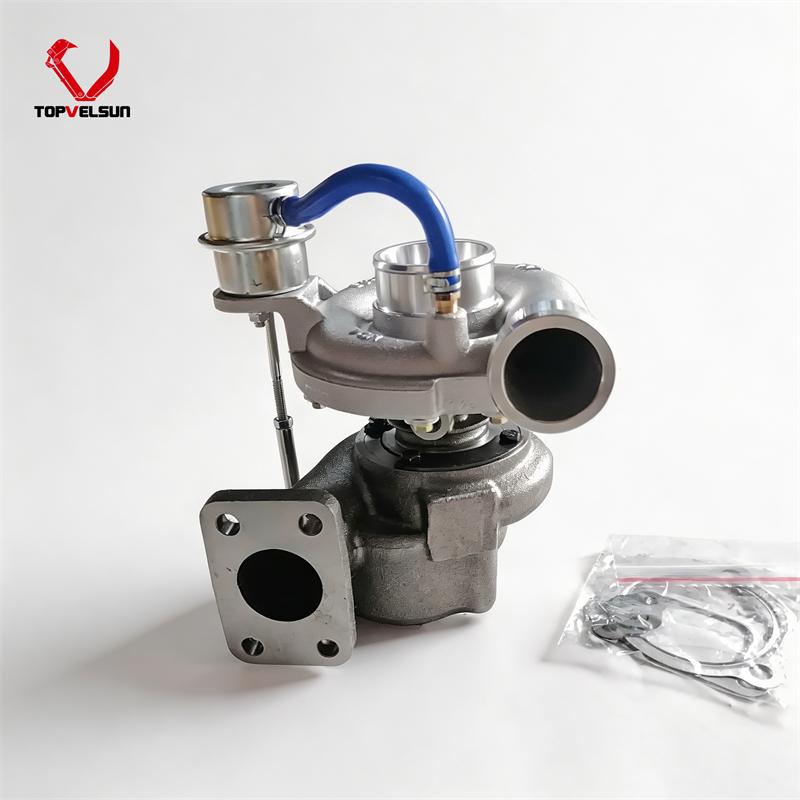

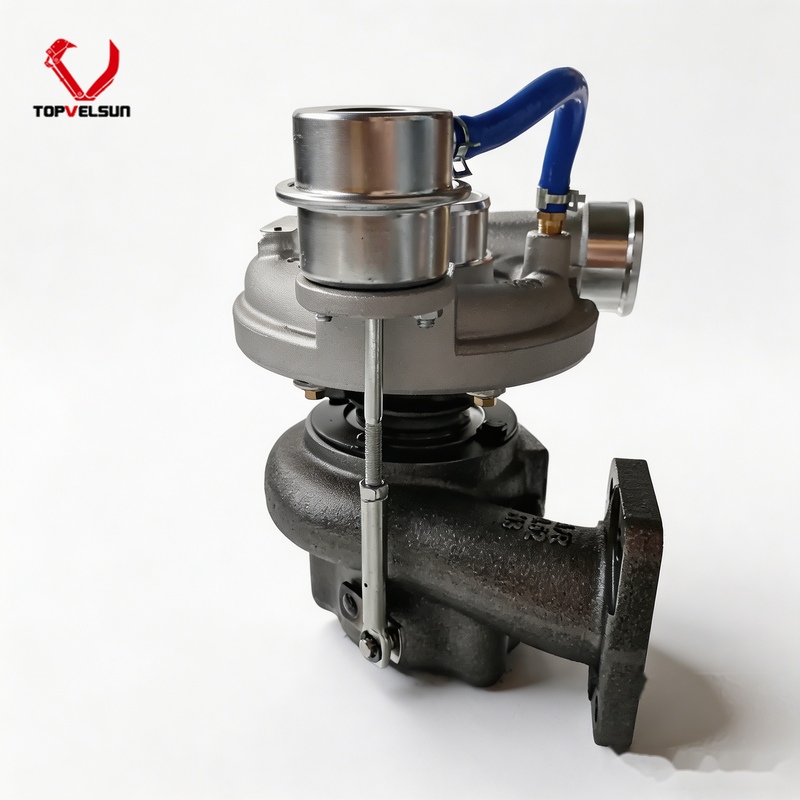

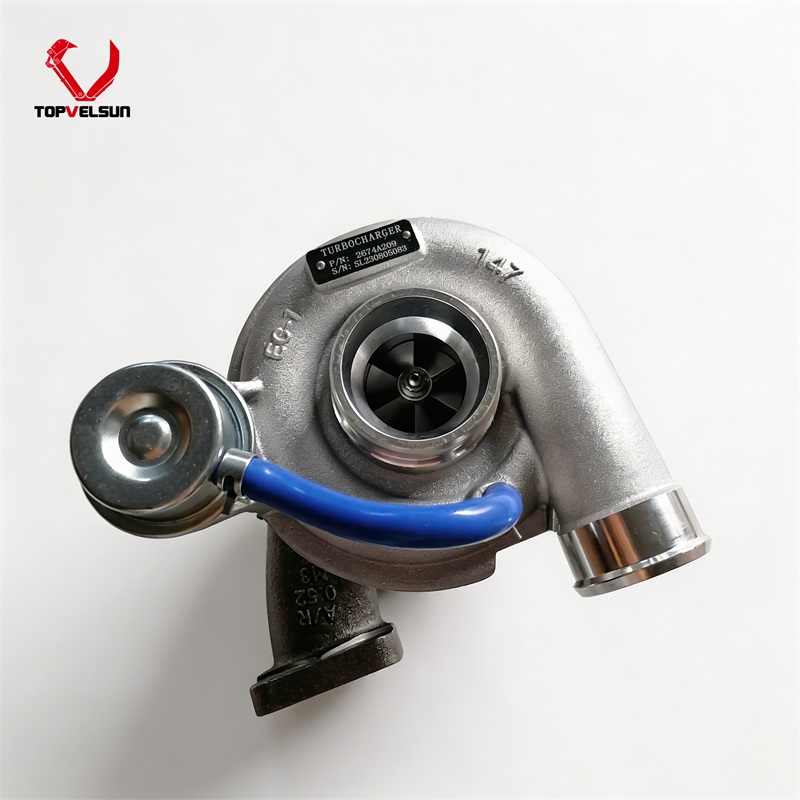

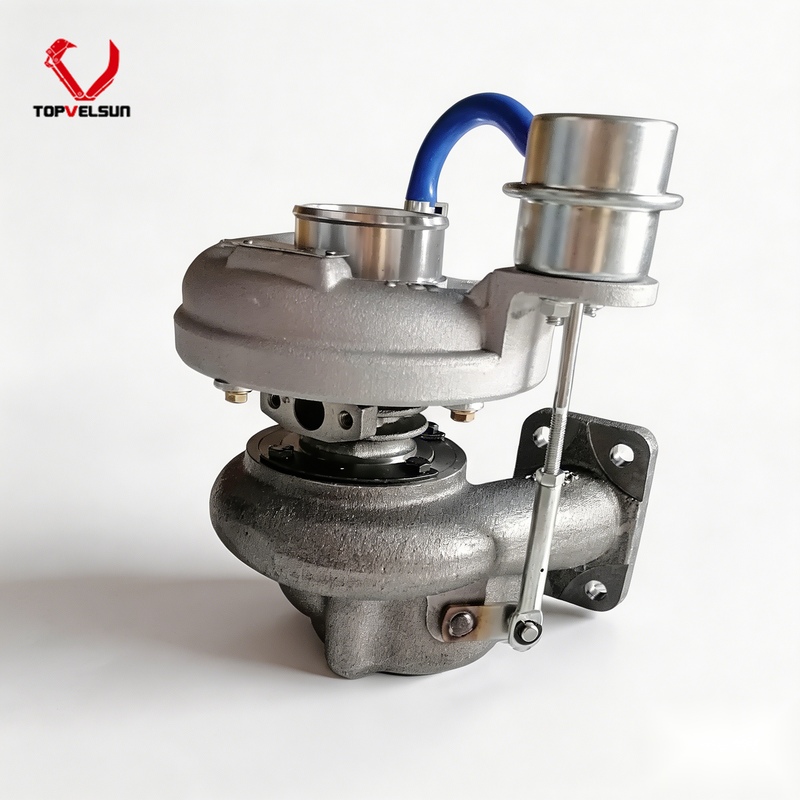

2674A209 GT2556S Turbocharger for Perkins 1104C-44T Engine

The 2674A209 GT2556S turbocharger is supplied for Perkins 1104C-44T, T4.40 and Caterpillar C4.4 related diesel engine applications. It is commonly checked for CAT E312D, 312D2 and related excavator engine repair when the old turbocharger uses the 2674A209 / 711736-5010S direction.

This product page should be used for buyers who are matching a removed turbocharger by part number, Garrett reference number, engine model and physical sample. Since similar GT2556S turbochargers can differ by housing angle, flange layout, actuator setting and oil line position, the old turbocharger tag and sample photos should be checked before order confirmation.

Core Part Signal

The main part number for this turbocharger is 2674A209. Ref Cross numbers such as 711736-5010S, 711736-0010, 711736-10, 2674A224 and 237-4734 can be used for inquiry matching. Final confirmation should be based on the old turbocharger nameplate, engine model and removed sample photos before shipment.

Part Number: 2674A209

Ref Cross: 711736-5010S / 711736-0010 / 711736-10 / 2674A224 / 237-4734

Turbo Model: GT2556S series turbocharger

Engine Model: Perkins 1104C-44T / T4.40 diesel engine

Related Engine Direction: Caterpillar C4.4 related engine application

Machine Application: CAT E312D, 312D2 and related excavator applications, verify by old turbo tag and sample photos

Fitment Gate Before Quotation

Before quotation, this turbocharger should pass three checks: part number check, engine check and physical layout check. If the buyer only provides the machine model, request the old turbocharger nameplate and photos before confirming shipment.

Gate 1 - Turbo Tag: Confirm 2674A209, 711736-5010S, 711736-0010, 2674A224 or related Garrett number on the old turbocharger.

Gate 2 - Engine Plate: Confirm Perkins 1104C-44T, T4.40, Caterpillar C4.4 or the actual engine model from the engine plate.

Gate 3 - Machine Record: Check CAT E312D, 312D2 or the actual excavator model from the buyer record.

Gate 4 - Housing Layout: Compare compressor housing, turbine housing, outlet direction, actuator position and mounting flange.

Gate 5 - Oil Line Position: Confirm oil inlet, oil outlet, pipe direction and return line clearance before shipment.

Repair Shop Checkpoints

A failed 2674A209 turbocharger can show different symptoms on the machine. The following checkpoints help repair shops identify whether the turbocharger should be replaced and whether the engine system needs additional cleaning before installation.

Boost Loss: Check intake leakage, compressor wheel damage, actuator movement, exhaust restriction and boost pipe condition.

Black Smoke: Check air filter restriction, intake pipe leakage, low boost pressure and fuel injection condition.

Oil Leakage: Check the oil feed line, oil return line, crankcase ventilation and turbo bearing clearance before installing a replacement turbocharger.

Abnormal Noise: Check shaft play, compressor blade contact, turbine wheel damage and foreign object impact marks.

Repeat Failure Risk: Check dirty oil, blocked oil return, damaged air filter sealing and remaining debris in the intake pipe before starting the engine with the new turbocharger.

Installation Notes

Before installation, clean the intake pipe, exhaust connection and oil line area. Remove old gasket material, carbon deposits and loose debris that may enter the turbocharger. Replace damaged gaskets and inspect the air filter, oil filter and engine oil condition during turbocharger replacement.

Prime the turbocharger with clean engine oil before first startup. After installation, let the engine idle briefly and check oil leakage, exhaust leakage, abnormal turbo sound, smoke, boost response and oil pressure before returning the machine to working load.

FAQ

Is 2674A209 the main part number for this product?

Yes. 2674A209 is the main part number for this GT2556S turbocharger direction. It should be checked together with the old turbocharger nameplate and engine model before ordering.

Can 711736-5010S be used as Ref Cross?

Yes. 711736-5010S can be used as a key Ref Cross reference for this 2674A209 turbocharger direction. Final matching should still be confirmed by the old turbo tag and sample photos.

Is this turbocharger for Perkins 1104C-44T?

Yes. This turbocharger can be checked for Perkins 1104C-44T and T4.40 engine applications when the old turbocharger number and physical layout match this product direction.

Can this turbocharger be used for CAT E318D?

CAT E318D should be confirmed by the old turbocharger tag, engine plate and removed sample photos. Do not confirm by machine model alone.

Should ME088865 stay on this page?

No. ME088865 belongs to a different turbocharger direction and should not be used on this 2674A209 product page.

What should I provide before ordering?

Please provide the old turbocharger part number, turbo nameplate photo, engine model, equipment model and clear photos of the removed turbocharger.
