32006016 S100G Turbocharger for JCB DieselMax Engine

32006016 S100G Turbocharger for JCB DieselMax Engine

The 32006016 turbocharger is used for JCB engine air intake and boost pressure system service. It is commonly searched together with the JCB-style number format 320/06016 and the hyphen format 320-06016.

This page focuses on the 32006016 S100G turbocharger signal for JCB DieselMax engine references and JCB 3CX 4CX backhoe loader applications. Because turbocharger configuration may vary by engine version, exhaust manifold, actuator setting and oil line layout, final fitment should be verified by the old turbocharger nameplate and physical structure before ordering.

Product Information and Technical References

Cross Reference and Number Format

The main part number for this page is 32006016. The format 320/06016 is the common JCB-style catalog number, while 320-06016 is another searchable writing format used in aftermarket listings.

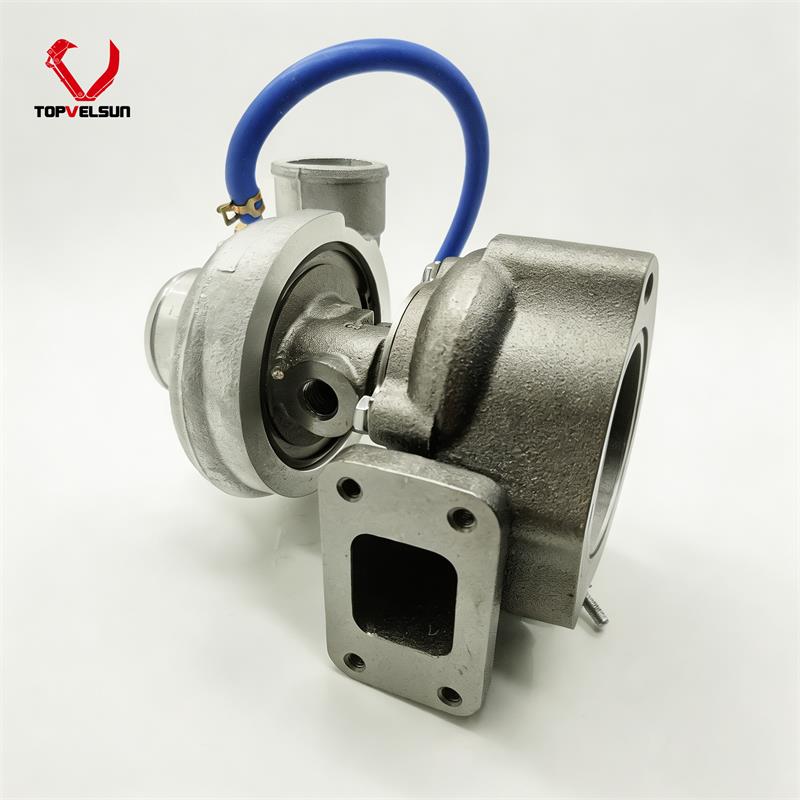

Common related references include 318675, 32006054 and 320/06054. Some catalog and supplier listings also mention 32006047 or 320/06047 in the same replacement group, but those references should be checked carefully against the old turbocharger before ordering.

Turbochargers with similar JCB numbers may still have different compressor housing orientation, turbine inlet flange, wastegate actuator setting, oil pipe position or exhaust connection. Cross reference numbers should be used for identification support, not as automatic interchange confirmation.

JCB DieselMax Engine Application Notes

The 32006016 turbocharger is commonly referenced for JCB DieselMax engine service. It is used when the engine has low boost pressure, oil leakage from the turbo area, excessive exhaust smoke, abnormal turbo noise or reduced machine power under load.

Engine name alone should not be used as the only confirmation method. The safest method is to compare the removed turbocharger nameplate, housing numbers, actuator style, flange layout and pipe positions with the replacement turbocharger.

JCB 3CX 4CX Model References

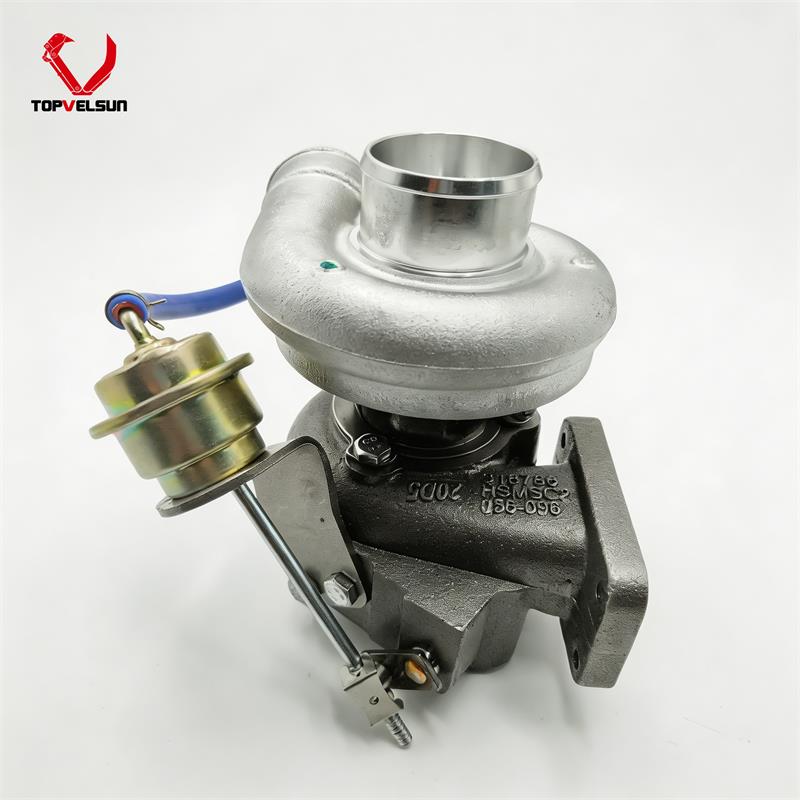

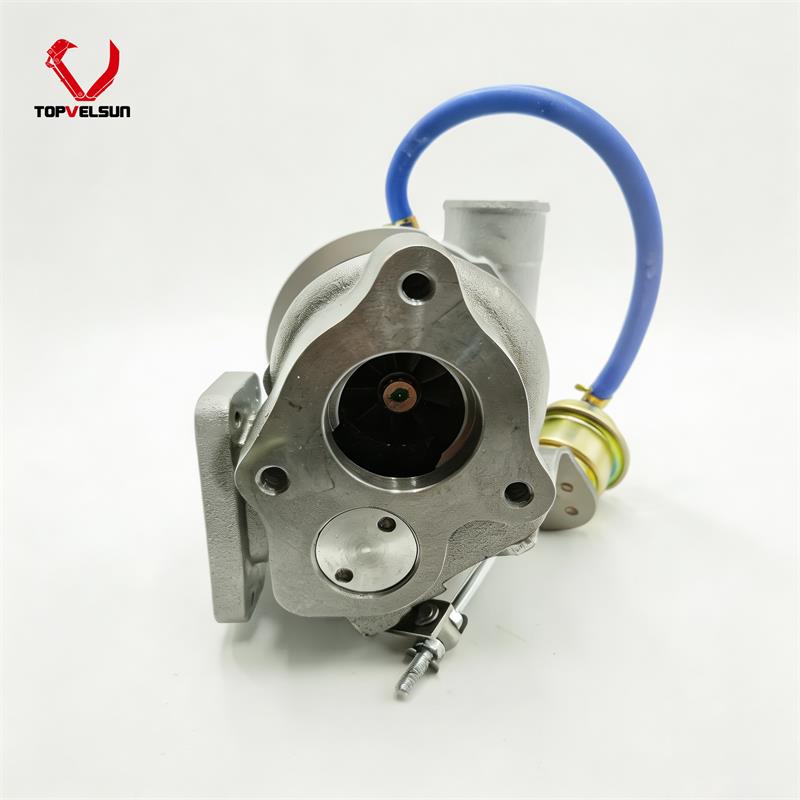

This turbocharger is often searched for JCB 3CX and 4CX backhoe loader repair. These model names are useful for buyer search and initial identification, especially when the old turbo number is not available at the first inquiry stage.

JCB 3CX and 4CX machines may use different turbocharger versions depending on production year, engine rating and repair history. Before quotation, confirm the turbo part number, machine serial number, engine configuration and clear photos of both sides of the turbocharger.

Technical Identification Points

• Confirm whether the old turbocharger label shows 32006016, 320/06016, 320-06016 or a matching reference.

• Check whether the turbo model reference matches the S100G type used in the catalog listing.

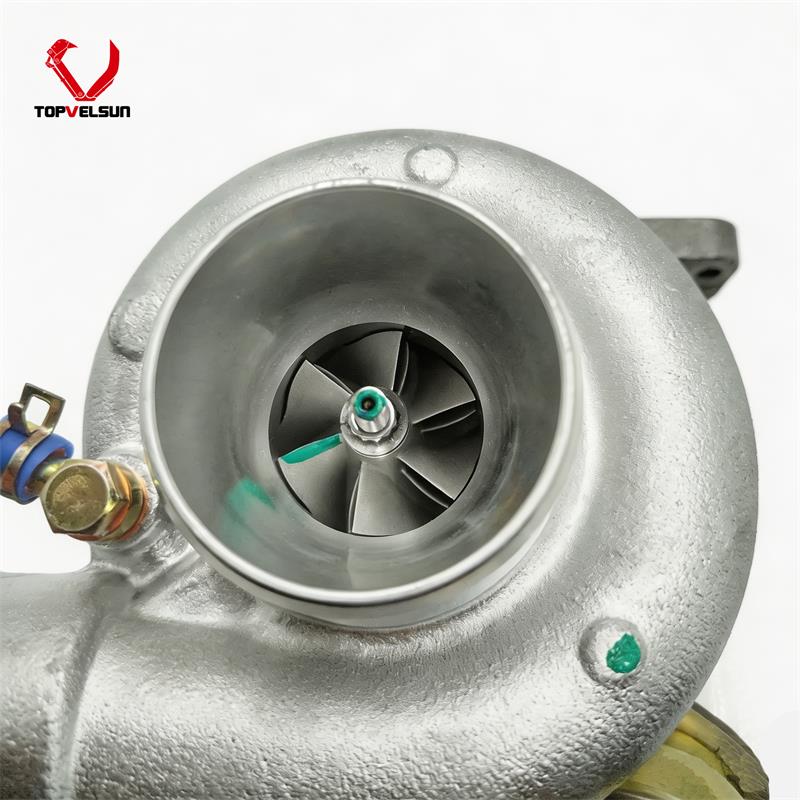

• Compare compressor housing orientation and outlet direction with the old unit.

• Check turbine inlet flange, exhaust outlet and manifold connection.

• Verify wastegate actuator type, actuator rod position and pressure control layout.

• Compare oil feed and oil return positions before installation.

Common Failure Symptoms

• The engine loses power under load.

• Black smoke appears because of poor boost pressure or air supply problems.

• Blue smoke appears when oil enters the intake or exhaust side.

• Whistling, scraping or abnormal noise comes from the turbocharger area.

• Oil leakage appears near the compressor housing, turbine housing or oil return pipe.

• The turbo shaft has excessive radial or axial play.

• Boost pressure is lower than expected after the engine is under load.

Troubleshooting Before Replacement

Before replacing the 32006016 turbocharger, inspect the complete intake, exhaust and lubrication system. A turbocharger failure can be caused by poor oil supply, dirty air filtration, intake blockage, exhaust restriction or engine blow-by.

• Check the air filter, intake hose and intercooler pipe for blockage or leakage.

• Inspect oil feed and oil return lines for carbon blockage, restriction or leakage.

• Check engine oil quality and confirm the correct oil change interval.

• Inspect the exhaust manifold and gasket area for leakage before the turbine side.

• Check whether foreign object damage is present on compressor or turbine blades.

• Confirm that crankcase pressure is not excessive before installing a replacement turbocharger.

Installation and Maintenance Notes

• Clean or replace oil feed and oil return lines before installing the replacement turbocharger.

• Pre-lubricate the turbocharger with clean engine oil before first start.

• Replace damaged gaskets and check that all flanges sit flat.

• Do not use sealant that may enter the oil passage or exhaust side.

• After installation, crank or idle the engine briefly to confirm oil supply before loading the engine.

• Check for oil leakage, exhaust leakage, abnormal noise and boost pressure after installation.

• Allow the engine to idle briefly before shutdown after heavy load operation to protect the turbocharger bearing system.

FAQ

What is 32006016?

32006016 is a JCB turbocharger reference commonly connected with S100G turbocharger listings and JCB DieselMax engine applications.

Is 320/06016 the same as 32006016?

Yes. 320/06016 is the JCB-style number format, while 32006016 is the compact writing format used in many aftermarket searches.

Is this product a turbocharger or an alternator?

This product should be described as a turbocharger or turbocharger assembly. It should not be described as an alternator or starter motor.

Which JCB machines are common references?

Common model references include JCB 3CX and 4CX backhoe loaders. Final fitment should still be confirmed by the old turbocharger number and machine configuration.

What are the common related numbers?

Common related references include 318675, 32006054 and 320/06054. Some catalogs may also mention 320/06047, but the old turbocharger label and physical layout should be checked before interchange.

What should be checked before ordering this turbocharger?

Check the old turbocharger label, turbo model, actuator, compressor housing direction, turbine flange, exhaust outlet, oil feed, oil return and mounting layout before ordering.

Why does a replacement turbocharger fail early?

Early failure can be caused by poor oil supply, blocked oil return, dirty air filtration, foreign object damage, exhaust leakage, excessive crankcase pressure or incorrect installation.
