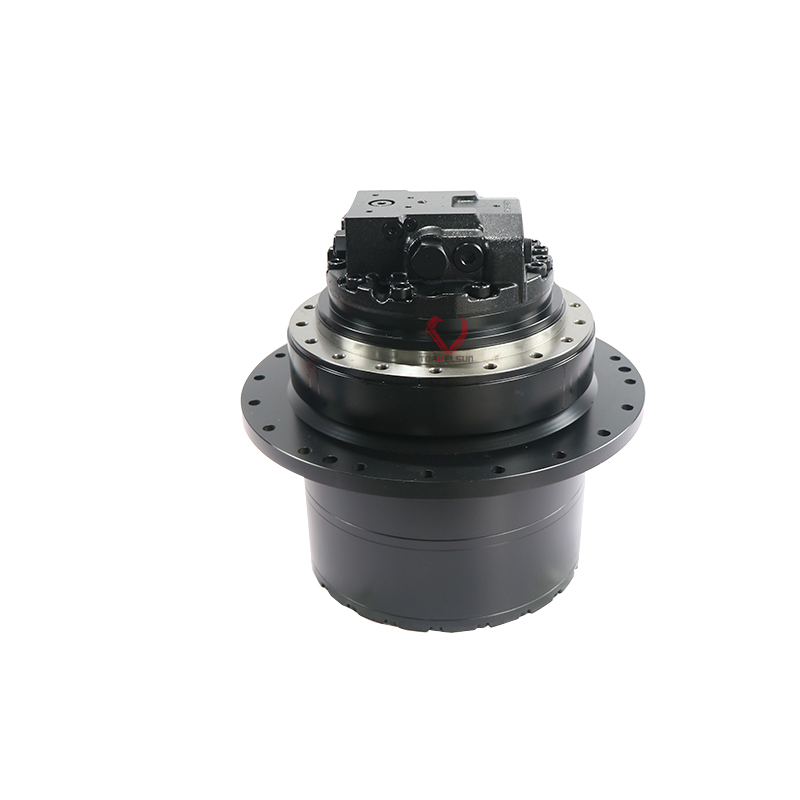

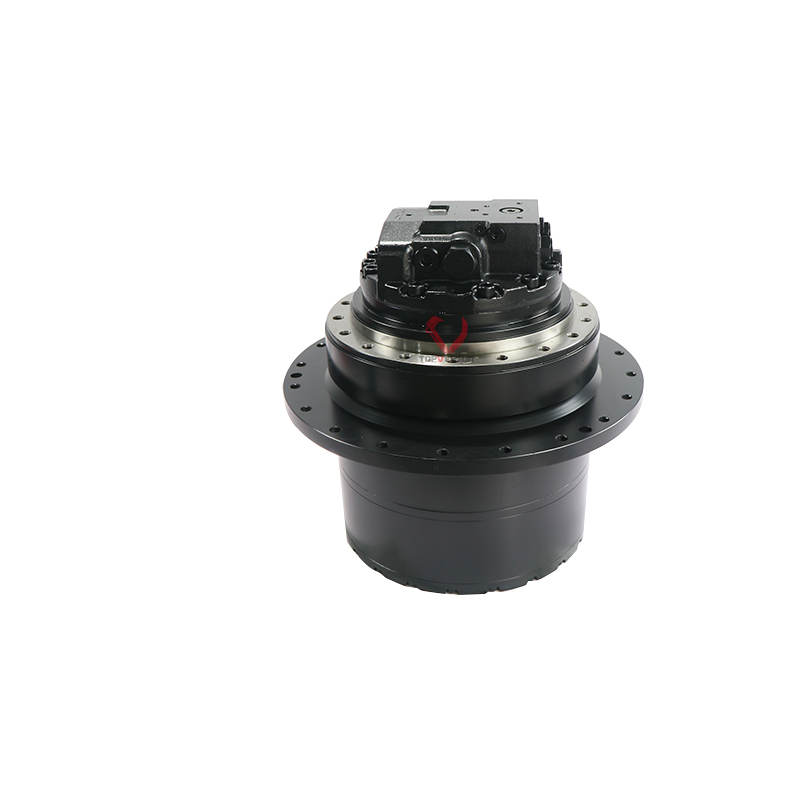

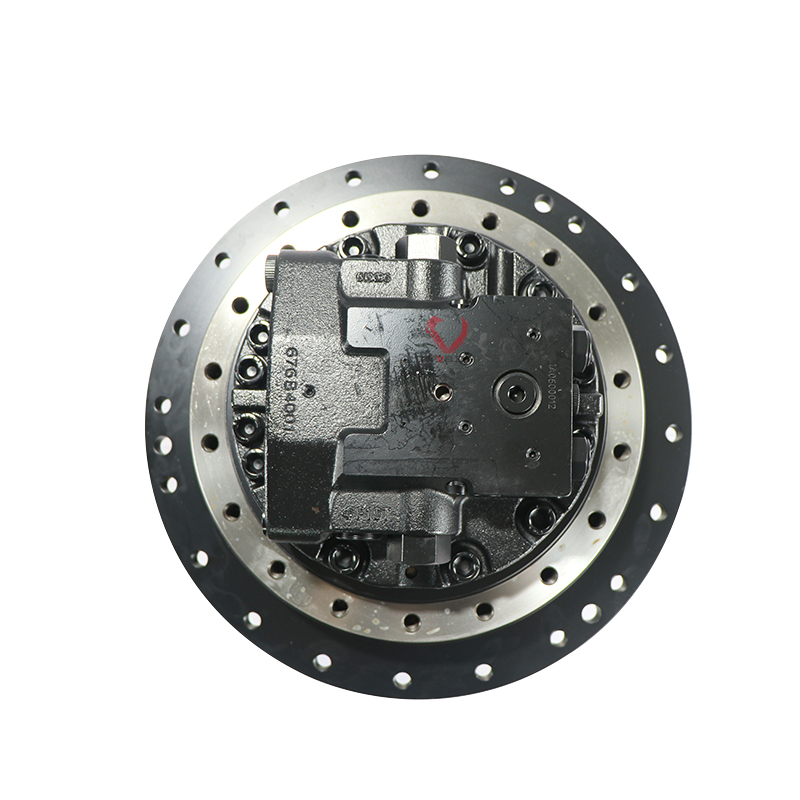

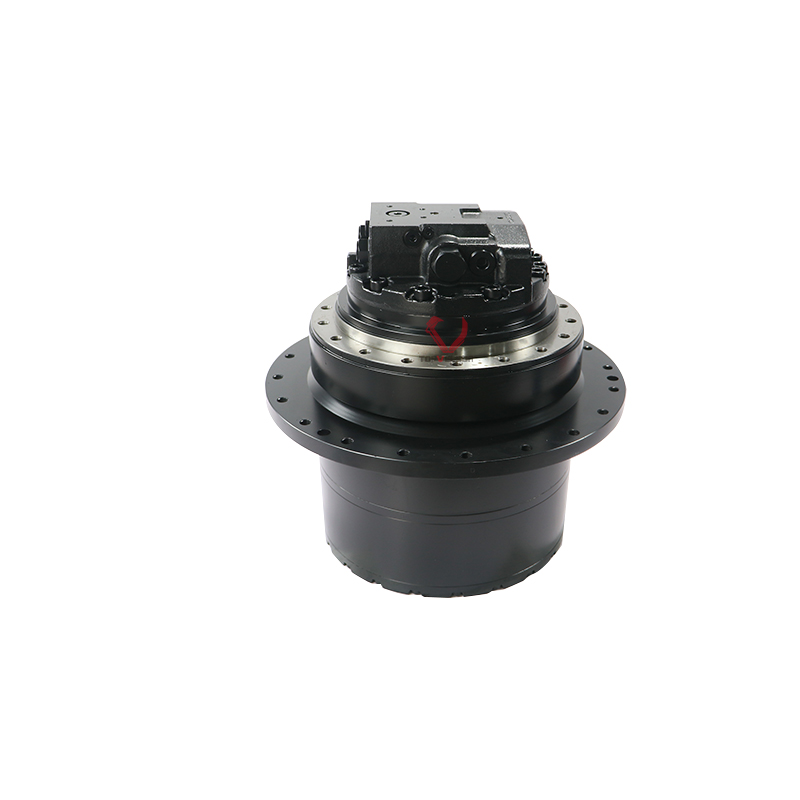

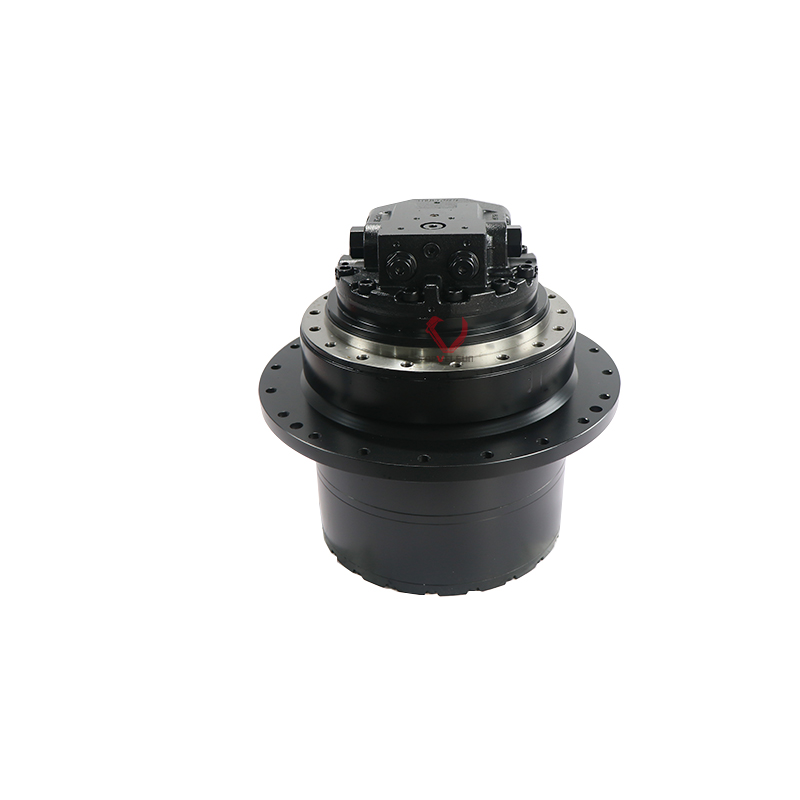

20Y-27-00202 TRAVEL MOTOR,GM35 Suitable for komatsu PC200-6 PC220-6 PC210-6

Heavy-Duty Replacement Final Drive for Komatsu Dash-6 Excavators

Minimize downtime and restore the full travel power of your machine with our premium aftermarket 20Y-27-00202 final drive assembly. Specifically engineered as a direct drop-in replacement for Komatsu Dash-6 series medium excavators, including the PC200-6, PC210-6, and PC220-6 models.

Why Choose Our Final Drive Assembly?

• 100% Direct Match: Fully interchangeable with OEM part numbers 20Y-27-00101, 20Y-27-00201, and 20Y-27-00204. No modifications required for installation.



• Built-in GM35VL Equivalent Motor: Features a high-efficiency hydraulic travel motor equipped with an automatic two-speed shifting valve (Low/High) to easily handle heavy loads and rough terrains.



• Rugged Planetary Gearbox: The reduction gears are manufactured from high-strength alloy steel, designed to withstand peak system pressures up to 350 bar.



• Cost-Effective Solution: Get OEM-level reliability and torque output without the exorbitant dealer price tag.




(Note: This final drive motor is strictly designed for Komatsu Dash-6 series. It is NOT compatible with PC200-7 or PC200-8 excavators due to different flange and gear ratio specifications.)

Ready to order? Contact our sales team via WhatsApp or Email for exclusive B2B pricing!

Installation & Maintenance Guidelines

To ensure proper function and validate your 6-month warranty, please follow these critical installation steps:

Check the Case Drain Line (CRITICAL): Before operating the new 20Y-27-00202 travel motor, you must inspect and clean the case drain line. Komatsu motors are highly sensitive to back-pressure. Ensure back-pressure is strictly under 0.2 MPa. A blocked drain line will instantly blow the main shaft seal and void the warranty.

Motor Case Pre-filling: Prior to starting the engine, fill the hydraulic motor case with clean hydraulic oil through the drain port. Dry starting will cause immediate damage to the internal piston group.

Gearbox Lubrication: The planetary reduction section requires standard gear oil (SAE 90 or 80W-90, API GL-4/GL-5). Fill the gearbox until the oil reaches the level of the horizontal fill plug. Do not overfill.

Track Tension: After installing the new drive, ensure your track tension is correctly adjusted according to the Komatsu manual. Overtightened tracks will cause premature wear on the final drive bearings.
