Swing Motors

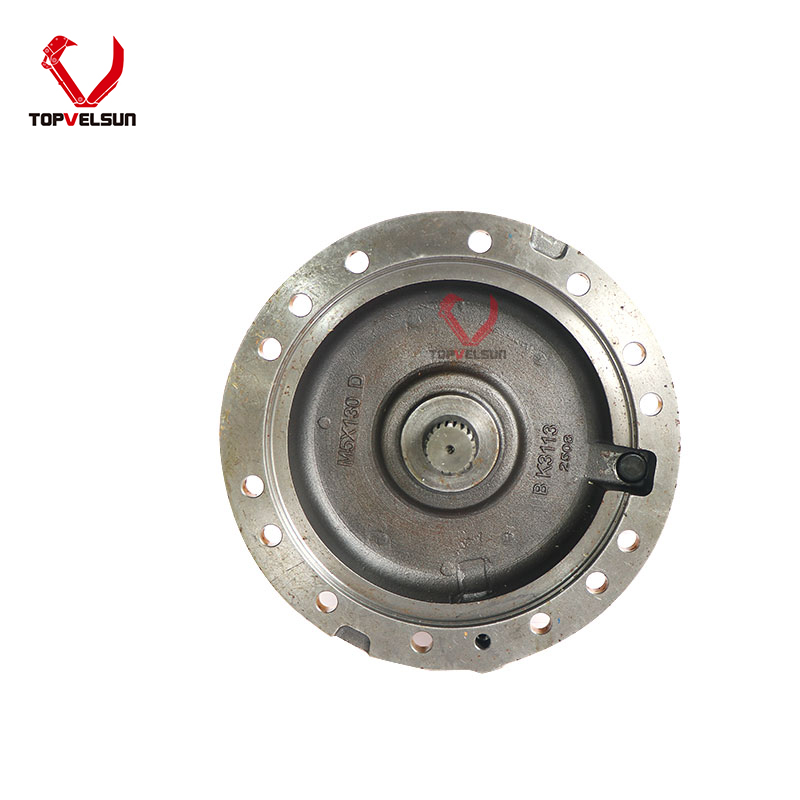

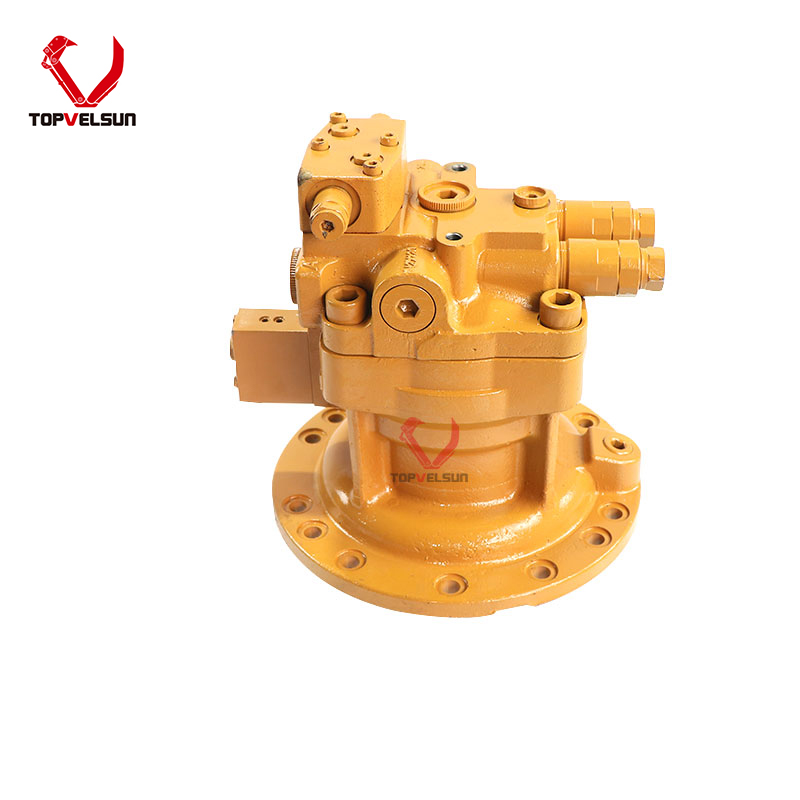

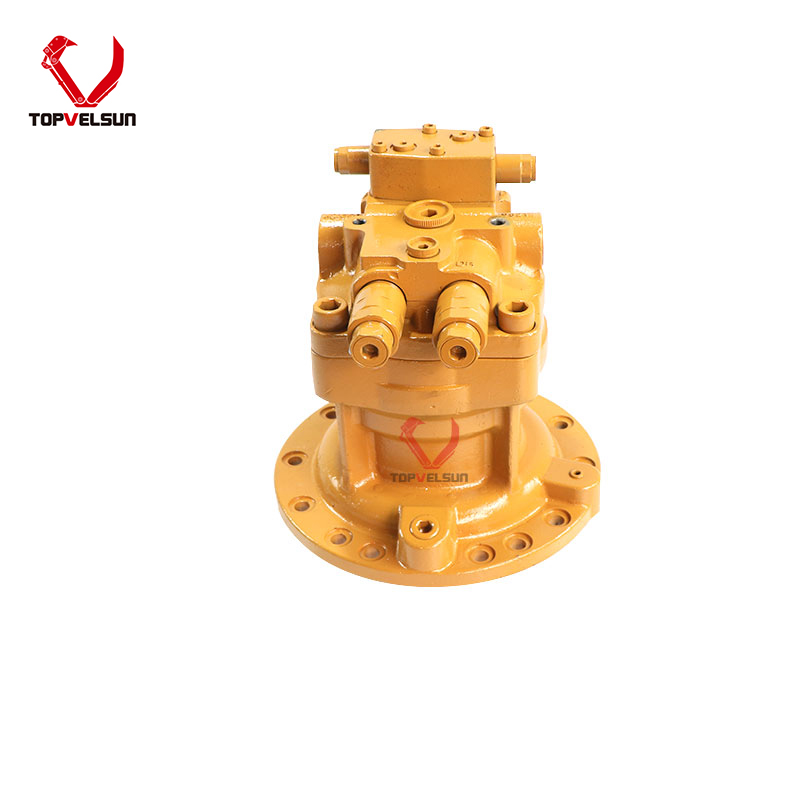

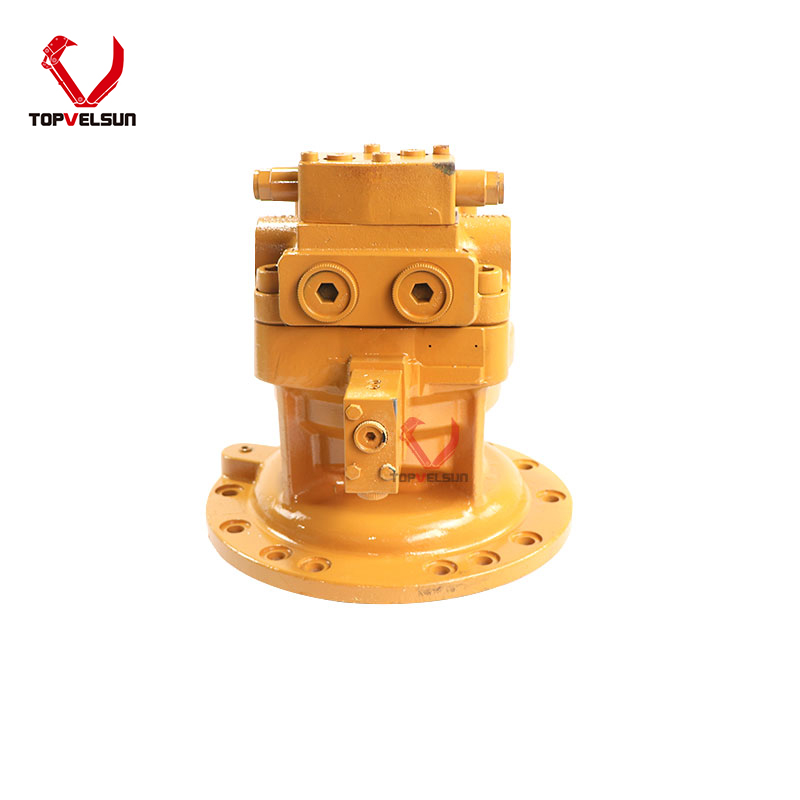

Home << Products << Swing System << Swing Motors << M5X130-19T Kawasaki Hydraulic Swing Motor for Hyundai R210-7 Kobelco SK200-8Brand: Topvelsun
Weight: 47.5 kg
Warranty: 6 Months
Application: Used on selected 20-ton excavators such as Hyundai R210-7, Kobelco SK200-8, Sumitomo SH200
Product Description
The M5X130-19T swing motor is the legendary hydraulic component responsible for the precise rotational movement of 20-ton class machinery. Operating under extreme hydraulic pressure, this OEM-equivalent aftermarket slew drive ensures smooth, jerk-free 360-degree rotation.
According to the Topvelsun hydraulic technical team, watch for these common symptoms indicating your motor requires replacement:
| Failure Symptom | Diagnostic Meaning & Action |
|---|---|
| Loss of Swing Power | Diagnosis: Internal wear on the cylinder block allows hydraulic fluid to bypass. Replace the motor assembly. |
| Swing Drift on Slopes | Diagnosis: The internal mechanical parking brake discs are worn. Replacement guarantees braking safety. |
Q: Do I need to prime the motor with oil before starting?
A: Absolutely. You must fill the motor case with clean hydraulic oil through the drain port and bleed all air before rotating the cab to prevent instant dry-rubbing damage.
