585-9230 24V Main Control Valve Solenoid for Caterpillar 312 320 325 330

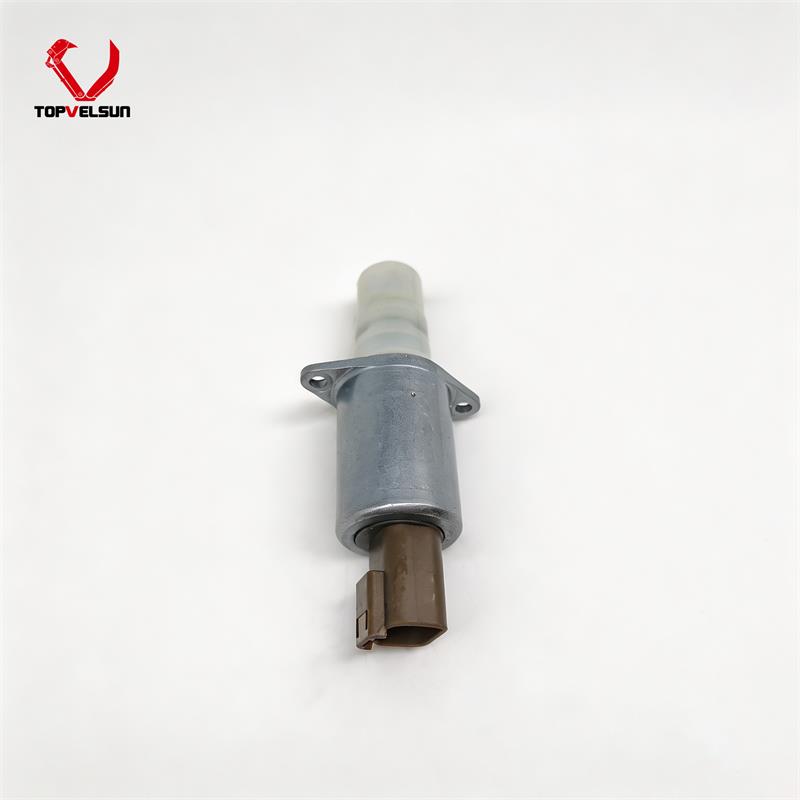

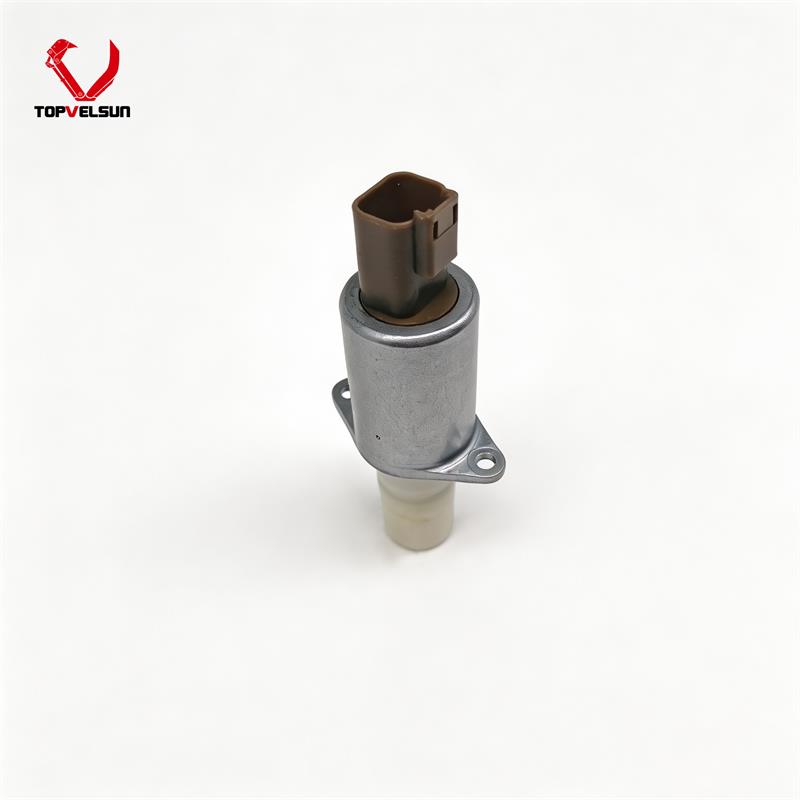

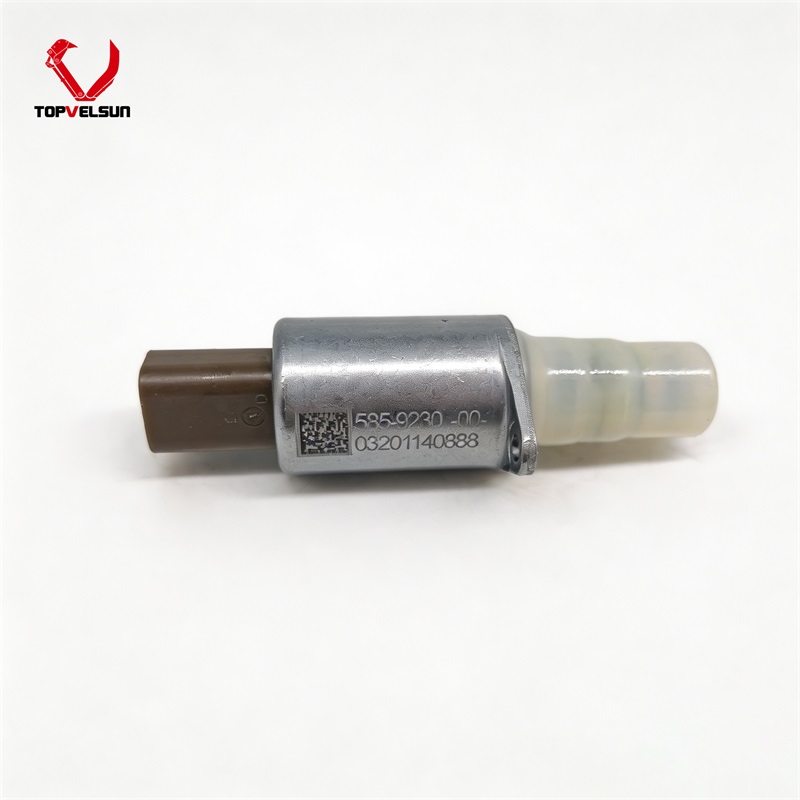

585-9230 24V Solenoid Valve for Caterpillar Main Control Valve

The 585-9230 solenoid valve is used for Caterpillar hydraulic main control valve applications. It is a 24V hydraulic solenoid valve used to control hydraulic oil flow direction or stop flow within the valve body system.

This page focuses only on 585-9230 as the main part number. Before ordering, the removed solenoid valve should be checked by old valve number, voltage marking, connector plug, valve body position, O-ring condition and machine serial number.

Why 585-9230 Should Be Checked by Valve Body Position

A solenoid valve for a hydraulic main control valve may look simple from the outside, but the working position inside the valve body is important. Connector direction, mounting thread, sealing groove, port end and O-ring size can vary between different solenoid valve references.

For this reason, 585-9230 should not be selected by machine model alone. The old valve number, physical shape and installation position should be checked together before quotation or replacement.

Application and Model Reference

The 585-9230 solenoid valve is mainly related to Caterpillar hydraulic control valve applications. Common model references may include CAT 320GC, 323GC, 326GC, 330GC and 336GC excavator applications, depending on machine configuration and market version.

Model names should be used as checking references only. For final confirmation, compare the old valve, hydraulic valve body position, connector type, voltage marking and machine serial number.

How to Identify the Correct 585-9230 Solenoid Valve

Confirm whether the old solenoid valve part number is 585-9230.

Check that the valve is a 24V solenoid valve before ordering.

Compare the connector plug, pin layout and cable direction.

Check the installation position on the main control valve body.

Inspect O-rings, sealing grooves, thread condition and port end shape.

Compare the full valve body length and coil shape with the removed part.

Common Failure Symptoms

Slow hydraulic response during machine operation.

Hydraulic function does not respond correctly after electrical signal is applied.

Intermittent movement caused by connector, wiring or coil signal problems.

Oil leakage around the solenoid valve body or sealing area.

Hydraulic control warning or fault code related to the valve circuit.

Valve sticking caused by hydraulic oil contamination or internal wear.

Troubleshooting Before Replacement

Before replacing the 585-9230 solenoid valve, inspect the electrical and hydraulic control circuit. A solenoid valve fault may be caused by the valve itself, wiring, connector condition, controller signal, hydraulic oil contamination or valve body problems.

Check the fuse, relay, wiring harness and ground connection.

Measure voltage at the connector when the hydraulic function is commanded.

Inspect connector pins for corrosion, looseness, oil contamination or damage.

Check whether the valve spool or valve body has contamination or sticking.

Confirm whether the fault follows the valve after comparison or testing.

Check hydraulic oil cleanliness and filter condition before installing a replacement valve.

Installation and Maintenance Notes

Stop the machine and release hydraulic pressure before replacement.

Clean the surrounding valve body area before removing the old valve.

Keep dirt and metal particles away from the valve port and sealing area.

Replace damaged O-rings or sealing parts during installation.

Do not force the connector if the plug direction or pin layout is different.

After installation, check hydraulic response, leakage and fault code status.

Maintain hydraulic oil cleanliness to reduce repeated solenoid valve sticking or failure.

FAQ

Q: What is 585-9230?

585-9230 is a 24V solenoid valve reference for Caterpillar hydraulic main control valve applications.

Q: Which system is 585-9230 used for?

It is used in the hydraulic control valve system, especially where a solenoid valve is needed to control hydraulic oil flow inside the main control valve body.

Q: Which CAT models are common references?

Common model references may include CAT 320GC, 323GC, 326GC, 330GC and 336GC. Final fitment should be verified by old valve number, valve body position and machine serial number.

Q: What should be checked before ordering?

Check the old valve number, voltage marking, connector plug, valve body position, coil shape, O-ring condition and machine serial number. Clear photos are recommended before quotation.

Q: What can cause repeated solenoid valve failure?

Repeated failure may be caused by dirty hydraulic oil, poor connector contact, damaged wiring, incorrect voltage, contamination in the valve body or installation of a valve with a different configuration.
