Caterpillar 526-1958 Arm Cylinder Hydraulic Seal Kit

526-1958 Stick Cylinder Seal Kit 140mm Bore for Caterpillar 320 323 325 326 Excavator

Name: 526-1958 Stick Cylinder Seal Kit 140mm Bore for Caterpillar 320 323 325 326 Excavator
Brand: Topvelsun
SKU: 526-1958
Availability: InStock

Part Number: 526-1958

Product Name: Stick Cylinder Seal Kit

MOQ: 1 Piece

Warranty: 6 Months

Cylinder Bore: 140 mm

Cylinder Group: 490-4144

Application: Caterpillar 320, 320D FM, 323, 323 GC, 325, 326, 326 GC, 333 GC

Next Product

Product Description

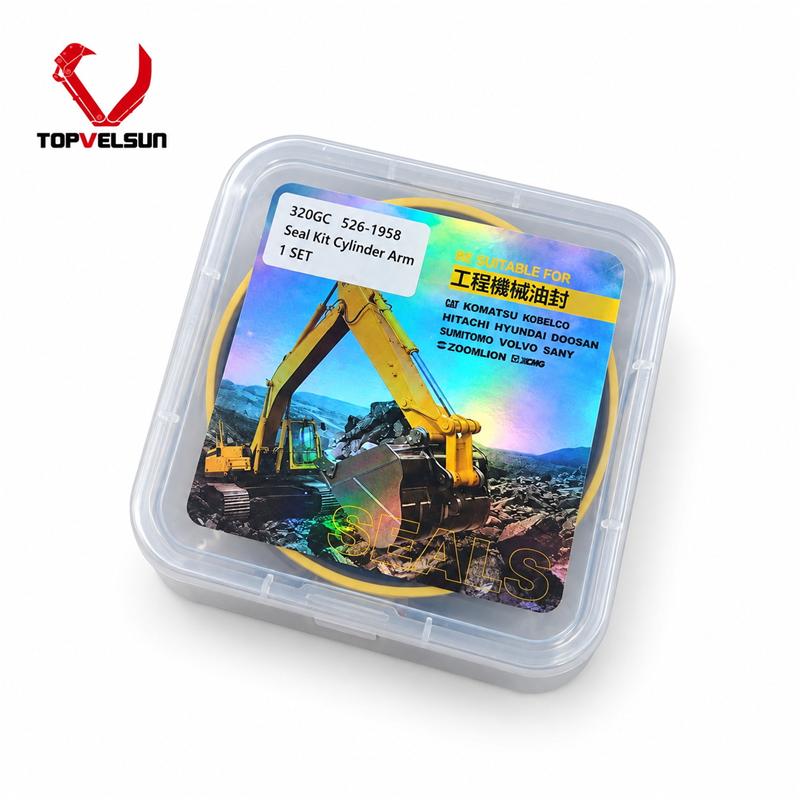

526-1958 Stick Cylinder Seal Kit

526-1958 is a hydraulic seal kit used for Caterpillar excavator stick, or arm, cylinder repair. The kit is associated with 490-4144 stick cylinder group, which uses a 140 mm cylinder bore.

It is supplied as a complete cylinder reseal kit for hydraulic cylinder overhaul. Confirm the original 526-1958 part number and cylinder group before ordering.

Caterpillar Excavator Fitment

Caterpillar lists 526-1958 for selected 320, 320D FM, 323, 323 GC, 325, 326, 326 GC and 333 GC excavators. The 490-4144 stick cylinder group is also documented on multiple 320 and 323 machine configurations.

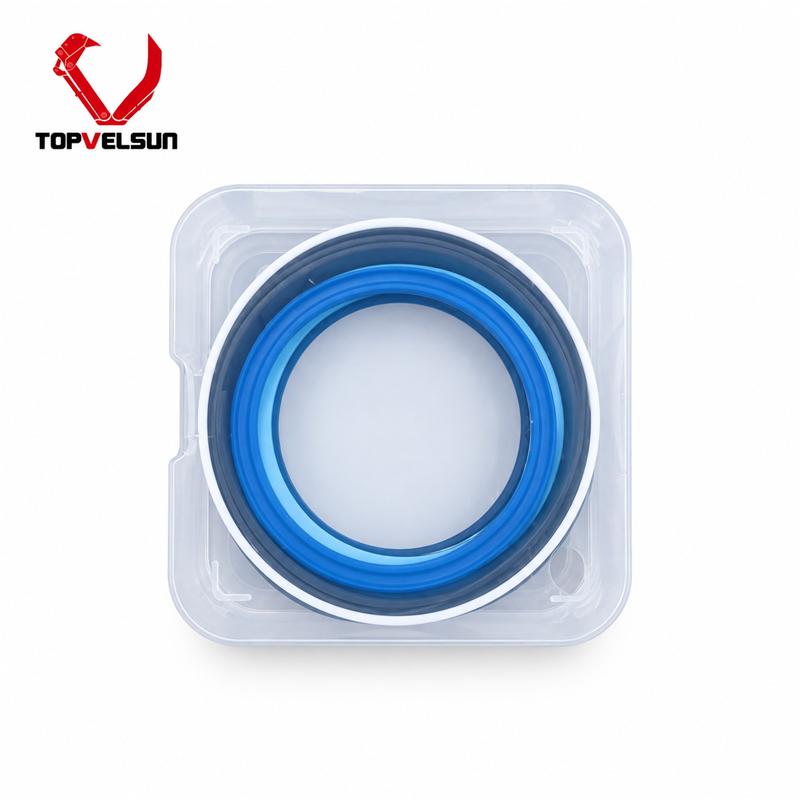

What's Included in the 526-1958 Seal Kit

The Caterpillar reference kit contains the following sealing components. These are kit contents, not cross-reference numbers for 526-1958.

Part	Description	Qty
095-1721	134.4 mm ID O-Ring	1
121-1372	100 mm ID Backup Ring	1
456-0195	114 mm OD Lip Seal	1
526-1960	Stick Cylinder Seal Ring	1
4I-3627	135 mm ID Backup Ring	1
247-8874	135.04 mm ID Ring	2
350-0960	100 mm ID U-Cup Seal	1
4I-3631	130 mm OD Backup Ring	2
096-1571	132 mm ID Plastic Ring	2
096-1570	140 mm OD Seal	1
526-1961	Stick Cylinder Seal Ring	1
350-0955	99 mm ID Buffer Seal	1

Cylinder Rebuild Checks

Before installation, inspect the stick cylinder rod, 140 mm bore, piston, gland and seal grooves for scoring, corrosion or abnormal wear.

Clean all components thoroughly and install each seal in the correct position and direction. Surface damage or hydraulic contamination should be corrected before the rebuilt cylinder returns to service.

Topvelsun Supply Support

Topvelsun supplies excavator hydraulic cylinder seal kits with 1-piece MOQ and a 6-month warranty. Send the part number, machine model or cylinder group for fitment confirmation before ordering.
