Home << Products << Maintenance & Wear Parts << Seals & Repair Kits << Hydraulic Cylinder Seal Kits << 31Y1-34010 Bucket Cylinder Seal Kit 105mm Rod 150mm Bore for Hyundai R380LC-9 R430LC-9Part Number: 31Y1-34010
Product Name: Bucket Cylinder Seal Kit
Cylinder Position: Bucket
Rod Diameter: 105 mm
Cylinder Bore: 150 mm
Application: Hyundai R380LC-9, R380LC-9SH, R390LC-9, R430LC-9
Product Description

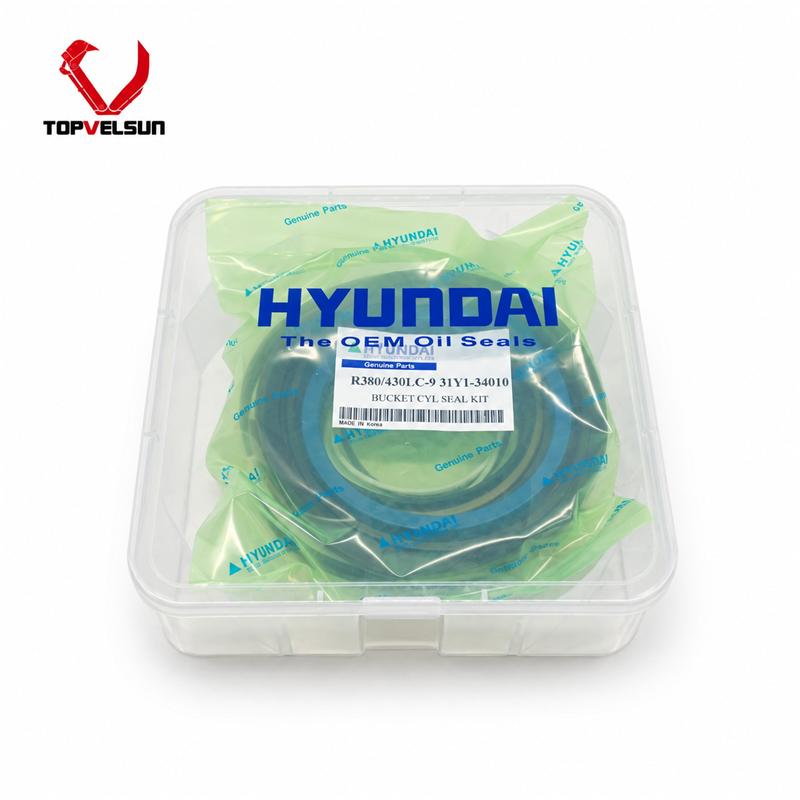

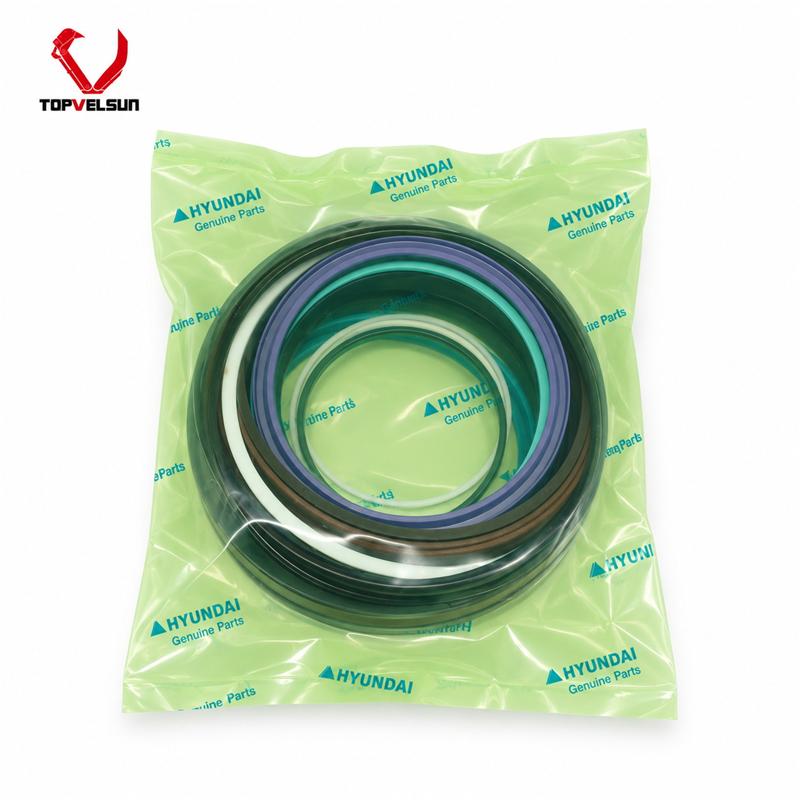

31Y1-34010 is a bucket hydraulic cylinder seal kit for selected Hyundai 9-series excavators. The applicable cylinder configuration uses a 105 mm piston rod and 150 mm cylinder bore and is used for complete bucket cylinder resealing.
Documented applications include Hyundai R380LC-9, R380LC-9SH, R390LC-9 and R430LC-9. Related bucket cylinder assemblies include 31QA-60110 and 31QA-60111. These cylinder assembly numbers are application references and are not cross references for 31Y1-34010.
| Part Number | Component | Qty |
|---|---|---|
| Y220-105013 | Rod Seal | 1 |
| Y180-105120 | Backup Ring | 1 |
| Y240-105012 | Buffer Ring | 1 |
| Y110-105011 | Dust Wiper | 1 |
| S631-140004 | O-Ring | 1 |
| 31YC-BP140 | Backup Ring | 1 |
| 31YC-26090 | Cushion Ring | 1 |
| Y420-150000 | Piston Seal | 1 |
| Y310-150003 | Wear Ring | 2 |
| Y440-150200 | Dust Ring | 2 |
| S632-080004 | O-Ring | 1 |
The part numbers above are components of the 31Y1-34010 seal kit and should not be treated as cross-reference numbers for the complete kit.
Topvelsun supplies 31Y1-34010 bucket cylinder seal kits with 1-piece MOQ and a 6-month warranty. Confirm the machine model, bucket cylinder part number or original seal kit information before ordering.
