Hydraulic Cylinder Seal Kits

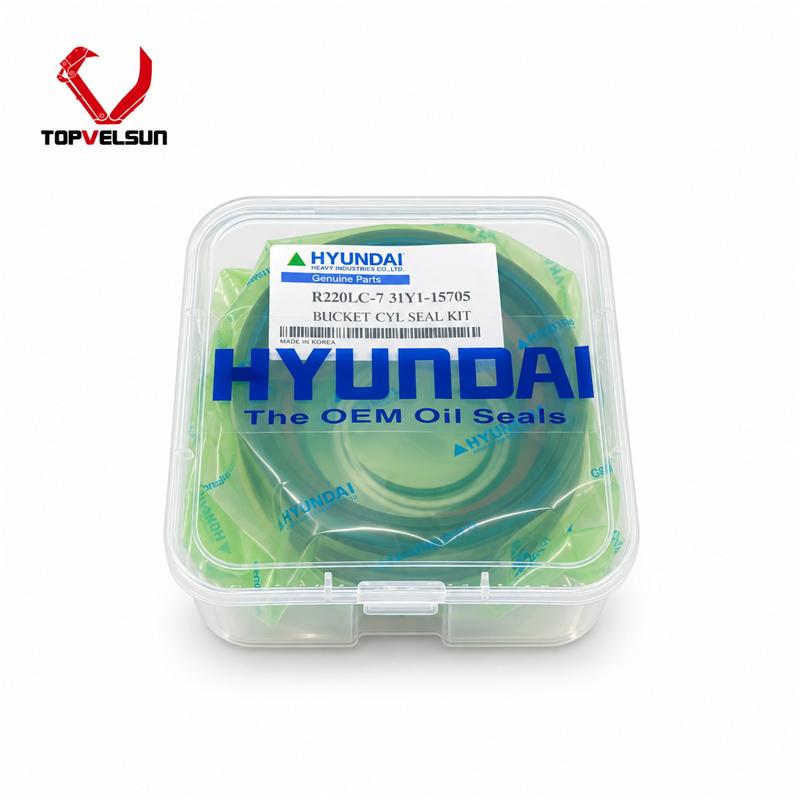

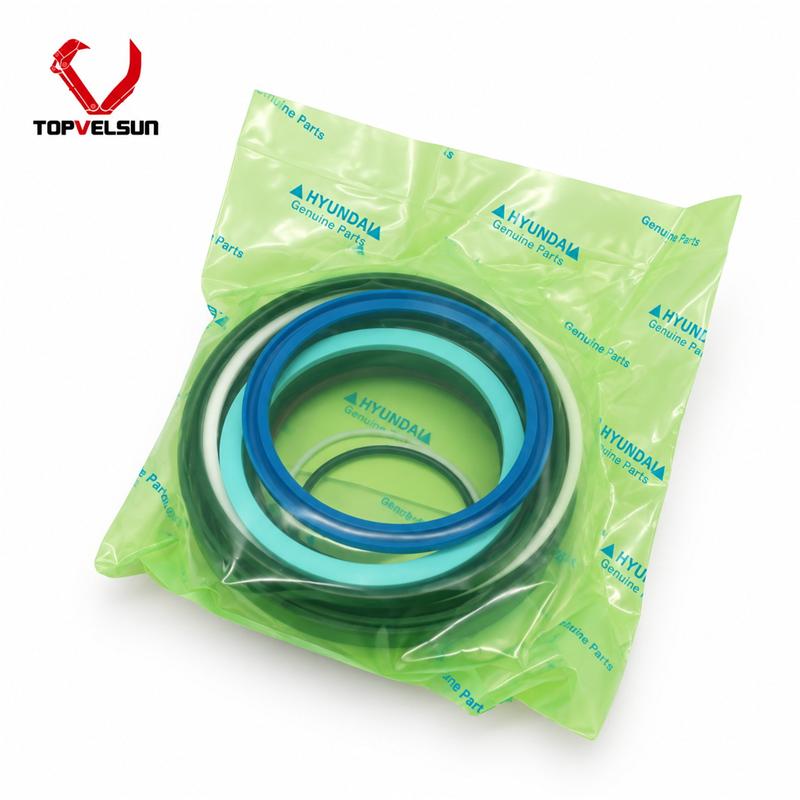

Home << Products << Maintenance & Wear Parts << Seals & Repair Kits << Hydraulic Cylinder Seal Kits << 31Y1-15705 Bucket Cylinder Seal Kit 85mm Rod 125mm Bore for Hyundai R200W-7 R210LC-7Part Number: 31Y1-15705
Product Name: Bucket Cylinder Seal Kit
Cylinder Position: Bucket
Rod Diameter: 85 mm
Cylinder Bore: 125 mm
Application: Hyundai R200W-7, R200W-7A, R210LC-7, R210LC-7A, R210NLC-7, R210NLC-7A
Product Description
31Y1-15705 is a bucket hydraulic cylinder seal kit for selected Hyundai excavators. It is designed for a cylinder configuration with an 85 mm piston rod and 125 mm bore and is used for complete bucket cylinder resealing during hydraulic cylinder overhaul.
| Hyundai Model | Fitment |
|---|---|
| R200W-7 | From serial #0615 |
| R200W-7A | Bucket Cylinder |
| R210LC-7 | From serial #3966 |
| R210LC-7A | Bucket cylinder 31N6-60115; later configurations may use 31Y1-15706 |
| R210NLC-7 | From serial #0269 |
Because Hyundai changed bucket cylinder configurations during production, the machine serial number should be checked together with the original seal kit number before ordering.
On R210LC-7A applications, 31Y1-15705 is used with bucket cylinder assembly 31N6-60115. Hyundai reference data identifies this cylinder with an 85 mm rod and 125 mm bore. The cylinder assembly number is an application reference and is not a cross-reference number for the seal kit.
Topvelsun supplies 31Y1-15705 bucket cylinder seal kits with 1-piece MOQ and a 6-month warranty. Confirm the machine model, serial number and original seal kit or cylinder part number when fitment verification is required.
