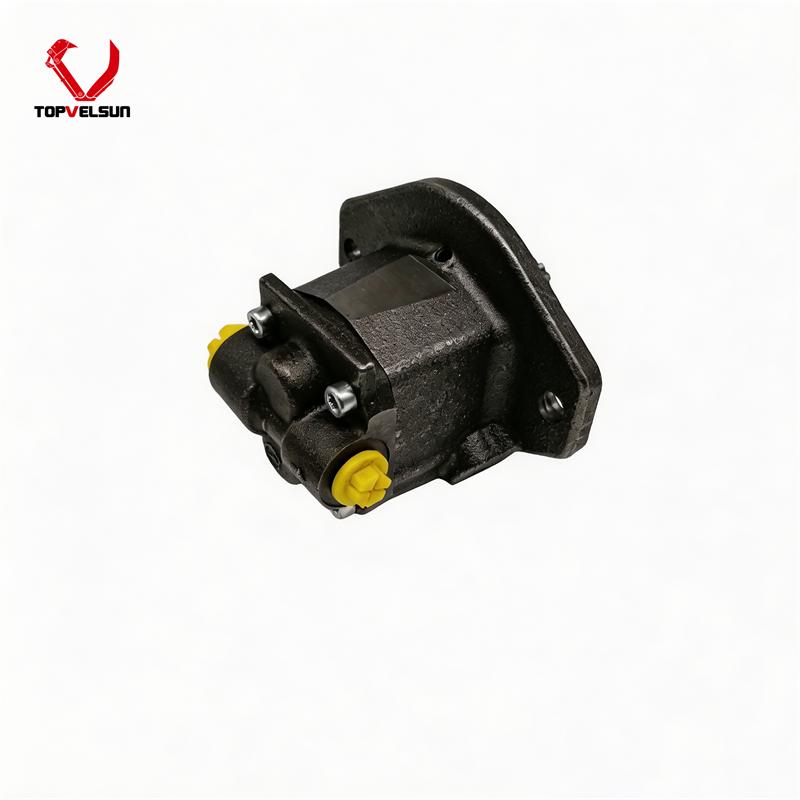

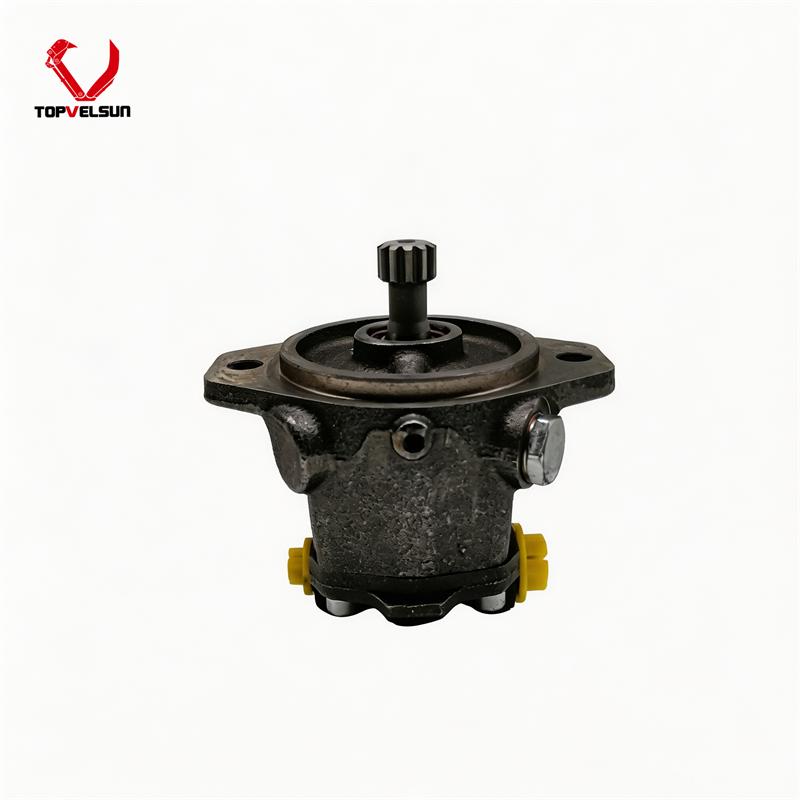

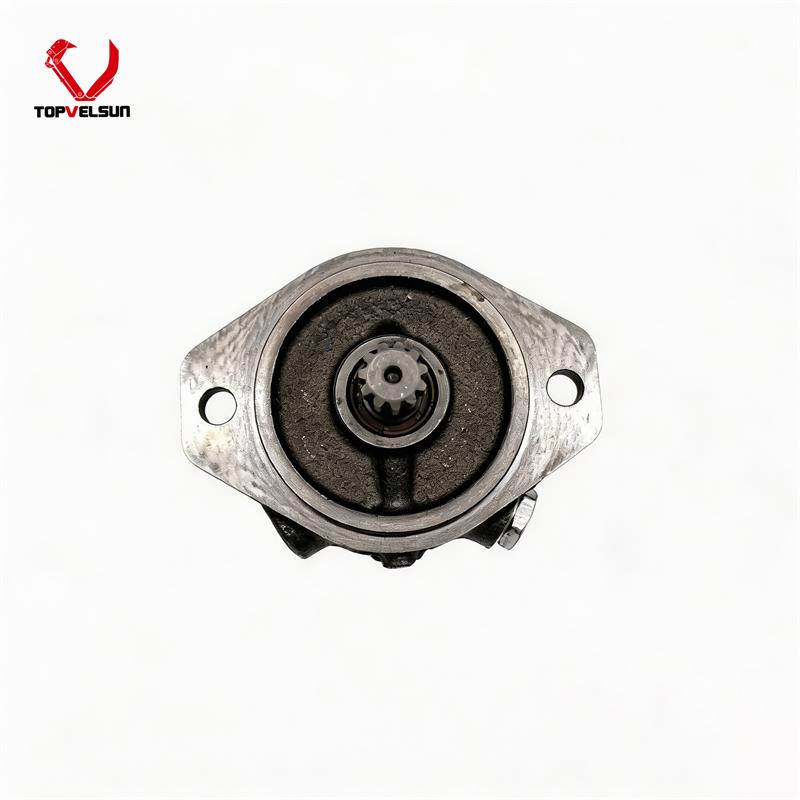

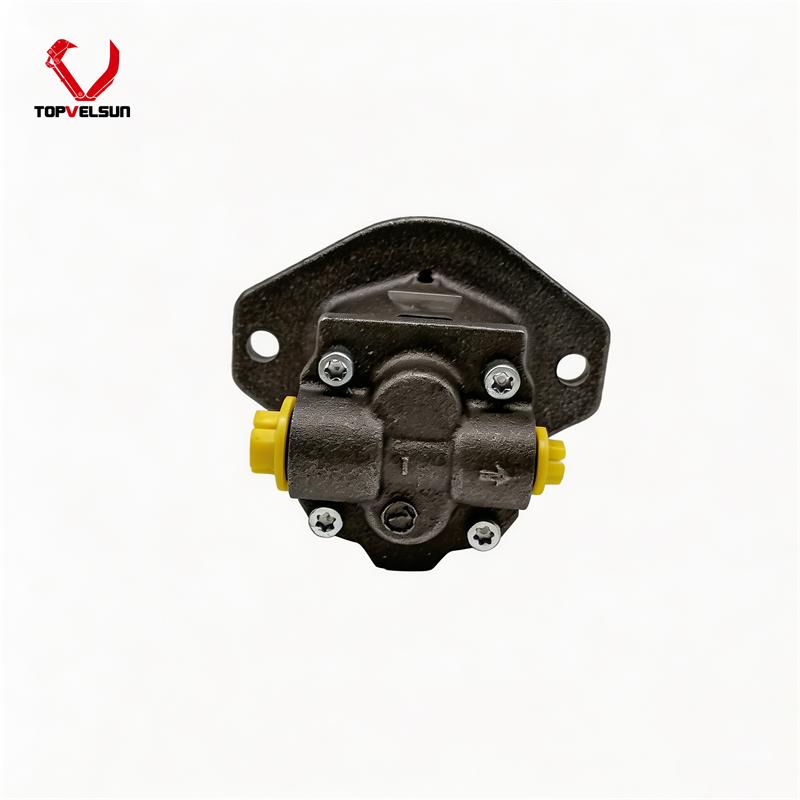

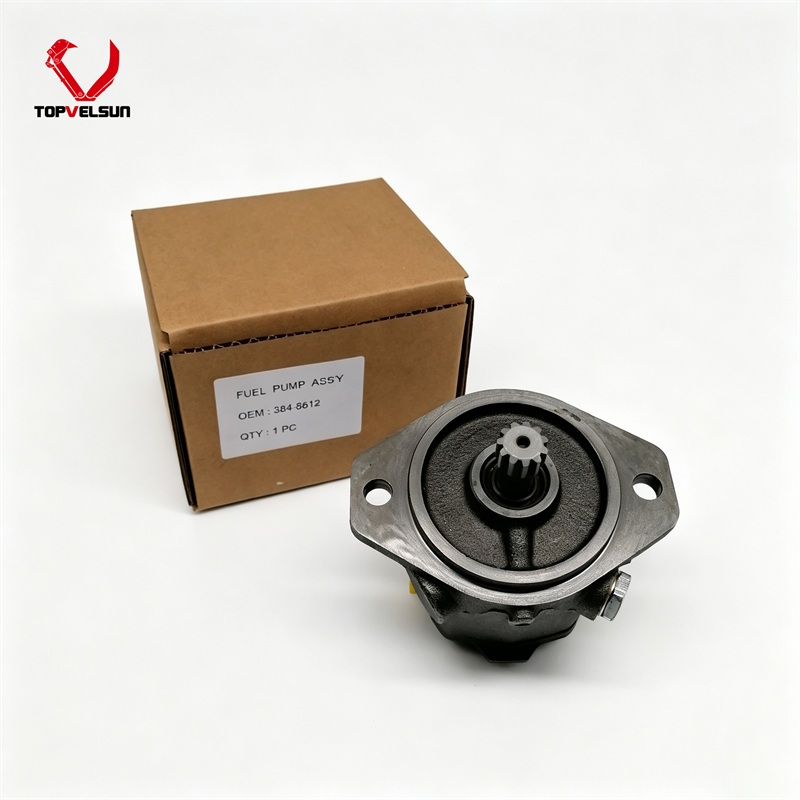

384-8612 Fuel Supply Pump for Caterpillar 3406E C11 C16 Engines

384-8612 Fuel Transfer Pump Overview

The 384-8612 fuel transfer pump is designed for Caterpillar diesel engine fuel systems. It draws diesel fuel from the tank and delivers a stable supply of fuel under pressure to the engine injection system.

The integrated pressure regulating valve helps maintain consistent fuel delivery as engine speed and operating load change. Reliable transfer-pump performance supports easier starting, stable engine operation and consistent power output.

Caterpillar Engine and Equipment Applications

The 384-8612 fuel supply pump is used in selected Caterpillar 3406E, C11, C13, C15, C16 and C18 engine applications.

These engines are installed in a broad range of Caterpillar excavators, articulated trucks, wheel loaders, motor graders, generator sets, marine engines and industrial equipment.

384-8612 and 20R-1525 Reference Information

384-8612 is the primary reference number for the fuel transfer pump with pressure regulating valve.

20R-1525 is the corresponding Caterpillar remanufactured fuel transfer pump reference. Both numbers can be used to identify the required pump family when the engine application and pump configuration match.

Product Features

Designed for heavy-duty Caterpillar diesel fuel systems.

Includes a pressure regulating valve for stable fuel delivery.

Suitable for selected 3406E, C11, C13, C15, C16 and C18 engine applications.

Replacement reference for Caterpillar 384-8612.

Associated with Caterpillar Reman reference 20R-1525.

Common Fuel Transfer Pump Problems

A worn or damaged 384-8612 fuel transfer pump may be unable to maintain the fuel flow and pressure required by the engine injection system. This can lead to difficult starting, unstable idling or reduced performance under load.

Internal wear, a weak pressure regulating valve or leakage around the pump body and seals may also result in low or inconsistent fuel pressure.

Common signs of fuel transfer pump failure include:

Hard or delayed engine starting

Low or unstable fuel pressure

Irregular idling or engine hesitation

Reduced power under heavy load

Intermittent engine shutdown

Fuel leakage around the pump or connections

Abnormal mechanical noise from the pump area

Replacing the failed pump with a matching 384-8612 or 20R-1525 reference unit can help restore stable fuel delivery and normal engine performance.
