Fuel Transfer Pump
Home << Products << Engine System << Fuel System Parts << Fuel Transfer Pump << 292-3751 Fuel Transfer Pump for Caterpillar Excavators CAT 311D 312D 320D 323DPart Number: 292-3751 / 2923751
MOQ: 1 Piece
Warranty: 6 Months
Product Type: Fuel Transfer Pump / Fuel Supply Pump
Function: Delivers Pressurized Fuel From the Tank to the Engine Fuel Injection System
Application: Caterpillar C6.6 Diesel Engine
Compatible: Excavators 311D, 312D, 313D, 314D, 315D, 318D, 319D, 320D, 321D and 323D
Product Description

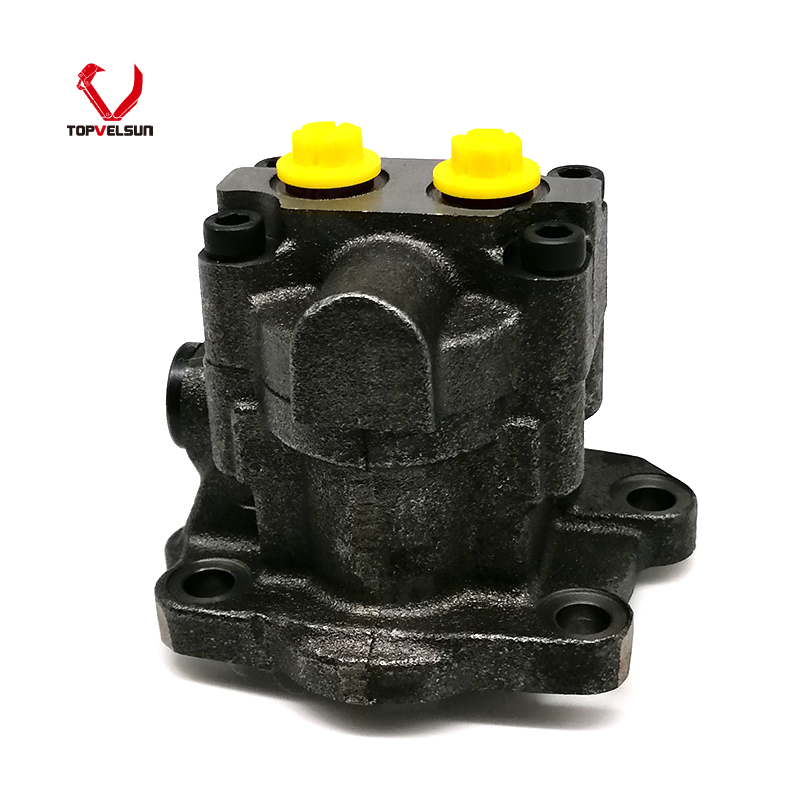

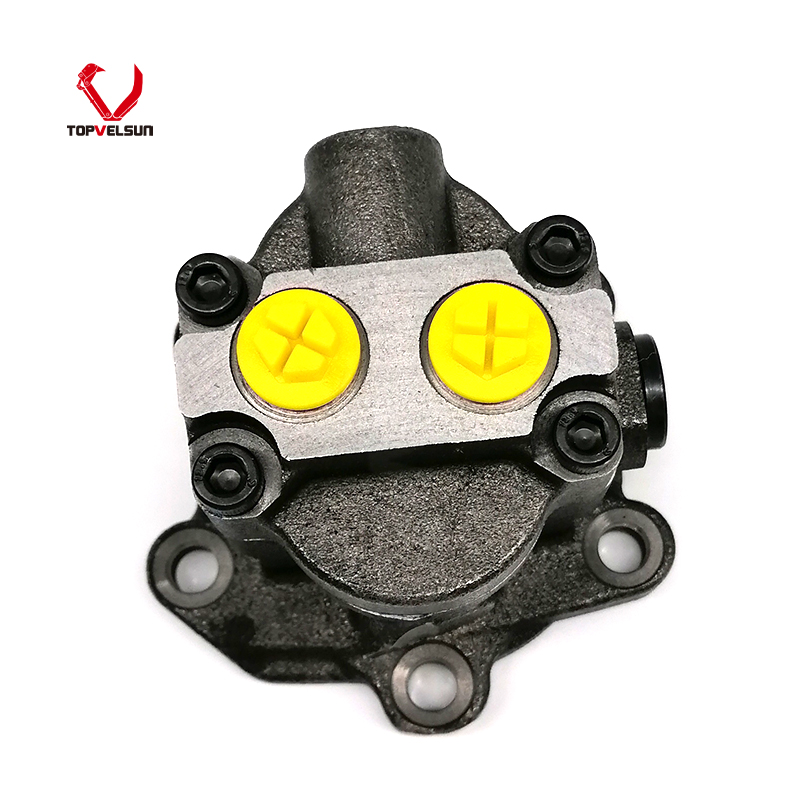

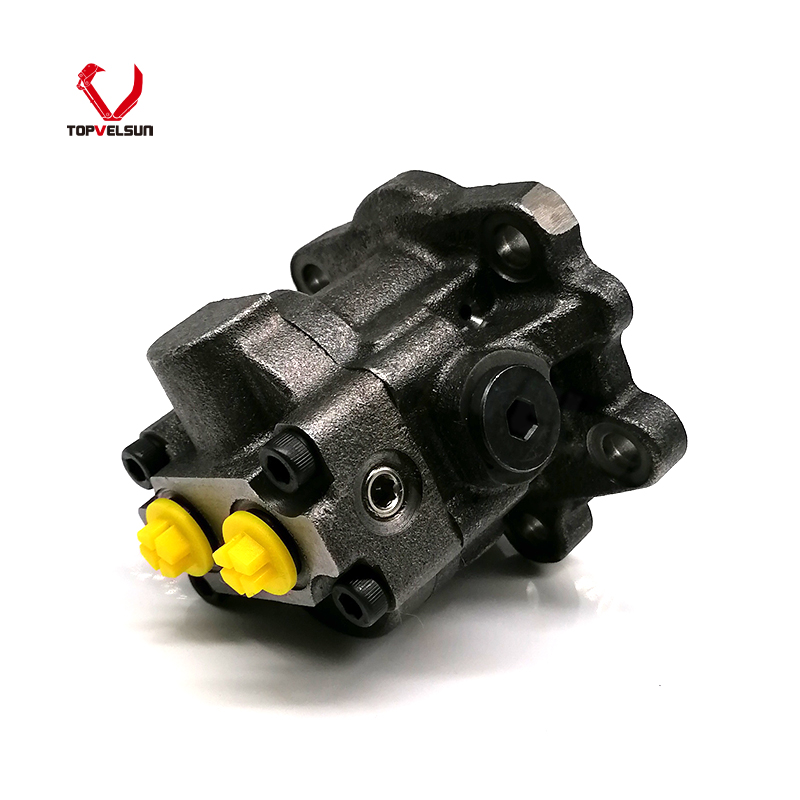

The 292-3751 fuel transfer pump delivers pressurized diesel fuel from the tank to the engine fuel injection system. It is used in selected Caterpillar C6.6 engine applications installed in D-series excavators.

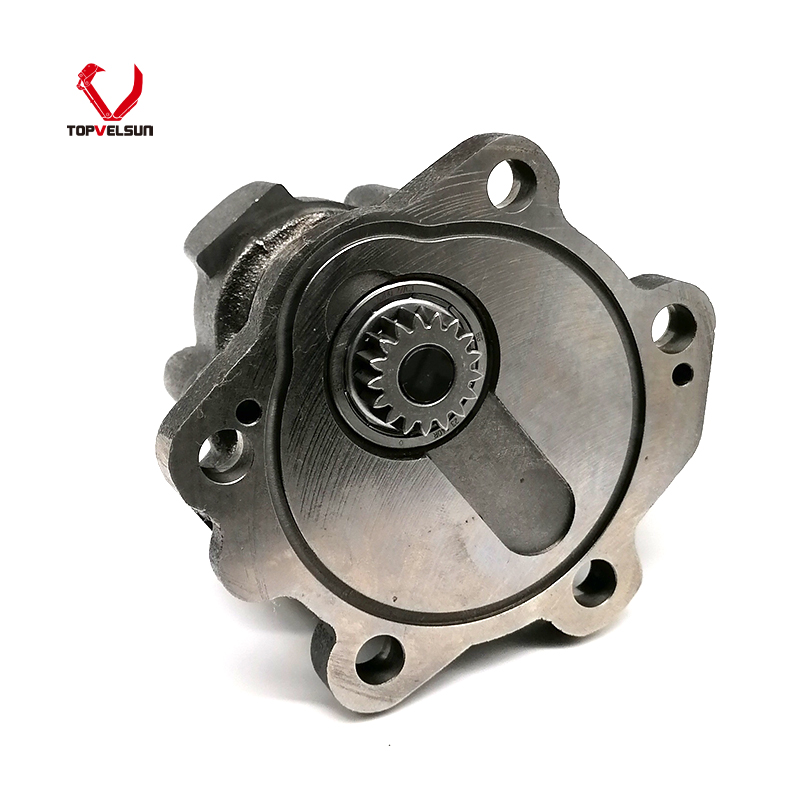

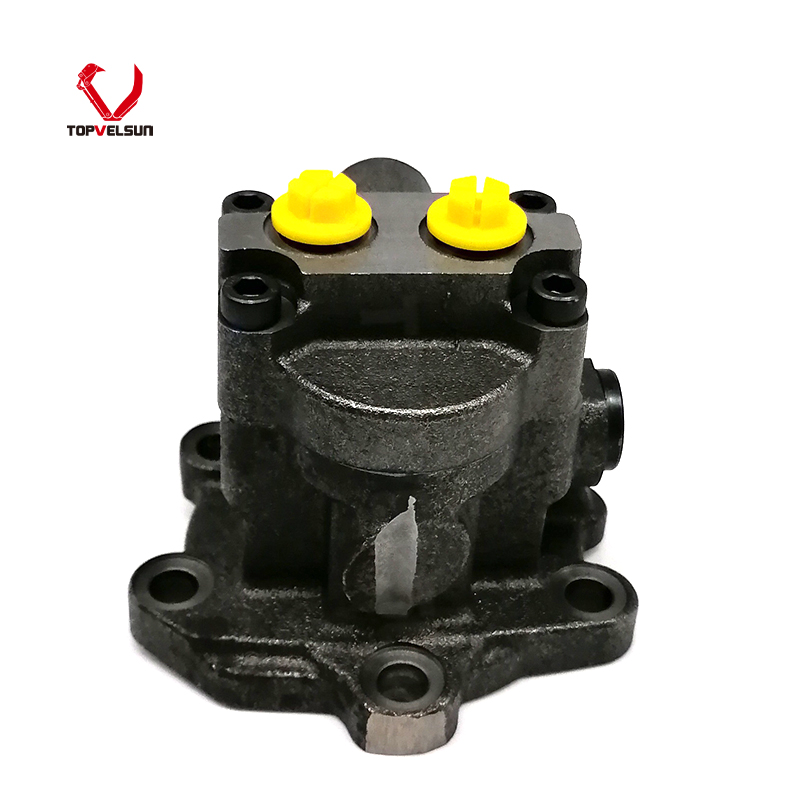

The pump features a 17-tooth external spur gear and M12 inlet and outlet ports. Its gear-driven design helps maintain a continuous fuel supply during engine starting and operation.
Excavator: 311D LRR, 312D, 312D L, 313D, 314D CR, 314D LCR, 315D L, 318D L, 319D, 319D L, 319D LN
Excavator: 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR
Excavator: 321D LCR, 323D, 323D L, 323D LN, 323D S, 323D SA
Mobile Hydraulic Power Unit: 323D L, 323D LN
A worn or damaged fuel transfer pump may be unable to maintain the fuel flow and pressure required by the engine injection system. This can affect engine starting, idling and performance under load.
Common signs of fuel transfer pump failure include:
Hard or delayed engine starting
Low or unstable fuel pressure
Irregular engine idling
Engine hesitation during acceleration
Reduced power under heavy load
Intermittent engine shutdown
Fuel leakage around the pump body or ports
Abnormal mechanical noise from the pump area
Replacing the failed pump with the correct 292-3751 unit can help restore stable fuel delivery and normal engine operation.
