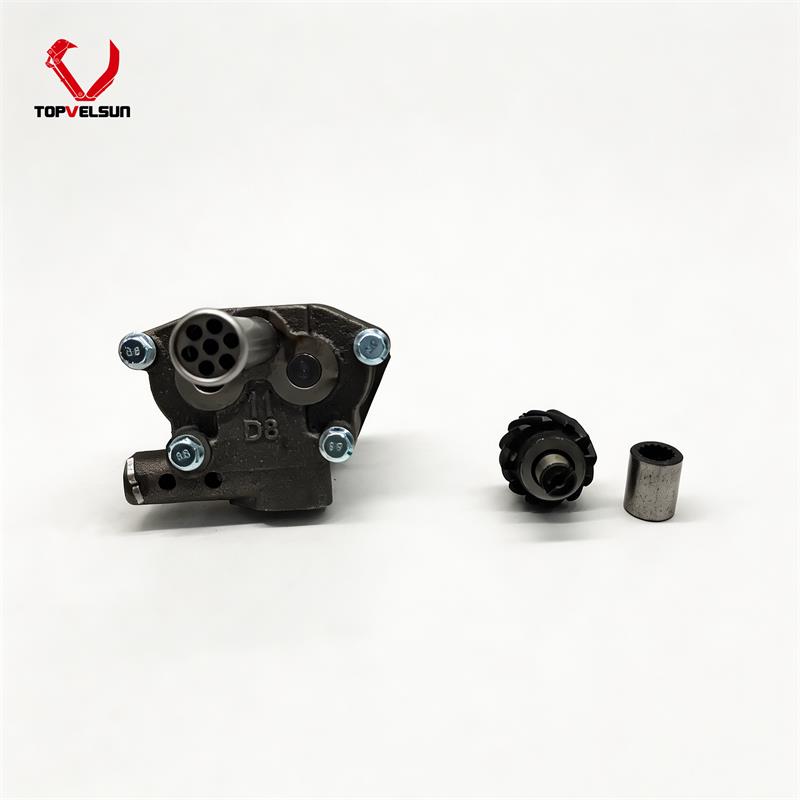

1-13100-244-1 Engine Oil Pump for Isuzu 6BD1 / 6BD1T

1-13100-244-1 Engine Oil Pump for Hitachi EX200 Isuzu 6BD1

The 1-13100-244-1 engine oil pump is supplied for Isuzu 6BD1 and 6BD1T diesel engine lubrication system repair. It is commonly searched as 1-13100-244-1, 1131002441, engine oil pump, lubrication oil pump or oil pump assembly for Hitachi EX200 series excavator engine applications.

This page focuses on 1-13100-244-1 as the main part number. 1131002441 is the compact no-hyphen format, while 8-94366-241-0 and 8943662410 may appear as cross reference numbers in aftermarket listings. Final fitment should be confirmed by the old oil pump number, engine model, pump body shape, gear design, mounting face and machine information before ordering.

Engine Application: Isuzu 6BD1 / 6BD1T

For engine-part SEO clarity, this product should be strongly connected with the Isuzu 6BD1 and 6BD1T engine. Buyers may search by engine model when the machine model is unclear, when the engine has been rebuilt, or when the old oil pump has already been removed from the machine.

The 6BD1 / 6BD1T engine direction is more stable than a long list of machine models. For this reason, the H1 should focus on 1-13100-244-1 and Isuzu 6BD1 / 6BD1T engine, while the SEO Title can cover Hitachi EX200 model search intent.

If the customer only provides an engine model, ask for the engine nameplate and old oil pump photos. If the customer only provides a machine model, confirm whether the machine is still using the original Isuzu 6BD1 or 6BD1T engine before quotation.

Machine Model Reference for Hitachi EX200

Common application references for this oil pump include Hitachi EX200-1, EX200-2 and EX200-3 machines using Isuzu 6BD1 or 6BD1T engine references. These model names should be treated as application references, not as the only fitment proof.

Older excavators may have engine replacement, previous overhaul history or non-original oil pump changes. The old pump and engine information are more reliable than machine model alone.

For accurate ordering, compare the removed oil pump before shipment. Photos of the old pump number, gear side, mounting face, oil passage, pump body and engine nameplate are useful for confirmation.

Part Number and Reference Notes

1-13100-244-1 is the main part number of this page. The compact format 1131002441 can be included for search coverage, but it should not replace the original hyphenated part number as the main page signal.

This page should not mix 1-13100-204-0, 1131002040 or 6BG1 oil pump wording into the main description unless the old pump and supplier data confirm interchange. Those numbers can belong to nearby oil pump products, but they should not dilute this 1-13100-244-1 page.

For SEO and buyer clarity, keep this page focused on 1-13100-244-1, 1131002441, Isuzu 6BD1, Isuzu 6BD1T and Hitachi EX200 application references.

How to Confirm the Correct Engine Oil Pump

Engine oil pumps can look similar from the outside, but small differences in gear design, mounting face or oil passage layout may cause installation problems. Before ordering, check the removed oil pump carefully.

• Confirm whether the old oil pump number is 1-13100-244-1 or 1131002441.

• Check whether the engine model is Isuzu 6BD1 or 6BD1T.

• Compare the pump body shape, gear side and mounting face.

• Check oil inlet, oil outlet and oil passage positions.

• Confirm gasket surface, bolt hole pattern and drive gear arrangement.

• Send machine model, engine nameplate and old oil pump photos before quotation if you are not sure.

Common Oil Pump Failure Symptoms

An engine oil pump may need replacement when the engine shows low oil pressure, oil pressure warning, abnormal bearing noise, poor lubrication, engine overheating, metal particles in engine oil or serious wear after long-term operation.

These symptoms are not always caused by the oil pump itself. Blocked oil passages, dirty engine oil, worn bearings, damaged oil pickup tube, clogged oil strainer, pressure relief valve problems or incorrect engine oil viscosity can create similar symptoms.

Before replacing the oil pump, inspect the lubrication system and confirm the root cause of low oil pressure. Installing a new pump without cleaning the oil circuit may lead to repeated engine damage.

Troubleshooting Before Replacement

Before ordering a 1-13100-244-1 replacement oil pump, check the related engine lubrication parts. This helps repair shops and equipment owners avoid unnecessary replacement or repeated failure after installation.

• Check engine oil level, oil grade and oil contamination.

• Inspect oil filter, oil strainer and oil pickup tube condition.

• Check whether the pressure relief valve is stuck, worn or contaminated.

• Inspect crankshaft bearings, camshaft bearings and related lubrication surfaces.

• Confirm whether metal debris or sludge is present in the oil pan.

• Clean the oil circuit if the old pump failed due to contamination or engine wear.

Installation and Maintenance Notes

Before installation, clean the mounting surface and oil passages. Compare the replacement oil pump with the removed unit, including gear position, pump body shape, bolt holes and gasket surface.

Use a proper gasket or sealing method according to the engine repair requirement. After installation, check oil pressure during startup and confirm that oil circulates normally before putting the engine under load.

For longer service life, use clean engine oil, replace filters on time and avoid running the engine with low oil pressure. If the previous failure was caused by sludge, bearing wear or contamination, those causes should be corrected during repair.

Buying Notes for Repair Shops and Parts Distributors

For repair shops, this 1-13100-244-1 engine oil pump is suitable for Isuzu 6BD1 and 6BD1T engine lubrication repair when the old pump is worn, damaged or unable to maintain stable oil pressure. For distributors, it can be supplied as a replacement oil pump reference for Hitachi EX200 and Isuzu engine service demand.

Topvelsun supports small repair orders and bulk inquiries. To improve quotation accuracy, please send the required quantity, old pump number, engine model, machine model and photos of the old oil pump from multiple angles.

FAQ

What is the main product on this page?

This page is for the 1-13100-244-1 engine oil pump used for Isuzu 6BD1 and 6BD1T engine lubrication system repair.

Is 1131002441 the same search reference as 1-13100-244-1?

1131002441 is commonly used as the compact writing format for 1-13100-244-1. The main part number of this page should remain 1-13100-244-1, and the removed oil pump should still be checked before ordering.

Which engine models are the main references?

The main engine references are Isuzu 6BD1 and 6BD1T. Final confirmation should be based on the old oil pump, engine nameplate and pump physical configuration.

Which machine models can be used as references?

Common machine references include Hitachi EX200-1, EX200-2 and EX200-3. These should be treated as application references, and the engine model and old oil pump should be checked before shipment.

What should I check before ordering?

Please check the old oil pump number, engine model, pump body shape, gear design, mounting face, bolt hole pattern and oil passage position. Clear photos of the removed pump are recommended.

What can cause repeated oil pump or low oil pressure problems?

Repeated problems may be caused by dirty engine oil, clogged oil strainer, blocked oil passages, worn bearings, pressure relief valve faults, sludge in the oil pan or installing a new pump without cleaning the lubrication system.
