1023514 102-3514 Engine Oil Cooler Core Assembly Aftermarket for Caterpillar 3304 Engine

102-3514 Engine Oil Cooler Core Assembly Fitment and Service Notes

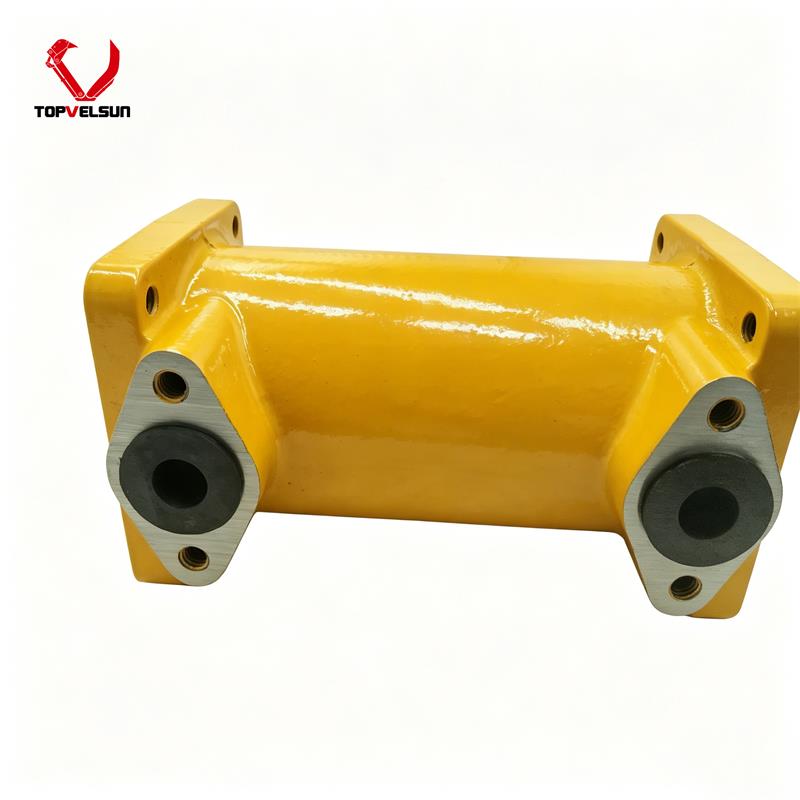

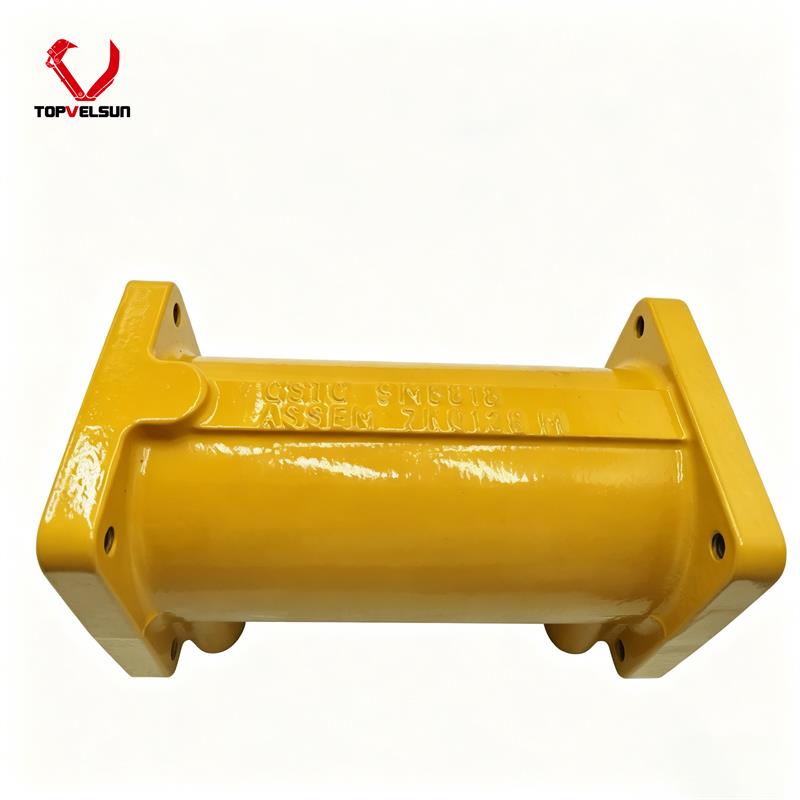

102-3514 is an engine oil cooler core assembly used in Caterpillar applications built around the 3304 family. Public Cat parts information describes this part as a shell-and-tube style oil-to-water cooler, and public compatible-model data includes machines such as D5H, 527, and 950B / 950E families. Before ordering, confirm the current engine and machine configuration.

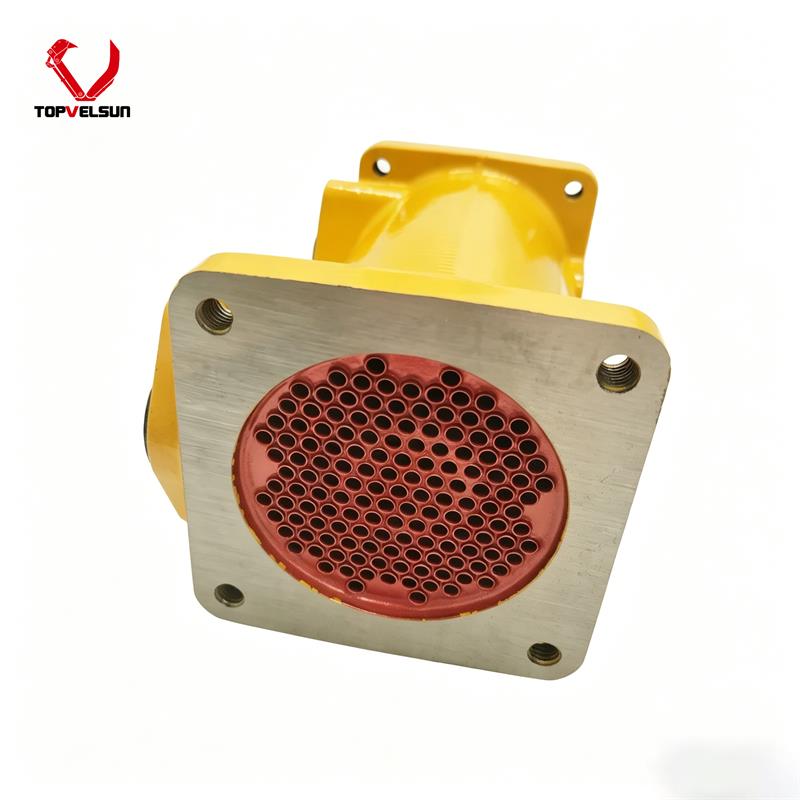

Our premium aftermarket 1023514 (102-3514) Engine Oil Cooler Assembly is engineered to effectively manage thermal loads and reduce your Total Cost of Ownership (TCO). This cooler is designed to meet the original equipment manufacturer’s specifications as closely as possible. Its core is made of high-efficiency copper, which maximizes the transfer of heat from the engine oil to the engine coolant. By maintaining optimal oil temperatures and preventing cross-contamination, the 1023514 keeps your machine out of the repair shop and extends the life of your 3304 engine components.

Common Faults & Deep Troubleshooting

When the oil cooler fails on a Cat 3304 engine, it can quickly lead to severe engine damage. Check for these symptoms indicating your 1023514 cooler needs replacement:

1. Oil Mixed in the Coolant Radiator (The "Milkshake" Effect)

• Symptom: The engine coolant reservoir contains a thick, milky-brown substance.

• Troubleshooting: The engine oil circuit operates at a higher pressure (1.0–1.5 MPa) than the coolant circuit (0.3–0.5 MPa). When the internal copper tubes of the oil cooler corrode or rupture, pressurized oil is forced into the coolant system. If you discover oil in the radiator, the 1023514 assembly must be replaced immediately, and the entire cooling system must be flushed.

2. Overheating Engine Oil / Low Oil Pressure Alarms

• Symptom: The dashboard shows high engine oil temperatures, followed by a drop in engine oil pressure when the machine is under heavy load.

• Troubleshooting: This indicates that the internal passageways of the cooler are clogged with sludge or heavy calcium scale from improper coolant use. The restricted flow prevents heat exchange, causing the oil to thin out. A flow restriction test will confirm the blockage.

3. External Oil or Coolant Leaks

• Symptom: Fluid is pooling around the base of the oil cooler housing.

• Troubleshooting: This is typically caused by hardened or blown O-rings between the cooler core and the cast-iron housing. If the housing itself is cracked from age or improper torque, the entire 1023514 unit requires replacement.

Installation & Maintenance Notice

1. System Flush is Mandatory: Before installing the new 1023514 cooler, you must thoroughly flush both the engine cooling system and the lubricating oil circuit. If the previous cooler failed due to corrosion or internal breakdown, contaminated debris left in the lines will instantly destroy the new copper core.



2. O-Ring Lubrication: Always lubricate the new sealing O-rings with clean engine oil prior to assembly. Installing O-rings dry can cause them to twist, pinch, or tear during the tightening process, leading to immediate high-pressure leaks.



3. Before replacement, inspect the old cooler housing, flange surfaces, and related seals. If the old unit failed because of contamination, flush the system before installing the new core assembly. For torque values and service procedures, use the serial-number-specific Caterpillar service information rather than generic figures.




4. Coolant Maintenance: To protect the copper core of your new aftermarket cooler, only use Caterpillar-approved Extended Life Coolant (ELC) or ensure standard coolants are properly mixed with Supplemental Coolant Additives (SCA) to prevent internal scaling.
