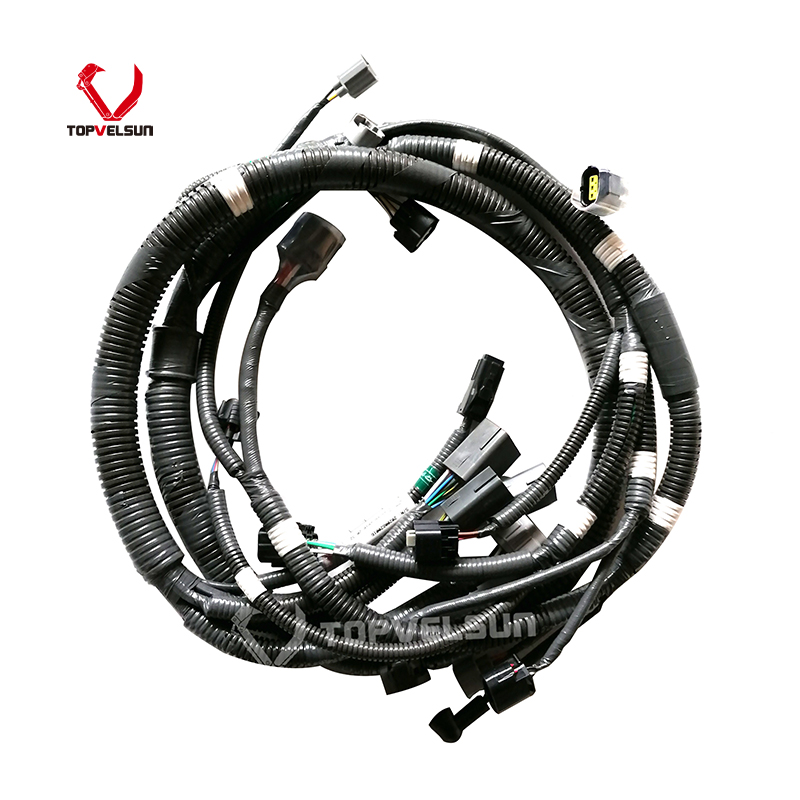

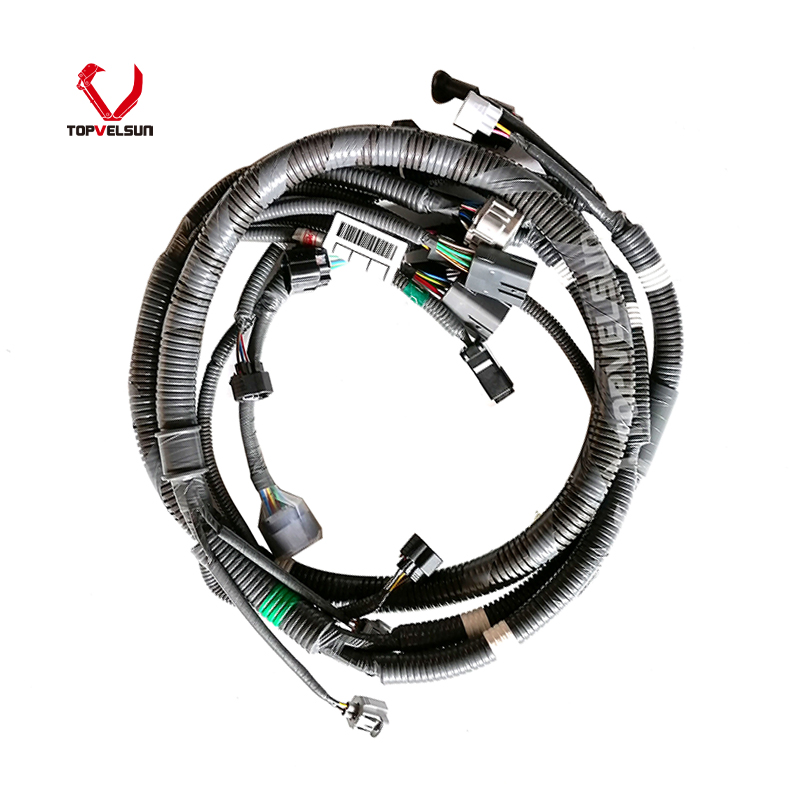

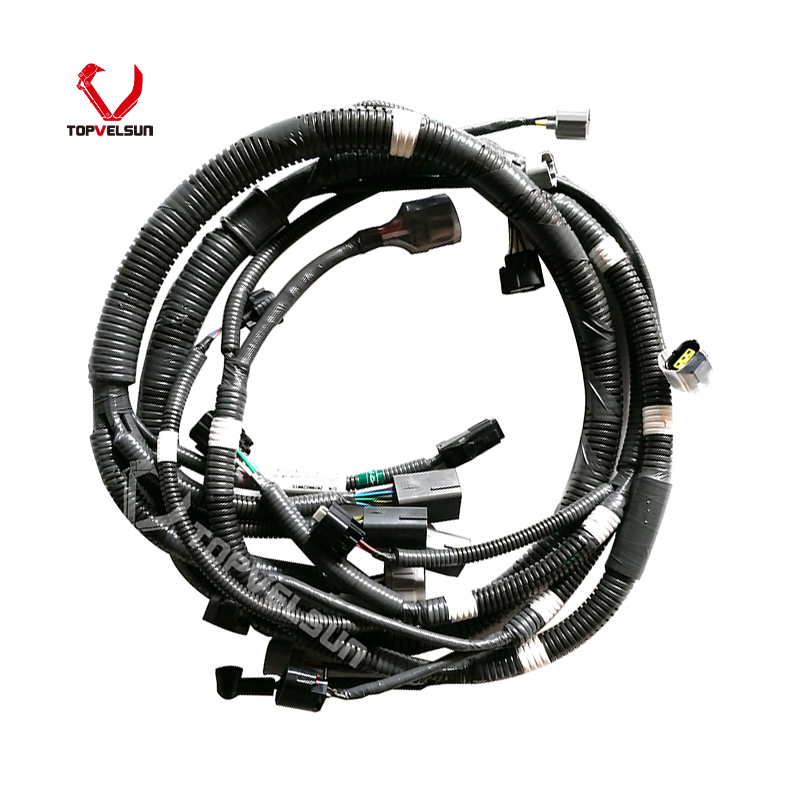

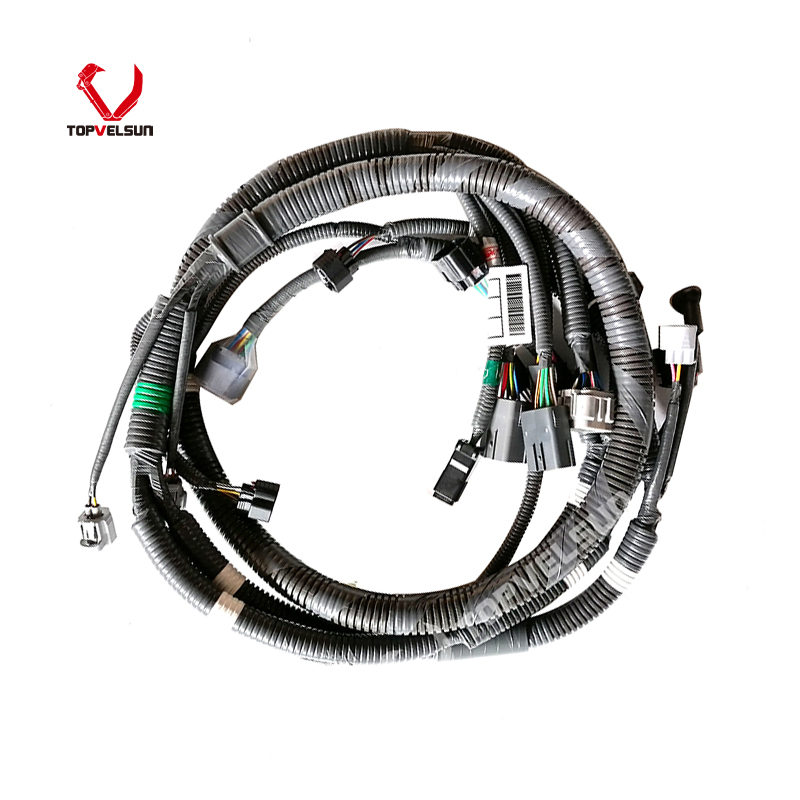

8-98002897-7 Engine Wiring Harness for Isuzu 4HK1 & John Deere Excavators

Replace Your Faulty 8-98002897-7 Harness for Reliable 4HK1 Performance

Electrical gremlins, sudden stalling, and engine derating (limp mode) are the most frustrating—and expensive—causes of excavator downtime. The wiring harness acts as the central nervous system of your Isuzu 4HK1 engine. Over thousands of hours, constant engine vibration, high heat, and oil exposure cause original wires to become brittle and short out.

Our premium 8-98002897-7 Engine Wiring Harness is engineered to eliminate these costly diagnostic headaches and lower your Total Cost of Ownership (TCO). Designed as an exact-fit replacement for John Deere 220DW, 190DW, and 225DLC models, this harness ensures flawless data transmission between the Engine Control Module (ECM) and all critical sensors (camshaft, crankshaft, fuel rail pressure, and injectors).

Built with heavy-duty, heat-resistant corrugated tubing and OEM-spec waterproof connectors, it guarantees a secure, long-lasting fix to keep your machinery on the job site and out of the repair shop.

Technical Specifications

Common Fault Codes & Troubleshooting (Highly Professional)

If your excavator's dashboard is throwing the following Diagnostic Trouble Codes (DTCs), a degraded or shorted 8-98002897-7 wiring harness is a highly probable cause:

• DTC P0340 / P0341 (Camshaft Position Sensor Signal Error):



• Symptom: The excavator experiences extremely hard starting or cranks but fails to start.

• Diagnosis: Mechanics often mistakenly replace the sensor. However, engine vibration frequently breaks the internal copper wire near the sensor plug. If continuity tests from the plug to the ECM fail, the harness must be replaced.



• DTC P0192 / P0193 (Fuel Rail Pressure Sensor Voltage Low / High):



• Symptom: The Check Engine Light illuminates, and the machine enters "limp mode" (severe power restriction/engine derating).

• Diagnosis: P0192 (Low) usually means the harness insulation has rubbed away, causing a direct short to the engine block. P0193 (High) indicates a broken wire or severe water intrusion in the connector. Inspect the harness routing near the cylinder head and high-pressure fuel pump.



• DTC U2104 (CAN Bus Communication Error):



• Symptom: The display monitor cannot read engine RPM or coolant temperature, and control modules lose communication.

• Diagnosis: Check the main J-14 ECM connector on the harness for backed-out pins, loose terminals, or moisture damage.

Official Installation & Routing Guidelines

To protect your expensive ECM and validate your warranty, follow these strict installation rules:

1. Absolute Power Disconnect (CRITICAL): Before removing the old harness or connecting the new 8-98002897-7 harness, you MUST disconnect the excavator's battery negative terminal. Plugging or unplugging live ECM connectors can cause voltage spikes that will instantly fry the main computer board and fuel injector coils.




2. Exact OEM Routing: Route the new harness exactly along the original factory path. Use high-temperature zip ties and secure all metal mounting clips. Never allow the harness to sag and touch the turbocharger, exhaust manifold, or get near the cooling fan belts.



3. Connector Lock Verification: Isuzu 4HK1 5-volt sensor signals are extremely sensitive. Push every connector until you hear a distinct mechanical "click." Ensure the internal weather seals are not folded or missing. Do NOT pack the pin terminals with standard non-conductive dielectric grease.



4. Vibration Slack Test: After installation, start the engine. Observe the harness while the engine idles and revs. Ensure there is adequate slack at all branch points to absorb engine rocking and vibration without pulling the wires tight.
