222-5917 Fuel Injector Harness Assembly for CAT C7 Engine Caterpillar 324D 325D 329D Excavator

222-5917 Fuel Injector Wiring Harness for Caterpillar C

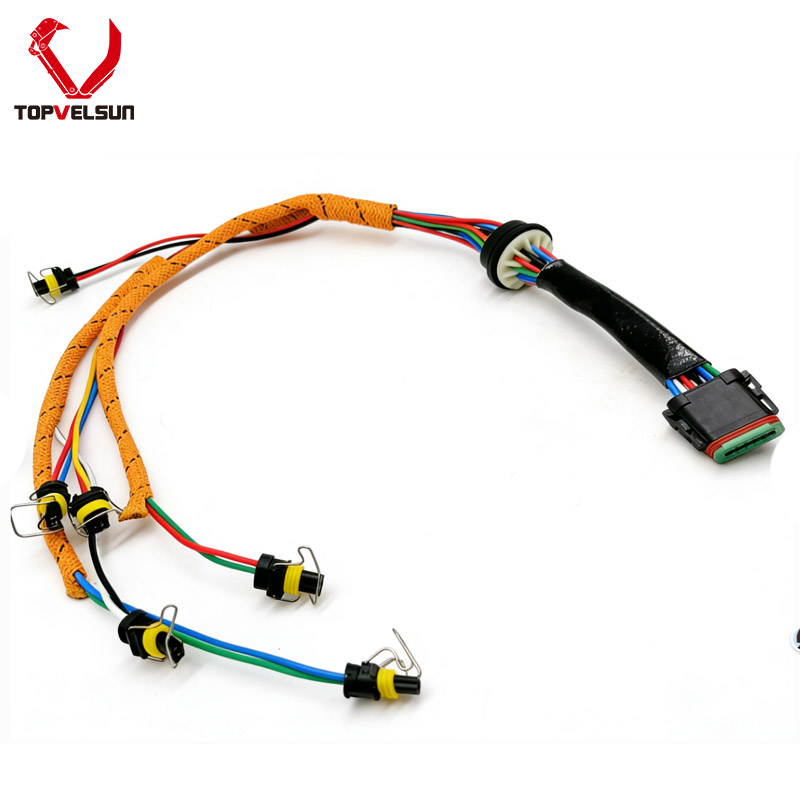

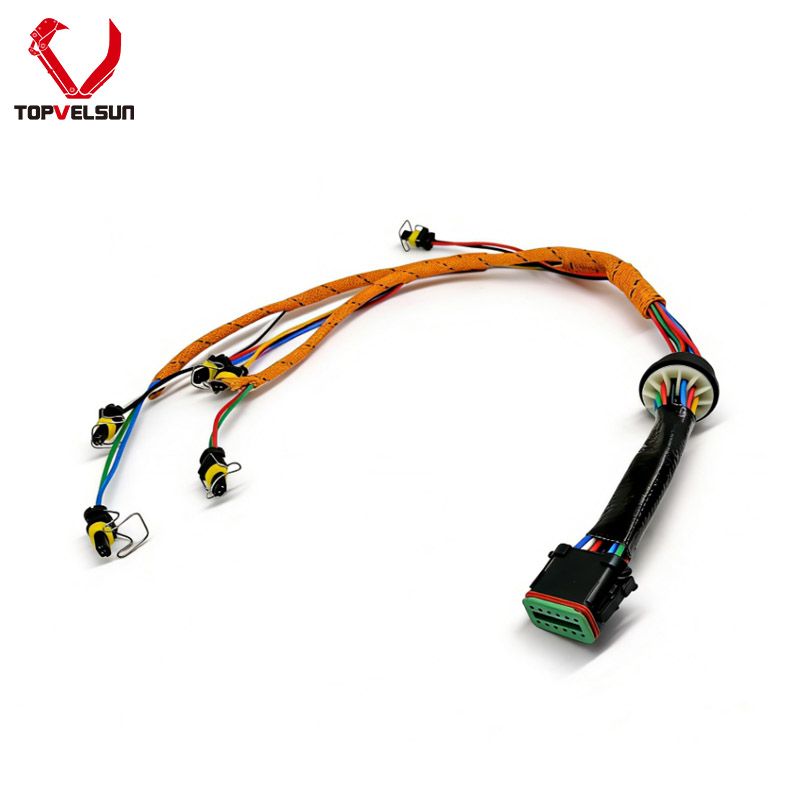

The 222-5917 fuel injector wiring harness is used for Caterpillar C7 HEUI engine injector control applications. It is commonly searched as a fuel injector harness assembly, injector wiring harness, HEUI harness, or engine control harness for Caterpillar 324D 325D 326D 328D LCR 329D machine references.

This page should remain focused on 222-5917 and the no-hyphen search format 2225917. Final fitment should be verified by old harness label, connector shape, pin count, harness routing, engine model and machine serial number before ordering.

Product Identification for 222-5917 2225917 Injector Harness

Application Scene: C7 Injector Control Circuit Repair

The 222-5917 harness is not a general cable set. It is part of the injector control wiring system for Caterpillar C7 HEUI engine applications. When the harness ages or becomes damaged, the engine may show intermittent injector control faults, unstable running, abnormal fault codes, hard starting, derating, or cylinder-related misfire symptoms.

On excavators such as 324D 325D 329D, the harness may be exposed to heat, vibration, oil contamination, fuel mist, repeated maintenance handling and connector stress. These conditions can cause brittle insulation, loose terminals, broken locking clips, poor contact, or signal interruption.

Before replacing the harness, check whether the fault comes from the harness itself, injector connector contact, ECM-side wiring, ground circuit, or related engine sensor wiring. Replacing only the harness may not solve the issue if the root cause is outside the injector harness circuit.

Compatible Model Reference

Common Failure Symptoms Related to Injector Harness Damage

Connector and Pin Count Verification

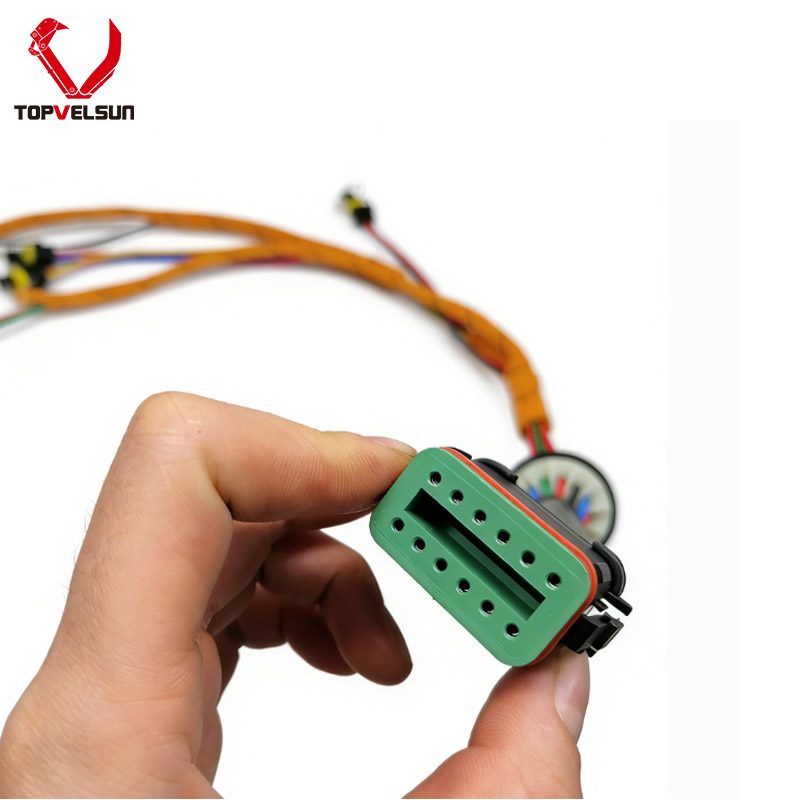

For 222-5917 orders, connector verification is essential. A harness can look similar in product photos but still differ in plug shape, locking structure, pin count, branch length, terminal position or routing direction.

Before shipment, compare the old harness label, complete harness layout, injector-side connectors, ECM-side connector, branch split points and mounting positions. If the old harness has been repaired or modified before, provide clear photos of the modified area.

For remote orders, send the old harness laid flat, close-up photos of every connector face, pin count photos, engine nameplate, machine model plate and any visible part number mark.

Installation and Maintenance Notes

Disconnect the battery before removing the old harness. Mark connector positions and routing clips before disassembly, especially if multiple connectors are close together around the engine.

Route the replacement harness along the original path. Keep it away from sharp edges, exhaust heat, moving parts, fuel leakage areas and sections where vibration may cause rubbing.

After installation, recheck connector locks, wire clearance, clamps, grounding points and active diagnostic codes. Start the engine and monitor injector-related fault codes, idle stability, acceleration response and machine warning messages.

If the same injector fault code remains, inspect the injector, ECM connector, power supply, ground circuit and related wiring before replacing additional parts.

Why Source 222-5917 from Topvelsun?

Topvelsun supplies replacement wiring harnesses and electric system parts for excavators, loaders, bulldozers, diesel engines and heavy equipment repair. For 222-5917 orders, we help buyers compare old harness photos, connector layout, pin count, machine model and engine information before shipment.

This product is suitable for repair workshops, fleet maintenance teams, engine electrical technicians, parts distributors and overseas buyers working on Caterpillar C7 injector harness replacement.

FAQ

Is 2225917 the same search format as 222-5917?

Yes. 2225917 is the no-hyphen search format of 222-5917. Both formats can be used on the same product page.

What engine is the 222-5917 injector harness used for?

222-5917 is mainly associated with Caterpillar C7 HEUI engine injector harness applications. Some aftermarket listings may mention C7.2 or C9.3, but final fitment should be verified by old harness and machine configuration.

Can this harness fit Caterpillar 324D 325D and 329D excavators?

These models are common compatible references for this harness group, but machine serial number, connector layout and old harness label should still be checked before ordering.

What photos should be sent before ordering?

Send photos of the complete old harness, every connector face, pin count, harness label, engine nameplate, machine model plate and any damaged or repaired wiring section.

Is this an original Cat part?

Unless the actual product source and packaging prove otherwise, this page should describe the item as an aftermarket replacement harness for Caterpillar 222-5917 reference.
