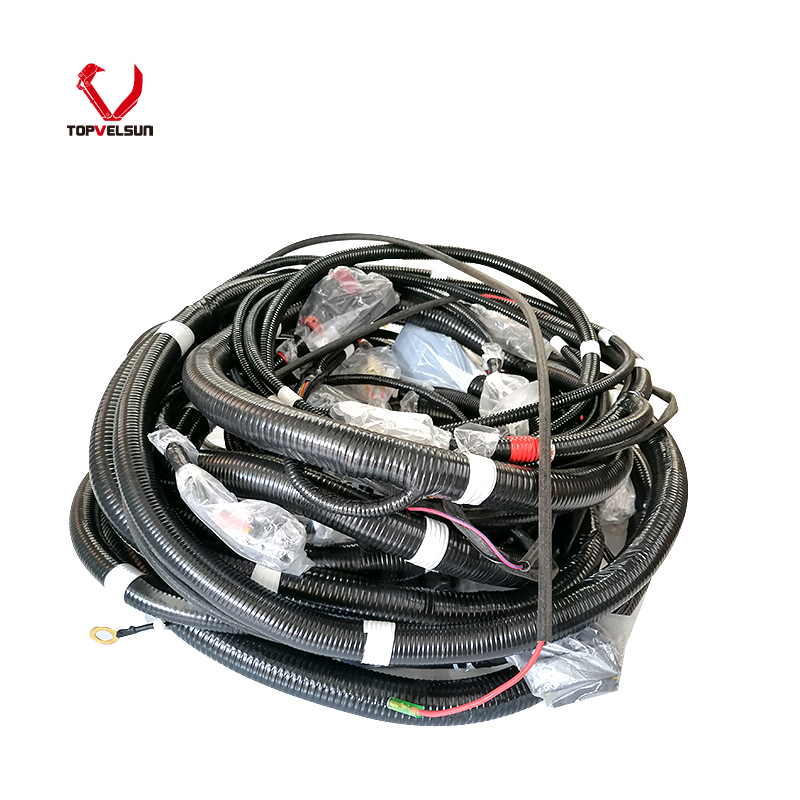

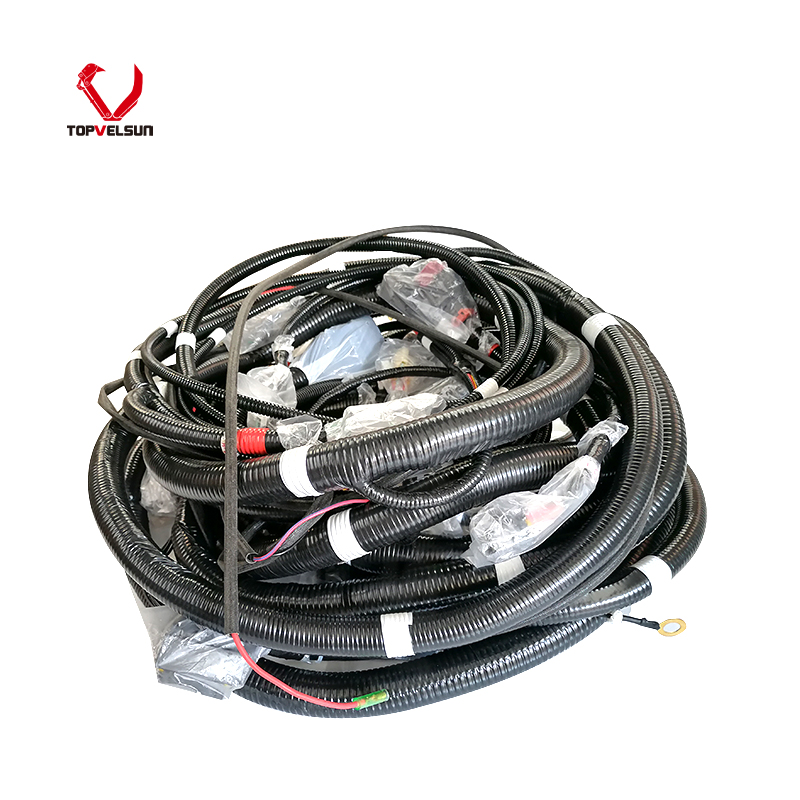

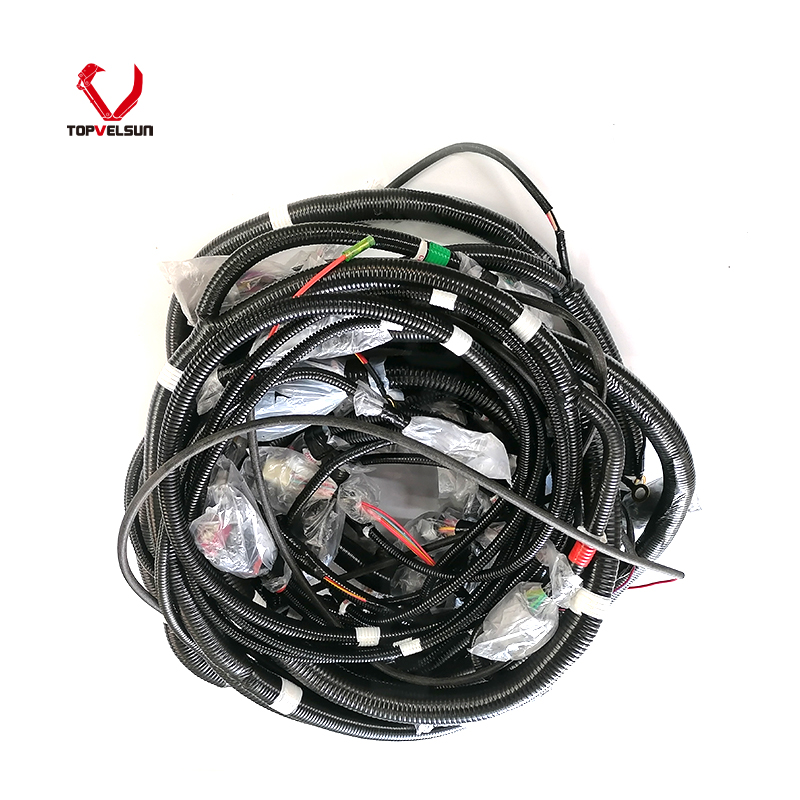

2052446H Engine Wiring Harness for Isuzu 6WG1 Engine Hitachi ZX450-3 ZX470-3 ZX500LC-3 John Deere 450DLC

2052446H: Restore Precision Timing and Fuel Efficiency to Your Isuzu 6WG1

The Isuzu 6WG1 engine is the heart of your 45-to-50-ton excavator. Because this engine operates in high-heat and high-vibration environments, the original wiring harness eventually succumbs to thermal fatigue. Brittle wires and corroded connectors lead to misfires and high fuel consumption, significantly increasing your Total Cost of Ownership (TCO).

The 2052446H harness is engineered to meet or exceed OEM specifications. It ensures that the millisecond-timed signals from the ECM reach the injectors and fuel rail sensors without resistance. By replacing a degraded harness with the 2052446H, you eliminate "phantom" electrical faults that cause expensive, unnecessary sensor replacements, ensuring your machine stays on the job site and maintains peak breakout force.

Common Fault Codes & Deep Troubleshooting (Isuzu 6WG1 Platform)

If your Hitachi ZX-3 or John Deere D-Series machine is throwing the following codes, the 2052446H harness is likely the culprit:

1. DTC P0201 through P0206 (Injector Circuit Open/Short)

• Symptom: The engine runs on 5 cylinders (or fewer), severe vibration, and heavy black smoke.

• Troubleshooting: The 6WG1 injector harness is located under the valve cover or near high-heat zones. Heat causes the insulation to crack, leading to a short. Unplug the injector connector; if there is oil inside the plug or the wire is brittle, the 2052446H harness must be replaced to prevent ECM damage.

2. DTC P0192 / P0193 (Fuel Rail Pressure Sensor Circuit Low/High)

• Symptom: Sudden engine shutdown or "Limp Mode" where RPM is restricted to 1000.

• Troubleshooting: This is often not a sensor failure but a broken signal wire within the harness. Check the voltage at the sensor plug. If the 5V reference is missing or fluctuating, the main trunk of the harness has internal copper fatigue.

3. DTC P0335 / P0336 (Crankshaft Position Sensor Signal Error)

• Symptom: The engine cranks but refuses to start, or stalls unexpectedly when the engine reaches operating temperature.

• Troubleshooting: Inspect the harness routing near the flywheel housing. The 2052446H harness is designed with extra shielding for these timing wires to prevent electromagnetic interference. If the shielding is compromised, the engine will lose its timing sync.

Official Installation & Maintenance Protocols

1. Safety First (Battery Isolation): Always turn off the battery disconnect switch and remove the negative terminal. The 6WG1 uses high-voltage signals for the common-rail injectors; a short during installation can destroy the expensive ECM.



2. Standard Routing Path: Follow the factory "backbone" routing along the engine block. Use heavy-duty, heat-resistant ties. Crucial: Ensure the harness is not pinched between the valve cover and the cylinder head during installation.



3. Heat Shield Reinstallation: The 6WG1 generates immense heat near the turbocharger side. Ensure all original heat shields or reflective sleeves are transferred to the new 2052446H harness to prevent the insulation from melting.



4. Connector Sealing: Before clicking the connectors into place, inspect the orange or green silicone seals. Apply a tiny amount of electrical contact cleaner if needed, but never force a connector. You should hear a distinct "click" when the locking tab engages.
