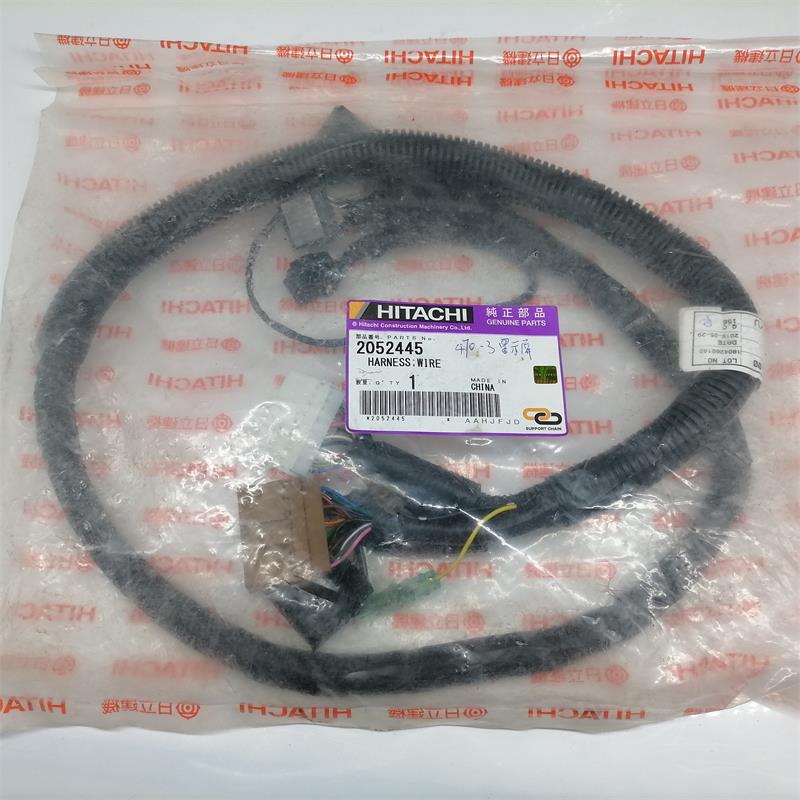

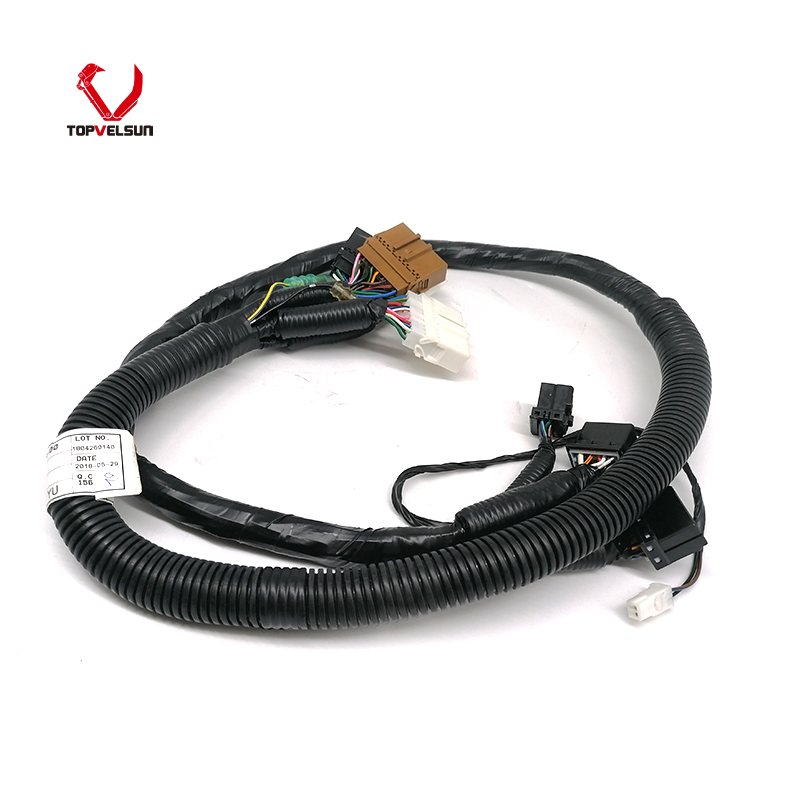

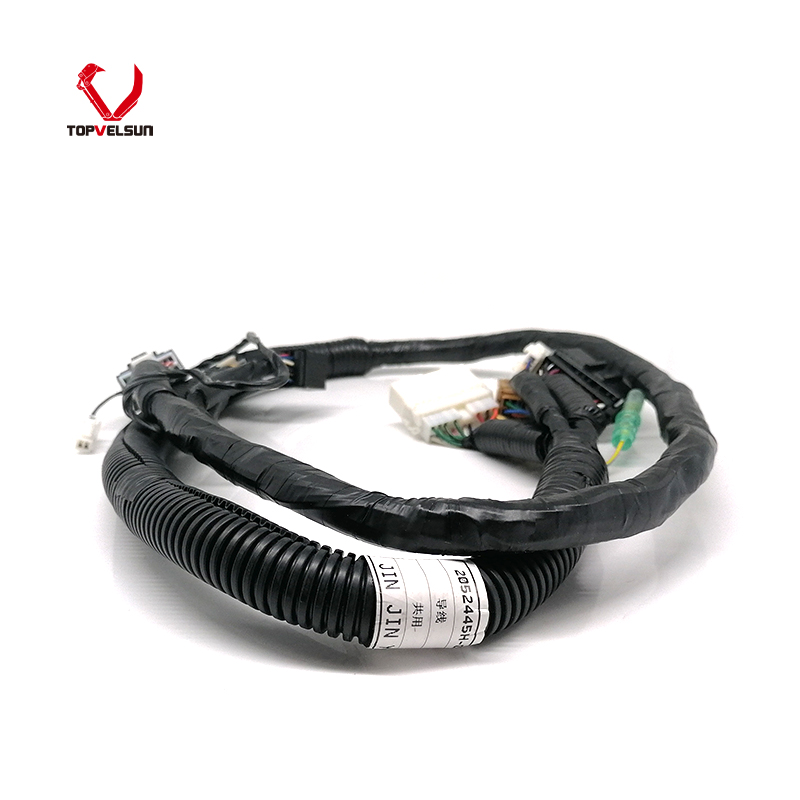

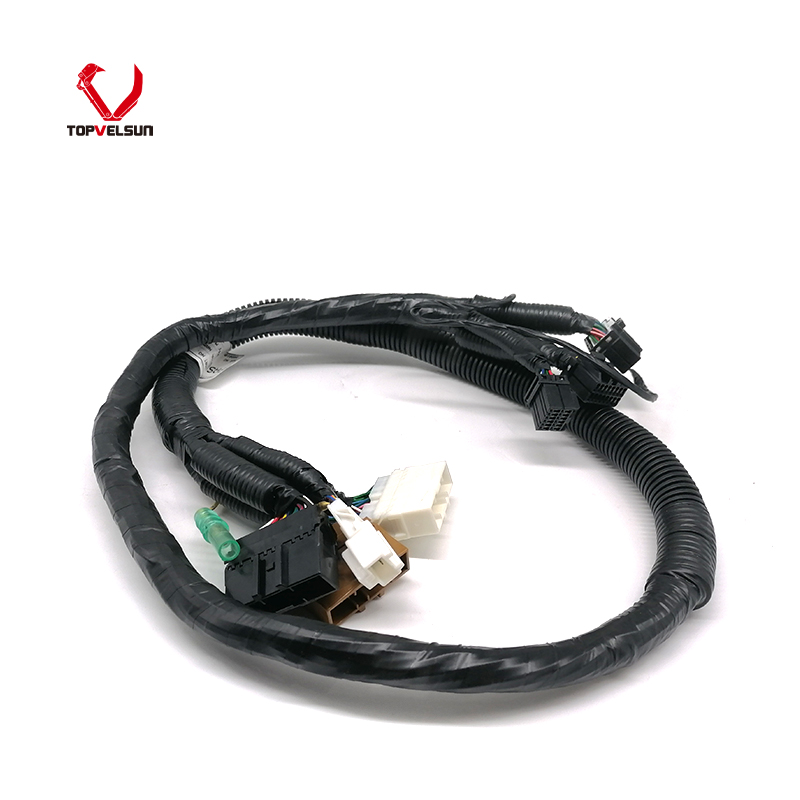

2052445 Monitor Wiring Harness for Hitachi ZX450-3 ZX850-3 John Deere 450D 850D

2052445: Genuine OEM Quality for Maximum Machine Uptime

This 100% Genuine 2052445 Monitor Wiring Harness is the exact factory-installed component designed by Hitachi. It serves as the vital data bridge between the Main Controller (MC), the Information Controller (IC), and the cabin display panel. Unlike aftermarket alternatives that use unshielded wires, this original harness is engineered to survive the high-dust, extreme-vibration, and high-temperature environments of a quarry or mine site.

Secure the "Data Vision" of Your Heavy-Duty Excavator

In 45-ton to 85-ton mining and mass-excavation applications, unexpected downtime costs thousands of dollars per hour. The cabin monitor is the operator’s only window into the health of the massive Isuzu 6WG1 engine and the main hydraulic pumps. When degraded wiring causes the monitor to blackout or drop data, the operator is forced to run blind—risking catastrophic engine failure or hydraulic overheating.

Why the Original 2052445 Harness Lowers Your Total Cost of Ownership (TCO)

When dealing with heavy mining equipment, cheap electrical parts are a massive liability. Investing in the authentic 2052445 harness lowers your TCO by eliminating the need for repetitive electrical diagnostics. You are guaranteed:

• Anti-Interference Data Shielding: OEM-grade high-density shielding blocks electromagnetic interference (EMI) from the alternator, ensuring zero screen glitching or false data readings.


• Vibration-Proof Terminals: Features original Hitachi-spec gold-plated pins that resist oxidation and maintain a perfect connection, even under constant rock-blasting vibrations.

• Flawless Plug-and-Play Fitment: Eliminates pin-mapping errors. It installs perfectly the first time, slashing mechanic labor hours and getting your machine back to moving dirt immediately.

Common Fault Codes & Deep Troubleshooting (Professional Diagnostics)

When the heavy-duty Hitachi or John Deere excavator exhibits the following alarms, the original 2052445 harness has likely reached its physical fatigue limit:

1. Fault Code 11000-2 / 11004-2 (CAN Bus & Monitor Communication Loss)

• Symptom: During heavy digging, the display screen suddenly flashes a full-screen warning, goes entirely black, or all digital gauges drop to zero. The excavator may also force itself into a low-idle safety mode.

• Troubleshooting: Unplug the main connector at the back of the monitor. Use a multimeter to check the terminating resistance between the CAN-H and CAN-L pins. If the resistance fluctuates wildly when you wiggle the harness, the internal copper data lines of the 2052445 harness have snapped. A genuine replacement is mandatory to restore the closed-loop network.



2. Symptom: Monitor Intermittent Reboot Loop

• Symptom: As the excavator tracks forward or swings, the monitor screen repeatedly cycles through "Shutting Down - Booting Logo - Shutting Down."

• Troubleshooting: This is typically caused by the main 24V power wire or the Ground (GND) wire inside the harness chafing against the metal cabin frame. Inspect where the harness routes through the console panels. If you find burn marks or exposed copper, do not simply wrap it in electrical tape (which is a severe fire hazard). The entire harness must be replaced.

Official Installation & Maintenance Protocols

1. Absolute Power & ESD Safety (CRITICAL): Before installing the new 2052445 harness, you MUST disconnect the battery isolator switch and the negative battery terminal. The microprocessors inside the display monitor are highly susceptible to Electrostatic Discharge (ESD). Hot-plugging a live harness will instantly short out the screen's motherboard.



2. Strict Heat Avoidance Routing: While the cabin interior is protected from the weather, the routing path passes near the cabin heater core. When installing the new harness, you must use all factory zip-tie anchor points. Never allow the harness to rest directly against the heater pipes or the blower motor housing, as the constant heat will bake the insulation and cause premature failure.



3. Moisture Sealing & Connector Lock: When pushing the multi-pin connector into the back of the monitor, push perfectly straight until you feel the mechanical locking tab click into place. If the excavator operates in high-humidity environments (like tunneling or tropical climates), mechanics may apply a light coat of dielectric grease to the outer rubber seal of the connector to block moisture—never pack the grease directly inside the pinholes.
