259-5296 Harness AS-CAB Wiring for CAT C4.2 C6.4 3066 Engine Caterpillar 311D 320D Excavator

Common Symptoms That May Require Cab Harness Inspection

Intermittent monitor faults: display warnings, signal loss or screen issues appear during vibration or movement.

Cab switch problems: switches, operating mode controls or electrical functions respond intermittently.

Connector damage: loose pins, broken locks, corrosion, water ingress or oil contamination at the plug.

Wiring insulation damage: wires become cracked, cut, hardened or rubbed through inside the cab routing area.

No power or unstable signal: open circuit, short circuit or poor ground may stop related cab electrical functions from working correctly.

Fitment Check Before Ordering

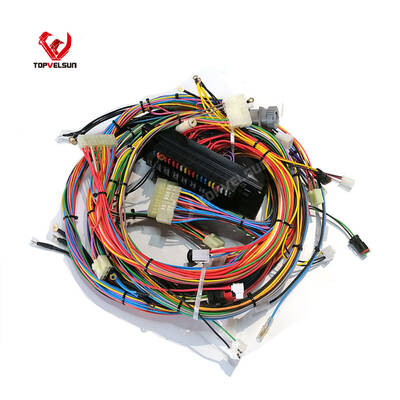

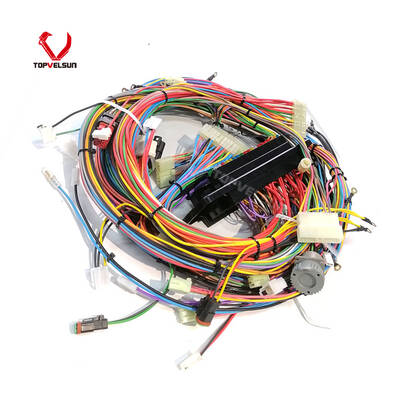

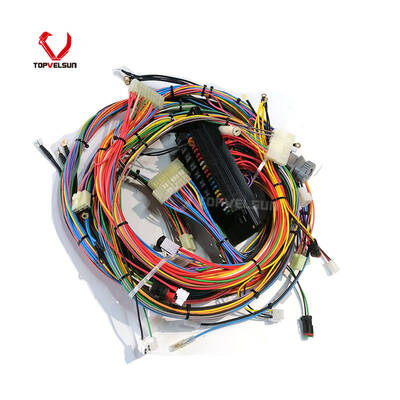

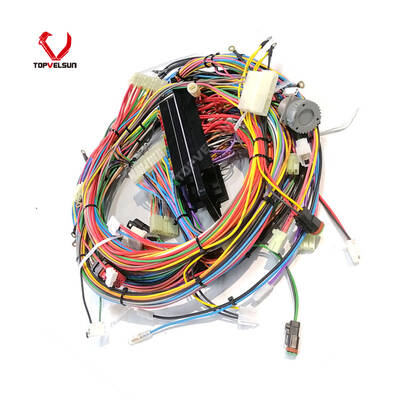

Before ordering this 259-5296 Caterpillar cab wiring harness, compare it with your original harness. Important confirmation points include the harness label, connector quantity, connector shape, pin count, branch layout, cable length, routing position and machine serial number.

For faster confirmation, please send clear photos of the original harness label, each connector, full harness routing, damaged area and machine model plate. This helps reduce wrong orders and confirms whether the harness matches your Caterpillar 311D or 320D excavator.

Installation and Maintenance Notes

Disconnect machine power before removing or installing the cab wiring harness.

Do not pull directly on the wires. Release connector locks before unplugging.

Inspect all connectors for bent pins, corrosion, water ingress and loose terminals.

Route the harness away from sharp edges, pedal movement, hot surfaces and pinch points.

After installation, check monitor display, switches, warning indicators and related cab electrical functions before returning the machine to work.

Ordering Information

Topvelsun supplies wiring harnesses, cable sets, sensors, controllers, monitor panels and electrical components for Caterpillar, Komatsu, Hitachi, Hyundai, Kobelco, Volvo and other heavy equipment brands. For this 259-5296 cab harness, please provide your machine model, serial number, original part number and connector photos before quotation.

FAQ

What is 259-5296 used for?

259-5296 is listed as a cab wiring harness / harness AS reference for Caterpillar excavator cab electrical system applications. Final fitment should be verified by the original harness label and connector layout.

Can this harness be confirmed by machine model only?

No. Cab wiring harnesses may vary by machine serial number, cab configuration, connector layout and harness routing. Photos of the original harness are recommended before ordering.

Are there confirmed cross reference numbers for 259-5296?

No additional cross reference has been confirmed from public sources. Use 259-5296 as the primary reference and verify by the original harness label or parts catalog.

What photos should I send for confirmation?

Please send photos of the original harness label, all connectors, pin layout, full harness routing, damaged area and machine model plate.
