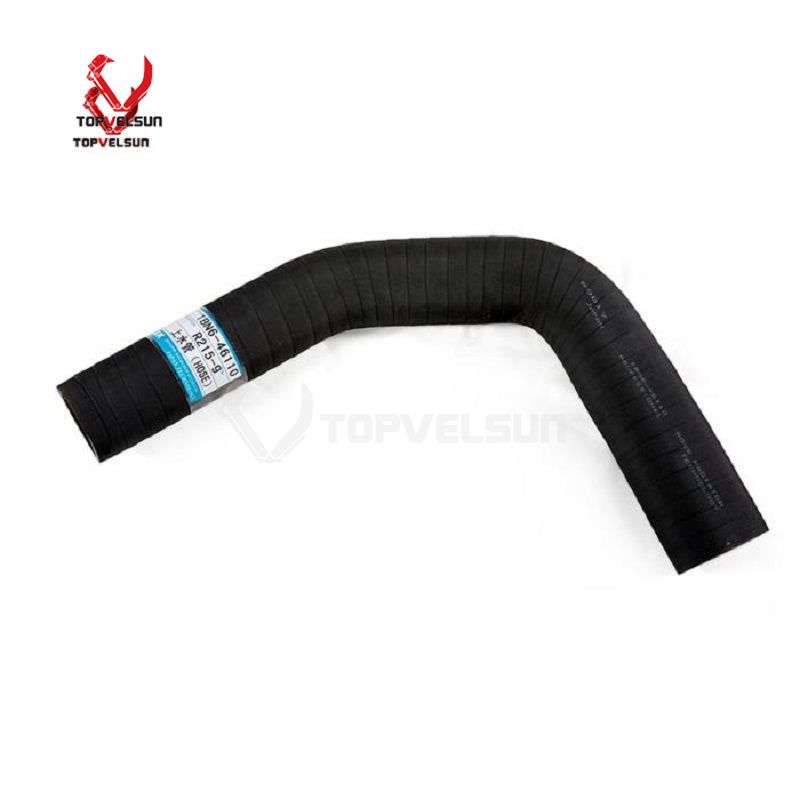

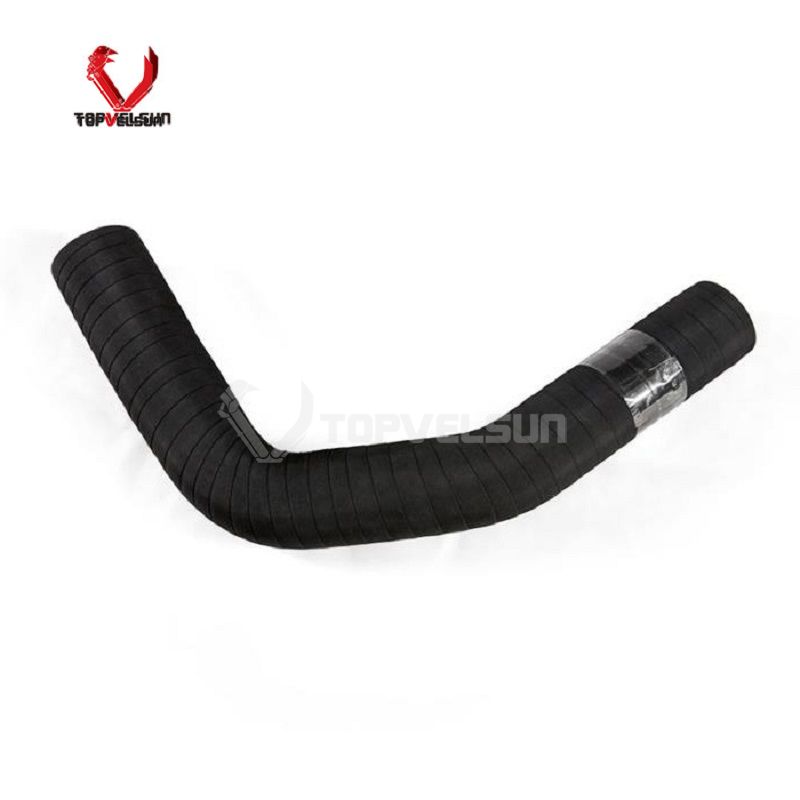

11N6-46100 Lower Radiator Hose for Hyundai Excavator R215-7 R210LC-7H

11N6-46100 Radiator Water Hose for Hyundai R215-7 Excavator

The 11N6-46100 radiator water hose is supplied for Hyundai excavator engine cooling system repair. It is commonly searched as 11N6-46100, 11N646100, radiator hose, water hose, lower radiator hose or coolant hose for Hyundai R215-7, R210LC-7H and R210/220LC-7H model references.

This page focuses on 11N6-46100 as the main part number. The no-hyphen format 11N646100 can be used for search and checking, but final fitment should be confirmed by the old hose shape, bend angle, hose length, inner diameter, clamp position and machine information before ordering.

Part Number and Hose Type Notes

11N6-46100 is the main part number direction for this product page. In buyer searches and supplier records, the same hose may also be written as 11N646100 without the hyphen.

This product should be described as a radiator water hose, lower radiator hose or coolant hose for the engine cooling system. It should not be mixed with turbo air hoses, intake hoses, hydraulic hoses or general pipe listings, because those products serve different systems and different installation positions.

For SEO clarity, this page should not keep the old general hose directory with CAT, E200B, E320, E330 and other unrelated hose part numbers. Those items belong to separate product pages or a category guide, not inside the 11N6-46100 product description.

Application Reference for Hyundai Excavators

The strongest application direction for this hose is Hyundai R215-7 excavator cooling system repair. Market references may also connect 11N6-46100 with Hyundai R210LC-7H and R210/220LC-7H model references, depending on machine version and cooling system configuration.

These model names should be treated as application references, not as the only fitment proof. Cooling hoses can vary by radiator arrangement, engine version, production serial number and previous repair history.

For accurate ordering, compare the removed hose with the replacement hose before shipment. Photos of the old hose, radiator connection, engine-side connection and clamp positions are helpful for confirmation.

How to Confirm the Correct 11N6-46100 Water Hose

Radiator hoses may look similar, but small differences in bend shape, length or inner diameter can make the hose unsuitable. Before ordering, check the removed hose carefully.

• Confirm whether the old hose number is 11N6-46100 or 11N646100.

• Check whether the hose is installed in the radiator water hose position.

• Compare the hose shape, bend direction, total length and connection angle.

• Measure the inner diameter at both hose ends if the old hose is available.

• Check clamp positions, radiator connection and engine-side connection.

• Send machine model, serial number and old hose photos before quotation if you are not sure.

Common Replacement Reasons

A radiator water hose may need replacement when the machine shows coolant leakage, hose cracking, swelling, soft hose material, hard and brittle rubber, coolant smell, coolant loss, overheating or visible damage around the clamp area.

When replacing 11N6-46100, inspect the radiator, water pump, thermostat housing, hose clamps, coolant condition and nearby hose connections at the same time. A leaking hose may be only one part of a wider cooling system problem.

If the engine has overheated before, check whether the hose failure was caused by aging rubber, excessive pressure, blocked radiator, poor coolant quality or a faulty radiator cap. Solving the root cause helps prevent repeated hose failure.

Installation and Maintenance Notes

Stop the machine and allow the cooling system to cool down before removing the old hose. Release cooling system pressure carefully and drain coolant if required by the repair procedure.

Before installation, compare the new hose with the removed hose. Check bend shape, hose length, inner diameter and clamp position. Clean the connection surfaces and replace damaged or weak hose clamps if needed.

After installation, refill coolant according to the service requirement, bleed air from the cooling system where needed, and check for leakage after the engine reaches operating temperature.

During routine maintenance, inspect the hose surface for cracks, swelling, abrasion, oil contamination and clamp looseness. Early replacement can reduce overheating risk and unexpected downtime.

Buying Notes for Repair Shops and Parts Distributors

For repair shops, this 11N6-46100 radiator water hose is suitable for Hyundai excavator cooling system maintenance when the original hose is leaking, aged or damaged. For parts distributors, it can be supplied as a replacement cooling hose reference for Hyundai R215-7 and related model service demand.

Topvelsun supports small repair orders and bulk inquiries. To improve quotation accuracy, please send the required quantity, old hose photos, machine model, serial number and photos of both hose connection ends.

FAQ

What is the main product on this page?

This page is for the 11N6-46100 radiator water hose used for Hyundai excavator engine cooling system repair.

Is 11N646100 the same search reference as 11N6-46100?

11N646100 is commonly used as the no-hyphen writing format for 11N6-46100. The main part number of this page should remain 11N6-46100, and the old hose should still be checked before ordering.

Which Hyundai models are the main references?

The main model reference is Hyundai R215-7. Market references may also mention R210LC-7H and R210/220LC-7H. Final confirmation should be based on old hose shape, connection ends and machine information.

Is this hose an upper or lower radiator hose?

This page is positioned for the lower radiator water hose direction for Hyundai R215-7 and related model references. Please compare the removed hose shape and installation position before ordering.

What should I check before ordering?

Please check the old hose number, hose shape, bend angle, hose length, inner diameter, clamp position, radiator connection and engine-side connection. Clear photos of the removed hose are recommended.

What can cause repeated radiator hose failure?

Repeated failure may be caused by aging rubber, wrong hose size, loose clamps, poor coolant quality, excessive cooling system pressure, blocked radiator, overheating or oil contamination on the hose surface.
