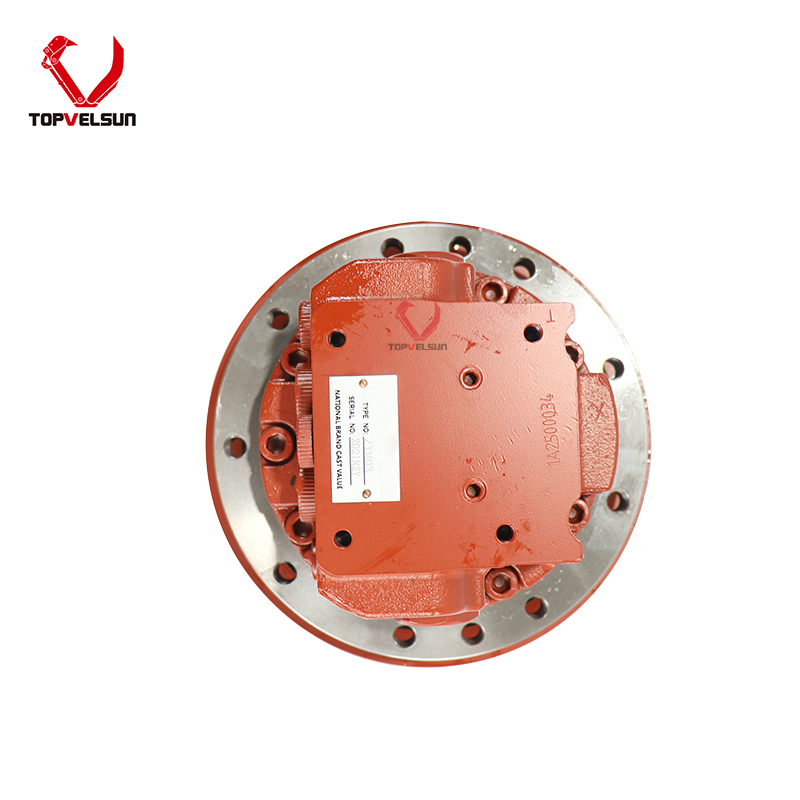

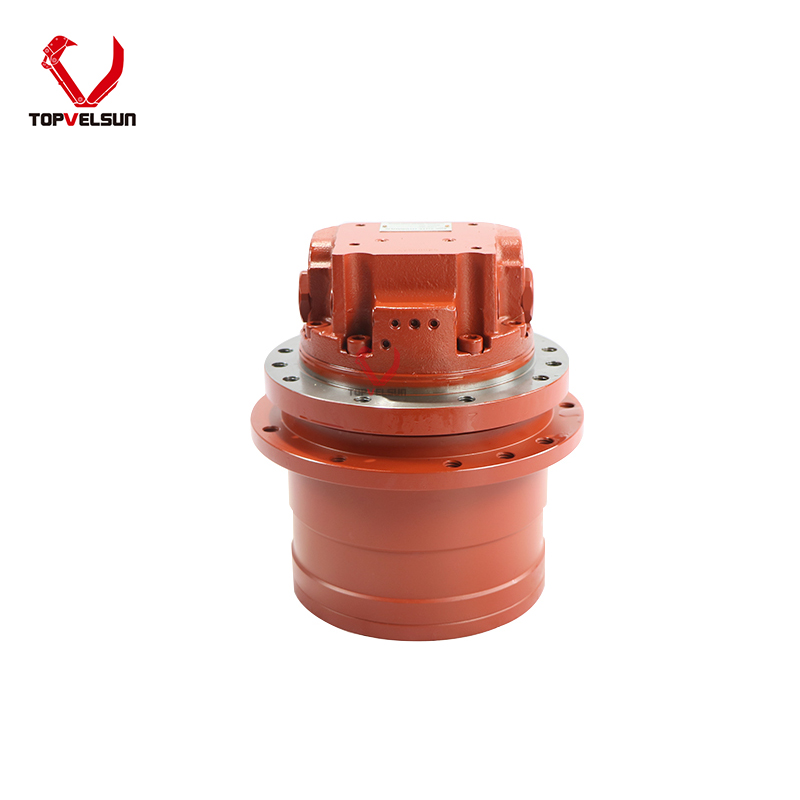

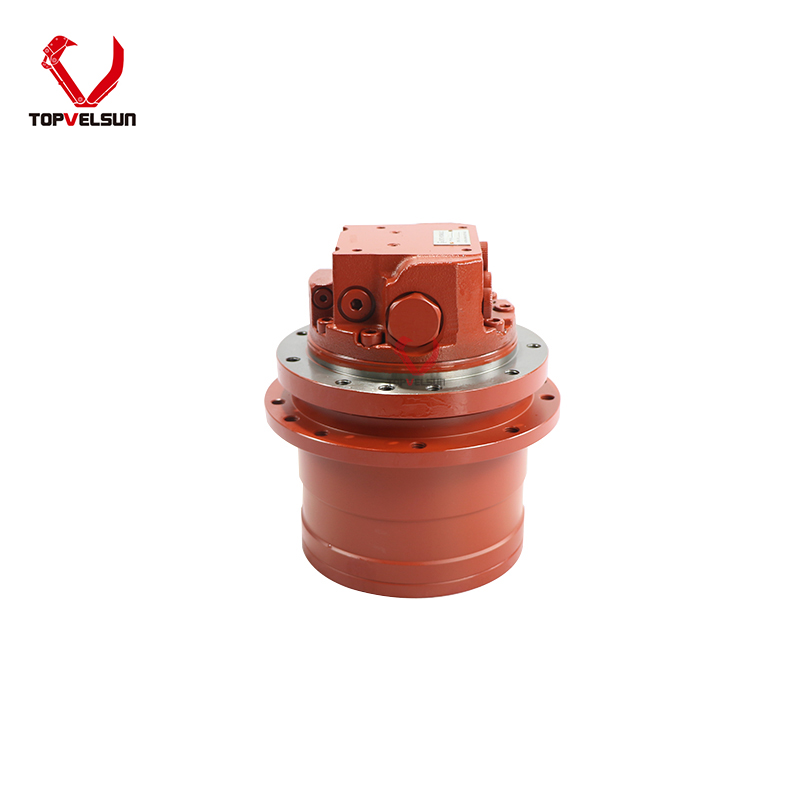

TM03 9-Hole Final Drive Assembly for Mini Excavators (PC20, PC30, EC25, SK30, PC40-7)

Optimize Your Uptime with the TM03 9-Hole Travel Motor Assembly

When a mini excavator goes down, the true cost isn't just the replacement part—it's the lost billable hours, project delays, and expensive mechanic labor. Our premium aftermarket TM03 9-Hole Final Drive Assembly is engineered using the Total Cost of Ownership (TCO) approach. We deliver an OEM-quality replacement that gets your Komatsu, Volvo, or Kobelco compact excavator back to work faster and keeps it running longer.

How This Final Drive Lowers Your TCO:

• Zero Modification Labor (Plug & Play): Featuring the exact 9-hole mounting flange and precise hydraulic port placements, this unit bolts directly onto your PC30, EC25, or SK30 undercarriage. No costly welding, bracket fabrication, or custom hose routing is required.



• Extended Service Life: Built with a heavy-duty, triple-seal system (including premium floating face seals), it effectively locks out mud, water, and debris, drastically reducing the frequency of premature gearbox failures in harsh trenching environments.



• Fuel & Efficiency Gains: The integrated dual-speed auto-shift valve dynamically responds to load changes, providing high torque for dozing and high speed for tracking, optimizing your machine's fuel consumption.



• Affordable Reliability: You receive the durability and torque output of an original NACHI motor without the excessive dealership markup, maximizing your return on investment.


Technical Specifications

6. TCO-Focused Troubleshooting & Maintenance

Proactive maintenance is the key to minimizing your Total Cost of Ownership. Watch for these signs and follow our installation guidelines:

Common Mini Excavator Travel Faults:

• Steering Drift (Pulling to One Side): If track tension is equal, swap the left and right main hydraulic lines. If the weakness remains on the same side, the internal rotary group of that motor is worn and the assembly requires replacement.


• Leaking Thick Oil Behind Sprocket: This indicates a failed main floating seal. Ignoring this will allow dirt to destroy the planetary gears, turning a seal replacement into a complete drive replacement.

Critical Installation Guidelines for Maximum Lifespan:

1. Clear the Case Drain Line (Crucial): A blocked case drain line is the #1 cause of catastrophic motor failure. You must ensure the drain line is completely clear (back-pressure < 0.2 MPa) before operating the new drive.

2. Pre-Lubricate the Motor: Pour clean hydraulic fluid into the motor's top drain port before starting the engine to prevent dry-start scoring on the internal brass components.

3. Accurate Gear Oil Filling: Fill the planetary section with SAE 90 (API GL-5) gear oil. Position the drive so the fill plug is at 12 o'clock and the level plug is at 3 or 9 o'clock. Fill only until oil weeps from the middle plug. Do not overfill.
