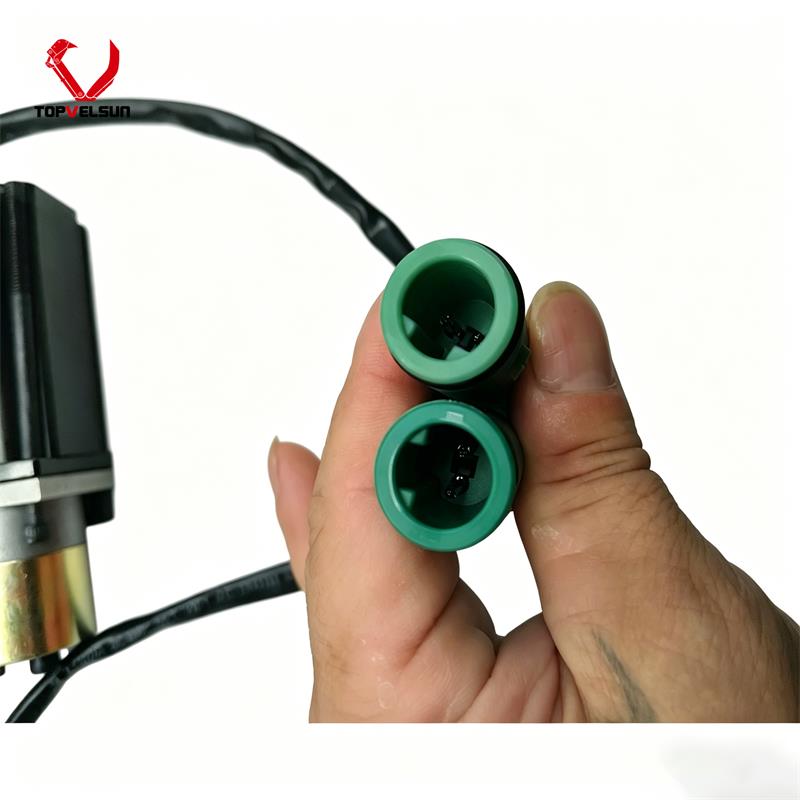

096-5945 Main Pump Solenoid Valve for Caterpillar E200B

096-5945 Main Pump Solenoid Valve for Caterpillar E200B

The 096-5945 / 0965945 main pump solenoid valve is used for Caterpillar excavator hydraulic control system applications. Public supplier references commonly list this valve for CAT E200B excavators, with related model references including E110B, E120B, E70B and EL200B.

This valve should be selected by the original valve marking and physical configuration, not by model name alone. Caterpillar E-series excavators may vary by production version, hydraulic pump configuration, connector type, voltage, wiring harness and previous repair history. Final fitment should be verified before ordering.

Cross Reference Numbers

Common reference numbers may include 096-5945, 0965945, CA0965945 and H0965945.

These numbers should be treated as reference information only. Solenoid valves with similar numbers may still differ in connector shape, voltage, valve body marking, mounting style or hydraulic pump application. Please compare the old valve before purchase.

Application and Fitment Reference

This 096-5945 Caterpillar solenoid valve is mainly referenced for E200B excavator applications. Public supplier references also list related Caterpillar excavator models such as E110B, E120B, E70B and EL200B.

Some references also mention engine families such as Caterpillar 3114 / 3116 and Mitsubishi S4K-T / S6KT / 4D32. These should be used as supporting references only. The final selection should be based on the old valve marking, connector, mounting position and machine serial number.

Common Failure Symptoms

• Slow hydraulic response: boom, arm, bucket or travel functions respond slowly during operation.

• Unstable pump control: machine movement speed changes unexpectedly under load.

• Intermittent operation: hydraulic response may become unstable after warm-up, vibration or connector movement.

• Electrical fault symptoms: loose pins, damaged wiring, poor ground or low voltage may imitate solenoid valve failure.

• Oil contamination: dirty hydraulic oil may restrict valve movement or cause sticking.

Troubleshooting Before Replacement

• Check the original valve marking and connector type before ordering a replacement.

• Inspect the connector for oil contamination, corrosion, loose pins or broken locking tabs.

• Check wiring harness condition, ground connection and power supply.

• Inspect hydraulic oil condition and replace filters if contamination is present.

• Confirm whether the issue is caused by the solenoid valve, pump control circuit, wiring or hydraulic contamination.

Installation and Maintenance Notes

• Stop the engine and release hydraulic pressure before removal.

• Disconnect electrical power before unplugging the solenoid connector.

• Clean the valve mounting area to prevent contamination from entering the hydraulic system.

• Do not pull the wire harness directly; release the connector lock first.

• Install the valve carefully and confirm the connector is fully locked.

• After installation, check for leakage, warning symptoms and stable hydraulic response under light-load operation.

Fitment Check Before Ordering

To reduce wrong orders, please send the machine model, machine serial number, old valve marking, connector photo, mounting photo and full valve body photo before quotation.

FAQ

Is 096-5945 used for Caterpillar E200B excavators?

Yes. Public supplier references commonly list 096-5945 / 0965945 for Caterpillar E200B excavator hydraulic pump solenoid valve applications. Final fitment should be verified by the old valve marking and connector.

What is the relationship between 096-5945 and 0965945?

0965945 is the non-hyphen writing format of 096-5945. Both formats may appear in supplier listings, parts searches and maintenance records.

What related reference numbers may appear?

Related public references may include CA0965945 and H0965945. These numbers should be checked against the original valve marking and physical configuration before ordering.

Which models are commonly listed for this valve?

Common model references include Caterpillar E200B, E110B, E120B, E70B and EL200B. These should be treated as fitment references only.

What should be checked before ordering?

Please check the old valve marking, connector type, voltage, wiring plug, mounting style and machine serial number. Clear photos of the old valve are recommended.

Can electrical problems look like solenoid valve failure?

Yes. Loose connector pins, damaged wiring, poor grounding, low voltage or oil contamination can cause symptoms similar to a failed solenoid valve.
