106-0180 309-5768 Pressure Switch for Caterpillar 320B 325B 330B

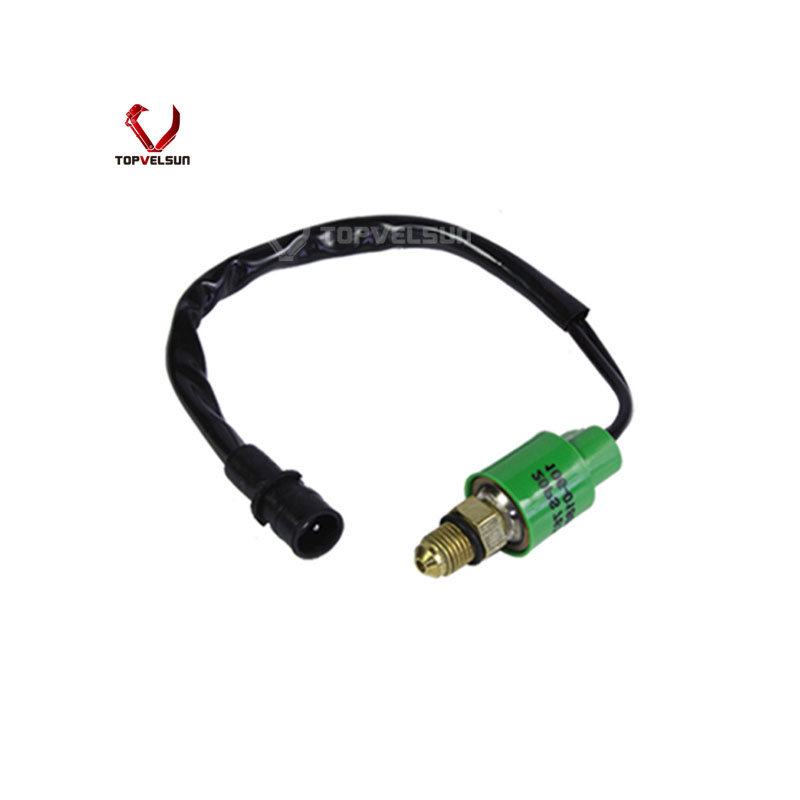

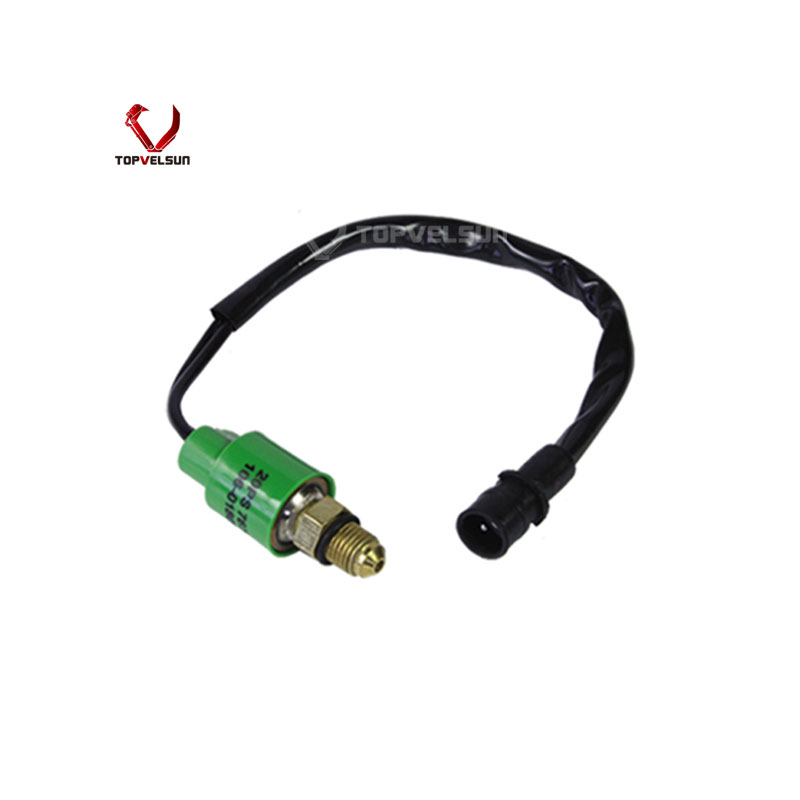

106-0180 Pressure Switch Sensor for Caterpillar Excavator

The 106-0180 pressure switch sensor is supplied for Caterpillar excavator hydraulic pressure signal and electrical system repair. It is commonly searched as 106-0180, 1060180, 309-5768, 3095768, pressure switch, pressure sensor, pilot line pressure switch or excavator pressure switch for Caterpillar E320B, E325B, E330B and E345B machine references.

This page focuses on 106-0180 as the main part number. 1060180 is the no-hyphen search format. 309-5768 and 3095768 can be used as important reference numbers for checking, but final fitment should be confirmed by the old sensor number, connector type, thread size, pressure port, installation position and machine information before ordering.

Machine Reference for Caterpillar Excavators

Common machine references for this pressure switch sensor include Caterpillar E320B, E325B, E330B and E345B excavators. These model references should be used as fitment clues only, not as the only confirmation standard.

Machine model alone is not enough for final confirmation. Pressure switches may vary by connector shape, plug type, thread size, pressure range, installation position and hydraulic circuit location. The old sensor number and connector photos are more reliable than the model name alone.

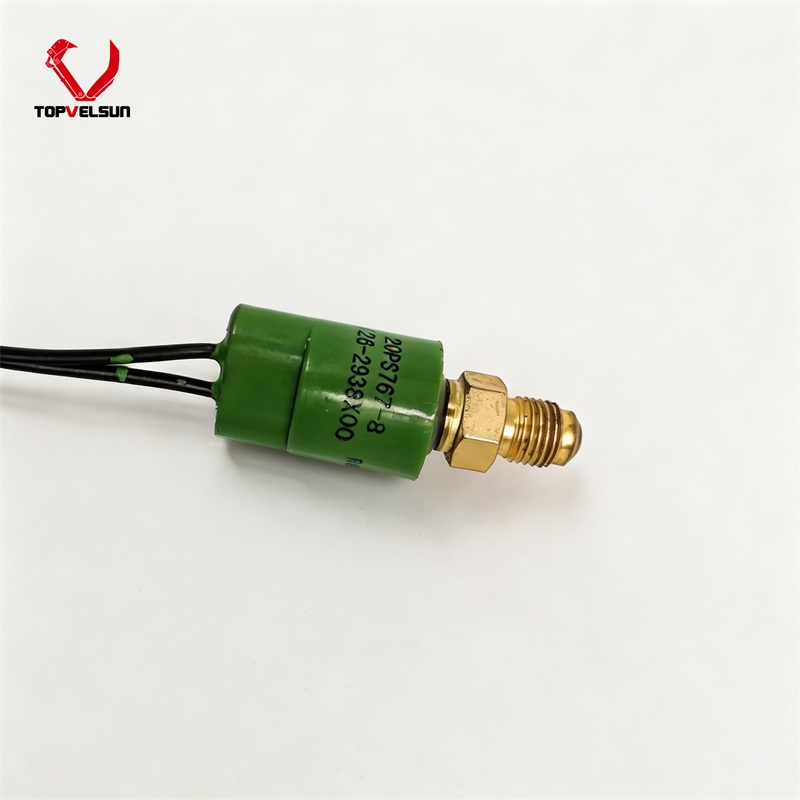

If your old part number is 309-5768 only, please compare the old switch carefully before ordering. 309-5768 is also used as a Caterpillar pilot line pressure switch reference in other machine applications, so it should not be treated as a universal replacement without checking the old part and installation position.

Part Number and Interchange Notes

106-0180 is the main part number of this product page. It should stay visible in the SEO Title, H1, top parameters, first paragraph, product body and image ALT text.

1060180 is the no-hyphen writing format of 106-0180. 309-5768 and 3095768 can be used as reference numbers for this pressure switch direction. These numbers should support the 106-0180 signal rather than replace it as the primary page focus.

Do not describe 106-0180 and 309-5768 as universal for all Caterpillar excavators. Similar Caterpillar pressure switches can differ by plug shape, pressure range, thread specification, circuit position and machine generation. Related numbers such as 356-7685 or 170-9335 should only be used as checking references when the old sensor and connector match.

How to Confirm the Correct Pressure Switch Sensor

Pressure switch sensors can look similar in product photos, but small differences in connector type, pin layout, thread size, pressure port and pressure range may affect installation. Please compare the removed sensor before ordering.

• Confirm whether the old sensor number is 106-0180, 1060180, 309-5768 or 3095768.

• Check whether the machine reference is Caterpillar E320B, E325B, E330B or E345B.

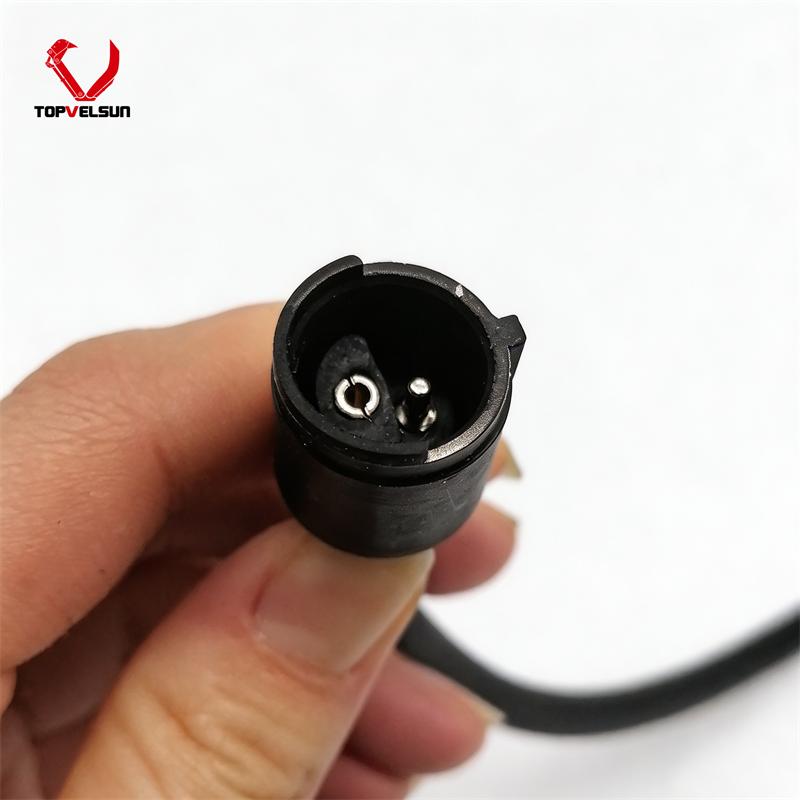

• Compare the connector shape, plug type and pin layout.

• Check the thread size, pressure port and installation position.

• Confirm whether the switch belongs to the correct hydraulic pressure signal circuit.

• Send photos of the old sensor number, connector side, thread side, pressure port and machine nameplate before quotation if you are not sure.

Common Pressure Switch Failure Symptoms

A pressure switch sensor may need replacement when the excavator has abnormal pressure warning, unstable pressure signal, electrical fault code, intermittent signal output, damaged connector, oil leakage around the switch port or poor contact after vibration.

Before replacing the pressure switch, check the related wiring harness, connector, ground circuit, hydraulic pressure condition and controller input. Some signal problems may be caused by wiring damage, oil contamination or hydraulic system faults rather than the switch itself.

If the old switch was damaged by oil leakage, water, corrosion, unstable voltage or incorrect installation torque, the root cause should be corrected before installing the replacement pressure switch. Otherwise, the new switch may fail again.

Installation and Testing Notes

Before installation, turn off the machine power and release system pressure according to the repair procedure. Do not force the connector or thread if the shape, pin layout or thread size is different.

After installation, check the connector lock, wiring condition and sealing area. Start the machine and inspect whether the pressure signal, warning display and related system response return to normal.

If the fault remains after replacement, inspect the wiring harness, controller input, hydraulic pressure, oil contamination and related system components before assuming the new pressure switch is defective.

Buying Notes for Repair Shops and Parts Distributors

For repair shops, this 106-0180 / 309-5768 pressure switch sensor is suitable for Caterpillar excavator pressure signal repair when the old switch is damaged, leaking, corroded or has unstable electrical output.

For parts distributors, it can be supplied as a Caterpillar excavator pressure switch reference for repair demand. Topvelsun supports small repair orders and bulk inquiries. Please send the required quantity, old sensor number, machine model, serial number and photos of the old switch from multiple angles.

FAQ

What is the main product on this page?

This page is for the 106-0180 / 309-5768 pressure switch sensor used for Caterpillar excavator hydraulic pressure signal repair.

Is 1060180 the same search format as 106-0180?

1060180 is the no-hyphen writing format of 106-0180. Buyers may search either format, so both formats can be kept on the page.

Can 309-5768 be used as a reference number?

309-5768 / 3095768 can be used as an important reference number for this pressure switch direction. It should not be treated as universal without checking the old switch number, connector, thread size and installation position.

Which Caterpillar models are the main references?

Common machine references include Caterpillar E320B, E325B, E330B and E345B excavators. Final confirmation should still be based on the old pressure switch number and physical structure.

Are 106-0180 and 309-5768 fully universal?

No. They should not be described as fully universal. They may appear together in market references, but the old sensor number, connector shape, pressure port, thread size and circuit position should be checked before replacement.

What should I send before ordering?

Please send photos of the old switch number, connector side, thread side, pressure port, installation position and machine nameplate. These photos help confirm whether 106-0180 / 309-5768 is the correct pressure switch.
