309-5795 3095795 Travel Valve Pressure Sensor for Caterpillar Excavator

309-5795 Travel Valve Pressure Switch for Caterpillar Excavator

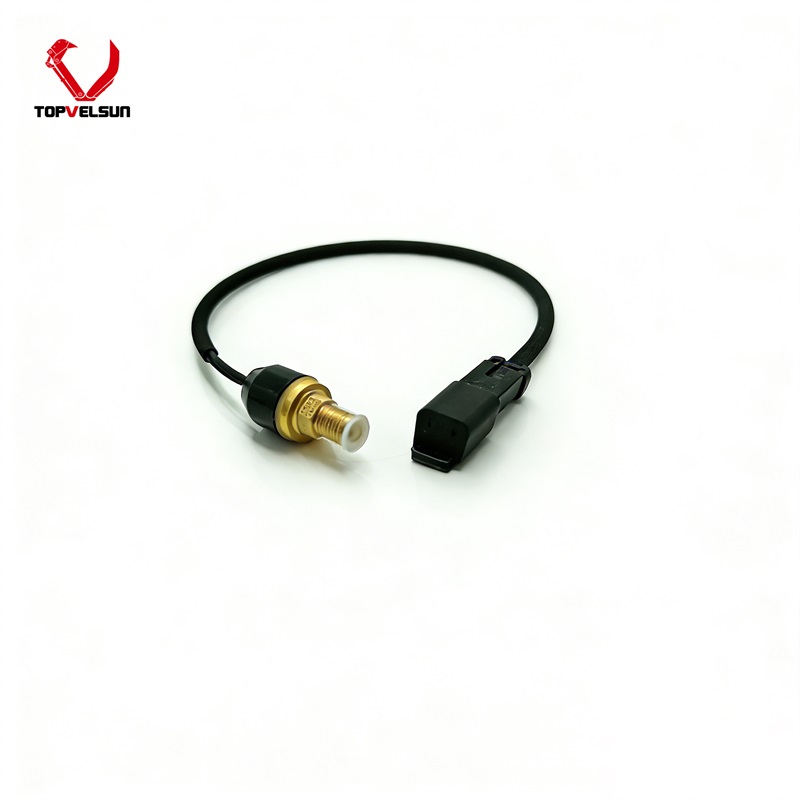

The 309-5795 / 3095795 pressure switch is used for Caterpillar excavator travel valve hydraulic pressure detection applications. It is commonly searched as a travel valve pressure switch, hydraulic pressure sensor, pressure switch or travel control pressure sensor for CAT excavator repair.

This page focuses on 309-5795 as the main part number. Before ordering, the removed switch should be checked by old part number, connector shape, thread size, voltage range, sealing condition, installation position and machine serial number.

Travel Valve Pressure Detection Function

The travel valve pressure switch detects hydraulic pressure in the travel valve circuit and supports machine travel control monitoring. Correct pressure signal feedback helps the control system recognize travel-related hydraulic pressure conditions during machine movement.

A faulty pressure switch may cause unstable travel response, travel-related warning signals, intermittent control issues or incorrect pressure status feedback. However, travel faults may also be caused by the travel motor, control valve, pilot pressure, wiring, hydraulic oil contamination or internal leakage.

Application and Model Reference

Common Caterpillar excavator references for 309-5795 include CAT 313B, 345C, 345C L, 345D, 345D L, 345D L VG, 349D and 349D L. These model names should be used as checking references only.

Final fitment should be confirmed by the old switch number, machine serial number, travel valve location, connector shape and thread size. Do not select the switch by machine model name alone if the old part number is missing or unreadable.

Connector, Voltage and Thread Notes

Public catalog and supplier references commonly describe this switch as a 309-5795 travel valve pressure switch. Your current product information also lists a 12–32V DC operating range, 7/16-20 UNF external thread and alloy brass body reference.

These technical details should be checked against the removed switch before shipment. Similar Caterpillar pressure switches may look close but use different thread, connector, pressure range or signal type.

Part Number and Cross Reference Notes

The main part number for this page is 309-5795. The no-hyphen format 3095795 is also commonly used in buyer searches and aftermarket catalogs.

Some public listings may mention 106-0179 or 106-0179X03 together with 309-5795 in Caterpillar pressure switch search results. These numbers should be used as catalog checking references only and should not be treated as automatic replacements without checking the old switch, connector, thread and machine serial number.

To keep this product page focused, 309-5795 should remain the primary search signal. Related numbers should only support inquiry checking, not replace physical confirmation.

How to Identify the Correct 309-5795 Switch

• Check whether the removed switch number matches 309-5795 or 3095795.

• Confirm that the switch is installed in the travel valve hydraulic pressure circuit.

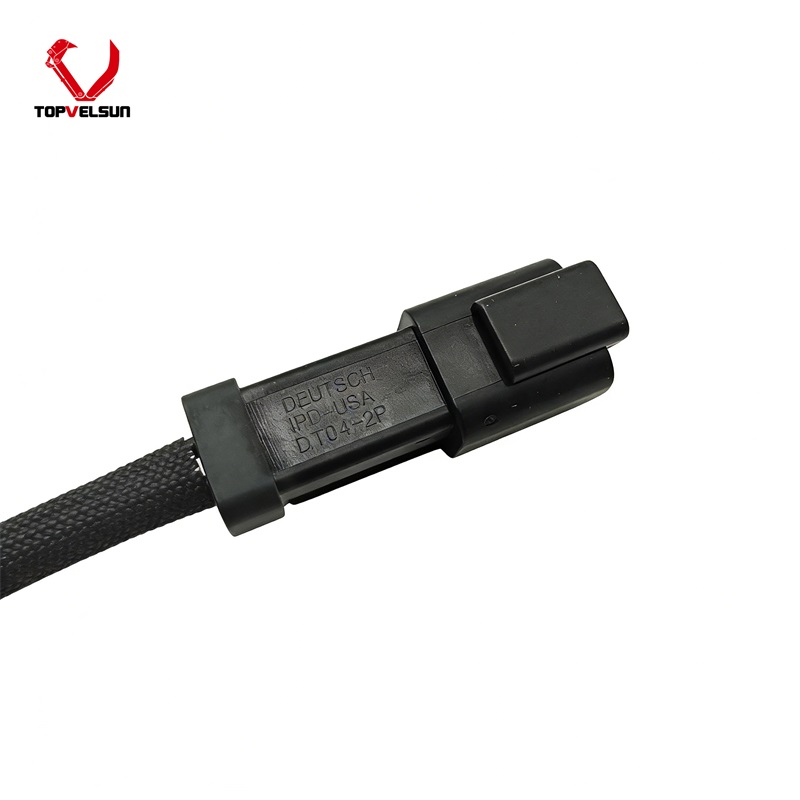

• Compare connector shape, pin layout and wiring harness condition.

• Check thread size, sealing surface and O-ring or sealing washer condition.

• Verify voltage range and signal type before installation.

• Confirm machine model and serial number before quotation or shipment.

Common Failure Symptoms

• Intermittent travel response caused by unstable pressure signal feedback.

• Travel-related warning or fault code on the machine monitor.

• Incorrect travel pressure status signal even when hydraulic pressure is normal.

• Oil leakage around the switch thread, sealing surface or valve block port.

• Unstable signal caused by connector looseness, corrosion, oil contamination or damaged wiring.

• Repeated switch failure caused by hydraulic contamination, over-pressure, vibration or incorrect installation torque.

Troubleshooting Before Replacement

Before replacing the 309-5795 travel valve pressure switch, inspect the travel hydraulic circuit and electrical harness. A travel control problem may not always be caused by the switch itself.

• Check connector pins, wiring harness, ground condition and monitor fault code history.

• Inspect the travel valve area for oil leakage, loose fittings or damaged hydraulic lines.

• Verify whether actual travel pressure is normal before confirming switch failure.

• Check hydraulic oil cleanliness and filter condition if contamination is suspected.

• Inspect the travel motor, travel valve and pilot pressure if travel performance is weak or uneven.

• Confirm whether the fault follows the pressure switch or remains after electrical and hydraulic checks.

Installation and Maintenance Notes

• Turn off the machine and release hydraulic pressure before switch replacement.

• Clean the travel valve port area before removing the old switch.

• Compare the old and new switch number, connector, thread and sealing surface before installation.

• Replace damaged O-rings or sealing washers when required.

• Do not force the switch if thread size or connector shape is different.

• After installation, check for oil leakage, stable travel response and cleared fault codes.

• Maintain clean hydraulic oil and correct filter service intervals to reduce pressure switch contamination and false signals.

Fitment Check Before Ordering

To reduce wrong orders, please send the old switch number, CAT machine model, machine serial number, connector photo, thread photo, installation position photo, valve block photo and any visible markings before quotation.

FAQ

Q: What is 309-5795?

309-5795 is a Caterpillar travel valve pressure switch reference used for hydraulic pressure detection in the travel valve circuit.

Q: Is 309-5795 an engine oil pressure sensor?

This page should describe 309-5795 as a travel valve pressure switch rather than a general engine oil pressure sensor. The installation position and old switch number should be checked before ordering.

Q: Which CAT excavator models are common references?

Common references include CAT 313B, 345C, 345C L, 345D, 345D L, 345D L VG, 349D and 349D L. Final fitment should be verified by machine serial number and old switch details.

Q: Can 106-0179 replace 309-5795?

106-0179 may appear in some pressure switch listings with 309-5795, but it should be treated only as a catalog checking reference unless the old switch, connector, thread and pressure specification are confirmed.

Q: What should be checked before ordering?

Check the old switch number, connector shape, pin layout, thread size, voltage range, installation position, CAT machine model and machine serial number. Clear photos are recommended.
