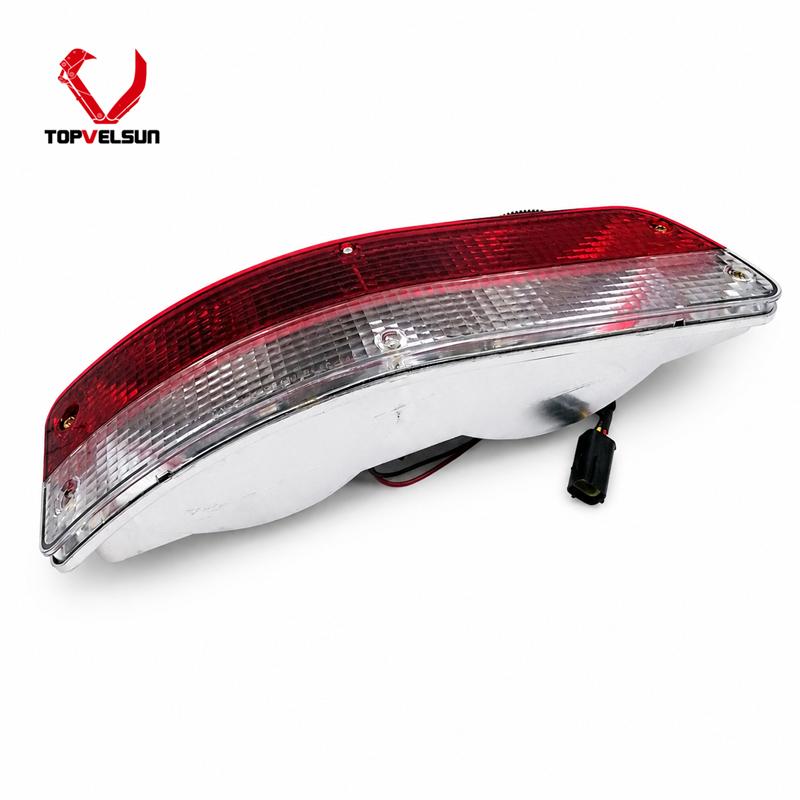

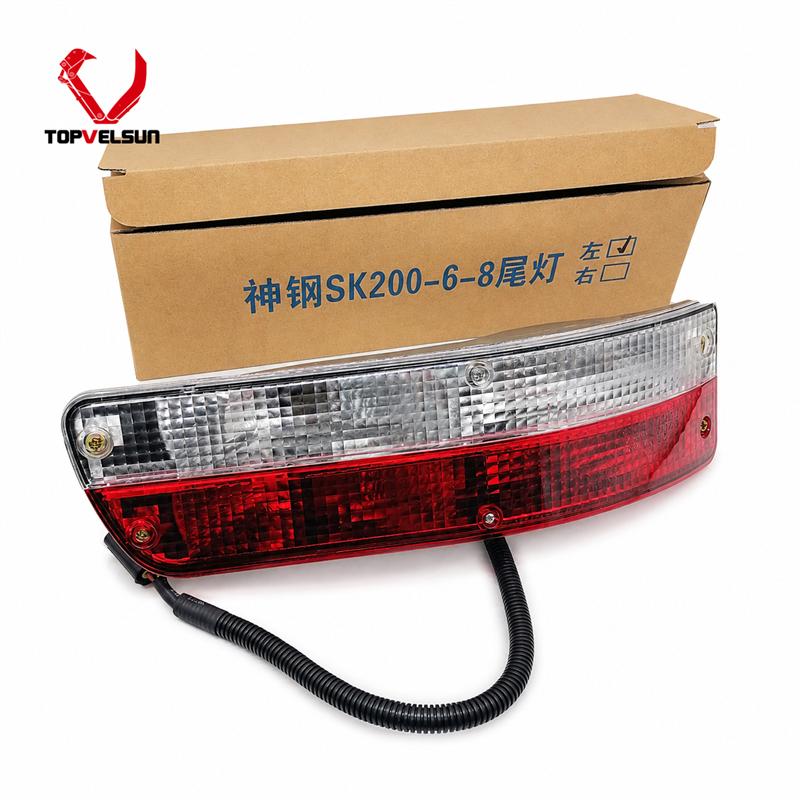

YM80S00001F1 Left Rear Tail Light for Kobelco SK200 SK210 Excavator

YM80S00001F1 Rear Lamp LH for Kobelco Excavator

The YM80S00001F1 rear lamp is used for Kobelco excavator rear lighting system applications. It is commonly searched as a rear lamp LH, left rear tail light, back light, rear combination lamp or flasher lamp LH for Kobelco excavator repair.

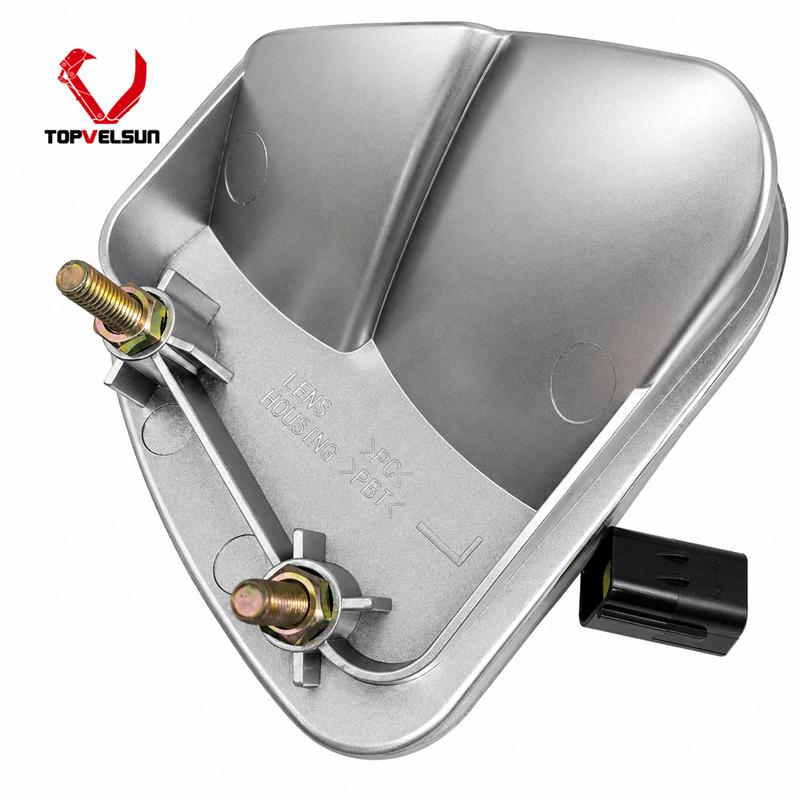

This page focuses on YM80S00001F1 as the main part number. Before quotation, the removed lamp should be checked by old lamp number, LH side direction, connector type, lens shape, mounting points, bulb holder position and machine serial number.

LH Rear Lamp Reference

YM80S00001F1 is used as the LH, or left-hand, rear lamp reference. The matching right-hand reference is YM80S00001F2, but the left and right lamps should not be treated as interchangeable because side direction, housing layout, connector direction and mounting position may differ.

Kobelco SK200 SK210 Application Reference

Common public model references for YM80S00001F1 include Kobelco SK200-6, SK200-8, SK210-8 and SK350-8 excavator groups. These model names should be used as checking references only because rear lamp configuration can vary by serial number, market version and lighting system arrangement.

Extended checking references may include SK170-8, SK170-9, SK200-6ES, SK200LC-6ES, SK210LC-8, SK250LC-6E, SK260, SK260-9, SK295-8, SK295-9, SK330LC-6E, SK350-9, SK480LC-6E, SK485-8 and SK485-9. These should not replace old lamp confirmation.

Part Number and Side Direction Notes

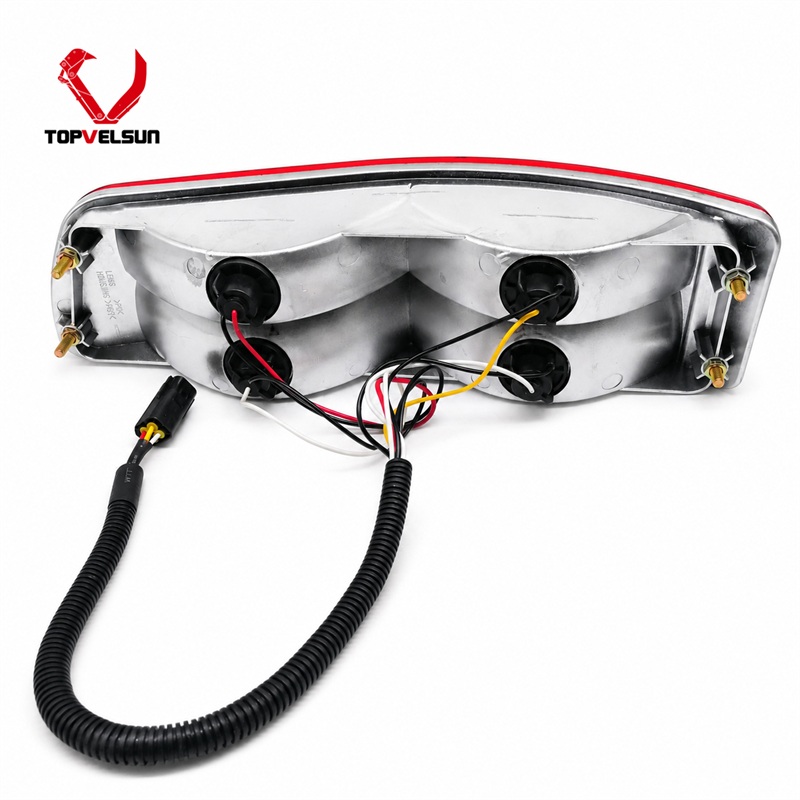

The main part number for this page is YM80S00001F1. Public electrical component references describe YM80S00001F1 as a flasher lamp LH reference, while YM80S00001F2 is listed as the corresponding flasher lamp RH reference.

Rear Lamp Function

A rear lamp is installed at the rear lighting position of the excavator upper structure. Depending on machine configuration, it may support rear lighting, flasher or signal-related functions through the machine wiring harness.

Installation and Checking Notes

• Turn off machine power before removing or installing the rear lamp assembly.

• Confirm LH lamp orientation before installation.

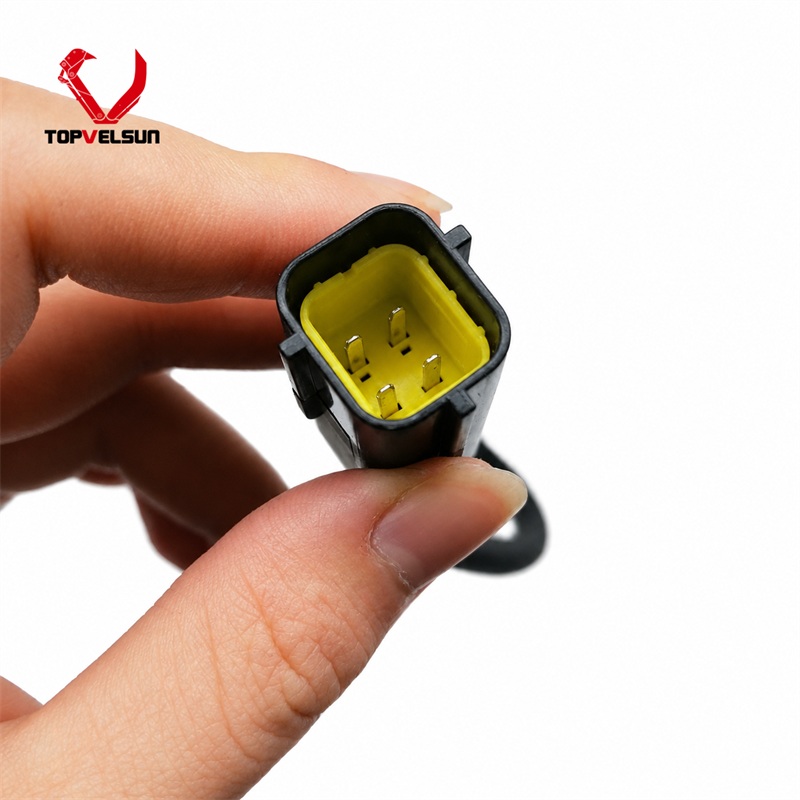

• Check wiring harness, connector pins and bulb holder condition.

• Do not force installation if mounting points or connector direction are different.

• After installation, test rear lamp, flasher and related lighting functions according to machine configuration.

• Check lamp sealing and mounting stability after replacement.

FAQ

Q: Is YM80S00001F1 the left rear lamp?

Yes. YM80S00001F1 should be used as the LH, or left-hand, rear lamp reference. The old lamp and machine serial number should still be checked before quotation.

Q: Is YM80S00001F2 the same as YM80S00001F1?

No. YM80S00001F2 is the matching RH, or right-hand, rear lamp reference. It should not be treated as a replacement for YM80S00001F1.

Q: Which Kobelco models are common references?

Common checking references include Kobelco SK200-6, SK200-8, SK210-8 and SK350-8. Extended references should be verified by old lamp number and machine serial number.
