203-06-56140 work lamp assembly for Komatsu PC200-5 PC220-5

  • 203-06-56140 work lamp assembly for Komatsu PC200-5 PC220-5

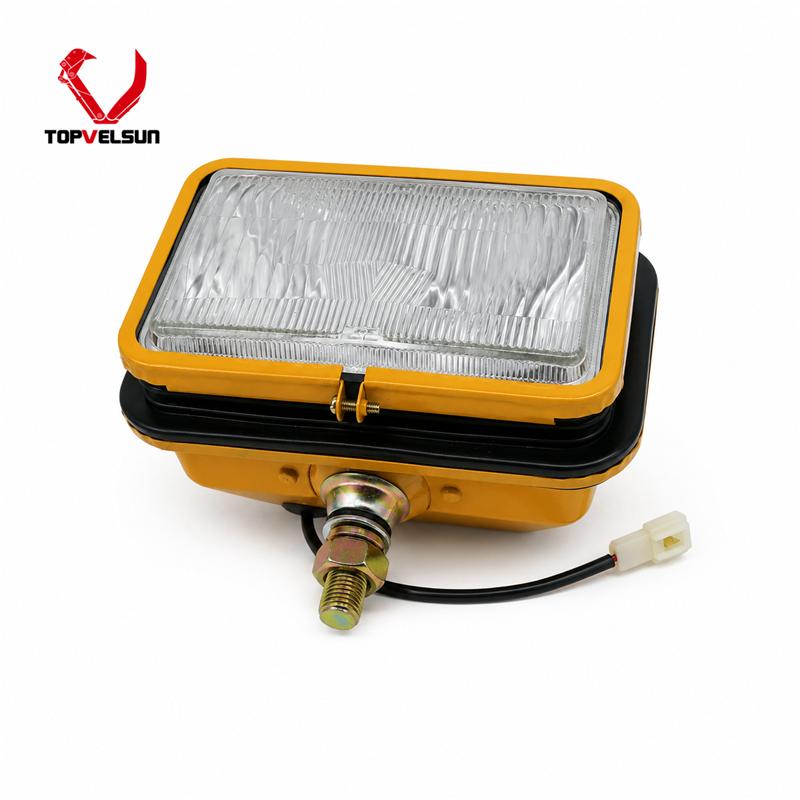

  • 2030656140 24V 100W H3 work lamp for Komatsu excavator

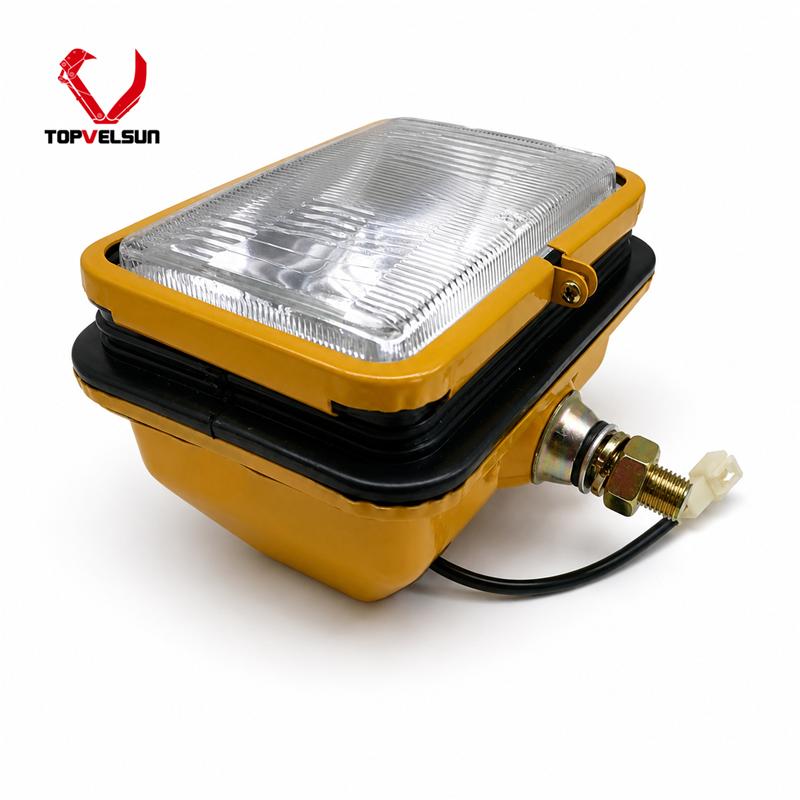

  • Komatsu PC200-5 work lamp 203-06-56140 front lens view

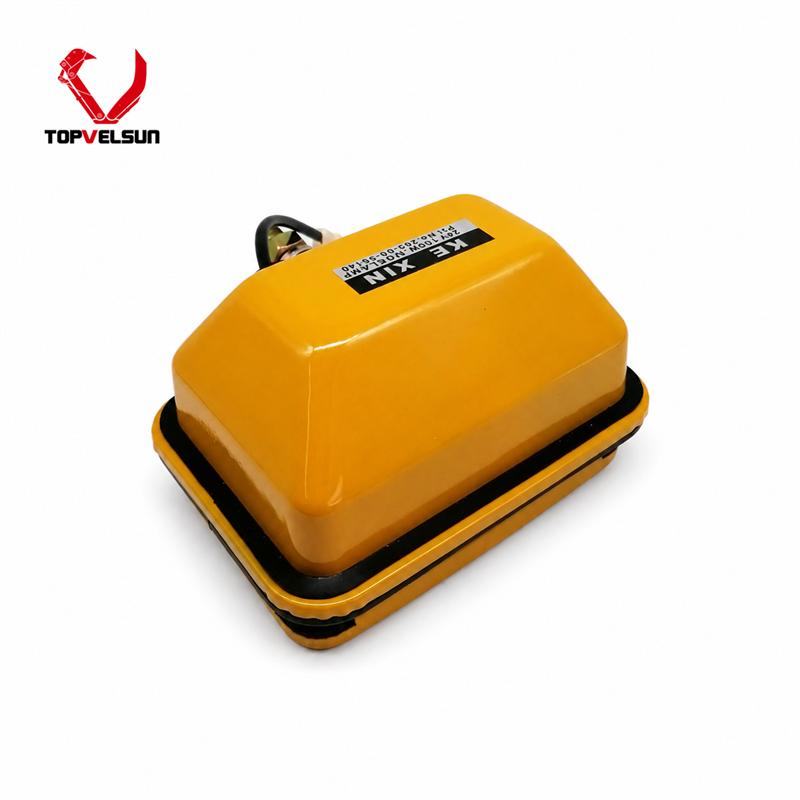

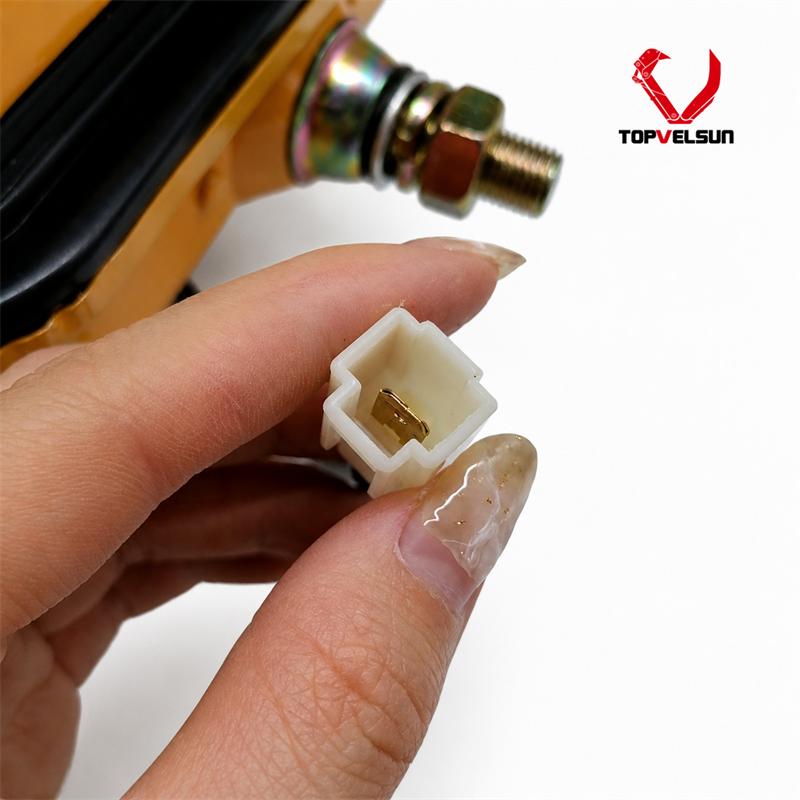

  • 203-06-56140 work lamp connector and mounting stud detail

  • Komatsu excavator rectangular work lamp assembly 203-06-56140

203-06-56140 2030656140 24V Work Lamp Assembly for Komatsu

Part Number: 203-06-56140

Cross Ref: 195-06-44121 / 17A-06-17920

MOQ: 1 Piece

Voltage: 24V

Power: 100W

Bulb Type: H3 style work lamp reference

Product Type: Work Lamp Assembly / Lamp Assembly

Compatible: Komatsu PC200-5 PC220-5 PC300-5 PC400-5 excavator references

Get a Quote for 203-06-56140 Next Product

Product Description

203-06-56140 Work Lamp Assembly for Komatsu

The 203-06-56140 / 2030656140 work lamp assembly is used for Komatsu electrical lighting system applications. It is commonly searched as a Komatsu work lamp, working lamp, lamp assembly or working rear lamp for excavator and construction equipment repair.

This page focuses on 203-06-56140 as the main part number. The lamp shown is a 24V 100W H3 style work lamp with a rectangular lens, bottom mounting stud and single-pin connector. Final confirmation should be made by the old lamp number, connector, voltage, bracket and installation position.

Komatsu PC200-5 PC220-5 Application Reference

Common model references include Komatsu PC200-5, PC220-5, PC300-5 and PC400-5 excavators. Some public parts listings also mention PC100-5, PC120-5, PC130-5, PC150-5, PC60-6, PC70-6, PC1000-1, PC1600-1 and PC1800-6 as checking references.

Because this lamp can appear in different Komatsu lighting positions, the machine model alone is not enough for quotation. Please compare the removed lamp, wiring connector, mounting stud, bracket direction and lamp size before shipment.

Part Number and Checking Notes

Main Part Number203-06-56140
Product NameWork Lamp Assembly / Lamp Assembly
Related References195-06-44121 / 17A-06-17920, verify by old lamp and physical details
Visible Lamp Specification24V 100W H3 style, verify with the actual lamp supplied

Information Needed Before Quotation

  • Old lamp part number or clear label photo.

  • Komatsu machine model and serial number.

  • Voltage, bulb type and connector photo.

  • Front lens photo, rear housing photo and mounting bracket photo.

  • Required installation position, such as rear work lamp, boom work lamp or machine lighting position.
