HVD-1B-32-16.8/5.0-XX (PVD-1B-32P) excavator hydraulic pumps for 3.5-Ton Serial

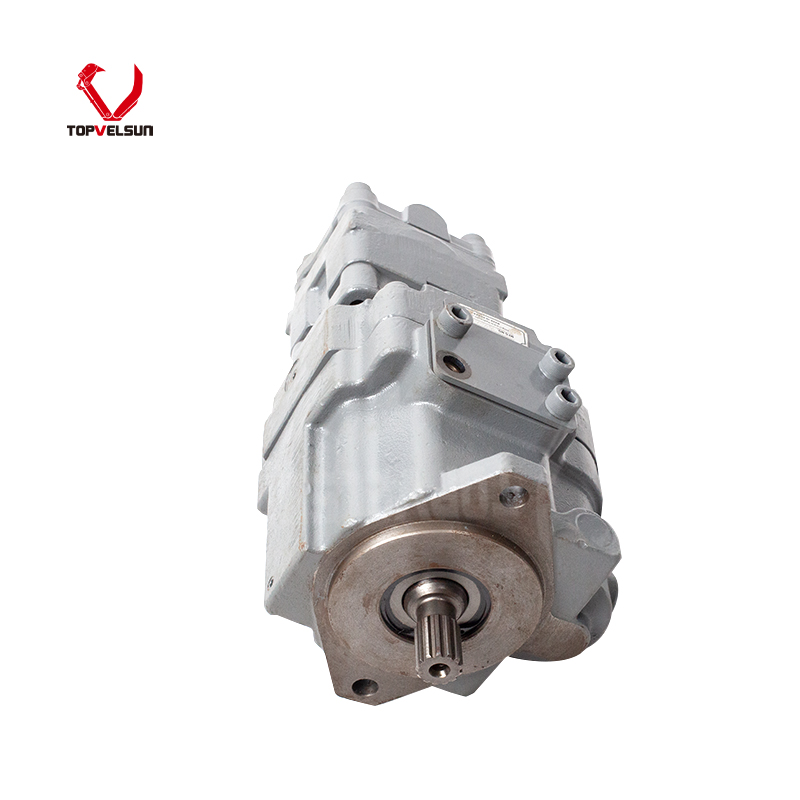

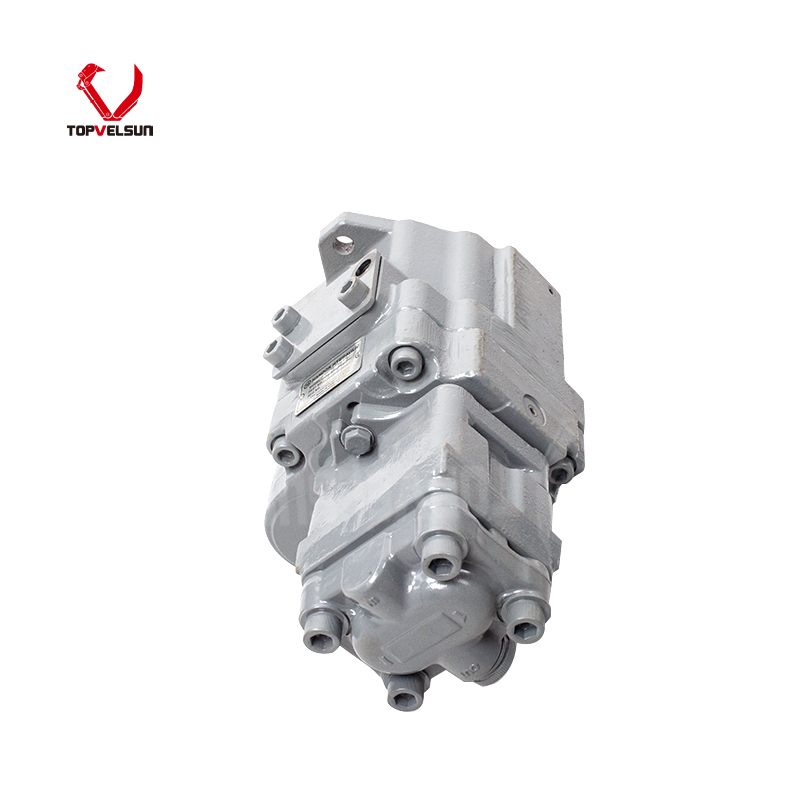

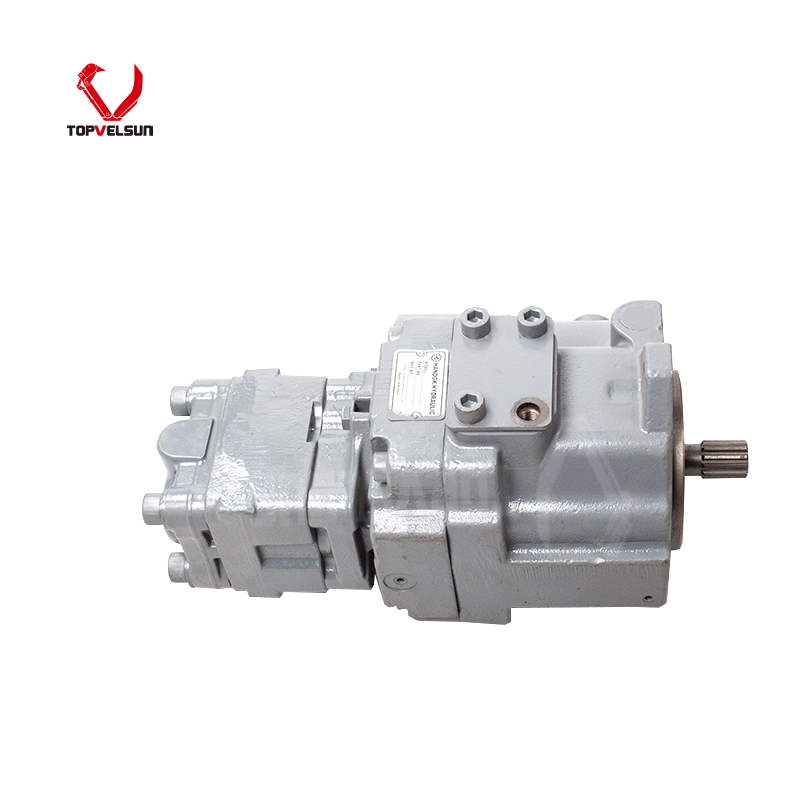

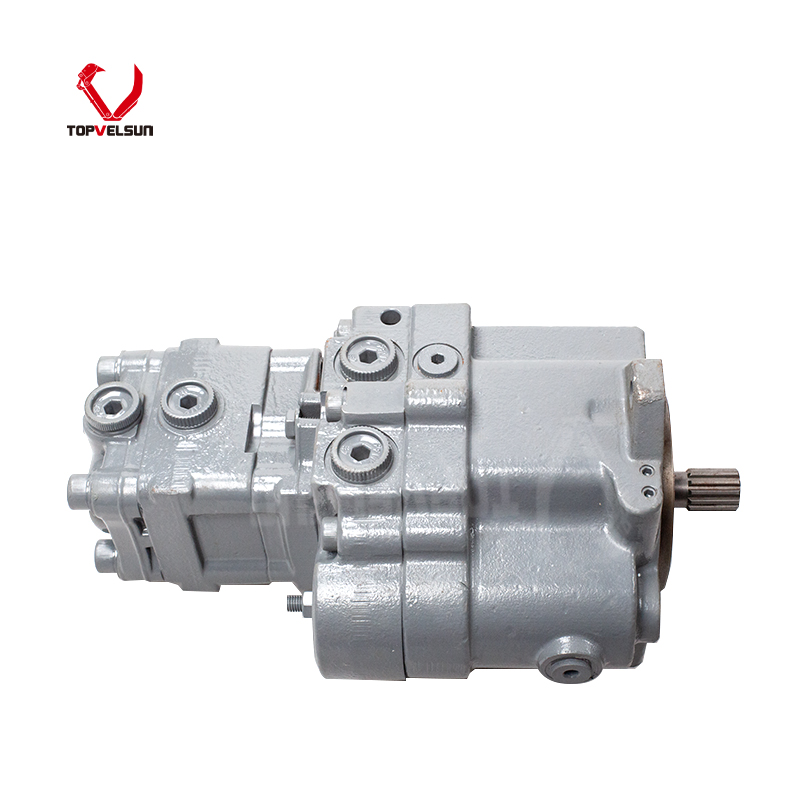

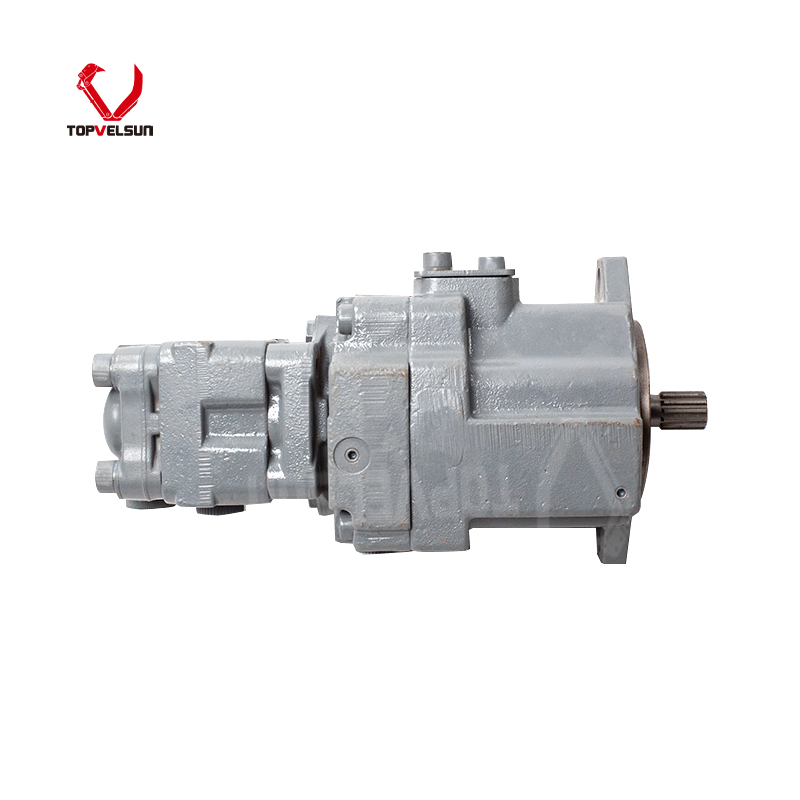

HVD-1B-32-16.8/5.0-XX / PVD-1B-32P Excavator Hydraulic Pump

The HVD-1B-32-16.8/5.0-XX is an aftermarket excavator hydraulic pump supplied for 3.5-ton compact excavator applications. It is listed on this page with cross-reference numbers PVD-1B-32P and PVD-1B-32P-11G5-4191A, and is commonly used for compact excavator models such as Kubota U35, Kubota KX71-3, Bobcat 331, Bobcat 334 and Volvo EC35.

For contractors working in landscaping, municipal trenching, utility repair and small construction jobs, the main hydraulic pump directly affects digging force, travel response and joystick control. When the original pump loses efficiency, the machine may still run, but cycle times become slower and the jobsite starts losing money. This replacement pump is intended to help restore hydraulic performance while reducing downtime and parts sourcing cost.

Cross Reference and Fitment Verification

This pump is supplied as a replacement option for PVD-1B-32P and PVD-1B-32P-11G5-4191A references. Before ordering, please verify the original pump plate, shaft type, port layout, mounting dimensions and machine serial number. Compact excavator hydraulic pump configurations may vary by production year, carrier model and hydraulic line arrangement.

Common Symptoms of Excavator Hydraulic Pump Failure

• Slow boom, arm or bucket movement: the machine responds late even when the joystick is fully operated.

• Weak digging force: the excavator cannot maintain normal breakout force under load.

• Travel weakness or drifting: the machine loses travel power, especially on slopes or during combined operation.

• Hydraulic oil overheating: internal leakage or pressure loss may increase heat generation.

• Abnormal pump noise: whining, cavitation sound or vibration may indicate oil starvation, air entry or internal wear.

Troubleshooting Before Replacing the Main Hydraulic Pump

• Check hydraulic oil level and oil condition: contaminated or low oil can damage the pump and imitate pump failure.

• Inspect suction lines and filters: blocked filters or air leaks can cause cavitation and noisy operation.

• Measure system pressure: confirm whether the issue is caused by pump wear, relief valve setting, control valve leakage or actuator leakage.

• Compare pump identification: match the original nameplate with HVD-1B-32-16.8/5.0-XX, PVD-1B-32P or PVD-1B-32P-11G5-4191A.

• Check port and shaft configuration: verify port orientation, spline, mounting center and pilot connections before installation.

Installation and Maintenance Notes

• Clean the hydraulic tank, suction line and return line before installing the replacement pump.

• Replace or inspect hydraulic filters to prevent old contamination from entering the new pump.

• Fill the pump case with clean hydraulic oil before first start-up where required by the service procedure.

• Do not run the pump dry. Start at low idle and check for abnormal noise, leakage and pressure fluctuation.

• After installation, test boom, arm, bucket, swing and travel functions under light load before returning the excavator to heavy-duty work.

Ordering Information

To reduce ordering risk, please send clear photos of the original pump nameplate, shaft, ports and mounting face. Our team can help check whether HVD-1B-32-16.8/5.0-XX / PVD-1B-32P is suitable for your compact excavator.

FAQ

Is this an excavator main hydraulic pump?

Yes. This page is for an excavator main hydraulic pump used in compact excavator hydraulic systems. It is listed with PVD-1B-32P and PVD-1B-32P-11G5-4191A cross-reference numbers.

Which machines should be verified before ordering?

This page lists Kubota U35, KX71-3, Bobcat 331, Bobcat 334 and Volvo EC35 as compatible references. Final fitment should be confirmed by original pump number, shaft type, port layout and machine serial number.

What information should I send for a fast quote?

Please send the original pump number, machine model, machine serial number, and photos of the pump plate, shaft, ports and mounting side.
